Professional 8-Channel 3-Bus Mic/Line Zone Mixer with Remote Control and Link Ports

• Ultra-flexible and easy-to-use zone mixer with remote control ports for commercial sound systems and fixed installation applications

• 6 ultra-low noise Mic/Line inputs with Gain control, -20 dB Pad, Level/Clip indicator, +48 V phantom power and bus-assign switches

• 2 selectable high-headroom stereo inputs with mono/stereo switch

• Channel 1 provides variable threshold to enable automatic bus mute for announcements, etc.

• 3 assignable outputs (Left, Right and Aux) with individual Master controls and 5-segment LED meters

• Ultra-musical 4-band master EQ and global microphone low-cut filter for perfect sound adjustment

• Left, Right, Aux and Mute bus links available including Master/Slave switch for connecting multiple units

• Remote master Left/Right level control port for ultimate flexibility

• Select switch for routing microphone bus post remote control

• Integrated channel muting system with Priority select

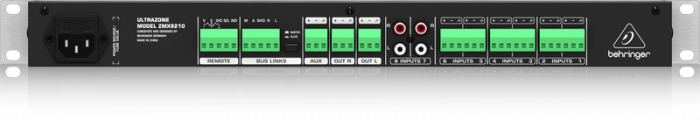

• Inputs/outputs on Euroblock and RCA connectors

• Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption

• Designed and engineered in Germany

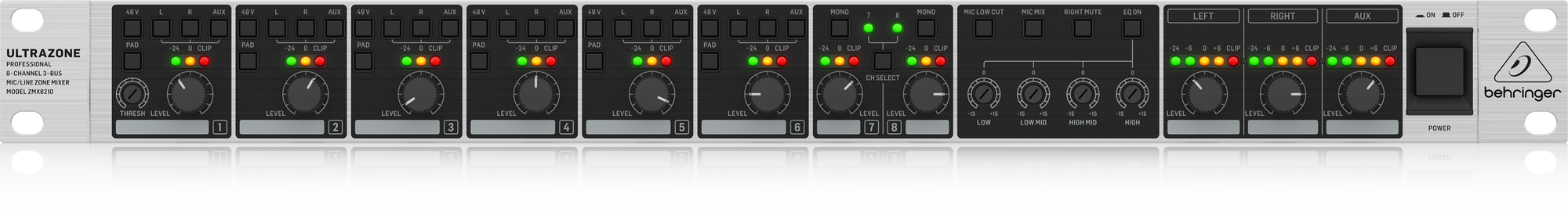

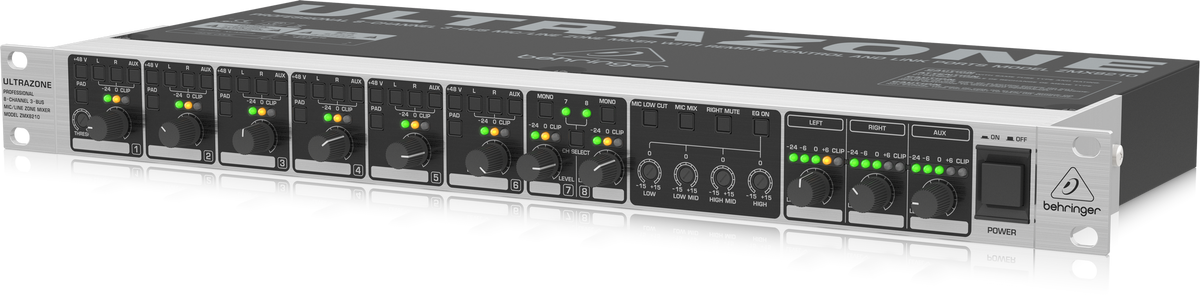

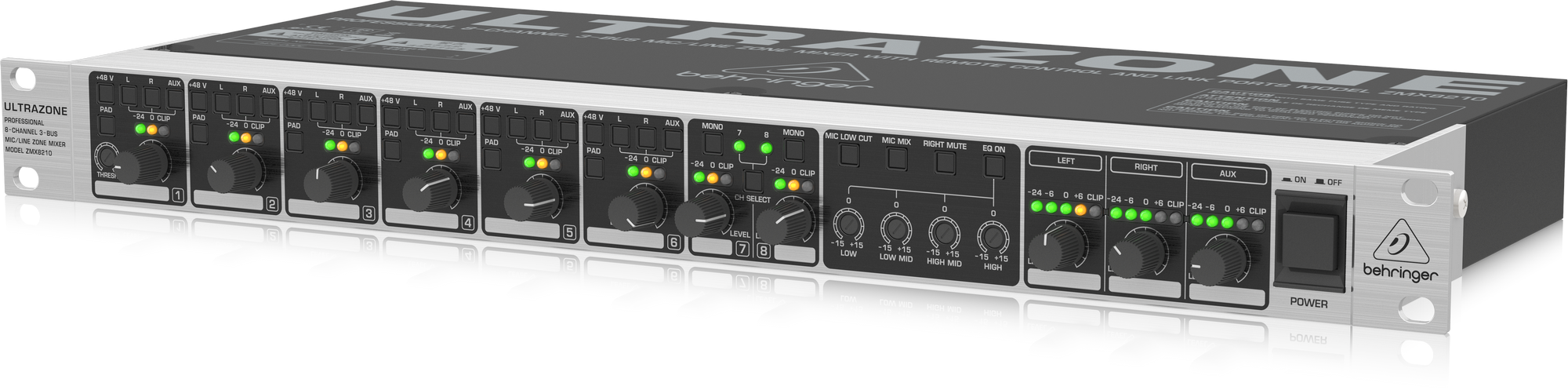

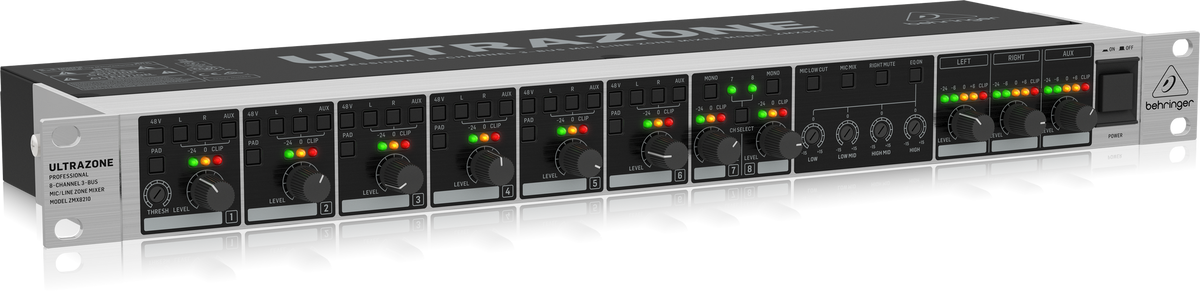

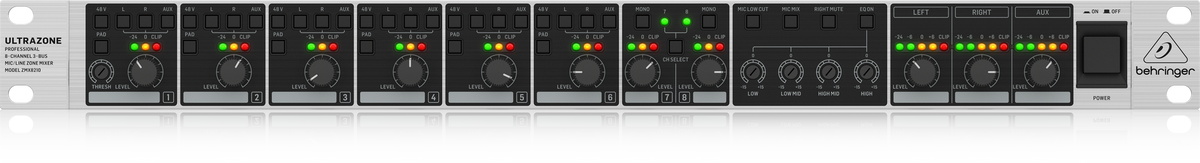

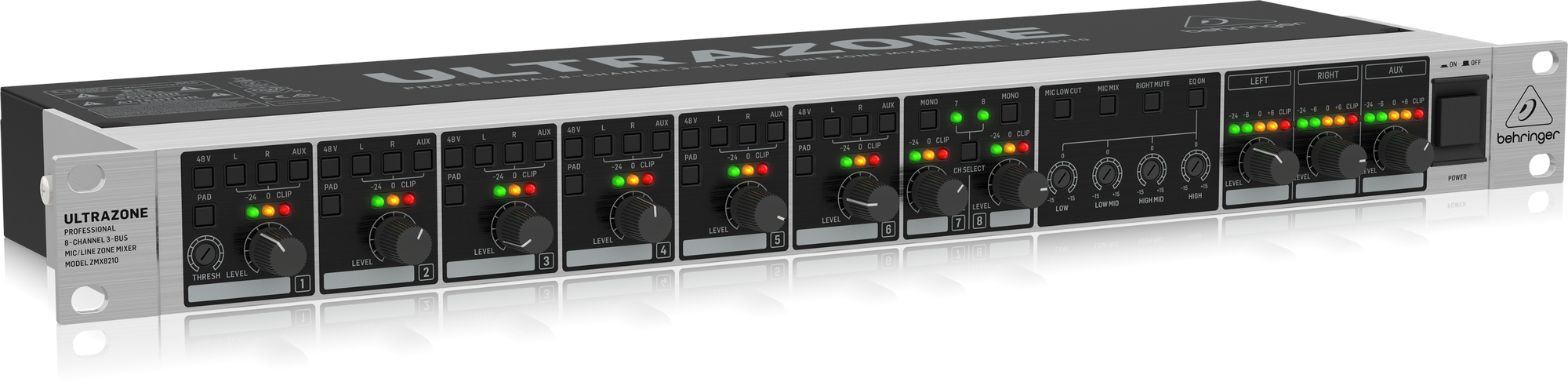

  A professional 8-channel audio mixer designed specifically for fixed installations, the rack-mountable ULTRAZONE ZMX8210 zone mixer can distribute your music programming and announcements to up to three zones (rooms). Typical applications include restaurants, office spaces, health clubs and houses of worship, just to name a few.



  Applications

  The ZMX8210 lets you take up to 8 input signals and route them to any, or all of 3 destinations. Maybe you want to play stereo music for clients waiting in the lobby of your office complex and page people in the work area. Another example might be the small church that wants to play soft music in the foyer, mic the preacher in the sanctuary, then send the sermon and music to the nursery. These are all perfect applications for the ZMX8210 – multiple sound sources, multiple zones, total flexibility!

  Here are some examples of the ZMX8210 mixer in action – let’s say you own a restaurant and want to:

  • Play the audio from the televised game in the bar
  • Present soft background music in the dining area
  • Play up-tempo music in the lobby/waiting area and page patrons

  The ULTRAZONE ZMX8210 is the ideal way to create the perfect environment for your customers, or even for distributing music throughout your own home.



  Announcements That Get Heard

  You can also set the ZMX8210 to automatically lower the volume level of the program music in specific zones during announcements. Referred to as “ducking”, this feature allows the voice message to take precedence over the musical program, without turning the music off completely. This ensures that even the softest voice will be heard in the selected zone(s). As an added benefit, remote volume controls can be installed in areas where even more control is needed.
