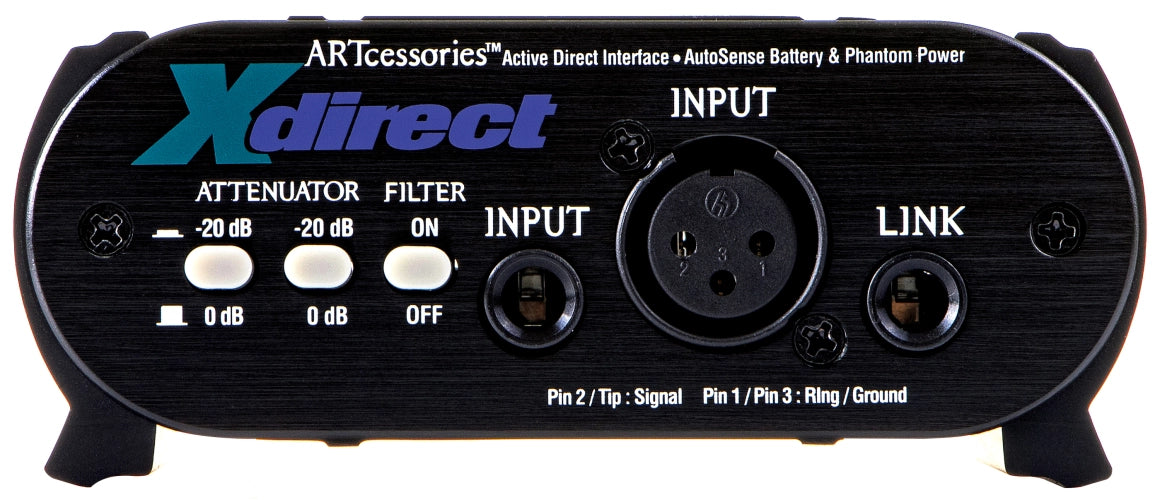

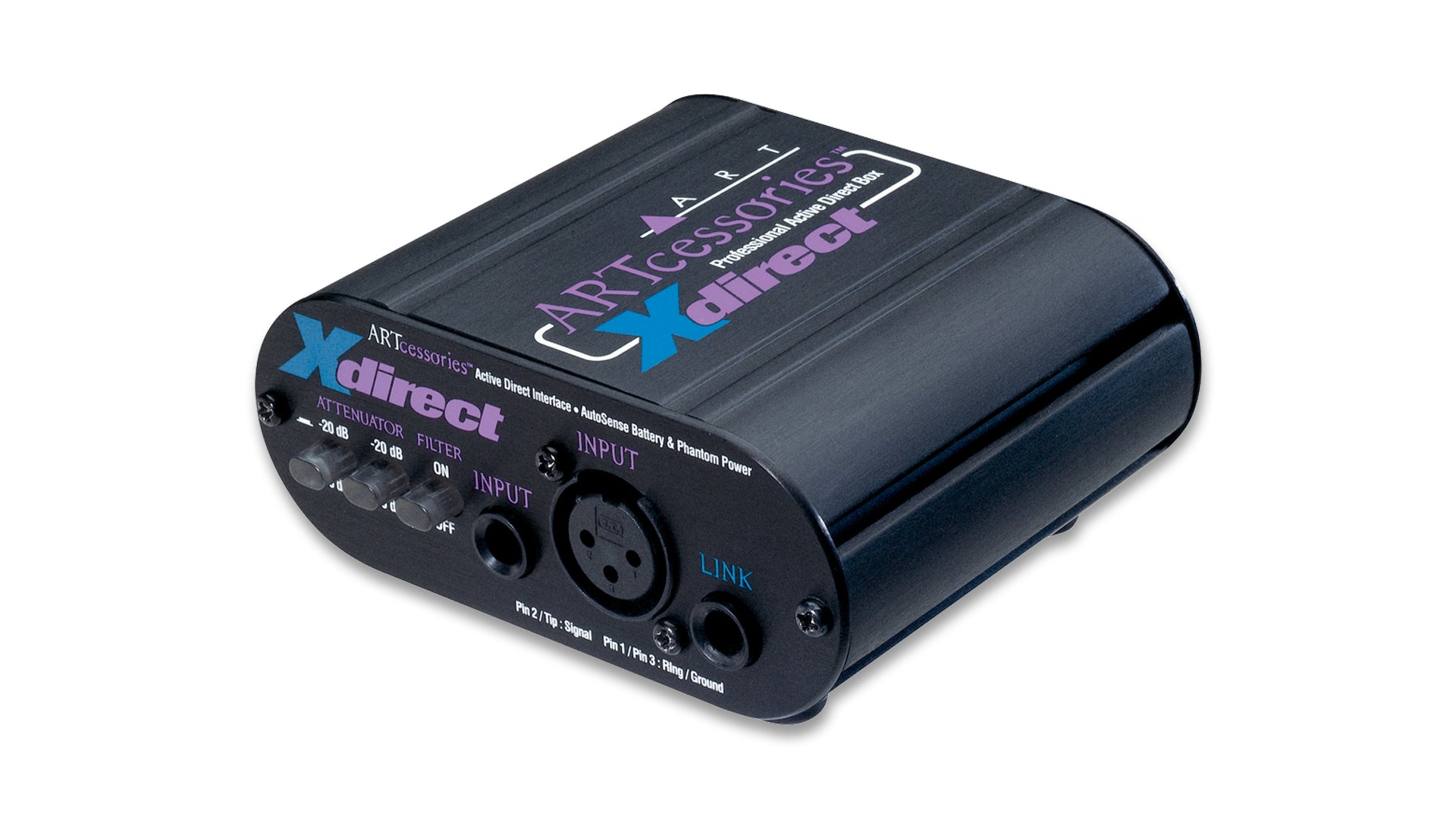

The Xdirect is a high quality interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input. The high impedance single-ended 1/4″ and XLR inputs are buffered and converted, by very low noise active electronics, into an isolated balanced low impedance signal source. The Xdirect has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low impedance output. This gives the Xdirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.
Features
- 1/4" TRS and XLR Inputs
- 1/4" TRS Thru Connector

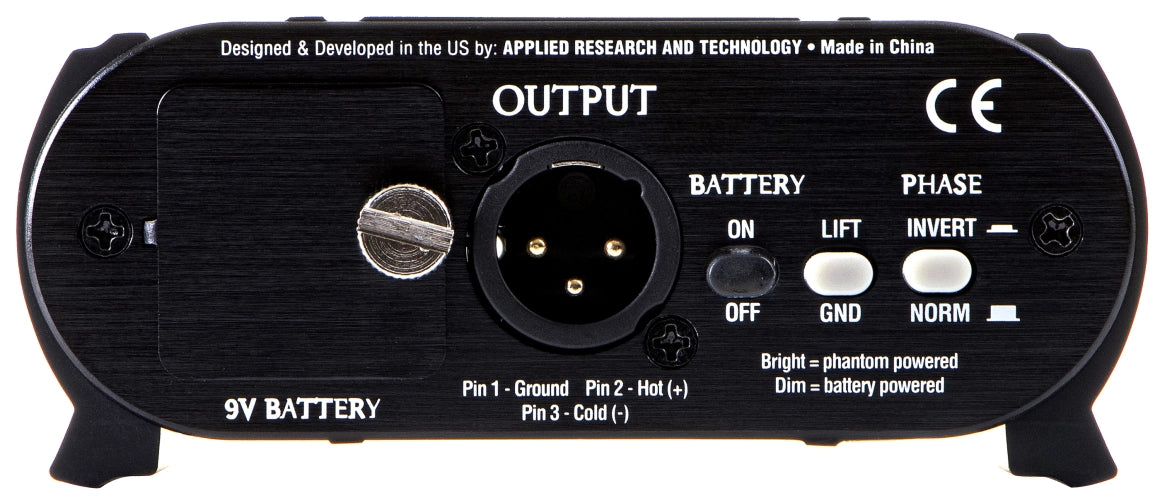

- Transformer-Isolated Balanced XLR Output
- Switchable Attenuation (0 dB, -20 dB, -40 dB)
- Switchable Low-Pass Filter, Ground Lift, and Phase Invert
- Powered by 9-Volt Battery (250+ Hours) or Phantom Power
X Direct – Professional Active Direct Box
The Xdirect is a high quality interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input. The high impedance single-ended 1/4″ and XLR inputs are buffered and converted, by very low noise active electronics, into an isolated balanced low impedance signal source. The Xdirect has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low impedance output. This gives the Xdirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.
Features
- 1/4" TRS and XLR Inputs
- 1/4" TRS Thru Connector
- Transformer-Isolated Balanced XLR Output
- Switchable Attenuation (0 dB, -20 dB, -40 dB)
- Switchable Low-Pass Filter, Ground Lift, and Phase Invert
- Powered by 9-Volt Battery (250+ Hours) or Phantom Power
The Xdirect is a high quality interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input. The high impedance single-ended 1/4″ and XLR inputs are buffered and converted, by very low noise active electronics, into an isolated balanced low impedance signal source. The Xdirect has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low impedance output. This gives the Xdirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.
Features
- 1/4" TRS and XLR Inputs
- 1/4" TRS Thru Connector
- Transformer-Isolated Balanced XLR Output
- Switchable Attenuation (0 dB, -20 dB, -40 dB)
- Switchable Low-Pass Filter, Ground Lift, and Phase Invert
- Powered by 9-Volt Battery (250+ Hours) or Phantom Power
