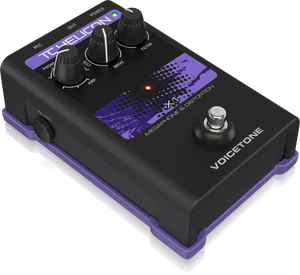

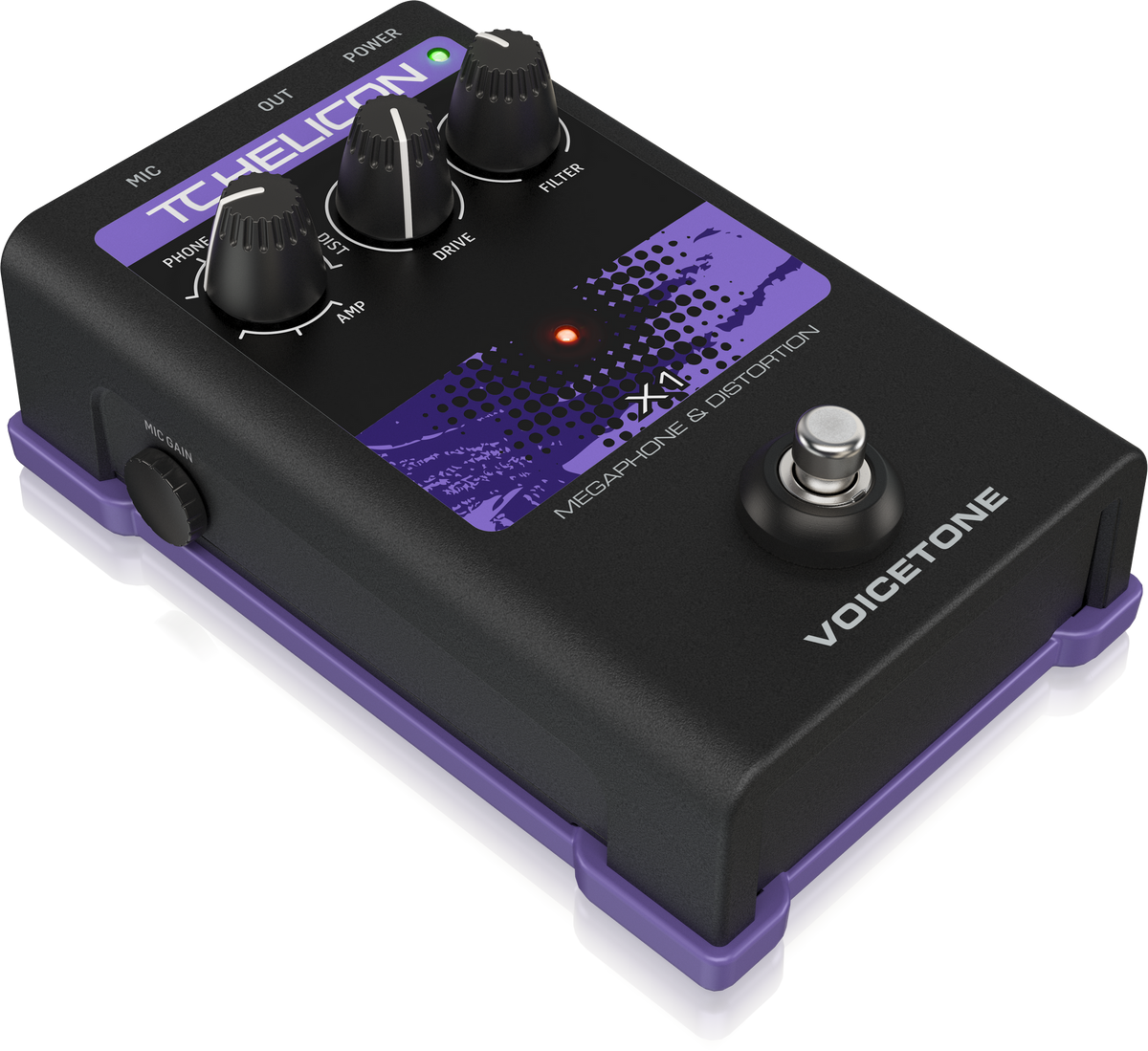

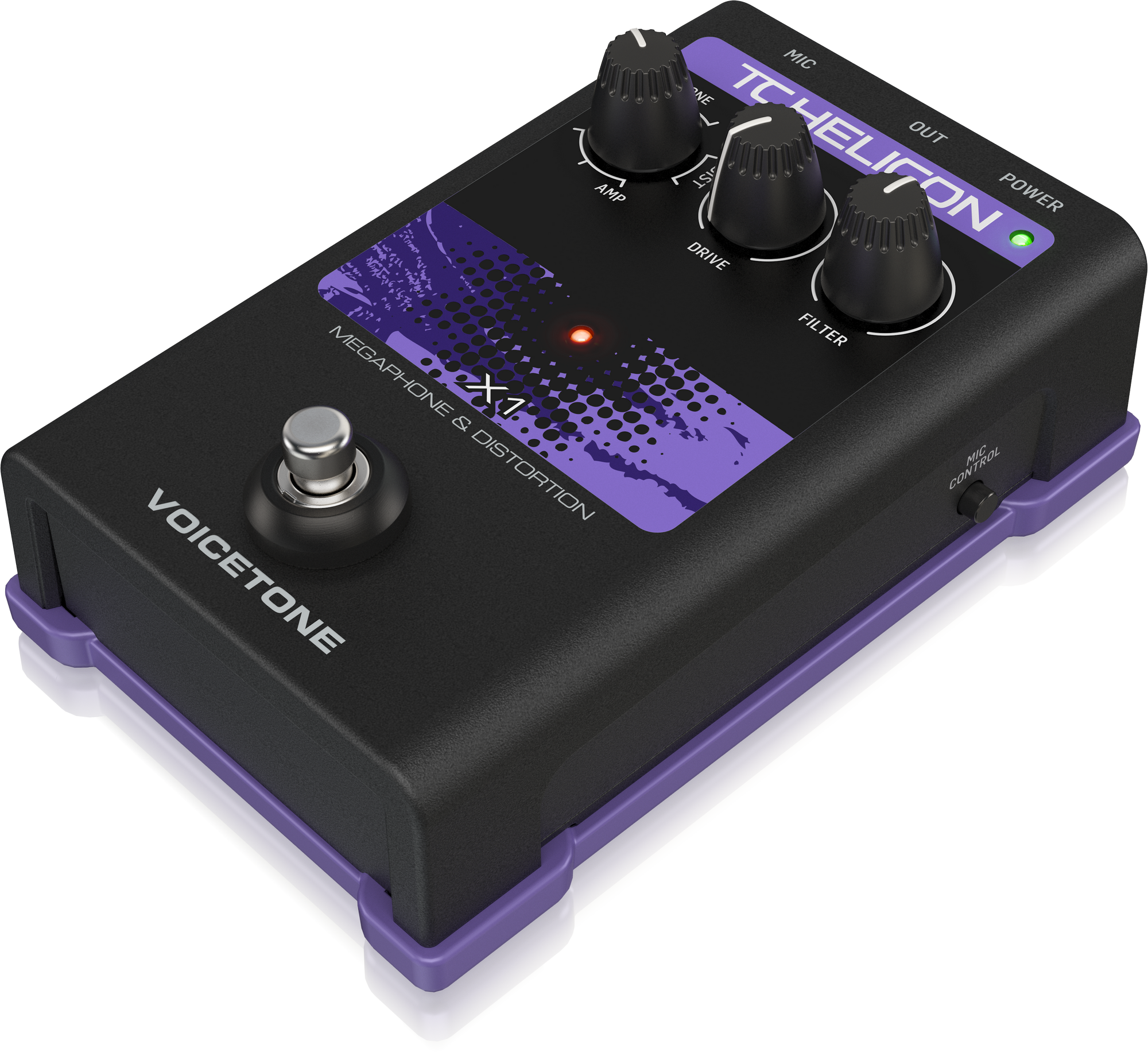

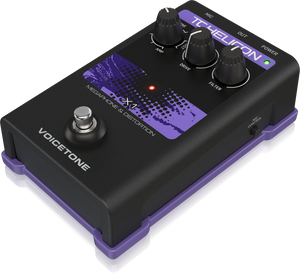

Single-Button Stompbox for Dramatic Megaphone and Distortion Vocal Effects
Product Features
-
Single-button vocal stompbox with megaphone and distortion filter effects for an extreme sound
-
Phone, distortion and amp preset categories offer a combined total of 8 intense styles
-
Filter and drive controls let you customize the sound to suit your performance
-
Simple 3-knob control gets you up and running in seconds
-
High-quality, low-noise mic preamp for pristine vocals
-
On/off foot switch for quick performance control
-
Allows chaining to other VOICETONE SINGLES vocal processors or DITTO MIC LOOPER to expand creative possibilities
-
Compatible with remote Mic Control using the TC Helicon MP-75 microphone
-
Rugged, road-worthy construction for years of dependable use
-
Power supply included
-
Designed and engineered in Canada
It’s Getting Intense
VOICETONE X1 brings a modern “down ‘n’ dirty” quality to live vocals with crackling megaphones and amplified vocal distortion effects. Punctuate a word, phrase or an entire song with these sounds. The Drive and Filter controls can be set to suit your voice and the song. Kick it on, kick it off – you’re in control!
It’s Just this Simple...
• Plug in your mic, plug your pedal into the mixer & set the gain
• Turn on the effect
• (That’s it)
Of course, you can always change the style or the amount of correction, but you shouldn’t need the manual – unless you’re making a fire!
Chain It
You can chain VOICETONE X1 to all of the other VOICETONE singles, mixing and matching effects to define your personal sound. It also works with DITTO MIC LOOPER, the pure looping pedal for singers and instrumentalists. Use the Singles Connect Kit (available separately) to mix and match up to 4 TC HELICON vocal effect pedals together conveniently, simply – and with less cable clutter than ever before.
Under The Hood
Beneath VOICETONE X1’s sturdy, die-cast metal case, you’ll be getting the same quality processing you’ve come to expect from our flagship VoiceLive vocal processors. You’ll also find a clean, quiet mic preamp that rivals high-end touring mixers, plus studio-quality analog to digital conversion. There’s even a USB connection for firmware updates.
Twisted, Warped & Contorted

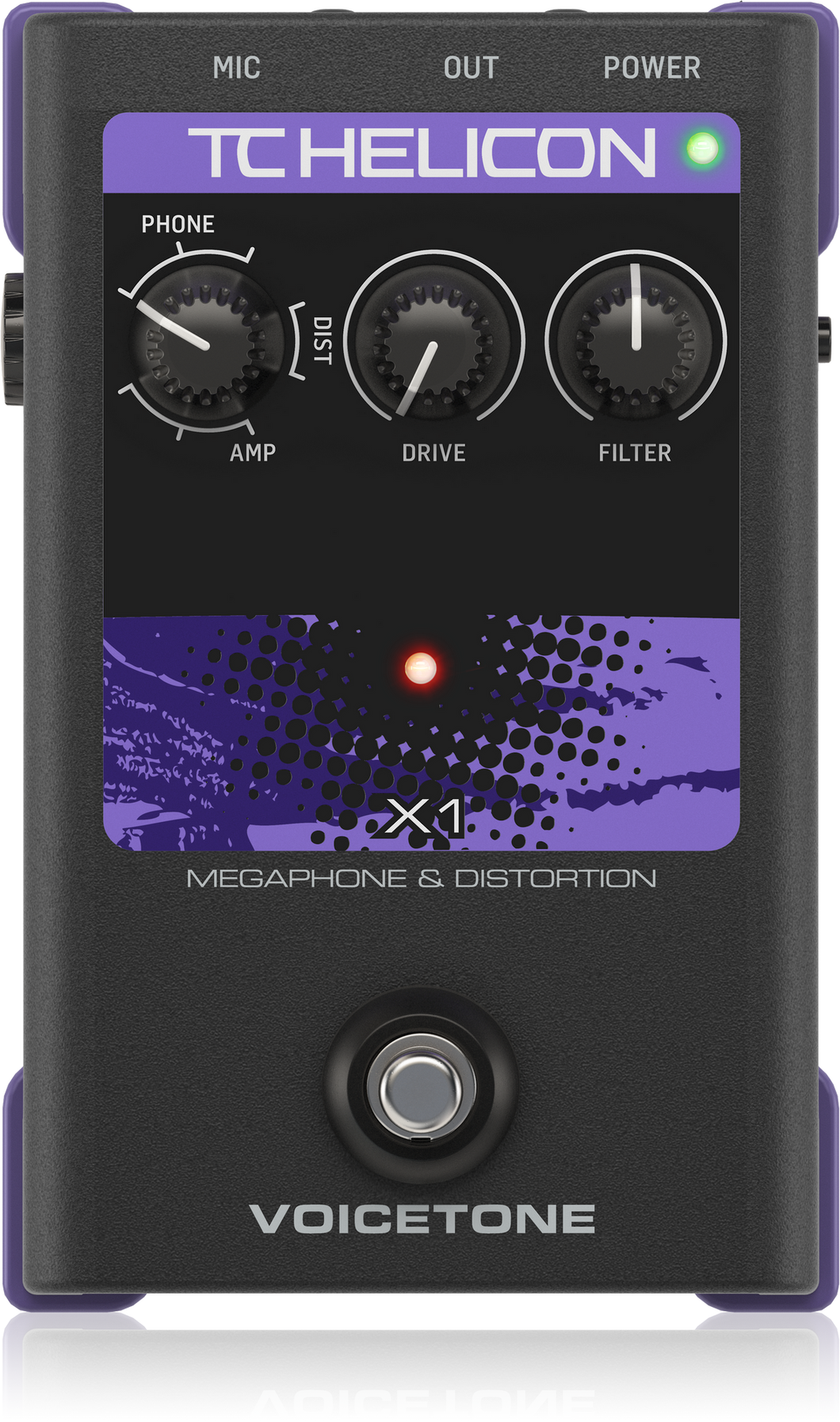

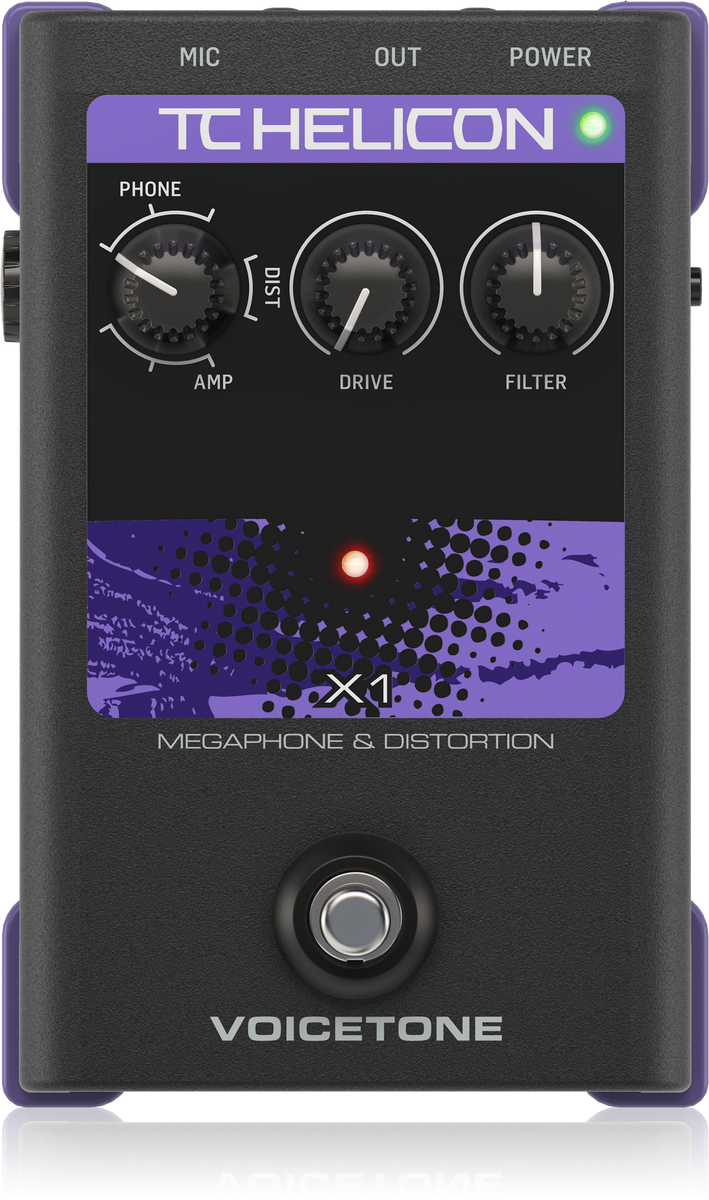

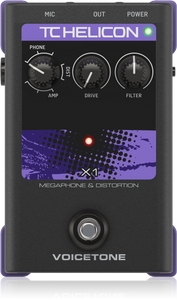

1. Choose from a wide range of sounds: Megaphone; Telephone; Distortion, and Amp effects
2. Dial up more Distortion drive for intensity; dial it down for clarity
3. Filter control narrows the bandwidth and produces the perfect Phone effects
4. Dedicated on-off footswitch and USB connection for updates
More Mic, More Control
You can completely control VOICETONE X1 from your mic – simply plug in a TC HELICON MP-75 microphone (sold separately). We call it Mic Control, and it allows you to command both the stage – and the audience!
Specification
Design
Size | Height: 5.4 inches (140 mm) Width: 3.5 inches (90 mm) Depth: 2.3 inches (60 mm) |
Weight | Weight: 0.92 lb. (0.42 kg) |
Construction | Two part dies cast metal Rubberized base |

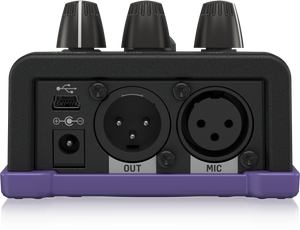

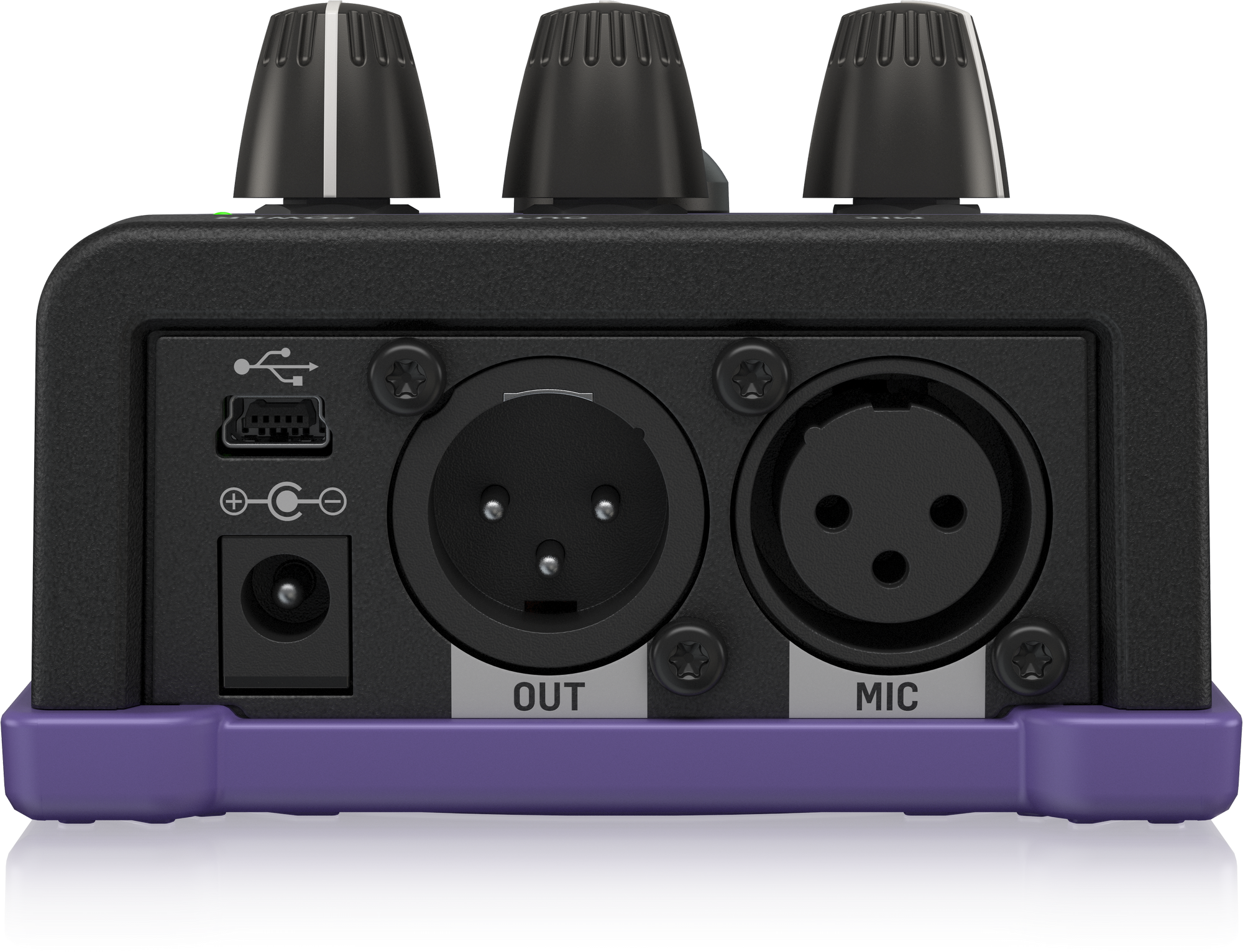

Connections
Analog Inputs | Connectors, balanced: Mic.: XLR Mic Input Level @ 0 dBFS: -42dBu to +1dBu Phantom Power: 24V (always on) EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu Mic input SNR: >104 dB |
Analog Outputs | Output Impedance, Bal./Unbal.: 200/100 Ohm Output Full Scale: +1 dBu Dynamic Range: >104 dB, 20 Hz to 20 kHz Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz |
Control | USB for firmware and control Mic Control using TC Helicon MP-75 |
Safety And Regulations
Power | Power Supply (Supplied): 12V .4A Power Consumption: 5.6W |
Safety | EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA |
Environment | Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -22°F to 167°F (-30°C to 70°C) Humidity: Max. 90 % non-condensing |
What's in the box? | Region specific power supply USB cable User guide |
VOICETONE X1
Single-Button Stompbox for Dramatic Megaphone and Distortion Vocal Effects
Product Features
-
Single-button vocal stompbox with megaphone and distortion filter effects for an extreme sound
-
Phone, distortion and amp preset categories offer a combined total of 8 intense styles
-
Filter and drive controls let you customize the sound to suit your performance
-
Simple 3-knob control gets you up and running in seconds
-
High-quality, low-noise mic preamp for pristine vocals
-
On/off foot switch for quick performance control
-
Allows chaining to other VOICETONE SINGLES vocal processors or DITTO MIC LOOPER to expand creative possibilities
-
Compatible with remote Mic Control using the TC Helicon MP-75 microphone
-
Rugged, road-worthy construction for years of dependable use
-
Power supply included
-
Designed and engineered in Canada
It’s Getting Intense
VOICETONE X1 brings a modern “down ‘n’ dirty” quality to live vocals with crackling megaphones and amplified vocal distortion effects. Punctuate a word, phrase or an entire song with these sounds. The Drive and Filter controls can be set to suit your voice and the song. Kick it on, kick it off – you’re in control!
It’s Just this Simple...
• Plug in your mic, plug your pedal into the mixer & set the gain
• Turn on the effect
• (That’s it)
Of course, you can always change the style or the amount of correction, but you shouldn’t need the manual – unless you’re making a fire!
Chain It
You can chain VOICETONE X1 to all of the other VOICETONE singles, mixing and matching effects to define your personal sound. It also works with DITTO MIC LOOPER, the pure looping pedal for singers and instrumentalists. Use the Singles Connect Kit (available separately) to mix and match up to 4 TC HELICON vocal effect pedals together conveniently, simply – and with less cable clutter than ever before.
Under The Hood
Beneath VOICETONE X1’s sturdy, die-cast metal case, you’ll be getting the same quality processing you’ve come to expect from our flagship VoiceLive vocal processors. You’ll also find a clean, quiet mic preamp that rivals high-end touring mixers, plus studio-quality analog to digital conversion. There’s even a USB connection for firmware updates.
Twisted, Warped & Contorted
1. Choose from a wide range of sounds: Megaphone; Telephone; Distortion, and Amp effects
2. Dial up more Distortion drive for intensity; dial it down for clarity
3. Filter control narrows the bandwidth and produces the perfect Phone effects
4. Dedicated on-off footswitch and USB connection for updates
More Mic, More Control
You can completely control VOICETONE X1 from your mic – simply plug in a TC HELICON MP-75 microphone (sold separately). We call it Mic Control, and it allows you to command both the stage – and the audience!
Specification
Design
Size | Height: 5.4 inches (140 mm) Width: 3.5 inches (90 mm) Depth: 2.3 inches (60 mm) |
Weight | Weight: 0.92 lb. (0.42 kg) |
Construction | Two part dies cast metal Rubberized base |
Connections
Analog Inputs | Connectors, balanced: Mic.: XLR Mic Input Level @ 0 dBFS: -42dBu to +1dBu Phantom Power: 24V (always on) EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu Mic input SNR: >104 dB |
Analog Outputs | Output Impedance, Bal./Unbal.: 200/100 Ohm Output Full Scale: +1 dBu Dynamic Range: >104 dB, 20 Hz to 20 kHz Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz |
Control | USB for firmware and control Mic Control using TC Helicon MP-75 |
Safety And Regulations
Power | Power Supply (Supplied): 12V .4A Power Consumption: 5.6W |
Safety | EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA |
Environment | Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -22°F to 167°F (-30°C to 70°C) Humidity: Max. 90 % non-condensing |
What's in the box? | Region specific power supply USB cable User guide |
Single-Button Stompbox for Dramatic Megaphone and Distortion Vocal Effects
Product Features
-
Single-button vocal stompbox with megaphone and distortion filter effects for an extreme sound
-
Phone, distortion and amp preset categories offer a combined total of 8 intense styles
-
Filter and drive controls let you customize the sound to suit your performance
-
Simple 3-knob control gets you up and running in seconds
-
High-quality, low-noise mic preamp for pristine vocals
-
On/off foot switch for quick performance control
-
Allows chaining to other VOICETONE SINGLES vocal processors or DITTO MIC LOOPER to expand creative possibilities
-
Compatible with remote Mic Control using the TC Helicon MP-75 microphone
-
Rugged, road-worthy construction for years of dependable use
-
Power supply included
-
Designed and engineered in Canada
It’s Getting Intense
VOICETONE X1 brings a modern “down ‘n’ dirty” quality to live vocals with crackling megaphones and amplified vocal distortion effects. Punctuate a word, phrase or an entire song with these sounds. The Drive and Filter controls can be set to suit your voice and the song. Kick it on, kick it off – you’re in control!
It’s Just this Simple...
• Plug in your mic, plug your pedal into the mixer & set the gain
• Turn on the effect
• (That’s it)
Of course, you can always change the style or the amount of correction, but you shouldn’t need the manual – unless you’re making a fire!
Chain It
You can chain VOICETONE X1 to all of the other VOICETONE singles, mixing and matching effects to define your personal sound. It also works with DITTO MIC LOOPER, the pure looping pedal for singers and instrumentalists. Use the Singles Connect Kit (available separately) to mix and match up to 4 TC HELICON vocal effect pedals together conveniently, simply – and with less cable clutter than ever before.
Under The Hood
Beneath VOICETONE X1’s sturdy, die-cast metal case, you’ll be getting the same quality processing you’ve come to expect from our flagship VoiceLive vocal processors. You’ll also find a clean, quiet mic preamp that rivals high-end touring mixers, plus studio-quality analog to digital conversion. There’s even a USB connection for firmware updates.
Twisted, Warped & Contorted
1. Choose from a wide range of sounds: Megaphone; Telephone; Distortion, and Amp effects
2. Dial up more Distortion drive for intensity; dial it down for clarity
3. Filter control narrows the bandwidth and produces the perfect Phone effects
4. Dedicated on-off footswitch and USB connection for updates
More Mic, More Control
You can completely control VOICETONE X1 from your mic – simply plug in a TC HELICON MP-75 microphone (sold separately). We call it Mic Control, and it allows you to command both the stage – and the audience!
Specification
Design
Size | Height: 5.4 inches (140 mm) Width: 3.5 inches (90 mm) Depth: 2.3 inches (60 mm) |
Weight | Weight: 0.92 lb. (0.42 kg) |
Construction | Two part dies cast metal Rubberized base |
Connections
Analog Inputs | Connectors, balanced: Mic.: XLR Mic Input Level @ 0 dBFS: -42dBu to +1dBu Phantom Power: 24V (always on) EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu Mic input SNR: >104 dB |
Analog Outputs | Output Impedance, Bal./Unbal.: 200/100 Ohm Output Full Scale: +1 dBu Dynamic Range: >104 dB, 20 Hz to 20 kHz Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz |
Control | USB for firmware and control Mic Control using TC Helicon MP-75 |
Safety And Regulations
Power | Power Supply (Supplied): 12V .4A Power Consumption: 5.6W |
Safety | EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA |
Environment | Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -22°F to 167°F (-30°C to 70°C) Humidity: Max. 90 % non-condensing |
What's in the box? | Region specific power supply USB cable User guide |
