5" Versatile 2-Way Compact Monitors for Installation Applications
Product Features
  • Full-range surface-mount loudspeakers for installation applications

  • 25 Watts continuous, 100 Watts peak power

  • Powerful 5" driver for extended frequency range and long-term reliability

  • High-resolution 1” high frequency driver

  • Linear frequency range from 70 Hz to 20 kHz

  • Phase-optimized and high-precision crossover for absolute phase linearity

  • Auto-overload protection prevents tweeter damage and resets automatically

  • Stylish durable front ported enclosure fits unobtrusively in any environment

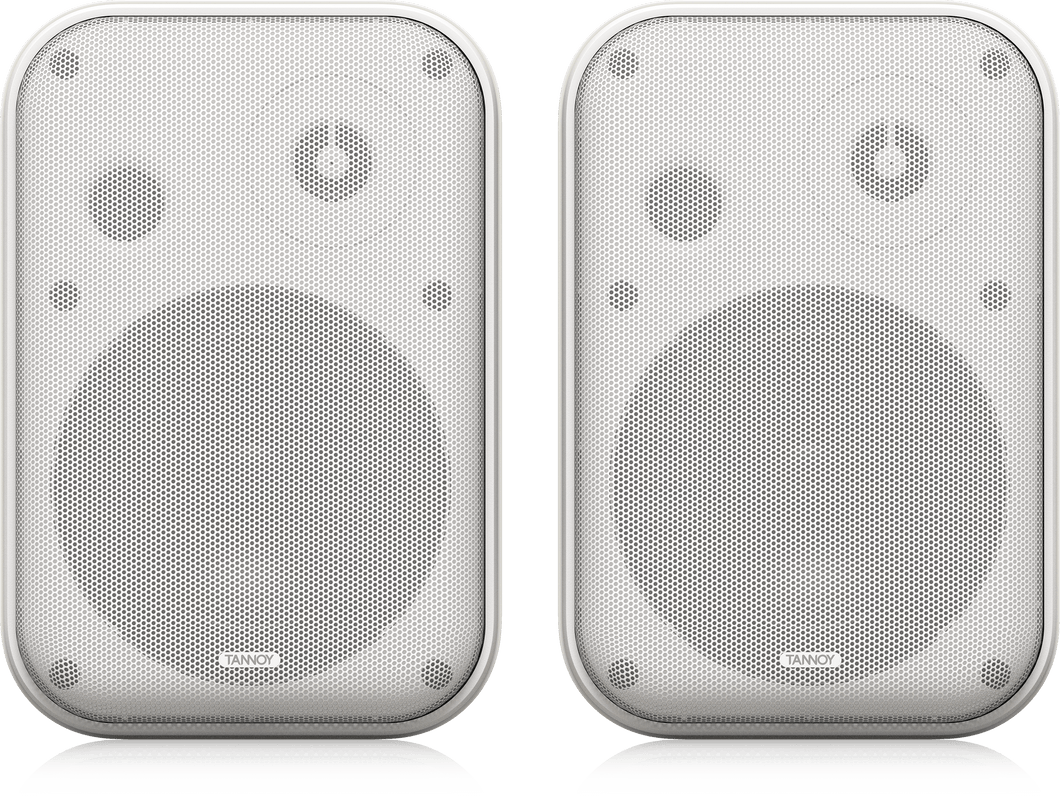

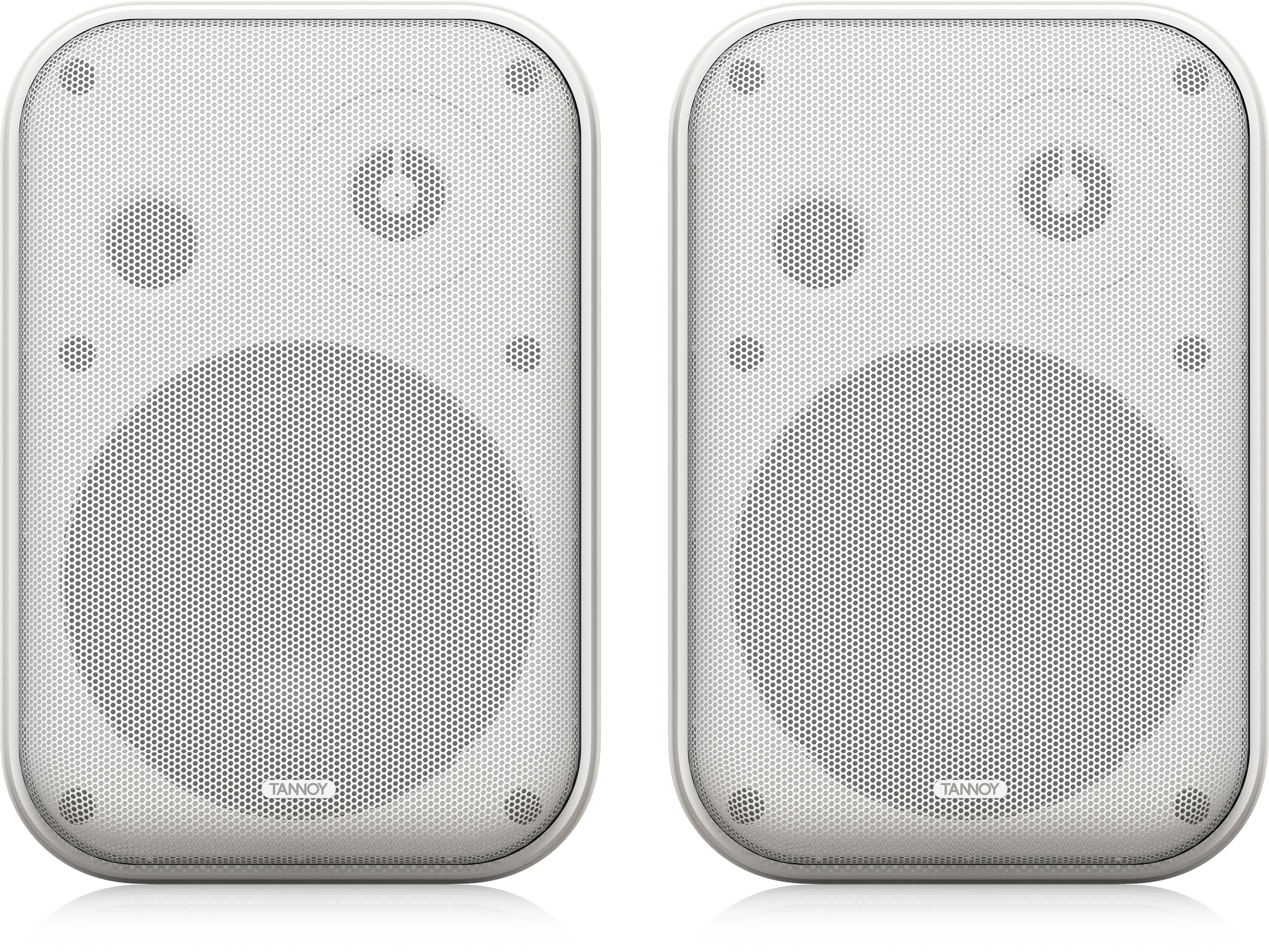

  • Painted perforated metal mesh grille with dust protection

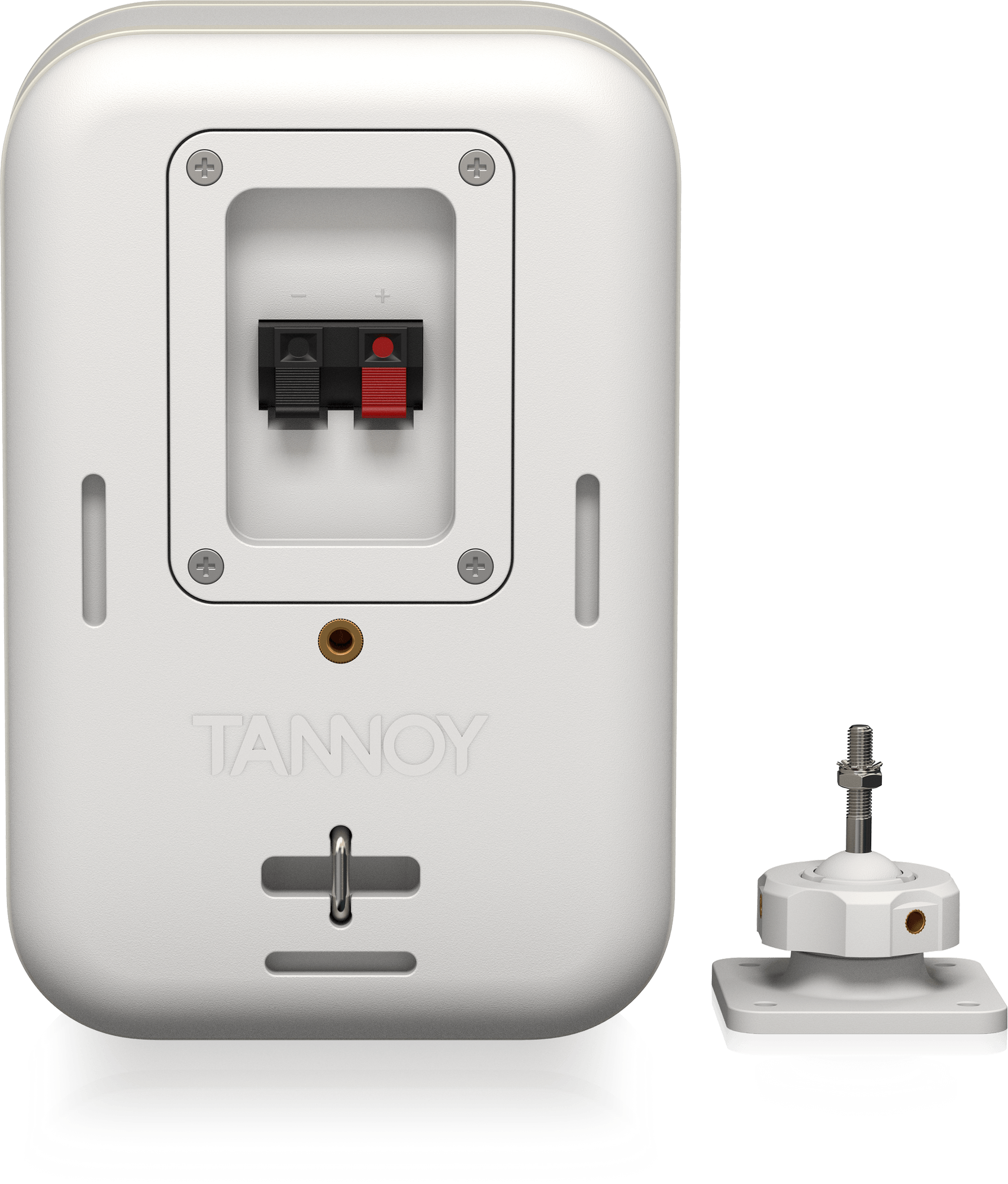

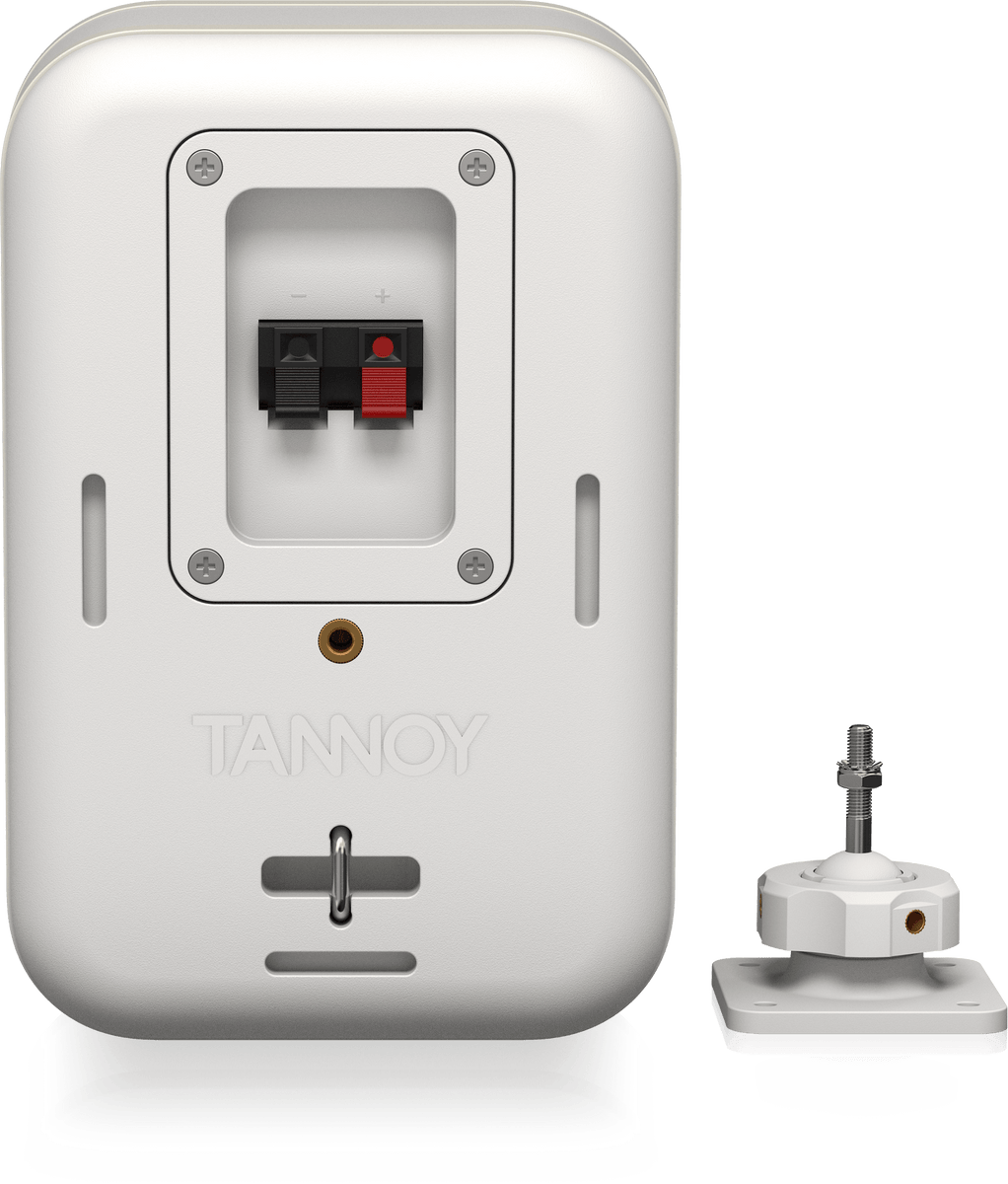

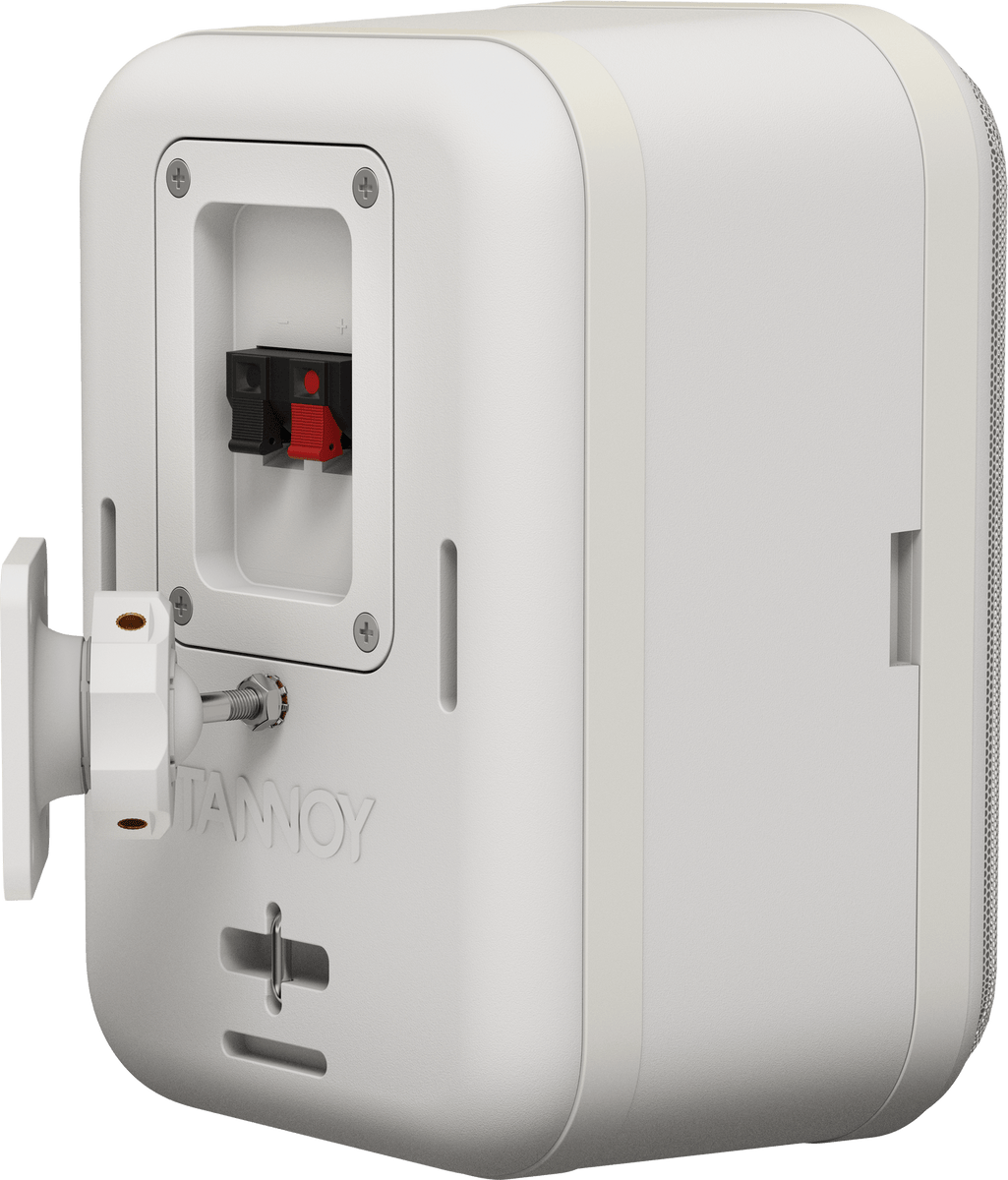

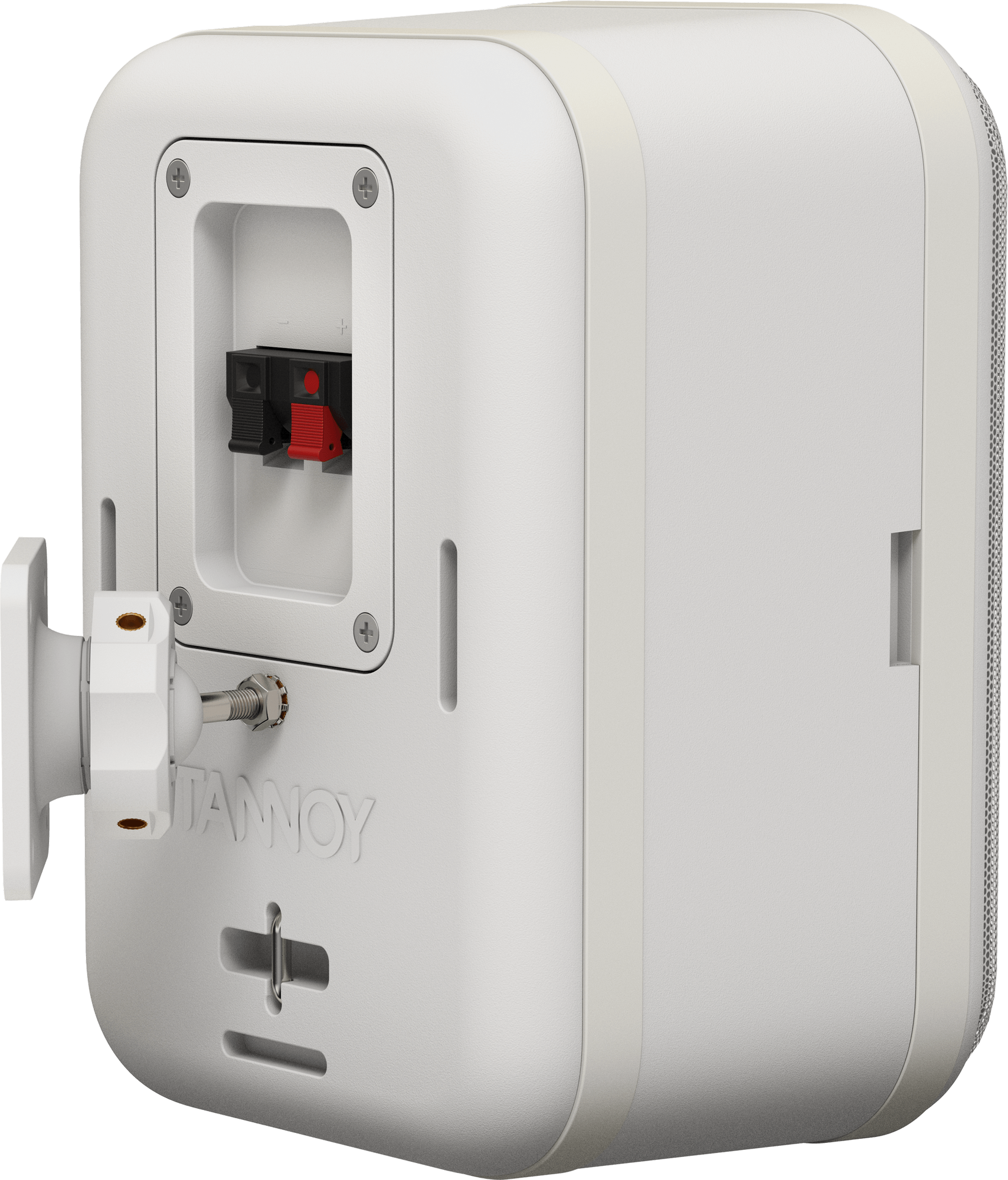

  • Bracket for wall mount included

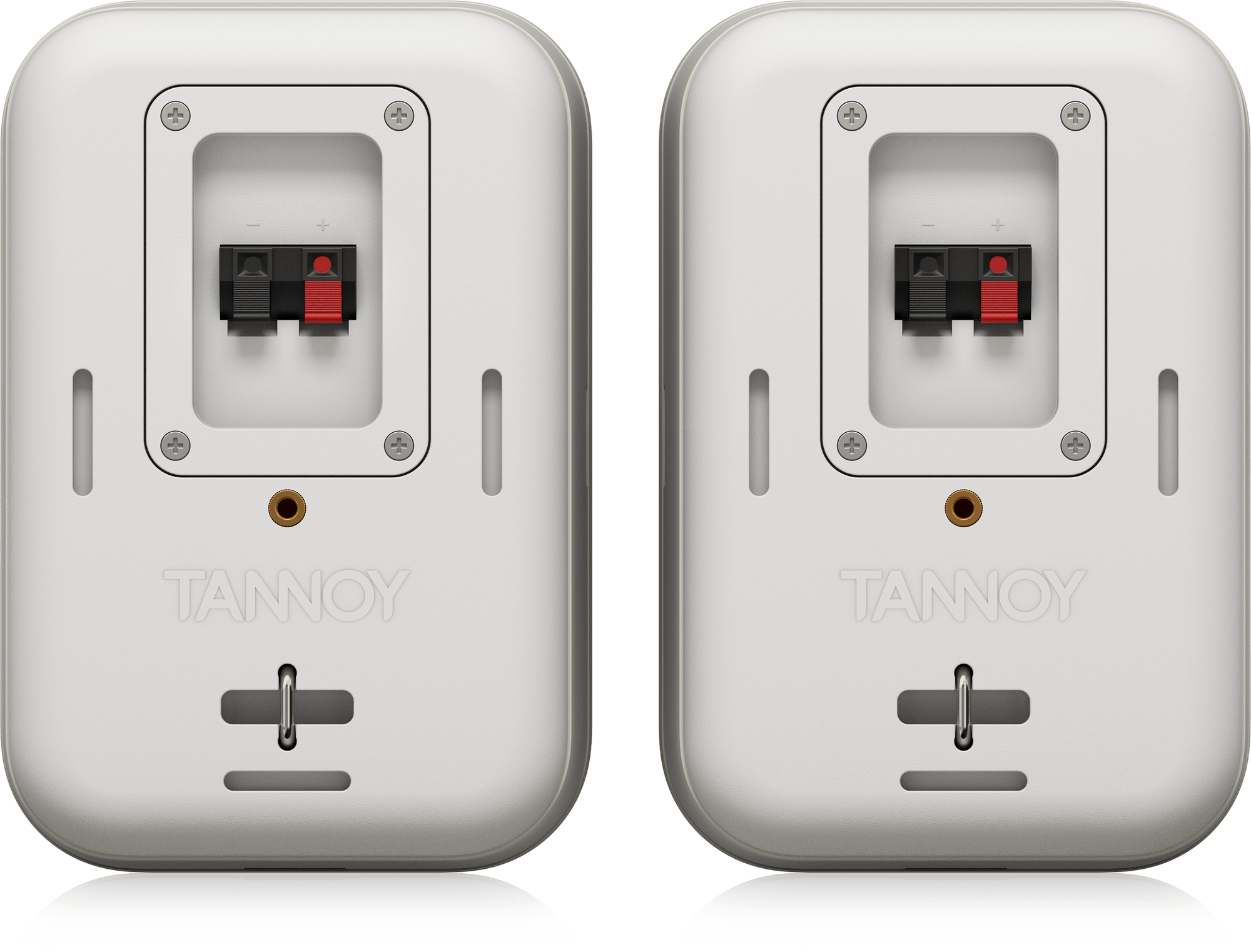

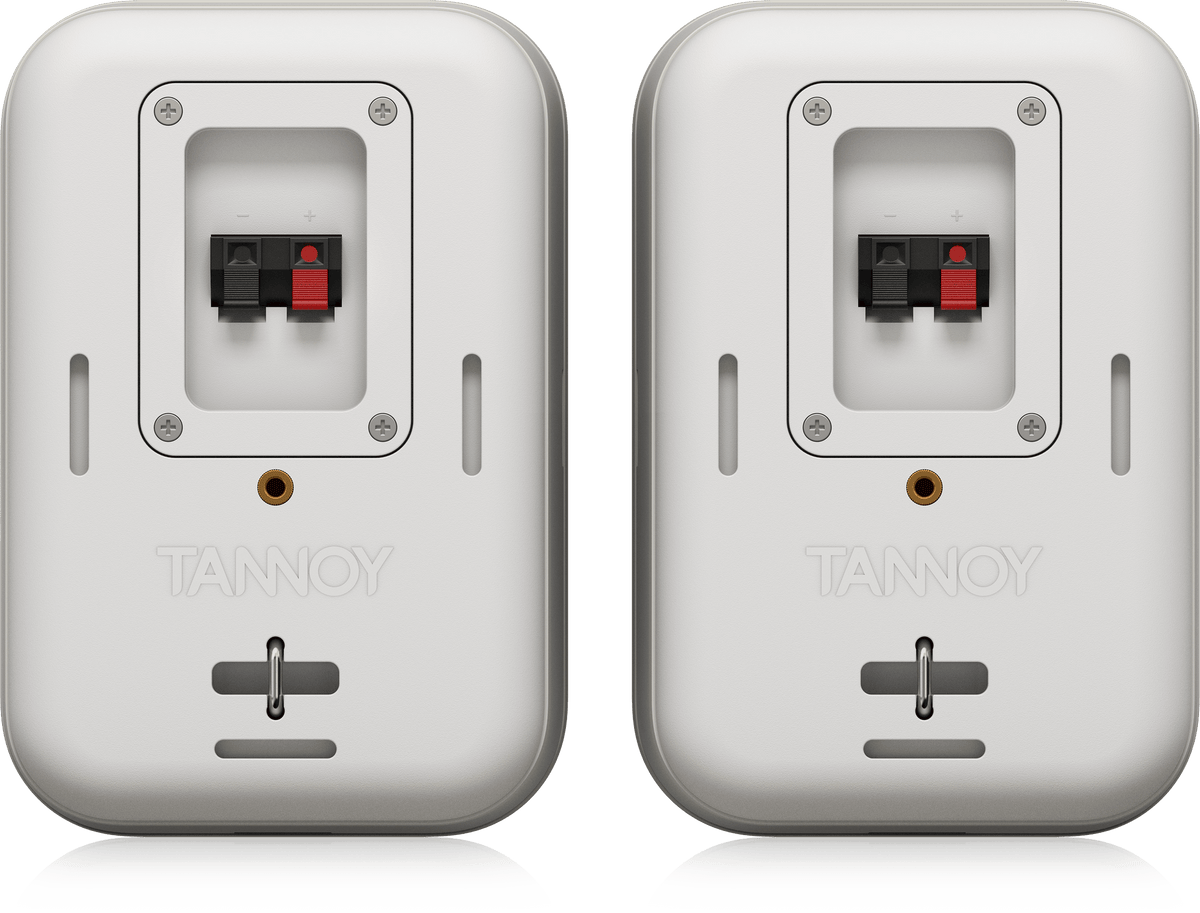

  • Safety attachment loop point on rear panel

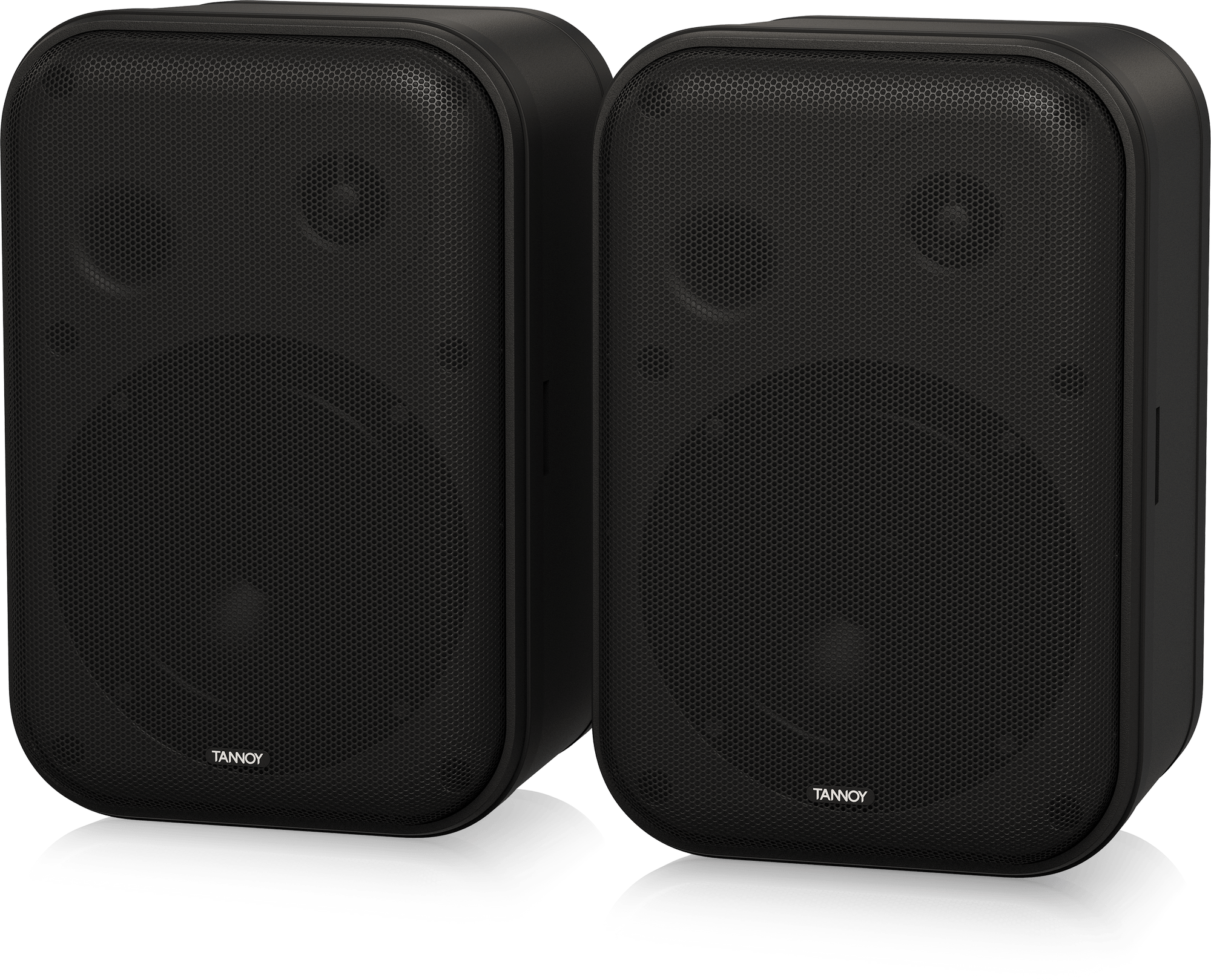

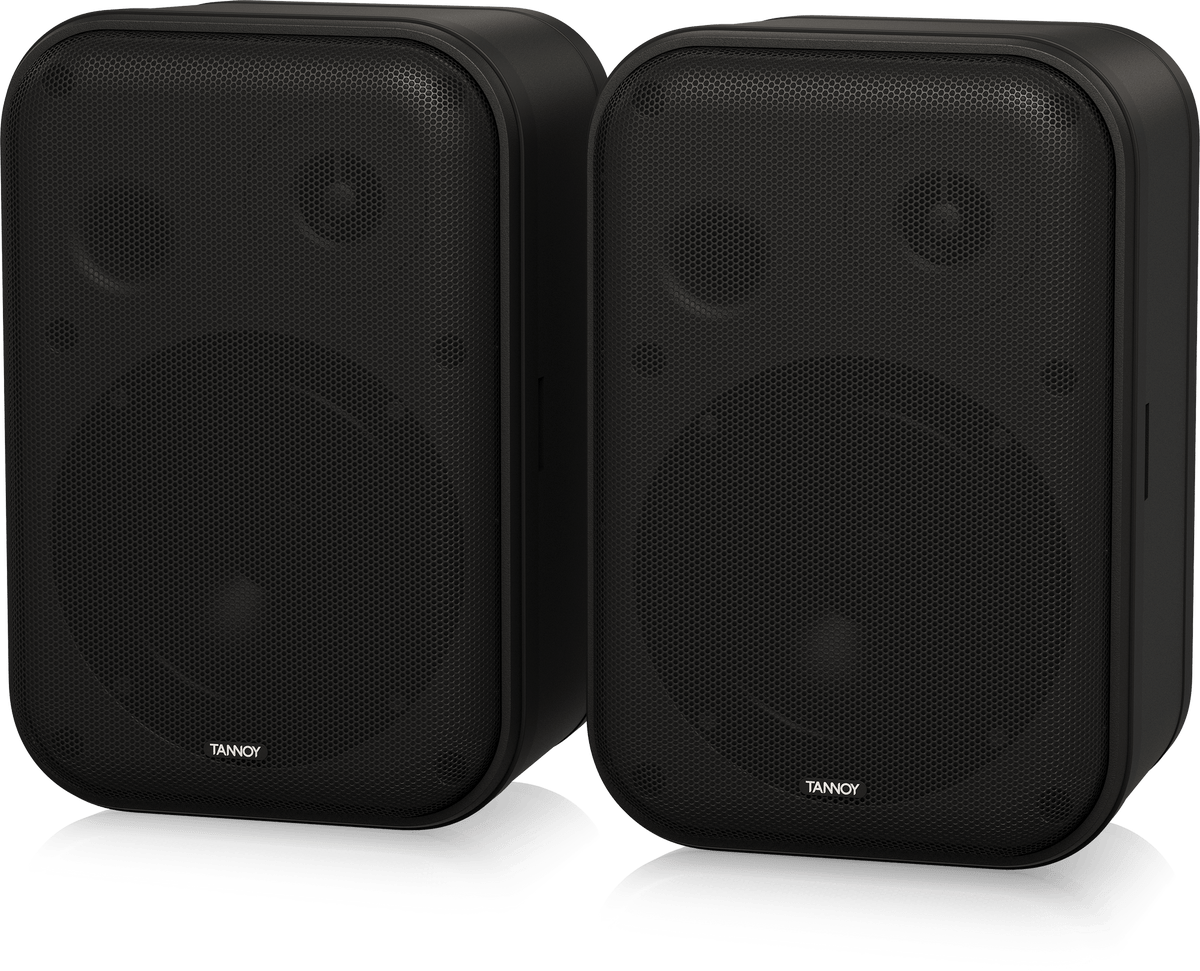

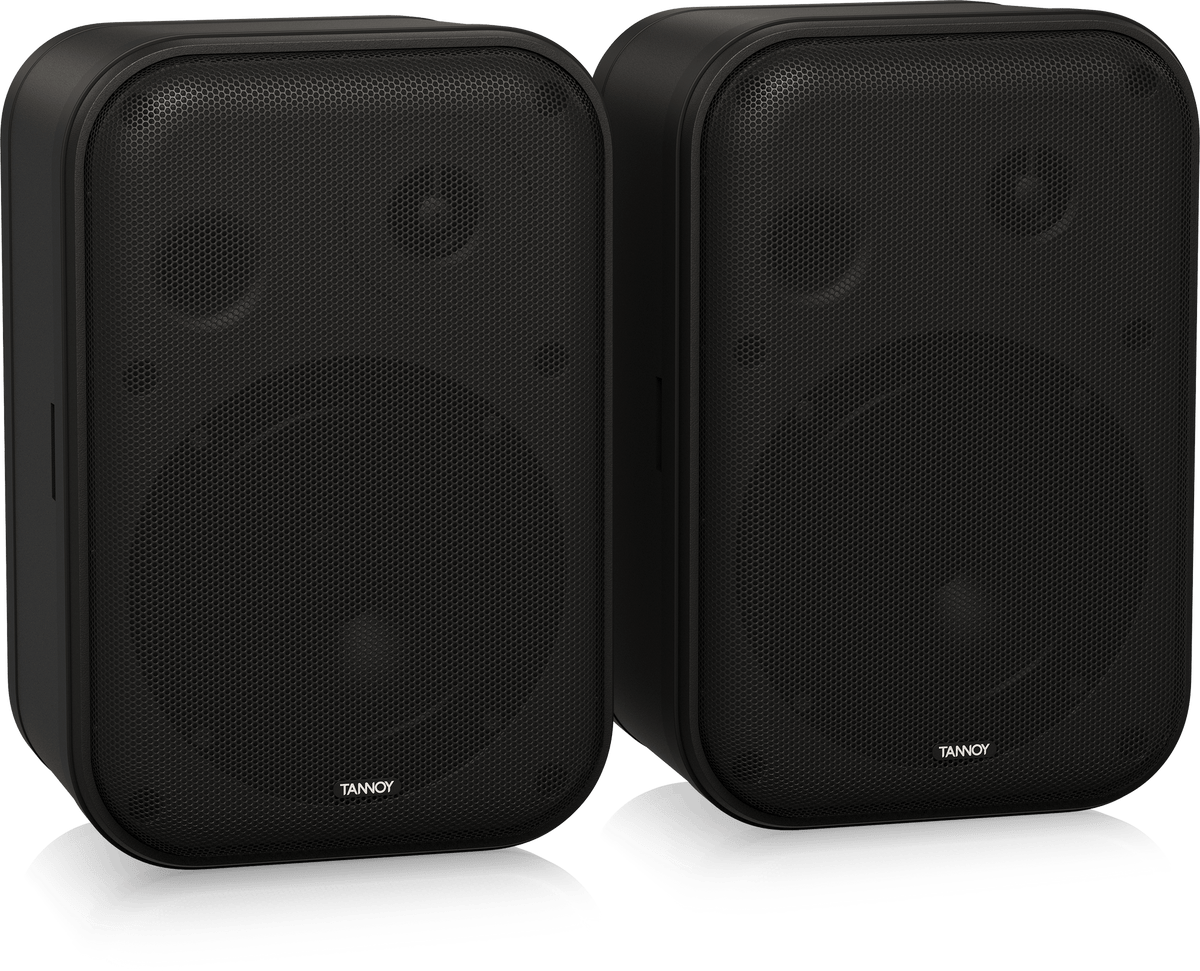

VMS 1

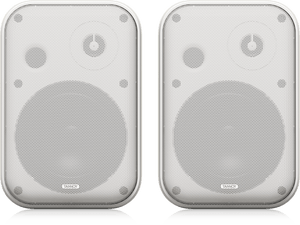

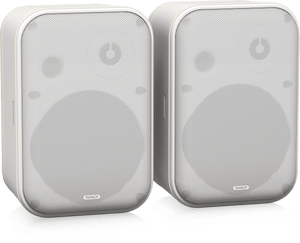

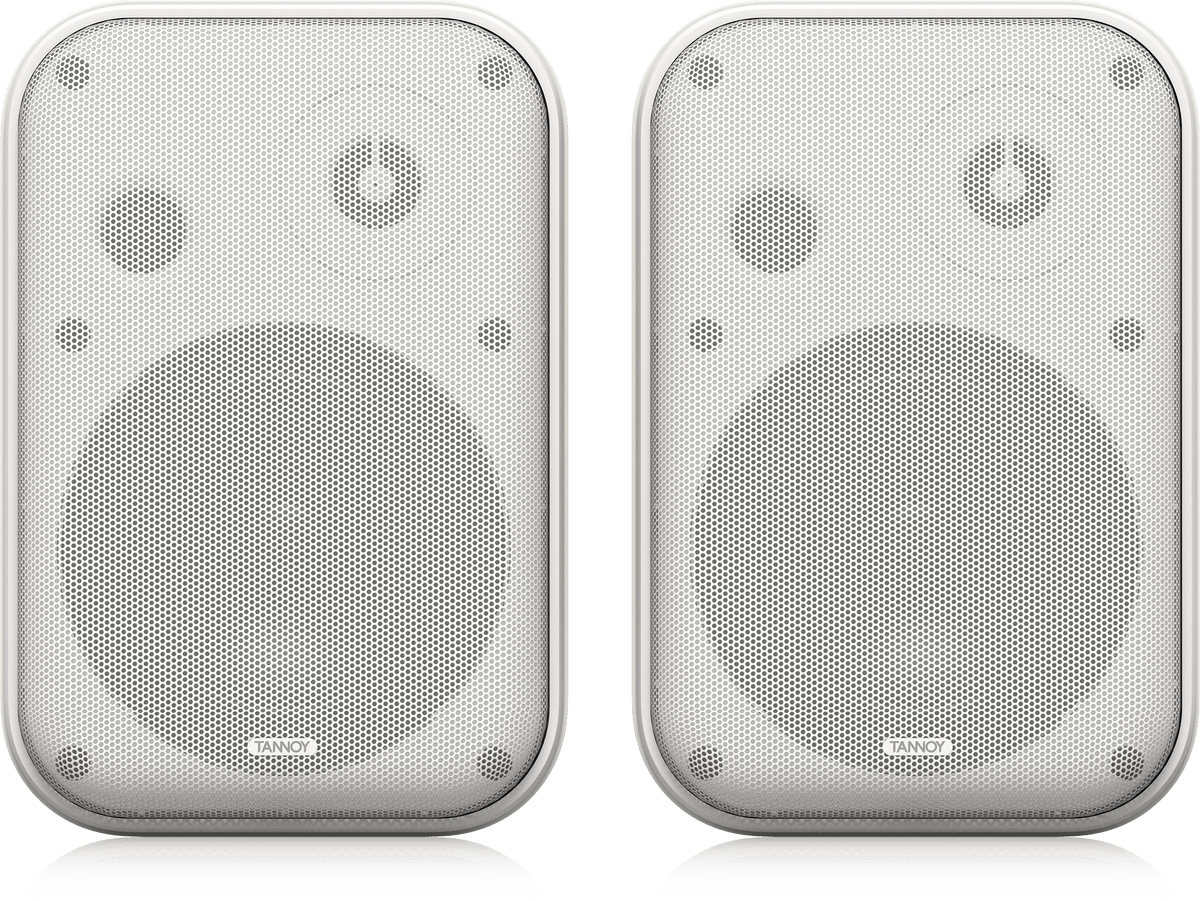

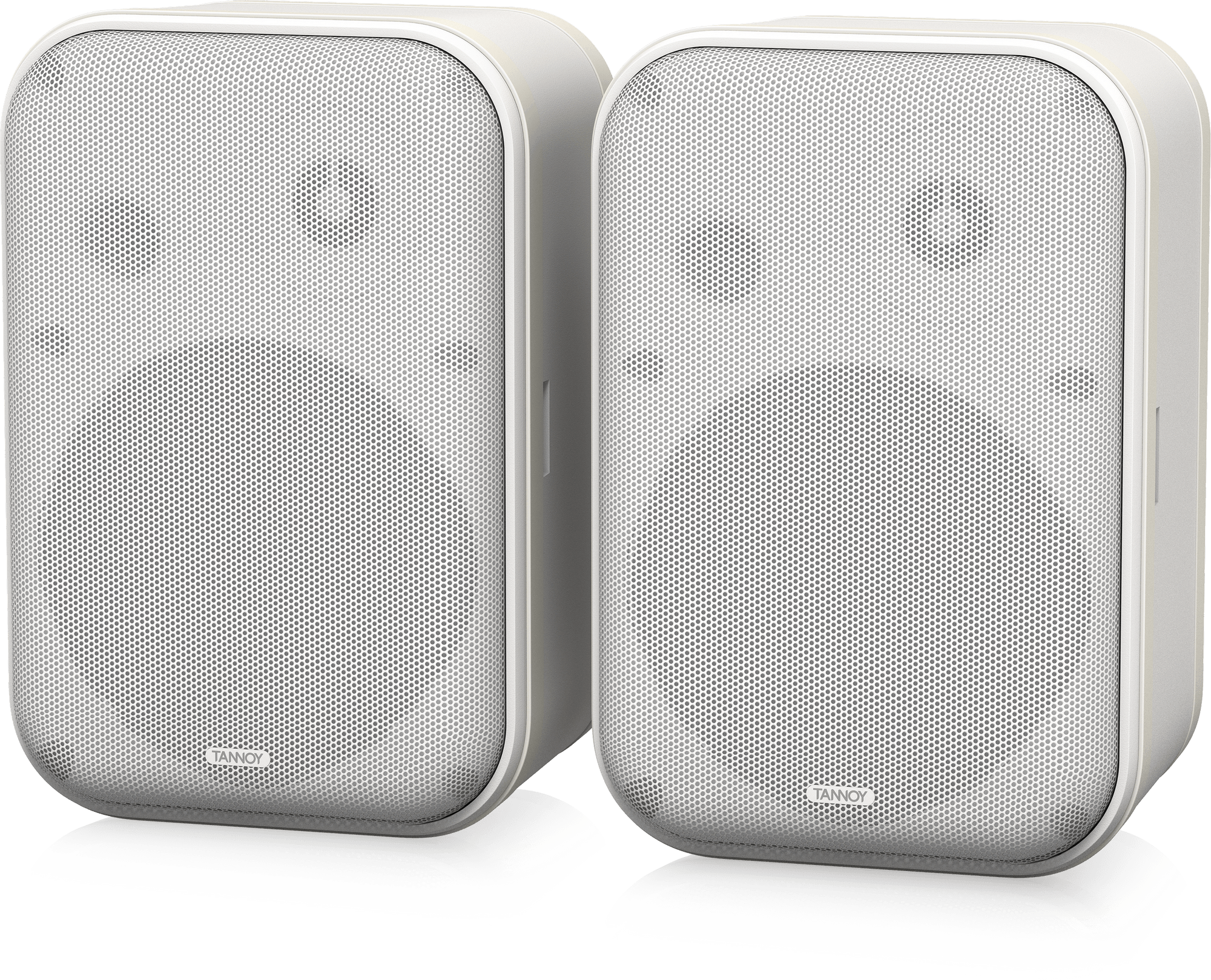

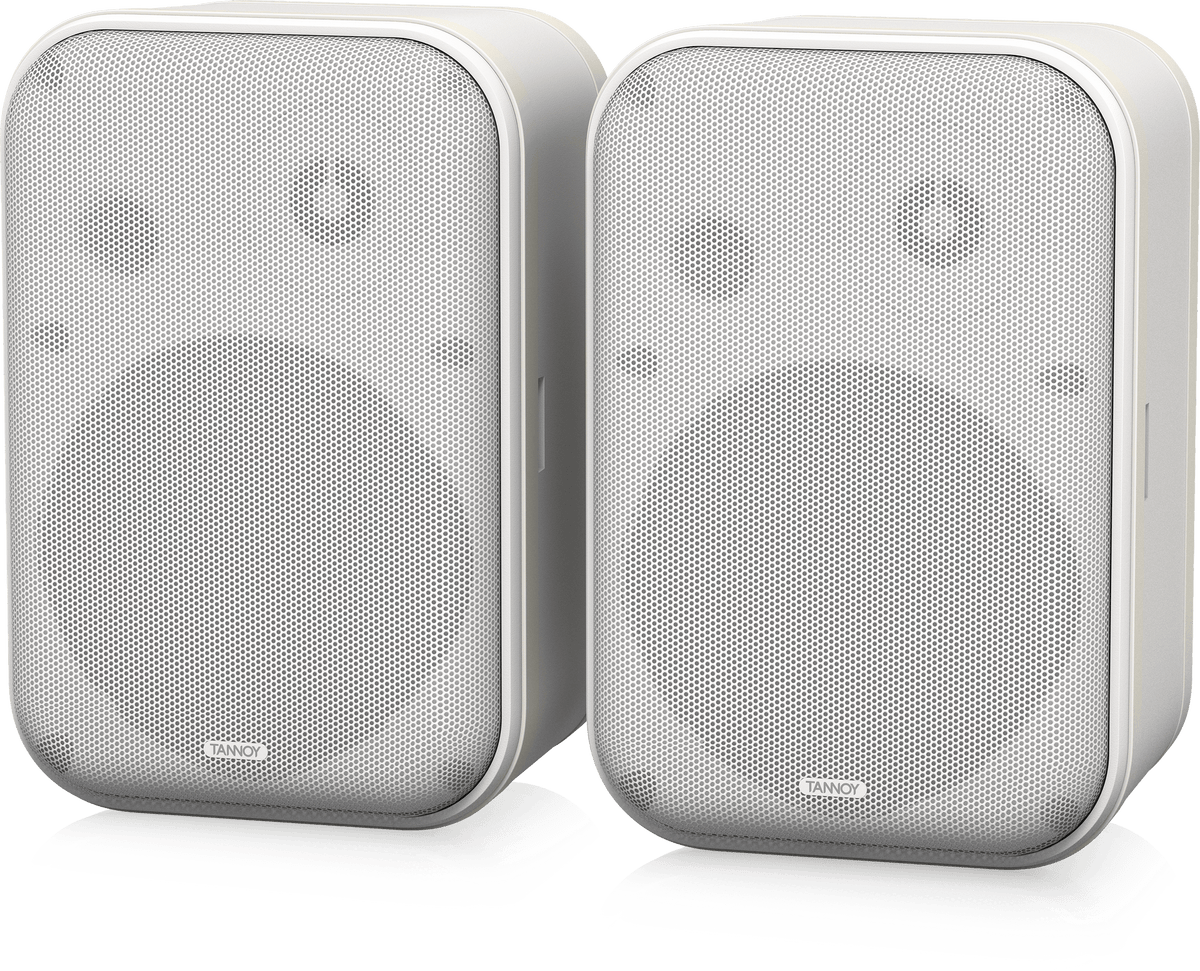

VMS 1-WH

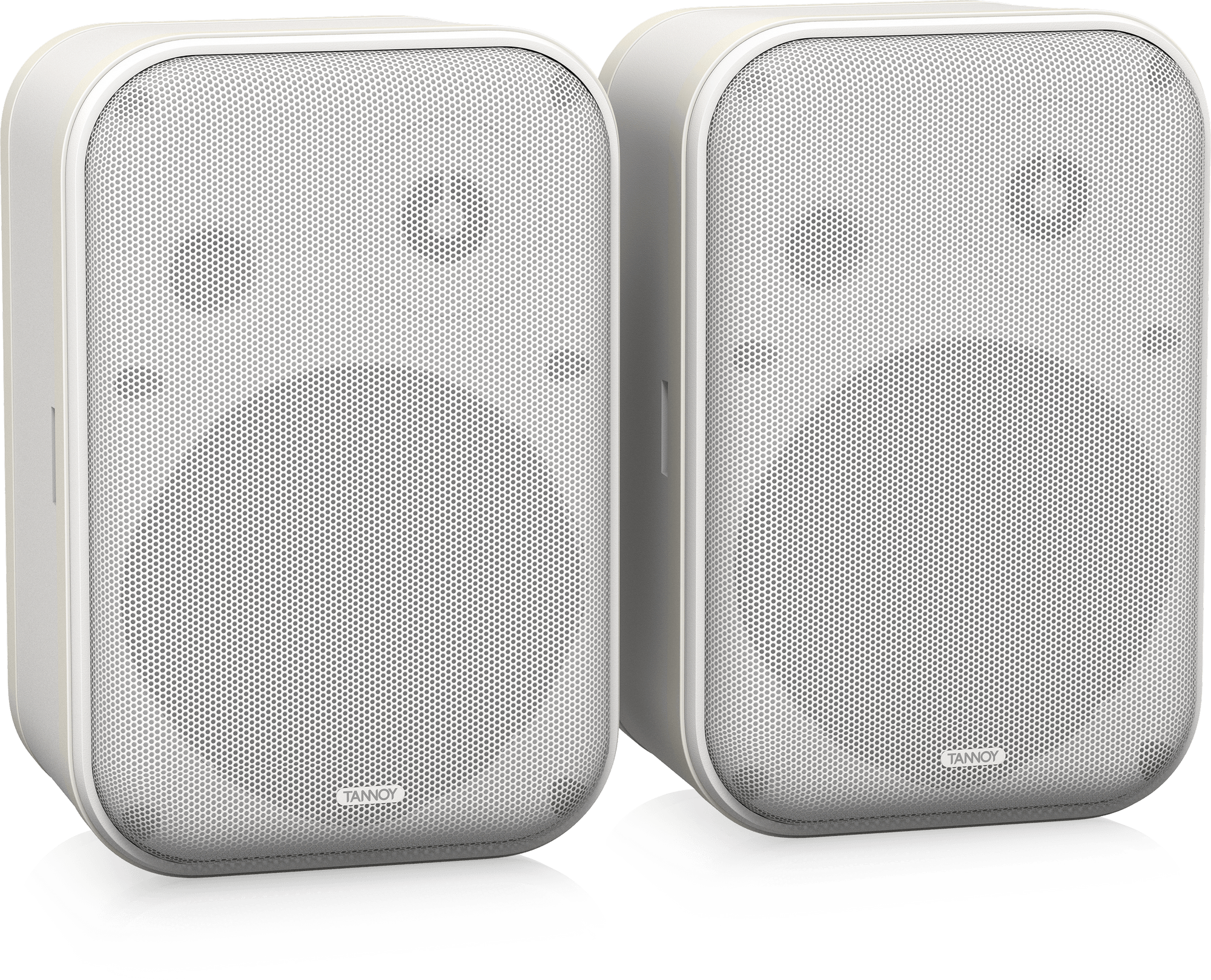

          Sold by pairs and designed for both speech and music nearfield applications, the 100-Watt VMS 1 utilises monitor-grade 5" low frequency and 1" high frequency driver for extended frequency range, low distortion, and exceptional long-term reliability.

          Thanks to the speaker’s versatile and compact design, the VMS 1 is ideally suited for a wide range of applications, including stereo and surround setups,  as well as fixed-installation sound systems for restaurants and bars, theme parks, hotels, retail stores , house of workship

Superb Performance
Superb Performance

          The VMS 1 design includes custom, monitor-grade 5" low-frequency and 1" high-frequency drivers, in an enclosure robust enough for commercial applications. The phase-optimized and high-precision crossover delivers highly accurate and linear response, along with built-in auto-overload protection that prevents tweeter damage from excessive power surges. This configuration handles up to 100 Watts to deliver exceptional dynamics, realism, and enhanced intelligibility, all in a compact and highly-efficient system that is well-suited to a wide range of amplifier options – including entry-level amplifiers.

Attractive and Easy to Install
Attractive and Easy to Install

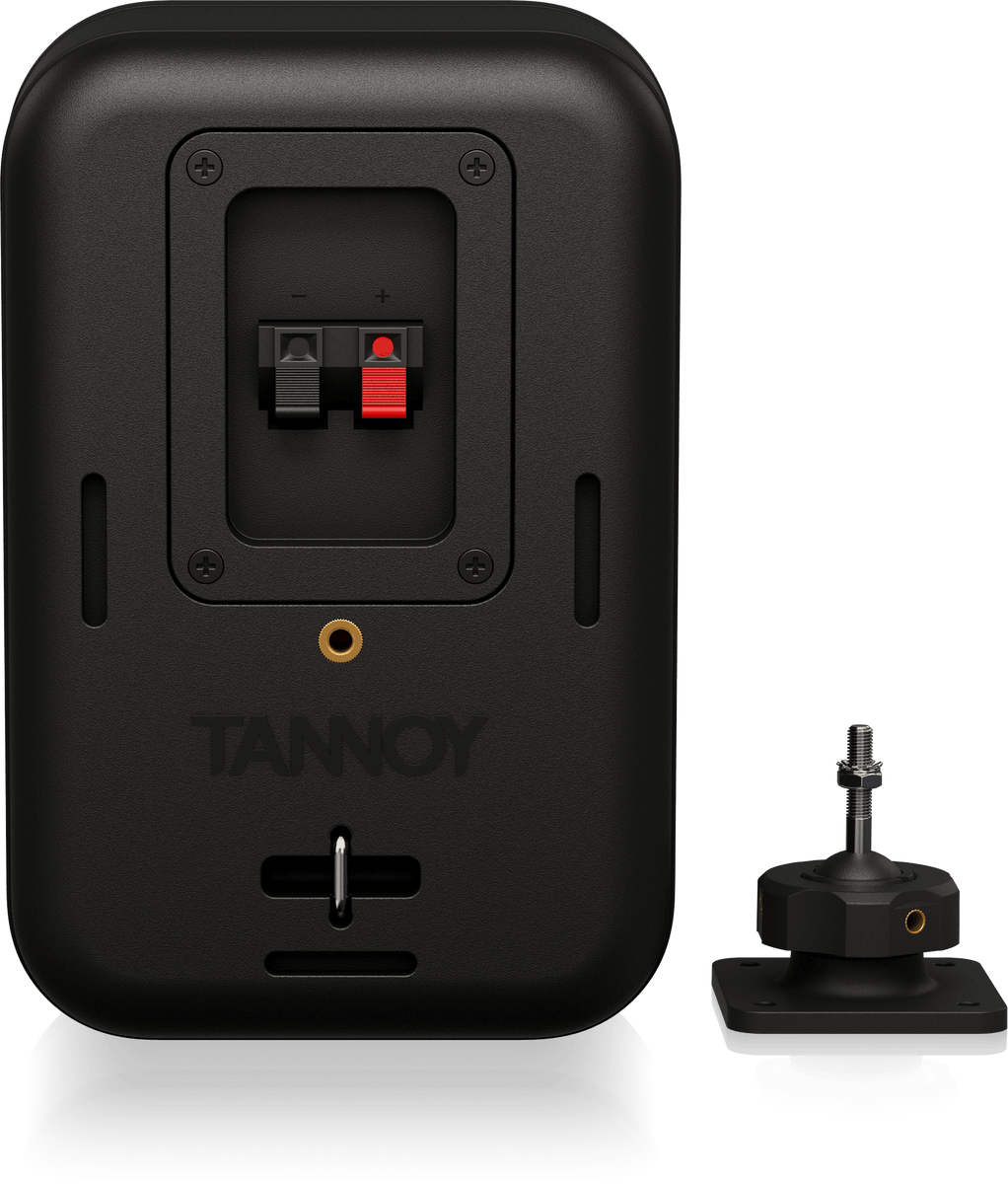

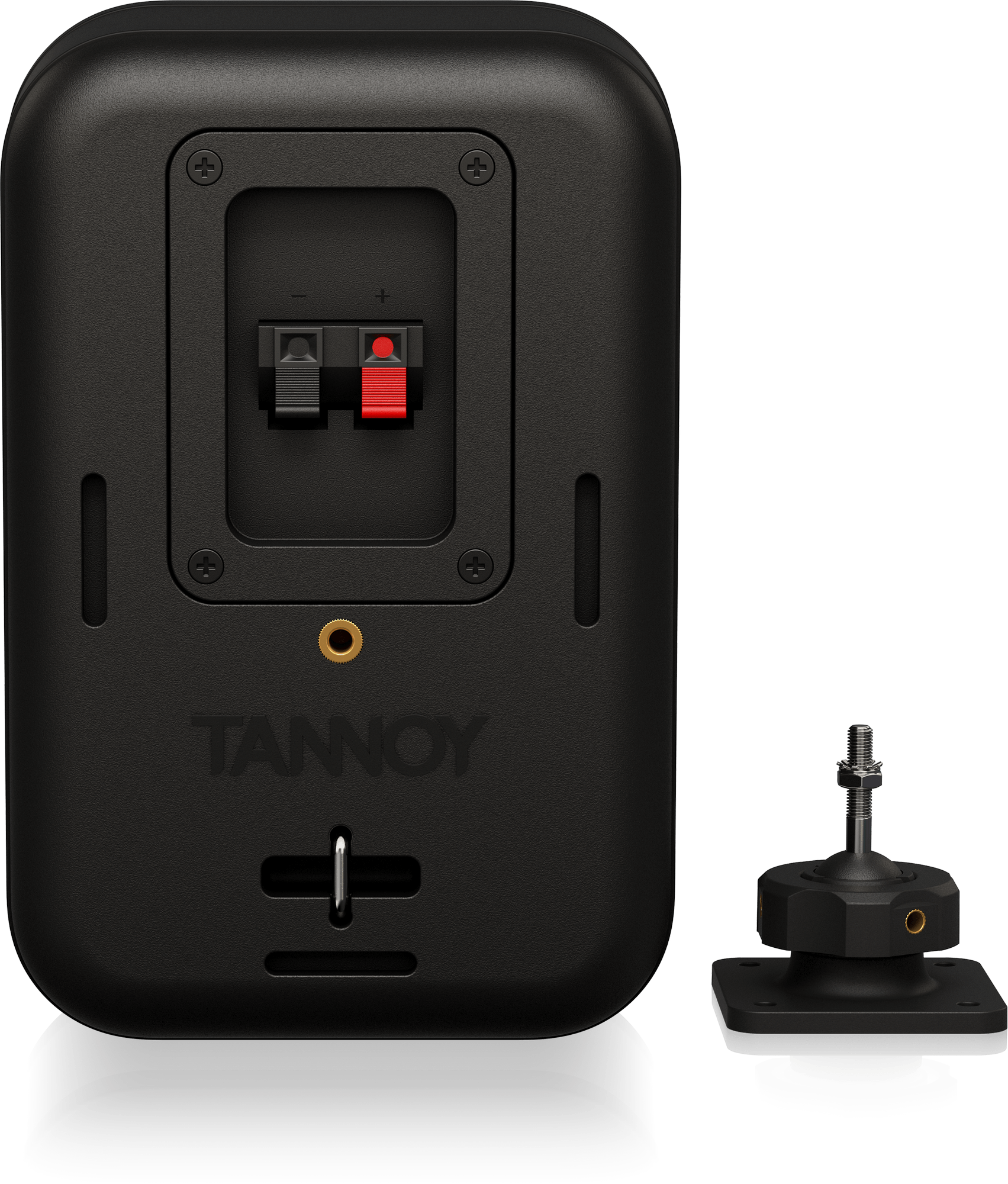

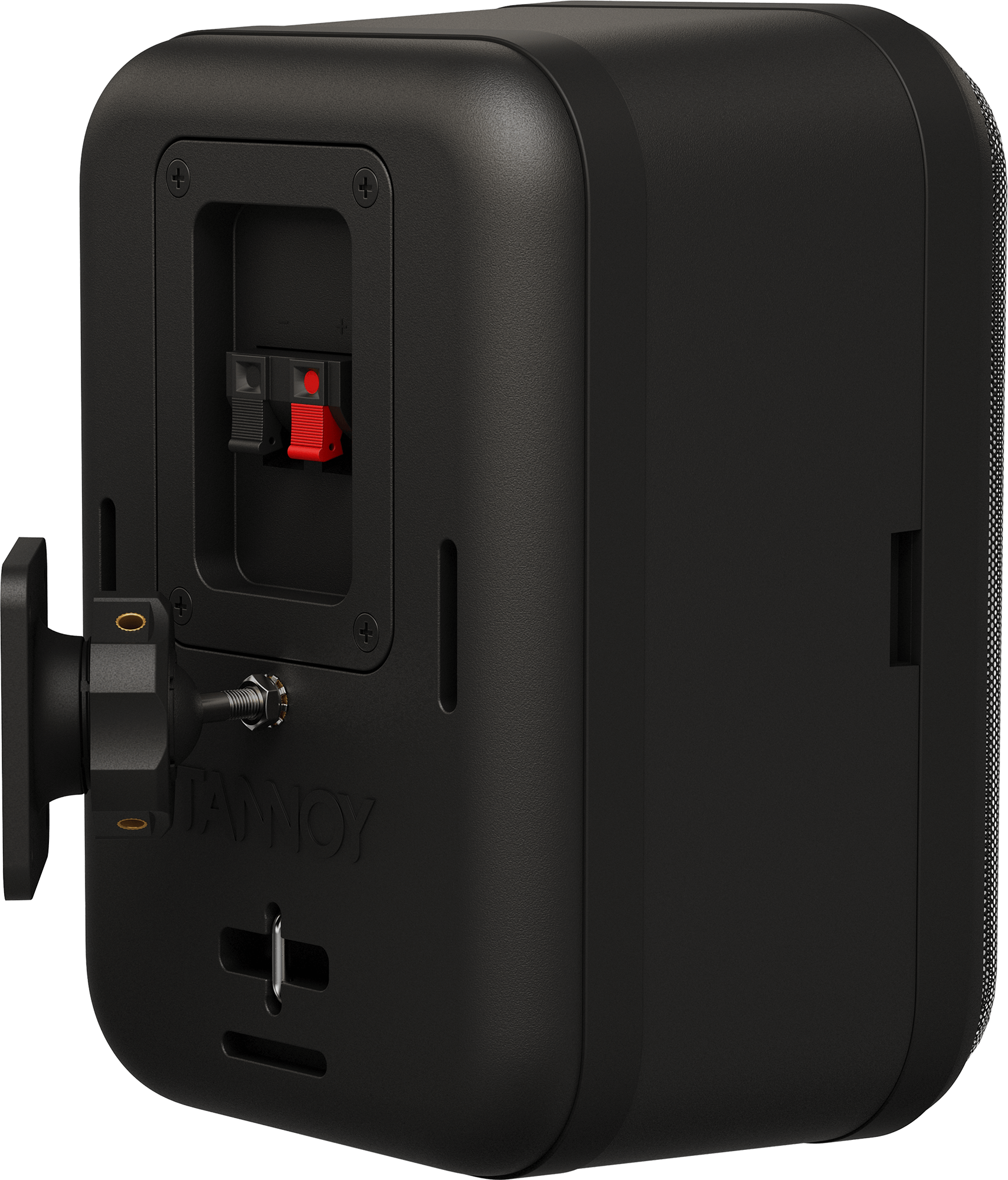

The highly-durable and scuff-resistant ABS enclosure features a matte-black painted finish, along with an aesthetically-pleasing, powder-coated perforated steel grille and seamless rubber accents, all of which helps VMS 1 blend beautifully into any décor. Setting up is quick and easy thanks to the included colour-matched mounting bracket and spring terminals, or VMS 1 can simply be used as bookshelf speakers. For more complex installed-sound applications, the VMS 1 is designed with multiple internal rigging points and universal mounting points for optional industry-standard brackets.

Architecture & Engineering Specifications
Architecture & Engineering Specifications

The loudspeaker shall be of the passive full range type, consisting of one 5" (127 mm) LF driver and one 1” soft dome HF driver (24 mm). Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 85 Hz to 20 kHz and within -10 dB from 70 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 150° H x 115° V. Nominal impedance shall be 4 Ohms. Power handling shall be 25 Watts continuous, 100 Watts peak. Sensitivity, measured with 1 Watt input at 1 metre distance on-axis, mean averaged over stated bandwidth, shall be 86 dB. Maximum SPL (peak) measured with music program input at stated amplifier power shall be 100 dB. Dimensions (H x W x D): 235 mm x 159 mm x 142 mm (9.25 x 6.25 x 5.6”). Net weight: 1.8 kg (3.96 lbs). The loudspeaker system shall be the Tannoy VMS 1. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance/size specifications are equaled or exceeded.

Specification
Performance

Frequency response

70 Hz to 20 kHz (-10 dB)

Sensitivity

86 dB (1 W @ 1 m)

Power handling (IEC)
Continuous

25 W

Peak

100 W

Recommended amplifier power

50 W

Nominal Impedance

4 Ω

Maximum SPL

100 dB (25 W @ 1 M)

Crossover point

5.2 kHz

Nominal dispersion @ 2 kHz

150° H x 115° V @ -6 dB points

Transducers
Diameter / material / type (LF)

135 mm (5.3"), black paper cone

Diameter / material / type (HF)

13 mm (0.5"), black PEI dome
