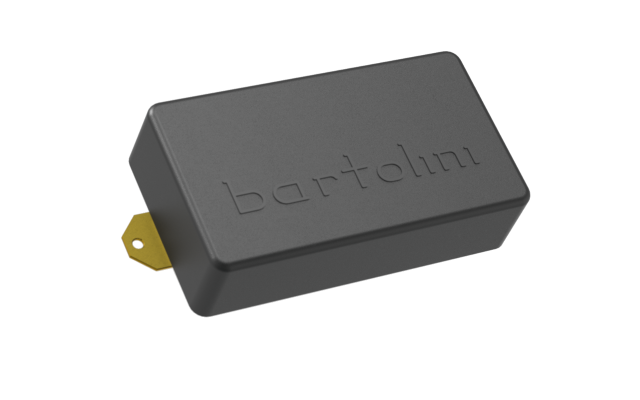

Vintage Neck Humbucker PBF-49 (Neck Pickup)

The PBF-49 and PBF-51 Vintage set feature sweet high end and classic warm tones, with focused and defined lows. The string-to-string output is balanced by internal compensation and field shaping. The blade design ensures your tone won’t fade from even the most aggressive bends.
PBF Humbuckers are fully sealed and shielded making them sweat-proof, quiet if you touch them, and immune invisible noise from stage lights and studio power supplies. The shielded 4-conductor cable is ready for coil splitting and series or parallel humbucker wiring.
PBF Humbuckers come in black, nickel, gold, or chrome in balanced versions for neck (rhythm) and bridge (treble). Black mounting screws are included (#4-40 x 7/8”).

Details

PBF Vintage Technical Details

Coil Structure:
Dual Parallel Humbucking

Cable Type:
4-Conductor Cable with shield and bare drain

Magnetic Circuit:
2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture Neck coil South and Bridge coil North

Wiring Diagram PDF



PBF-49 - Neck

  • DC Resistance: ~4.8KΩ each coil
  • Resonant Frequency: ~3.8KHz
  • Sensing Width: 2.01" [51mm] Max

PBF-51 - Bridge

  • DC Resistance: ~5.2KΩ each coil
  • Resonant Frequency: ~3.5KHz
  • Sensing Width: 2.01" [51mm] Max



Shape Details

Accessories
Bartolini

Vintage PBF Humbucker PBF-49 and PBF-51

Regular price
3,000 ฿
Sale price
2,550 ฿
Unit price
per
Out of Stock
