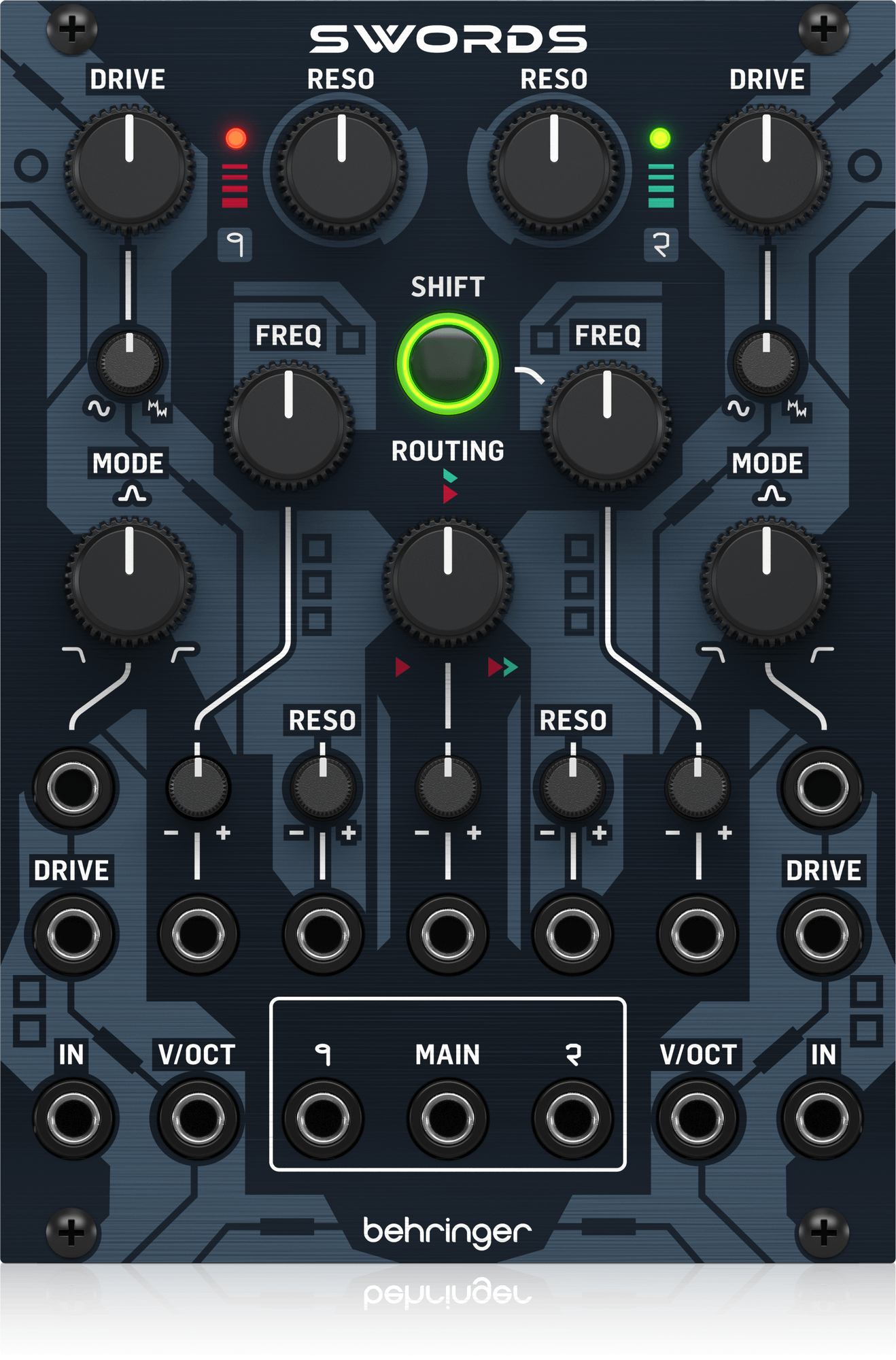

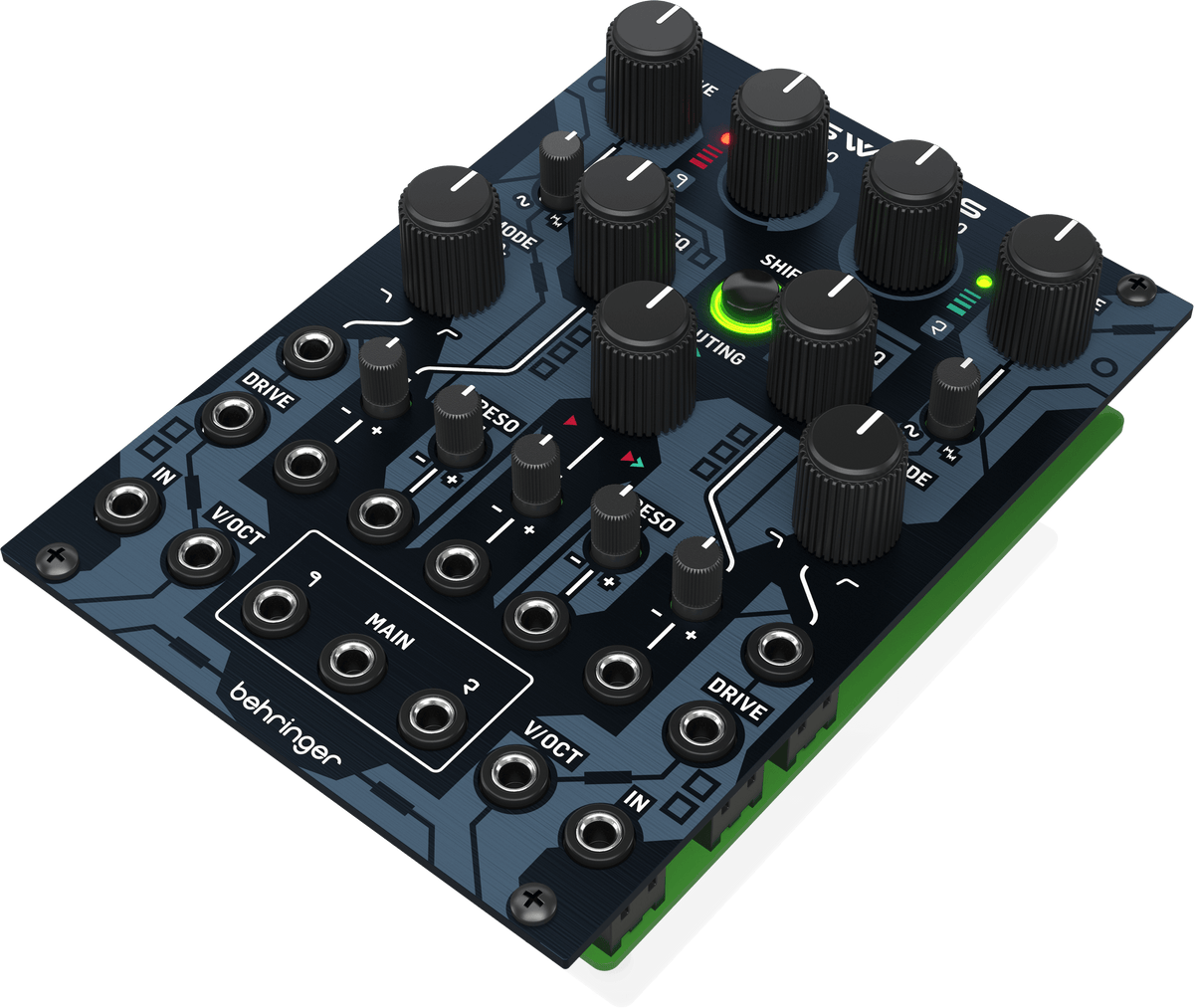

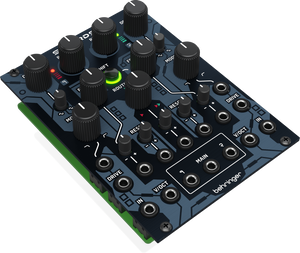

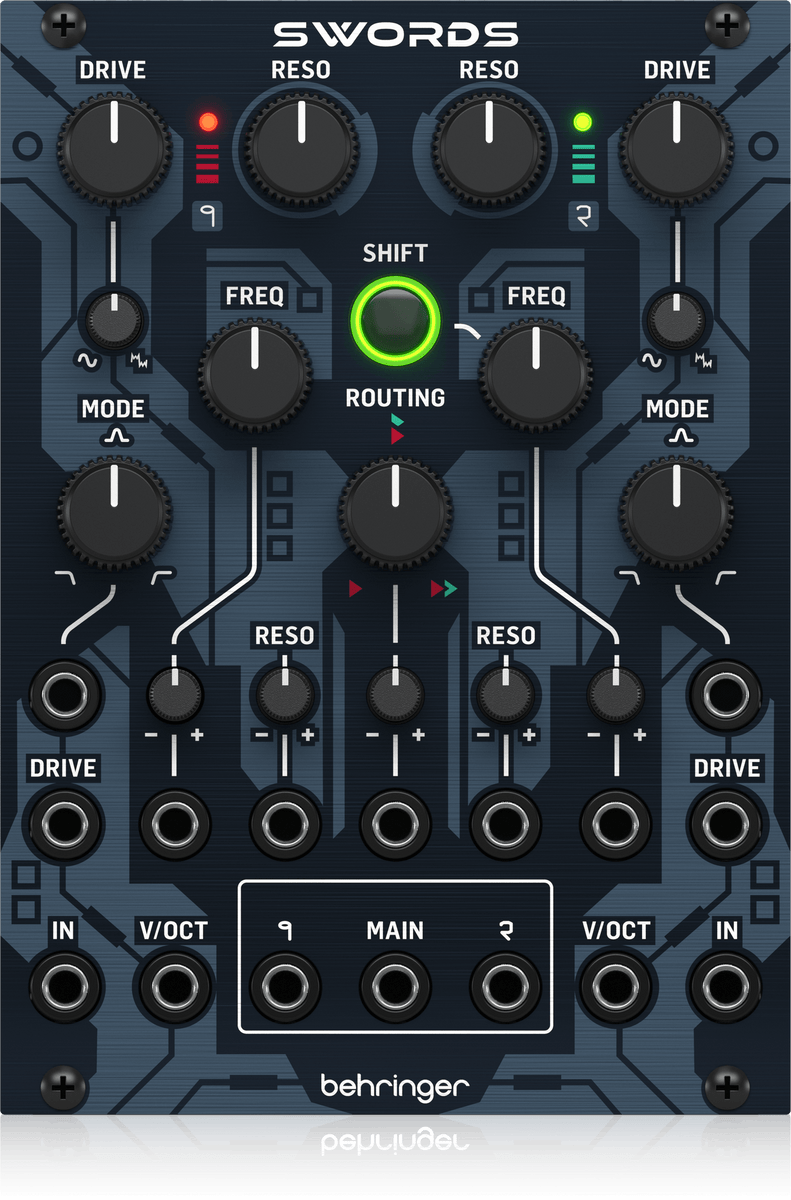

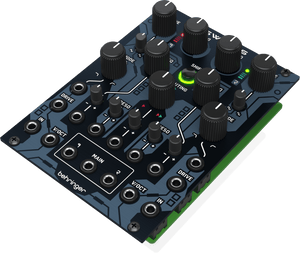

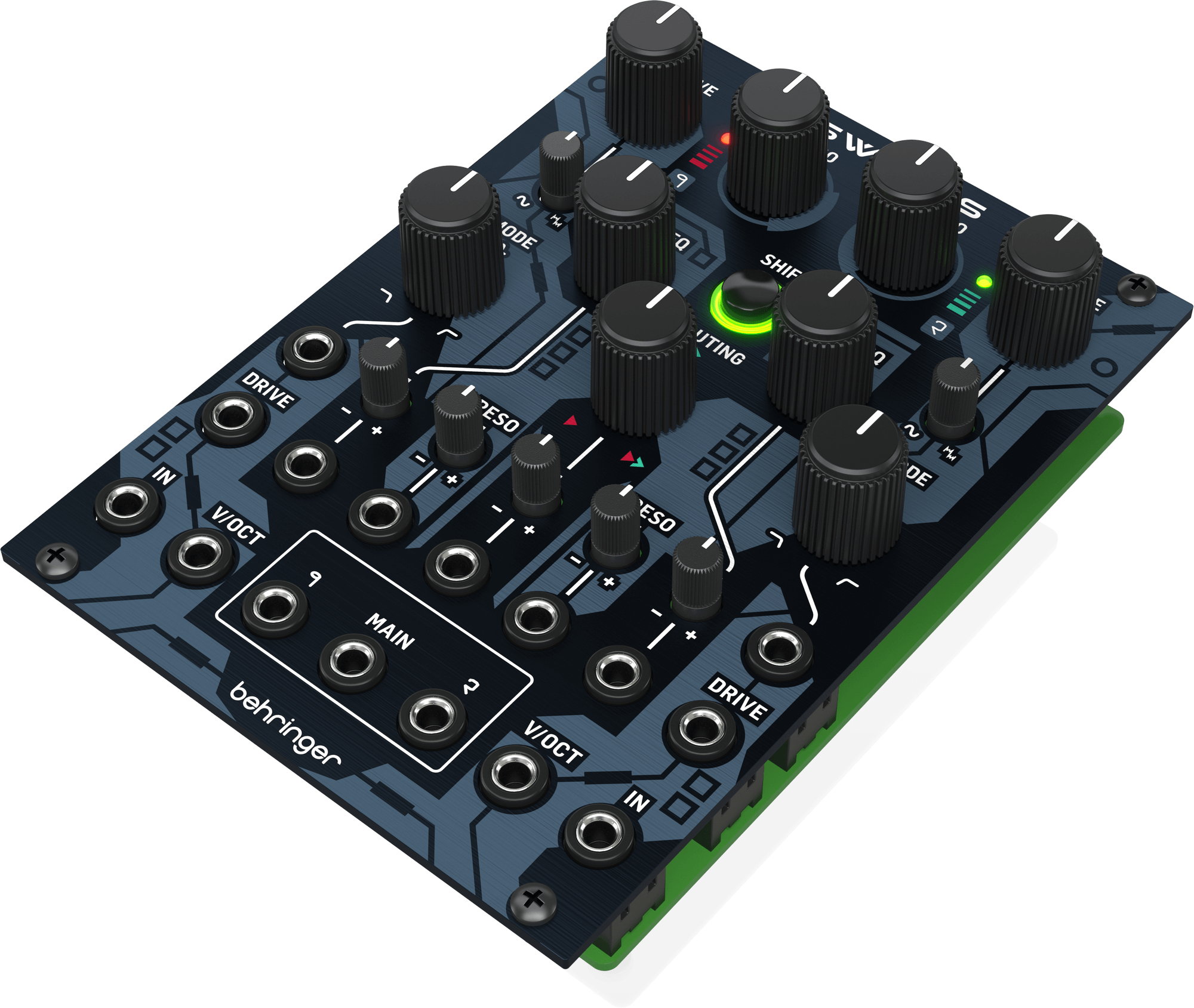

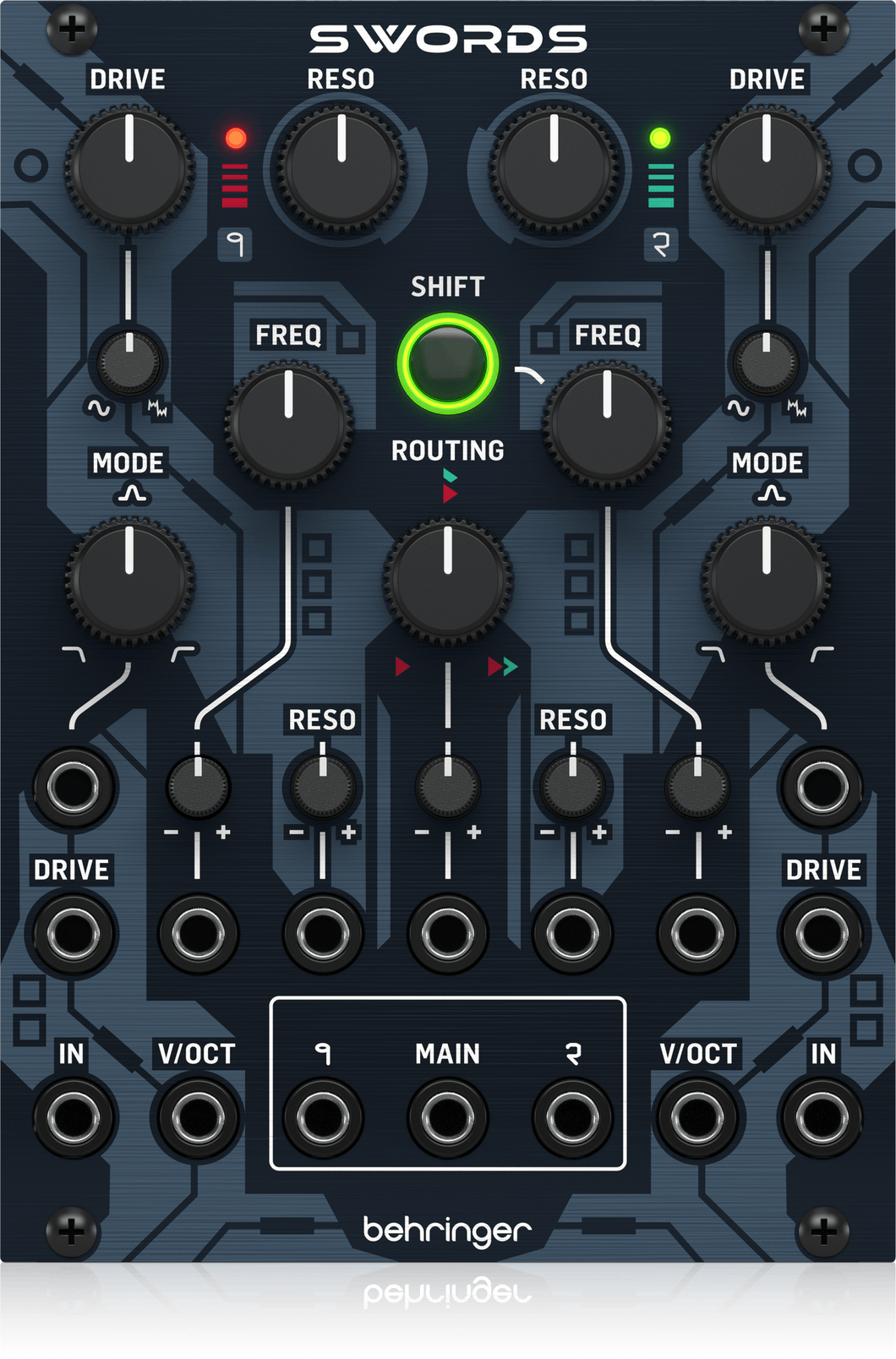

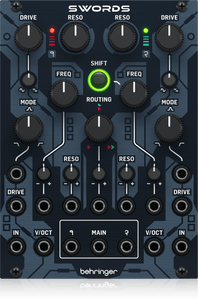

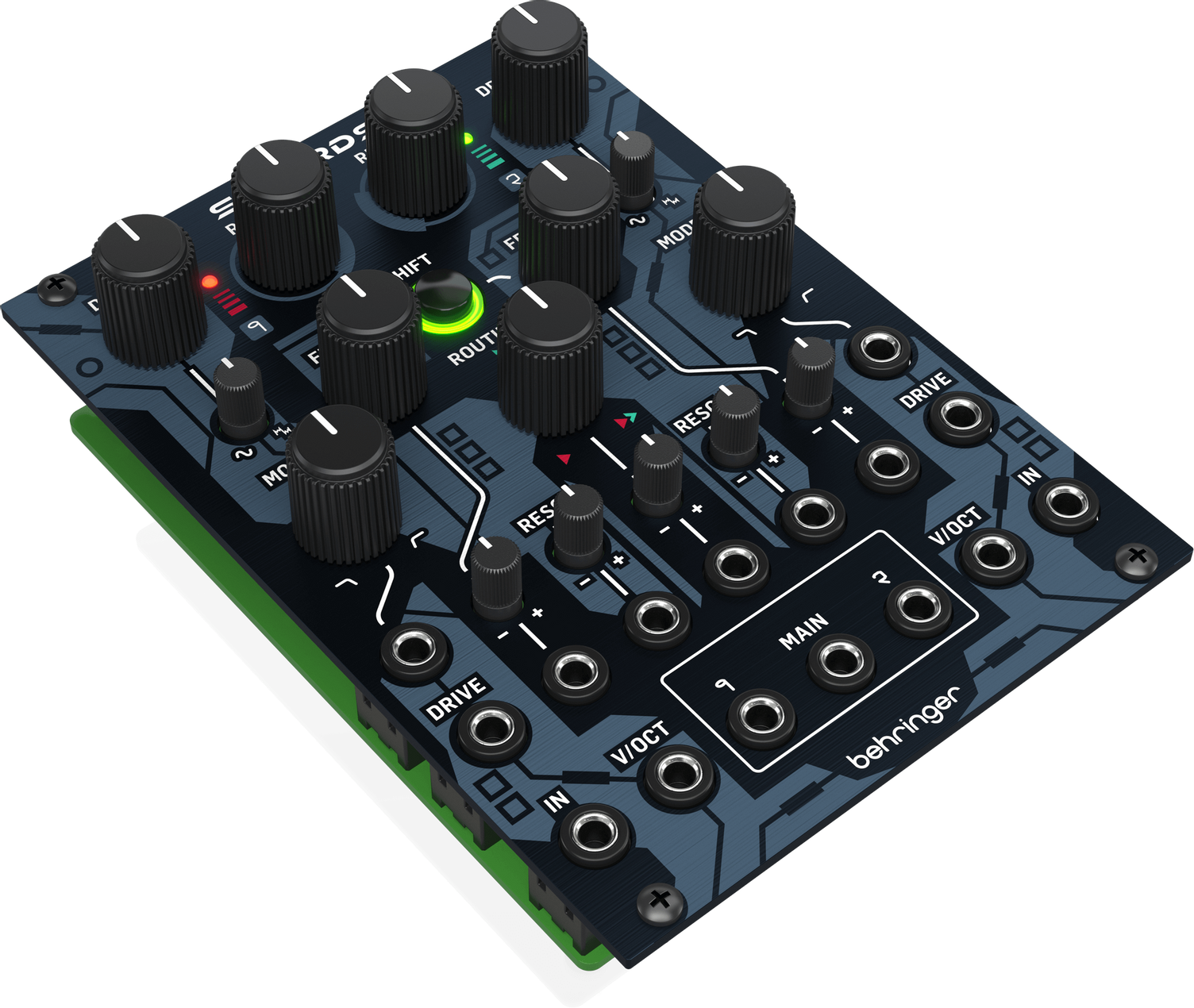

Dual Analog Multi-Mode Filter for Euro-rack
-
Dual multi-mode filter for a wide range of smooth to aggressive tones
-
Based on Mutable Instruments Blades
-
2 musical 12 dB state-variable filters for amazing sound creativity
-
Analog circuitry based on legendary 2164 semiconductors
-
Continuous morphing from low-pass to band-pass and high-pass filtering
-
Input overdrive ranging from soft clipping to two-stage wave folding
-
Self-oscillation at high resonance settings, extending into very low frequencies
-
Continuously variable and CV-controlled routing from single to parallel and series
-
Euro-rack specs: 18 HP, 150 mA +12 V, 140 mA -12 V
SWORDS
Channel a wide range of tones, from smooth to downright searing and aggressive, with your new tool to cut through the mix and stand out: the Behringer SWORDS!
Your Drive Starts Here
SWORDS is a dual analog multi-mode filter, complete with a drive circuit that controls the amount of gain and distortion of the input signal, which can be further varied from soft clipping to two-stage wave folding.
Morphin’ Time
The Mode control morphs the filter response, ranging from low-pass and band-pass to high-pass. Routing for both filters can be manipulated with the Routing knob, blending between single, parallel, or series.
Additional Features
- CV inputs
- Drive inputs
- V/Oct Input
- Attenuverters for resonance and frequency filter as well as Routing CV inputs
Specification
Inputs
| Drive CV |
3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 2 |
| Mode CV |
3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 2 |
| Frequency CV |
3.5 mm TS jack, -3 V to + 5 V range, impedance 50 kΩ x 2 |
| Resonance CV |
3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 2 |
| Routing CV |
3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ |
| Audio In |
3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 2 |
| V/Octave In |
3.5 mm TS jack, 5 V peak to peak, impedance 50 kΩ x 2 |
Outputs
| Outputs |
3.5 mm TS jack, DC coupled, impedance 1 kΩ x 3 |
| Controls |
Drive x 2 Response x 2 Frequency x 2 Resonance x 2 Mode x 2 Routing |
| Attenuverters |
Frequency x 2 Resonance x 2 Routing |
| Buttons |
Shift |
| LEDs |
Drive x 2 |
| Power Consumption |
150 mA (+12 V) / 140 mA (-12 V) |
Physical
| Dimensions (W x H x D) |
91.12 x 128.50 x 51.9 mm |
| Eurorack |
18 hp |
| Weight |
0.218 Kg (0.48 lb) |
