StageConnect Range Extender
Works with WING. And without it.
SC-RE is made to work across the entire StageConnect ecosystem. Extend connections to StageConnect I/O interfaces Connect StageConnect devices directly to a computer via SC-U Place P24 personal monitoring systems and P24 HUBs further away Extend FLOW 4V and FLOW VIO stageboxes Use it with WING consoles One extender per chain. Double the distance. Nothing else changes.
What is StageConnect?
StageConnect is a professional digital connection designed to simplify complex setups. It carries uncompressed audio, clock, data, MIDI, and power over a single cable. 32 channels at 44.1 kHz / 48 kHz, 24-bit Sub-one millisecond latency with uncompressed digital audio Standard XLR cable up to 5 meters / 16 feet 110 Ω DMX cable up to 40 meters / 130 feet Cable runs can be doubled once using StageConnect Range Extender Need help planning a setup? The StageConnect Configurator helps calculate channel count, power, and cable lengths.
Built for real-world use

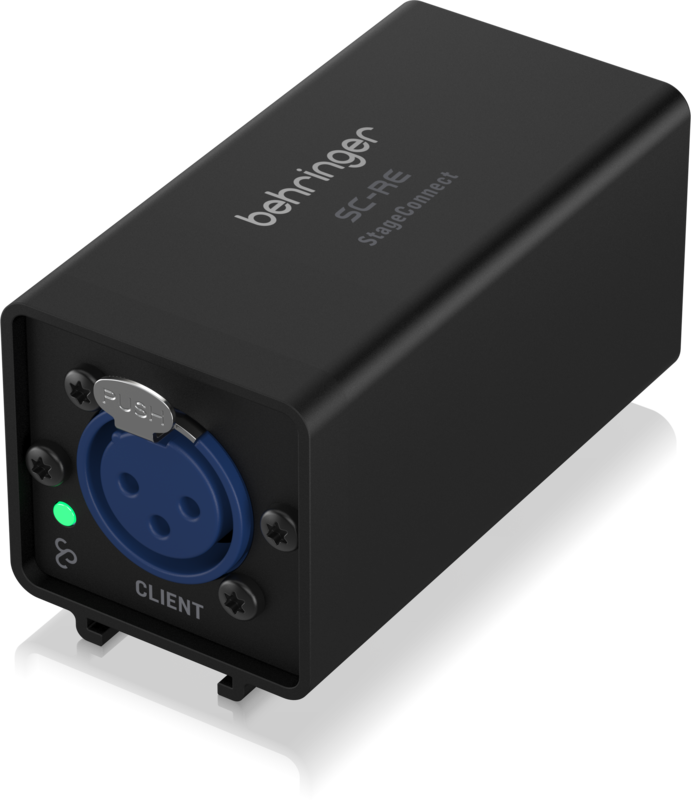

About the size of a power adapter – except SC-RE doesn’t need one. It’s powered via StageConnect. Status LEDs show operational status USB-C port for firmware updates Full-metal construction Locking XLR connectors The included mounting bracket enables permanent installation in racks, cases, or on surfaces.
Double the distance
StageConnect Range Extender doubles your StageConnect cable length up to a maximum of 80 meters / 260 feet with 110 Ω XLR cables. That puts it in the same distance class as AES50 and Ultranet. Extremely compact. Designed to disappear into any setup.
Features
- Doubles the maximum transmission range of StageConnect over XLR/DMX cable from 40 to 80 m
- Bi-directional audio transmission for up to 32 channels
- Control data and 12 VDC / 18 W remote power sent over the same XLR or DMX cable
- StageConnect 32-channel bidirectional audio transmission with sub-millisecond latency at 44.1/48 kHz and 24 bits over standard 3-pin XLR DMX cable, or microphone cable for short distances
- Slim design, just over the size of 2 XLR connectors
- Includes metal bracket for mounting in touring cases or fixed installations
Technical Specifications
Shielded bal. 110 Ω DMX cable
Max 40 meters
Power Consumption
0.5 W
USB
Type C (firmware update only)
Dimensions
78 x 40 x 42 mm
StageConnect Bus
32 channels, 44.1/48 kHz, 24-bit PCM audio
Weight
0.1 kg
I/O Latency
0.1 ms
Power Supply
Remote power input via SC Client (female) Remote power output via SC Host (male)
