Contact and Pickup Microphone Module for Eurorack
Product Features
-
Pickup microphone to generate wide range of sonic pulses and impulse combs
-
Create unique sounds by scratching and tapping the RADAR surface
-
Collect acoustic waves surrounding your modular case including loudspeakers
-
Connect external microphones, electro-acoustic instruments such as guitars or line-level signals
-
High-quality amplifier with up to 50 dB of gain for a wide range of signal sources
-
3 indicator LEDs to monitor input clipping, envelope follower level, and gate detector activity
-
Gate detector with 3 sensitivity levels translates taps into gate signals
-
Envelope follower with 3 attack and release times converts tap profile into an envelope CV
-
4 controls and switches give you real-time access to all important parameters
-
Eurorack specs: 6 HP,10 mA +12 V, 5 mA -12 V
RADAR
Start scratching and tapping your way to unique and amazing sounds with the Behringer RADAR! Beats, ambient noises and otherworldly sound effects can easily be achieved thanks to its contact and pickup microphone plus, the RADAR can be readily integrated into any synth setup.
Tap That!

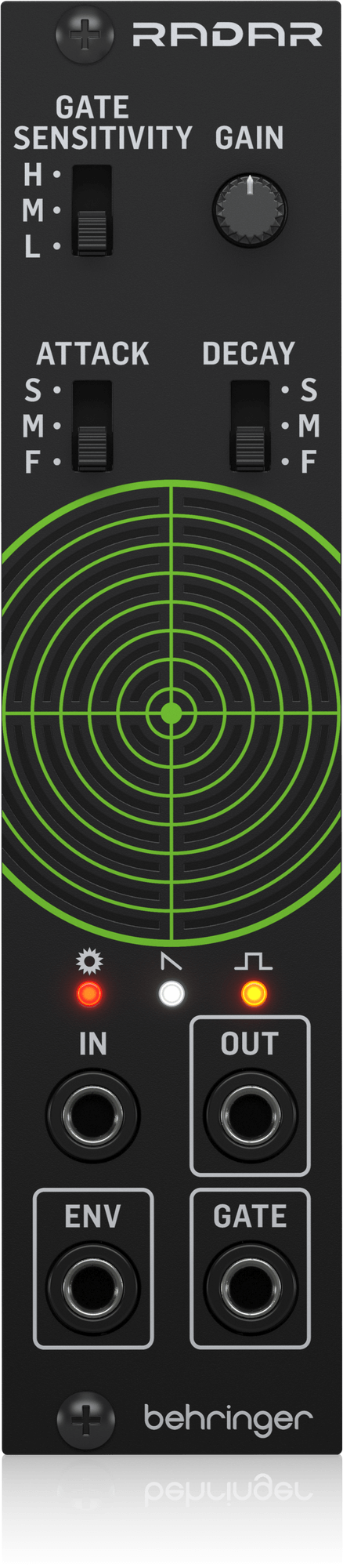

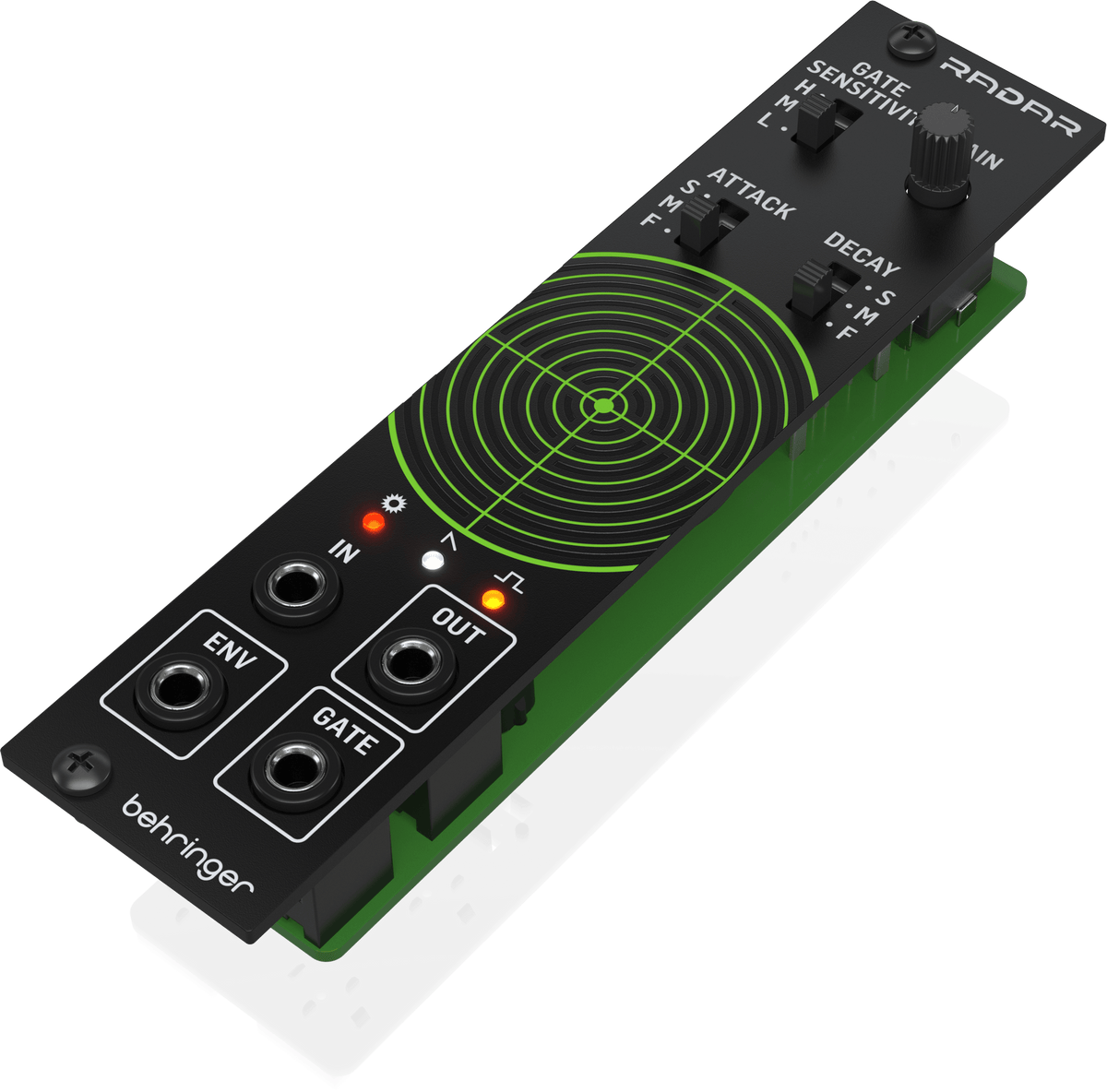

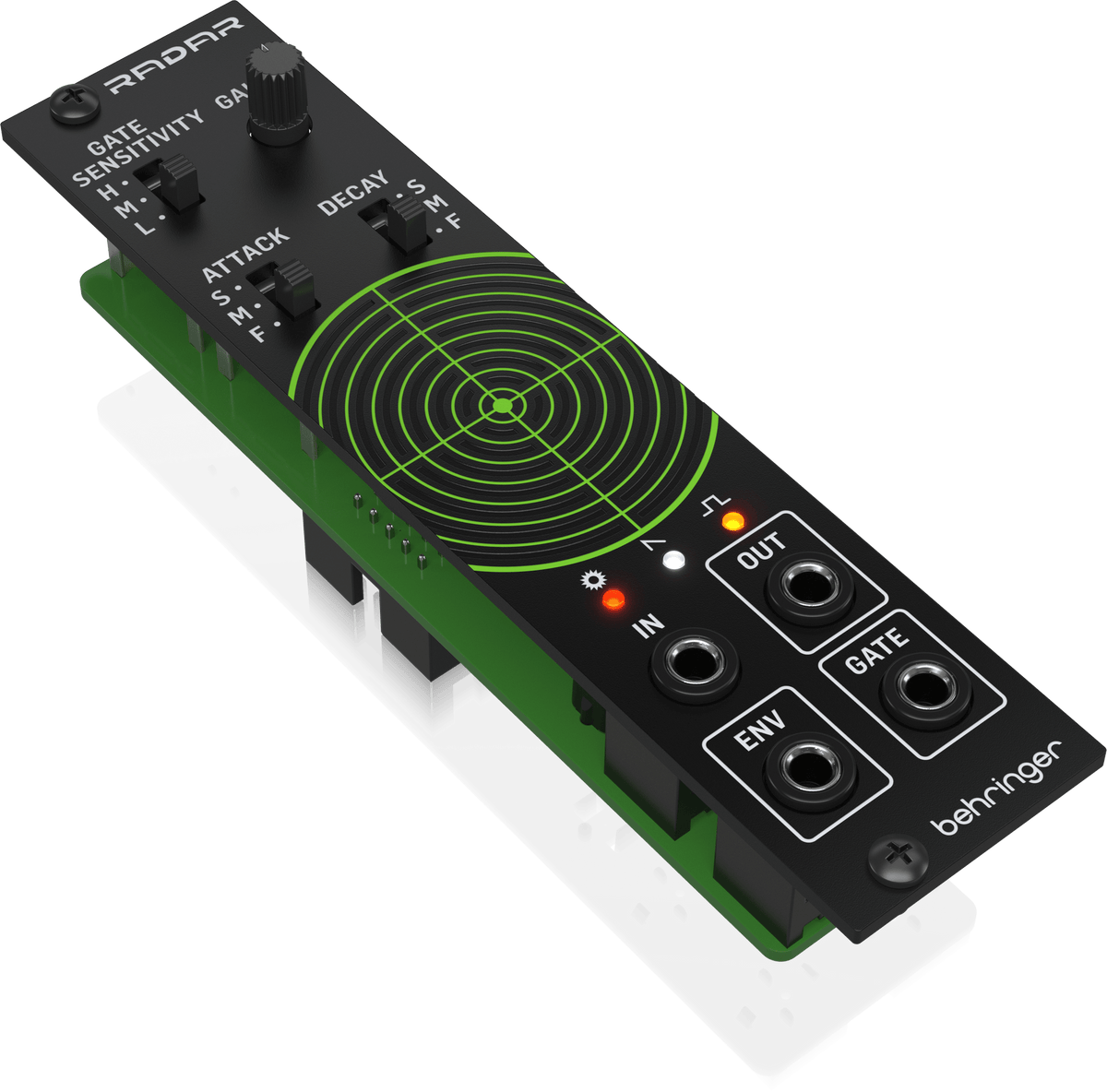

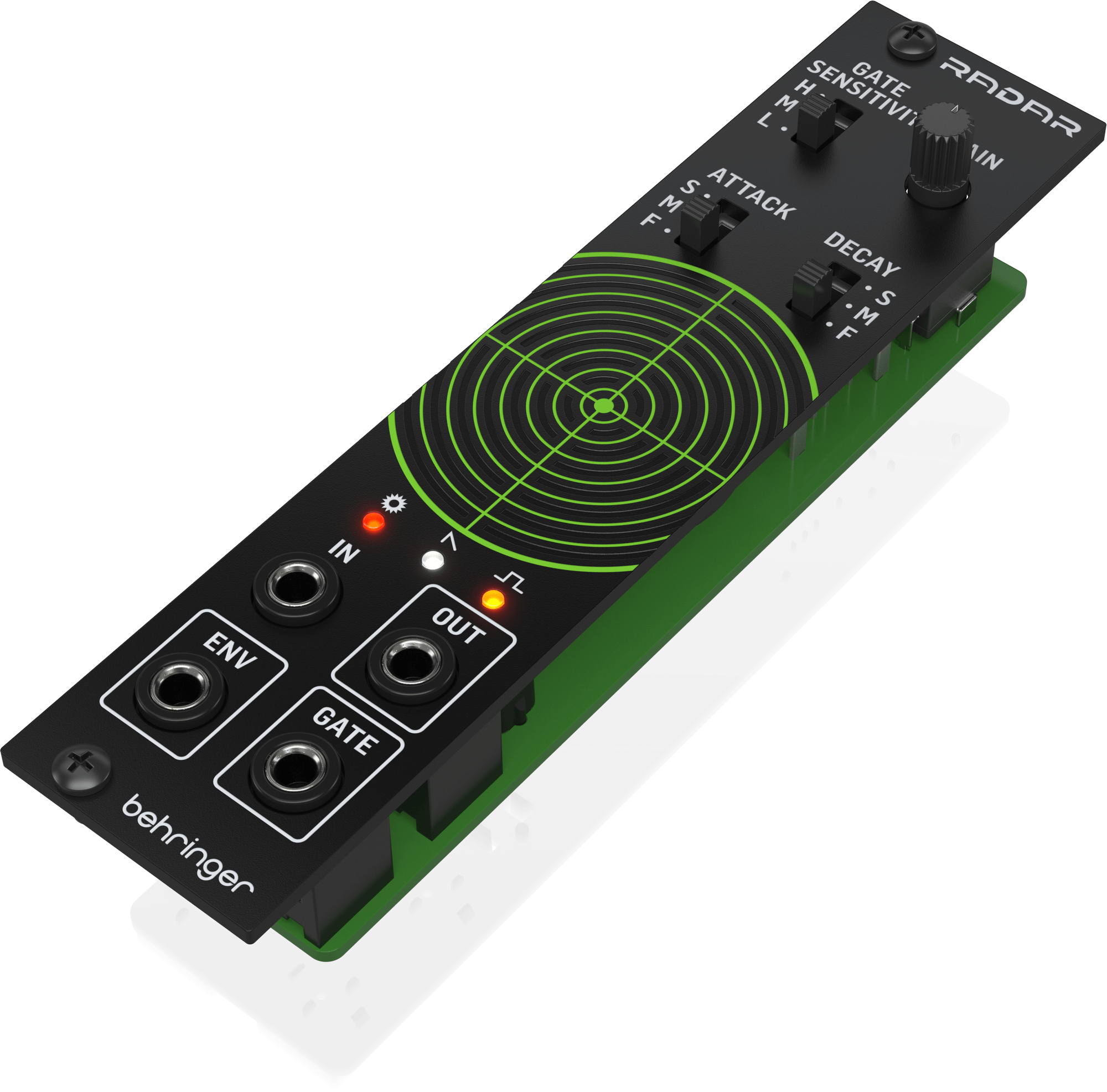

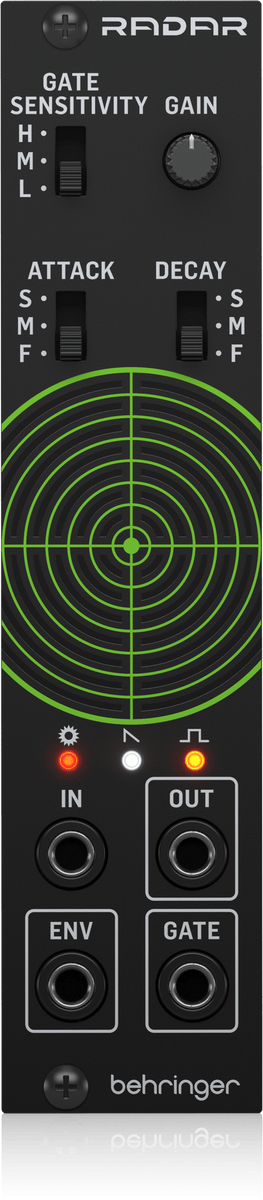

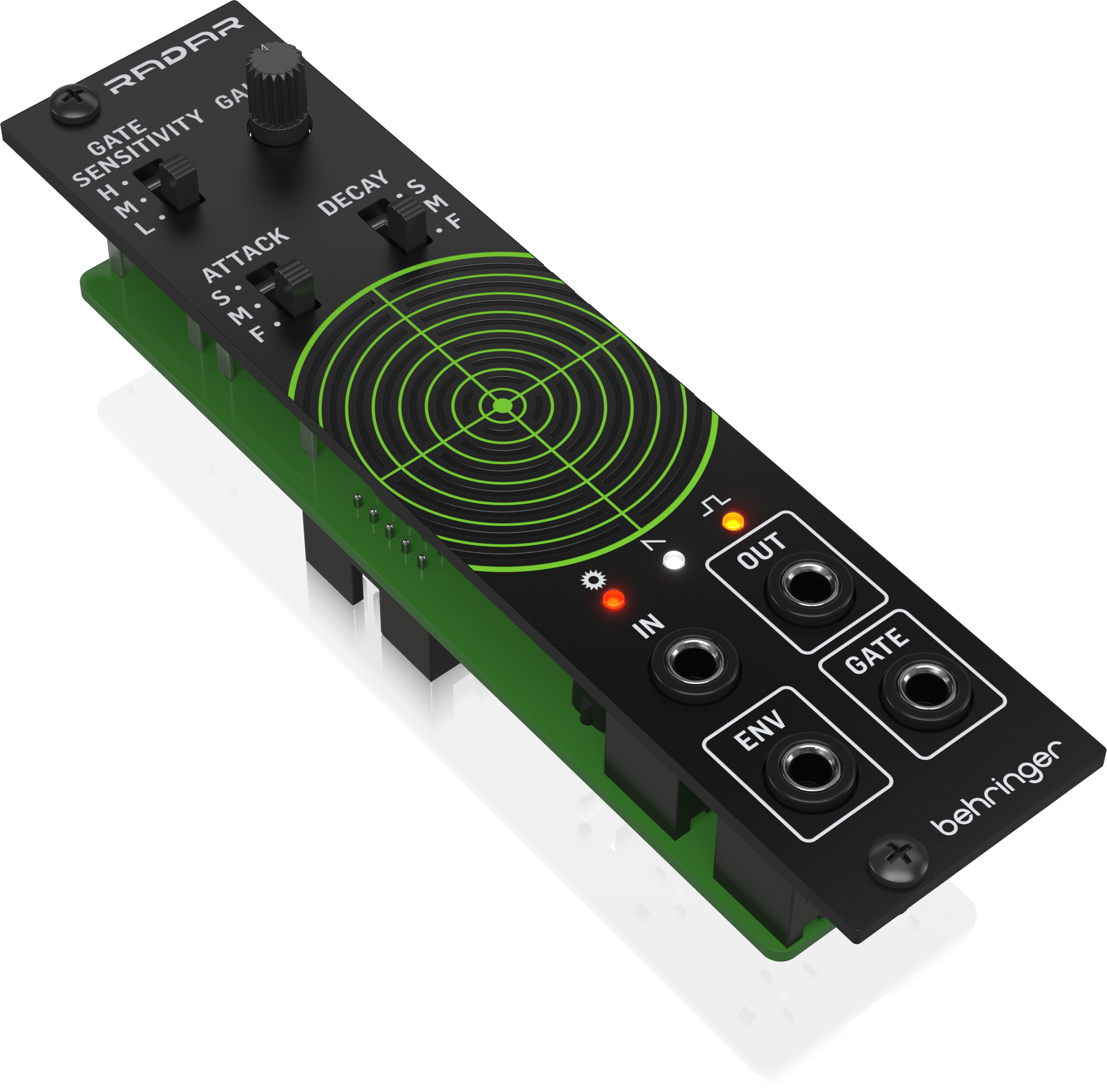

The RADAR sports a pickup microphone placed right underneath the surface of the module. Simply tapping or scratching the textured surface will convert those into signals that can be patched into any module of your choice to create ambient, echoey sound effects, creepy bangs or any sound you can imagine!
Sonic Wave Detection
The pickup on the RADAR is even sensitive enough to capture any surrounding acoustic waves be it a knock on your modular case, a snare hit from your drummer or even sounds coming out of loudspeakers. Those sounds can then be converted into gate or envelope signals and tweaked with the Gate Sensitivity or Attack and Decay controls respectively.
Eurorack Ready
The RADAR is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows it to be mixed with other synth modules for a truly unique set up.
Specification
Inputs
| External In |
Type: 3.5 mm TS jack, DC coupled Impedance: 1 MΩ Max input level: +19 dBu |
Outputs
| Out |
Type: 3.5 mm TS jack, DC coupled Impedance: 470 Ω Max output level: +19 dBu Output noise at unity gain: Dependent on Power Supply |
| Envelope Out |
Type: 3.5 mm TS jack, DC coupled Impedance: 470 Ω Maximum Voltage p to p: -10 / +10 V output voltage |
| Gate Out |
Type: 3.5 mm TS jack, DC coupled Impedance: 470 Ω Maximum Voltage p to p: 0 /+10 V output voltage |
Controls
| Gain |
0 / +50 dB |
| Sensitivity Switch |
Three position - L = 1 volt / M = 2 volt / H = 4 volt |
| Attack Switch |
Three position - S / M/ F |
| Decay Switch |
Three position - S / M/ F |
| Microphone LED |
Red - signal clipping |
| Envelope LED |
White - envelope generated |
| Gate LED |
Amber - gate generated |
Power
| Power Power supply |
Eurorack |
| Current draw |
5 mA (+12 V), 5 mA (-12 V) |
RADAR
Contact and Pickup Microphone Module for Eurorack
Product Features
-
