500 Series 4 Band Fully Parametric Equaliser Based on Midas HERITAGE 3000

Product Features
  • Compact 500 Series module with enhanced Midas HERITAGE 3000 four band fully parametric equaliser

  • Class leading equaliser acclaimed for it's warm and responsive character with fast easy setup

  • Precision dual concentric controls give instant access to fully variable gain and frequency settings

  • Bass and treble bands with selection switches for bell or shelving responses

  • Fully variable bandwidth controls on all four bands in bell mode

  • High power balanced output drives long audio cables with ease

  • High performance electronically balanced input stage with high common-mode rejection

  • Ultra low noise design using premium quality op-amps

  • True hardware bypass selection switch removes all circuitry from the signal path when equalisation is not required

  • Power up mute relays prevent switch on thumps

  • Advanced design with low power consumption gives extended component life

  • Premium quality components throughout for a crystal-clear audiophile signal path

  • Designed and engineered in the U.K.

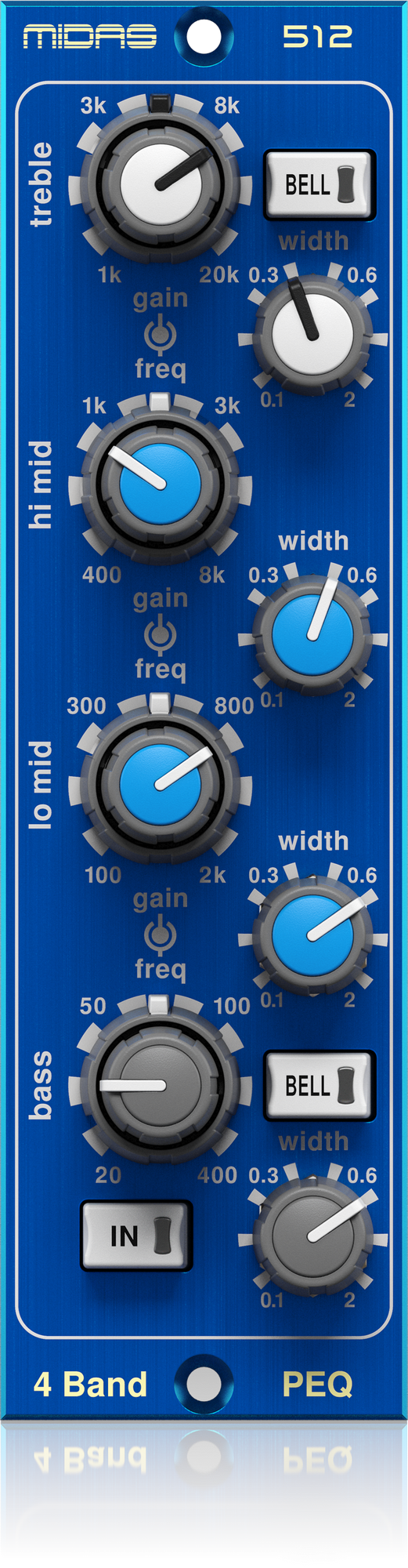

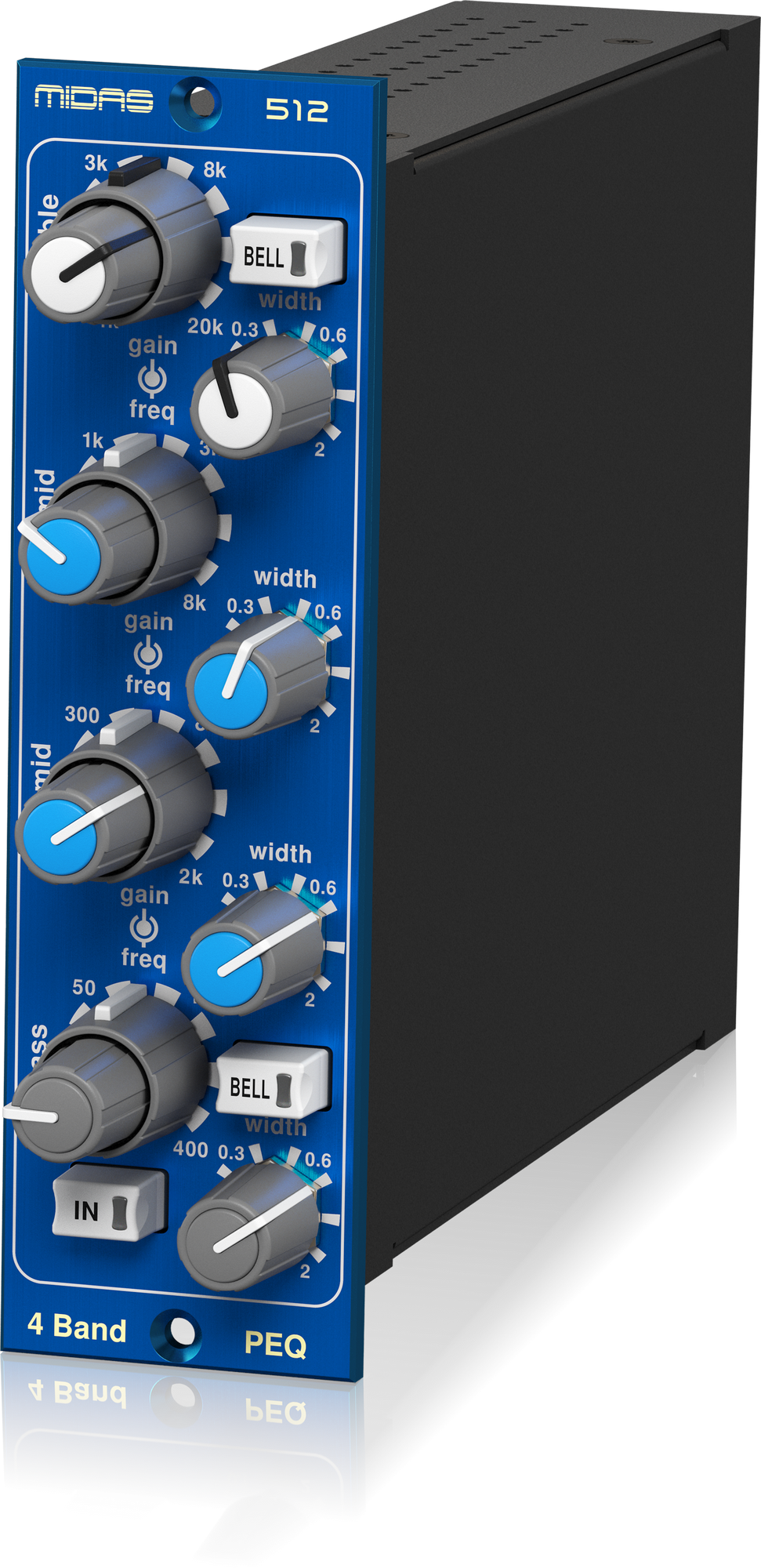

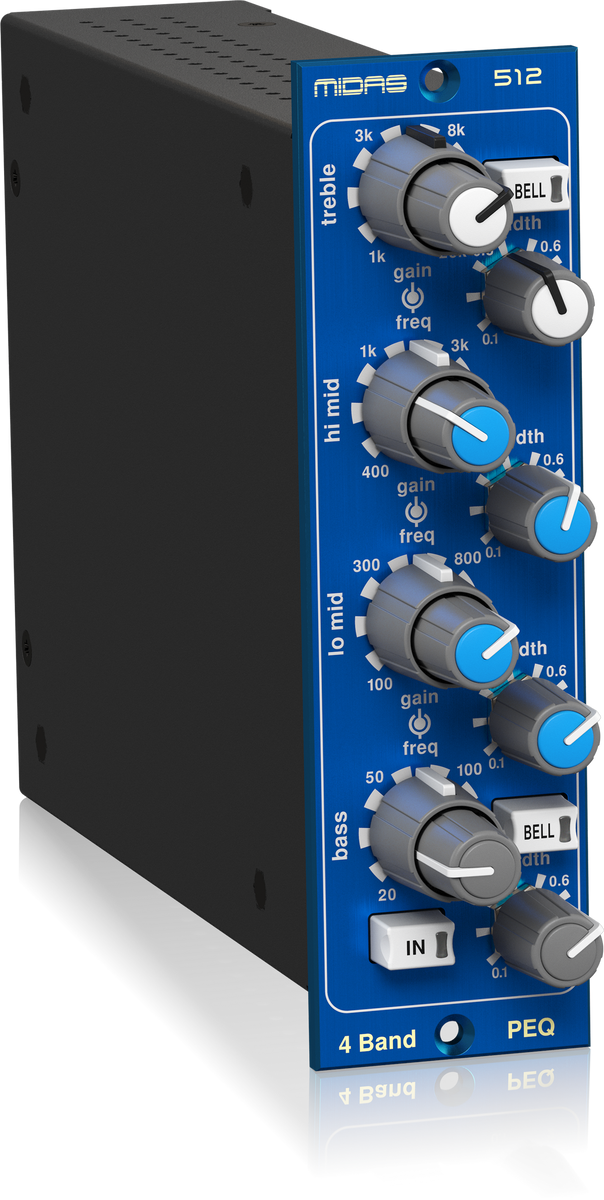

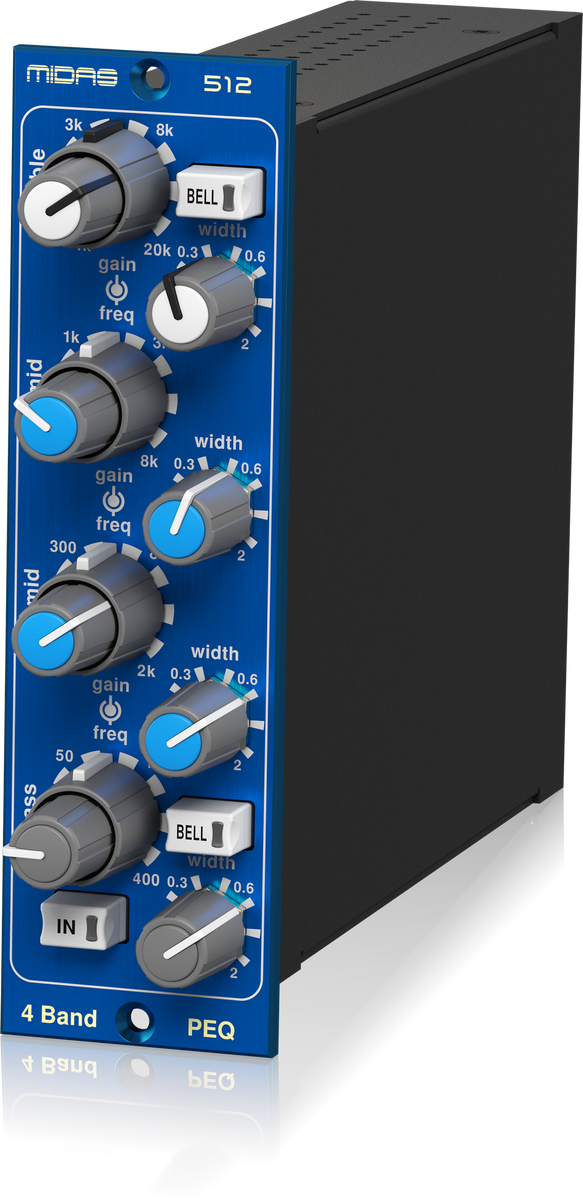

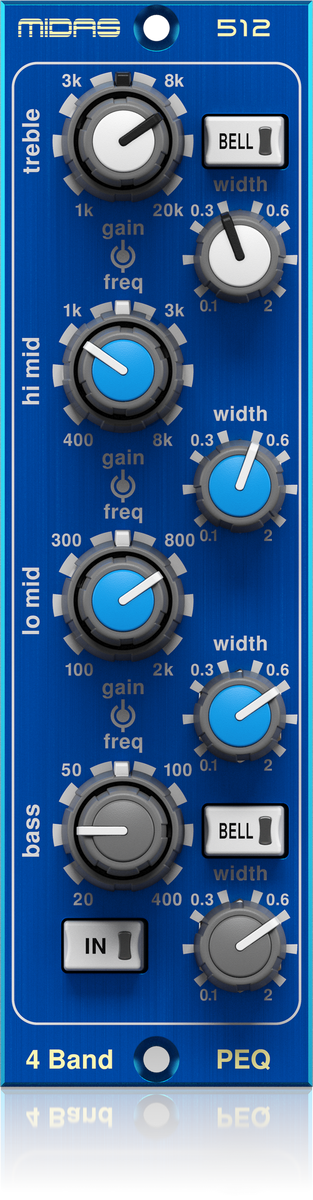

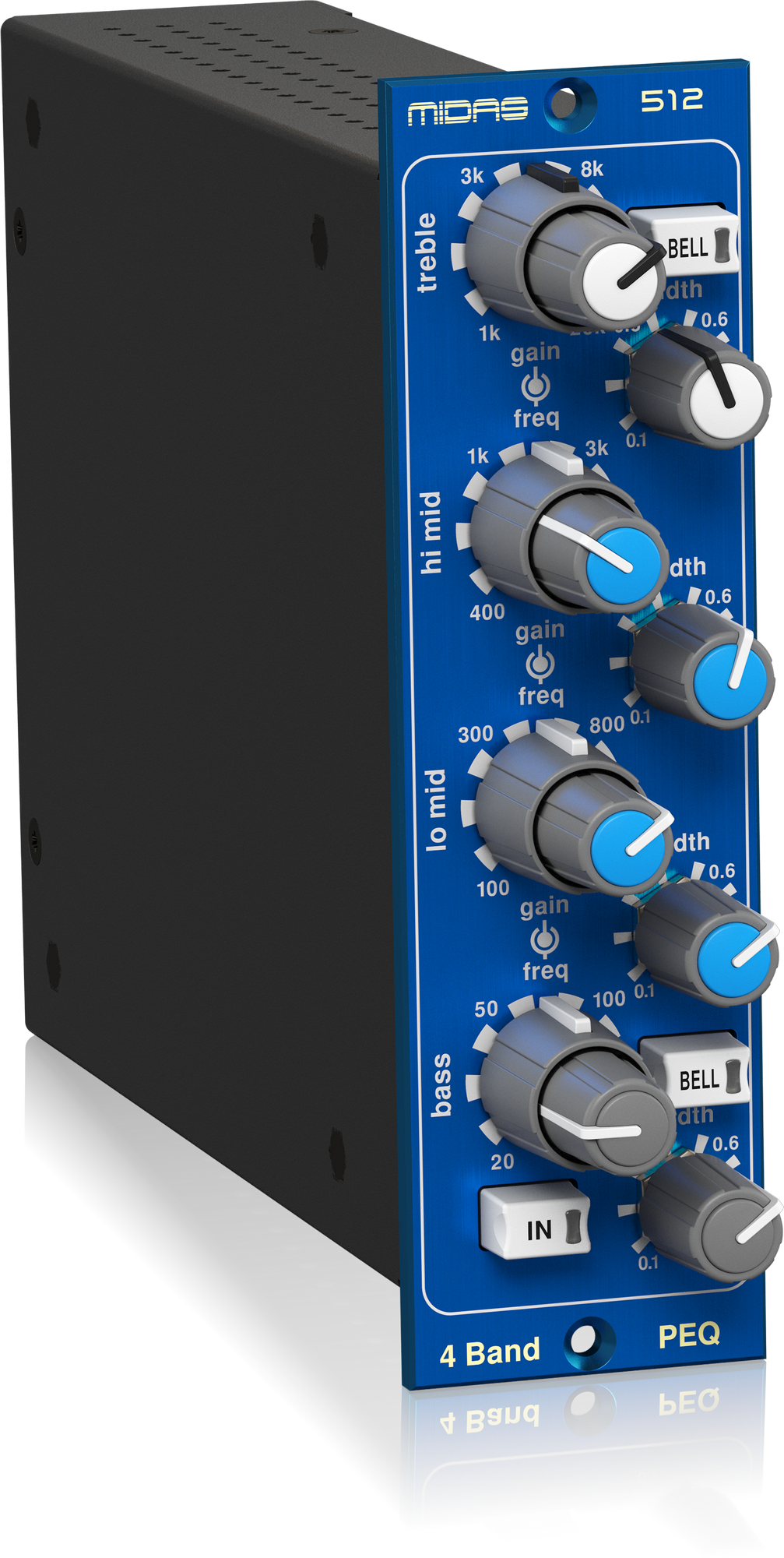

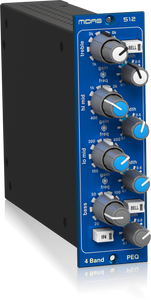

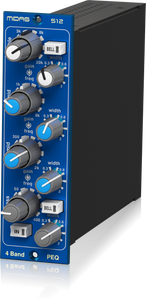

500 SERIES PARAMETRIC EQUALISER 512 V2
500 SERIES PARAMETRIC EQUALISER 512 V2

The PARAMETRIC EQUALISER 512 is a compact 500 Series 4 band fully parametric equaliser based on channel strip originally provided in the legendary Midas HERITAGE 3000 mixing console. When used in conjunction with the LEGEND L10, L6, or other standard 500 Series rackmount chassis, the 512 provides the ideal EQ solution for users seeking Midas performance in a modular format that boasts upgraded, premium-quality performance.

Class Leading EQ
Class Leading EQ

A parametric equaliser allows the operator to address multiple parameters with high precision when applying filters to an audio signal, i.e., a specific frequency can be cut or boosted by an exact amount across an adjustable bandwidth or “Q”. Such surgical-level equalisation enables fine tuning the filter to reduce the gain at frequencies that are prone to feedback, or remove undesirable tonal qualities and their overtones. Conversely, the ability to increase (boost) the gain at certain frequencies provides the ideal way to add punch to bass and kick drum signals, or to add presence to vocal or solo instrument tonalities. The PARAMETRIC EQUALISER 512 utilises 4 overlapping frequency bands to easily and expertly craft professional-grade output signals – both in the studio and during live performance. And when it comes to sound quality, Midas products are recognized by engineers the world over as the class leader for their warm and responsive delivery.

Precision Dual Concentric Controls
Precision Dual Concentric Controls

Built from the bottom up, the 512 EQ strip operates across 4 overlapping frequency bands: Bass (20 Hz to 400 Hz); Lo Mid (100 Hz to 2 kHz); Hi Mid (400 Hz to 8 kHz); and Treble (1 kHz to 20 kHz). The Frequency and Gain (-15 dB to +15 dB) adjustments are provided in the form of stacked dual concentric controls, with Gain on the knob and Frequency on the outer ring. All give instant access to fully variable gain and frequency settings in their respective operating bands.

Bass and Treble Bell Switches
Bass and Treble Bell Switches

512’s Bass and Treble Width controls (Q) are non-functional while in traditional Midas shelving mode, which is the default (Bell switches disengaged). When the Bell switches are pressed and illuminated, the Bass and Treble Width controls provide parametric operation. The Lo Mid and Hi Mid frequency bands are always in parametric operating mode – so when both Bell switches are engaged, all 4 Width controls provide fully variable parametric equalisation.

High Performance Balanced Input Stage
High Performance Balanced Input Stage

Decades of experience, paired with the premium-grade components that make up every input stage we build, ensures the ultimate in signal integrity that is the very foundation of our design process. That warm and organic Midas sound has been heard by millions of concert goers – and recorded for posterity on countless live albums. The input stage of the 512 is second to none with its low noise performance, which boasts an enviable Common Mode Rejection Ratio (CMRR) of -70 dB @ 1 kHz.

Ultra Low Noise Design
Ultra Low Noise Design

As with all Midas consoles and processors, we use only premium quality components throughout our design and manufacturing process, including the ultra low noise op-amps to ensure -97 dBu performance at unity gain from 22 Hz to 22 kHz.

True Hardware Bypass & Power Up Mute
True Hardware Bypass & Power Up Mute

For those occasions when equalisation is not needed, 512’s IN switch can be disengaged to remove all circuitry from the signal path via true hardware relay bypass. Additionally, true bypass mode engages should the chassis become accidentally powered down.
