Orbital Modulator

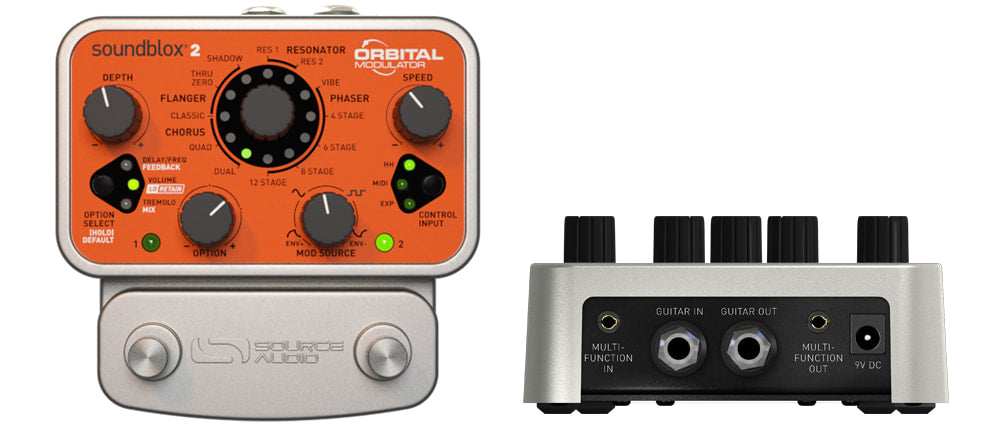

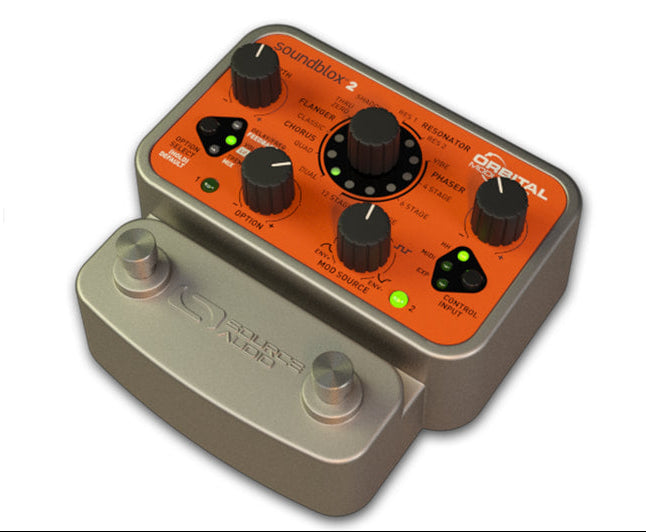

The Orbital Modulator is a super-compact, durable, and highly flexible multi-effects pedal with a dynamic collection of precision-engineered phaser, flanger, chorus, and tremolo effects. The Orbital's twelve effect types, nine adjustable parameters, plus internal or external modulation control were designed to send your tone into sonic orbit.
The Orbital Modulator’s rack-mount power delivers endless modulation possibilities including multi-voiced choruses, through zero flange, rotary speaker simulation, variable notch phasers and much more. Its nine adjustable parameters include DEPTH, FEEDBACK, DELAY, FREQUENCY, VOLUME, LoRETAIN, TREMOLO, MIX, and SPEED. Control modulation either internally or externally: sine and square wave LFO plus forward and reverse Envelope Followers offer vibrant internal modulation, while the pedal’s compatibility with MIDI control signals, the Source Audio Dual Expression Pedal, or any of our Hot Hand motion sensor rings provides precise external control. Once you’ve dialed in the perfect sound, save it one of two user presets easily recalled via two footswitches.
Additional Features and Specifications
- Diverse Sound Palette — Featuring 3 Chorus, 3 Flangers, 2 Resonator Flangers, 5 Phasers and Tremolo.
- Compact, cast aluminum housing.
- 2 User Presets easily recalled via two footswitches.
- 9 Adjustable Parameters — Depth, Delay, Frequency, Feedback, Volume, LoRetain, Tremolo, Mix, and Speed.
- 6 Modulation Sources — Sine Wave LFO, Square Wave LFO, Envelope Follower, Hot Hand, Expression Pedal, and MIDI.
- Multi-function In — use the Source Audio Dual Expression Pedal or any of the Hot Hand Motion Sensors for on-the-fly control over modulation or any of the 9 adjustable parameters.
- Universal Bypass — selectable buffered or true bypass.
- MIDI Capable — the Multi-function In jack also allows MIDI access to presets and parameters when used with the Neuro Hub.
- State-of-the-art DSP — Our proprietary 56-bit Digital Signal Processor, the SA601, and crystal clear 24-bit converters.
- 9V DC power supply included
- Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2.25 in./5.7cm (including knobs).
Orbital Modulator
Orbital Modulator
The Orbital Modulator is a super-compact, durable, and highly flexible multi-effects pedal with a dynamic collection of precision-engineered phaser, flanger, chorus, and tremolo effects. The Orbital's twelve effect types, nine adjustable parameters, plus internal or external modulation control were designed to send your tone into sonic orbit.
The Orbital Modulator’s rack-mount power delivers endless modulation possibilities including multi-voiced choruses, through zero flange, rotary speaker simulation, variable notch phasers and much more. Its nine adjustable parameters include DEPTH, FEEDBACK, DELAY, FREQUENCY, VOLUME, LoRETAIN, TREMOLO, MIX, and SPEED. Control modulation either internally or externally: sine and square wave LFO plus forward and reverse Envelope Followers offer vibrant internal modulation, while the pedal’s compatibility with MIDI control signals, the Source Audio Dual Expression Pedal, or any of our Hot Hand motion sensor rings provides precise external control. Once you’ve dialed in the perfect sound, save it one of two user presets easily recalled via two footswitches.
Additional Features and Specifications
- Diverse Sound Palette — Featuring 3 Chorus, 3 Flangers, 2 Resonator Flangers, 5 Phasers and Tremolo.
- Compact, cast aluminum housing.
- 2 User Presets easily recalled via two footswitches.
- 9 Adjustable Parameters — Depth, Delay, Frequency, Feedback, Volume, LoRetain, Tremolo, Mix, and Speed.
- 6 Modulation Sources — Sine Wave LFO, Square Wave LFO, Envelope Follower, Hot Hand, Expression Pedal, and MIDI.
- Multi-function In — use the Source Audio Dual Expression Pedal or any of the Hot Hand Motion Sensors for on-the-fly control over modulation or any of the 9 adjustable parameters.
- Universal Bypass — selectable buffered or true bypass.
- MIDI Capable — the Multi-function In jack also allows MIDI access to presets and parameters when used with the Neuro Hub.
- State-of-the-art DSP — Our proprietary 56-bit Digital Signal Processor, the SA601, and crystal clear 24-bit converters.
- 9V DC power supply included
- Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2.25 in./5.7cm (including knobs).
Orbital Modulator
The Orbital Modulator is a super-compact, durable, and highly flexible multi-effects pedal with a dynamic collection of precision-engineered phaser, flanger, chorus, and tremolo effects. The Orbital's twelve effect types, nine adjustable parameters, plus internal or external modulation control were designed to send your tone into sonic orbit.
The Orbital Modulator’s rack-mount power delivers endless modulation possibilities including multi-voiced choruses, through zero flange, rotary speaker simulation, variable notch phasers and much more. Its nine adjustable parameters include DEPTH, FEEDBACK, DELAY, FREQUENCY, VOLUME, LoRETAIN, TREMOLO, MIX, and SPEED. Control modulation either internally or externally: sine and square wave LFO plus forward and reverse Envelope Followers offer vibrant internal modulation, while the pedal’s compatibility with MIDI control signals, the Source Audio Dual Expression Pedal, or any of our Hot Hand motion sensor rings provides precise external control. Once you’ve dialed in the perfect sound, save it one of two user presets easily recalled via two footswitches.
Additional Features and Specifications
- Diverse Sound Palette — Featuring 3 Chorus, 3 Flangers, 2 Resonator Flangers, 5 Phasers and Tremolo.
- Compact, cast aluminum housing.
- 2 User Presets easily recalled via two footswitches.
- 9 Adjustable Parameters — Depth, Delay, Frequency, Feedback, Volume, LoRetain, Tremolo, Mix, and Speed.
- 6 Modulation Sources — Sine Wave LFO, Square Wave LFO, Envelope Follower, Hot Hand, Expression Pedal, and MIDI.
- Multi-function In — use the Source Audio Dual Expression Pedal or any of the Hot Hand Motion Sensors for on-the-fly control over modulation or any of the 9 adjustable parameters.
- Universal Bypass — selectable buffered or true bypass.
- MIDI Capable — the Multi-function In jack also allows MIDI access to presets and parameters when used with the Neuro Hub.
- State-of-the-art DSP — Our proprietary 56-bit Digital Signal Processor, the SA601, and crystal clear 24-bit converters.
- 9V DC power supply included
- Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2.25 in./5.7cm (including knobs).
