Dual-Engine Rack Processor With Reverb and Multi-Effects
Product Features
-
Dual-engine rack processor with reverb and multi-effects with a user-friendly interface for live or studio applications
-
Two-engine structure incorporates one engine entirely dedicated to reverbs and one engine for legendary multi-effects, giving you all the power you need for creative stage, front-of-house, and studio performances
-

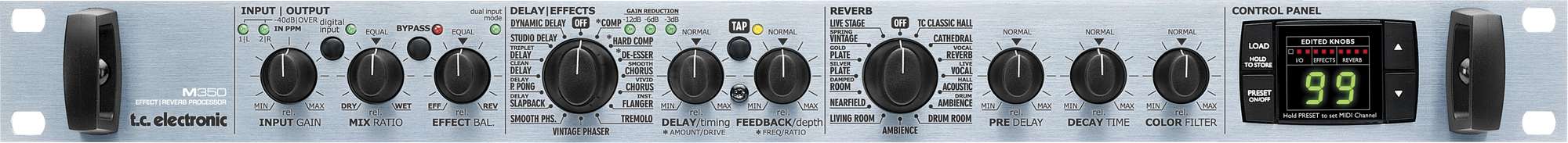

Easy front panel access to a user-friendly interface optimized for fast live performance use
-
Fifteen quality reverbs from the strong TC Electronic effects heritage, including live, hall, plate, and room options, provide you with an ample creative palette
-
Choice collection of fifteen multi-purpose effects on board, including delay, chorus, flanger, phaser, and more
-
Default delay / effect and reverb settings give you access to 256 different preset sounds
-
Space for 99 user-defined presets, with an easy-to-read front panel preset display
-
Adaptive 100 - 240 V built-in power supply lets you have seamless operation at any mains voltage
-
Configurable into dual input, serial, and parallel routing setups to give you great flexibility
-
Provides balanced analog I/O and an auto-sensing 24-bit S/PDIF* digital input / output that can accept and send signals at 44.1 or 48 kHz
-
Tap Tempo function with optional pedal control lets you put your time-based effects right on the beat
-
MIDI in/out for preset recall, parameter control and clock tempo sync
-
Designed and engineered in Denmark
Introduction
M350 is an extremely user-friendly dual engine rack processor which is equally suited for live and studio applications. It gives you 15 TC-quality reverbs and 15 multi-purpose effects including delay, modulation and compression.
• Choice Selection of Effects - Reverb, Delay, Modulation, Dynamics, etc.
• Easy Front Panel Access - User-friendly Design for Maximum Flexibility
Effect Presets
The two effect engines of M350 hold 15 different types each. One of them is completely dedicated to reverb, while the other is versatile multi effect engine. Common to all the effects of M350 is that are a result of the award-winning TC effects heritage, founded on extensive fine-tuning and research. Combined, these effects give you all the tools you need on the stage, FOH or in the studio.
Specification
Digital Input and Output
| Connector |
RCA Phono (S/PDIF) |
| Formats |
S/PDIF (24 bit), EIAJ CP-340, IEC 958 |
| Sample Rates |
44.1 kHz. (48 kHz only @ Digital Input) |
| Processing Delay |
0.08 ms @ 48 kHz |
| Frequency Response DIO |
DC to 23.9 kHz ± 0.01 dB @ 48 kHz |
Analog Inputs
| Connectors |
1/4" phone jack, mono sense |
| Impedance, Bal / Unbal |
21 kOhm / 13 kOhm |
| Max. / Min. Input Level @ 0 dBFS |
+24 dBu / 0 dBu |
| Sensitivity Range @ 12 dB headroom |
-12 dBu to +12 dBu |
| A to D Conversion |
24 bit, 128 x oversampling bitstream |
| A to D Delay |
0.70 ms / 0.65 ms @ 44.1 kHz / 48 kHz |
| Dynamic Range |
typ < -92 dB, 22 Hz to 22 kHz |
| THD |
typ < -90 dB (0.0032 %) @ 1 kHz, -1 dBFS |
| Frequency Response |
+0/-0.1 dB, 20 Hz to 20 kHz |
| Crosstalk |
typ < -100 dB, 20 Hz to 20 kHz |
Analog Outputs
| Connectors |
1/4" phone jack |
| Impedance Bal / Unbal |
40 Ohm / 20 Ohm |
| Max. Output Level |
+14 dBu |
| D to A Conversion |
24 bit, 128 x oversampling bitstream |
| D to A Delay |
0.68 ms / 0.63 ms @ 44.1 kHz / 48 kHz |
| Dynamic Range |
typ < -105 dB typ, 22 Hz to 22 kHz |
| THD |
typ < -97 dB (0.0014 %) @ 1 kHz, +13 dBu |
| Frequency Response |
+0/-0.5 dB, 20 Hz to 20 kHz |
| Crosstalk |
typ < -100 dB, 20 Hz to 20 kHz |
EMC
| Complies with |
EN 55103-1 and EN 55103-2 |
Safety
| Certified to |
IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093 |
Environment
| Operating Temperature |
32° F to 122° F (0° C to 50° C) |
| Storage Temperature |
-22° F to 167° F (-30° C to 70° C) |
| Humidity |
Max. 90 % non-condensing |
Control Interface
| MIDI |
In/Out: 5 Pin DIN |
| Pedal |
1/4" phone jack |
General
| Finish |
Anodized aluminum front Plated and painted steel chassis |
| Display |
2 x 7 segment + LED's |
| Dimensions |
19" x 1.75" x 4.2" (483 x 44 x 105.6 mm) |
| Weight |
3.3 lb. (1.5 kg) |
| Mains Voltage |
100 to 240 VAC, 50 to 60 Hz (auto-select) |
| Power Consumption |
<15 W |
M350
