2200 Watt 15" Powered Subwoofer with Klark Teknik Technology for Portable PA and Installation Applications

Product Features
  • Band pass powered subwoofer for portable PA and installation applications

  • 2,200 Watt power featuring Klark Teknik Class-D technology

  • High excursion 15" low frequency driver with 4" voice coil and double suspension

  • Bass boost and polarity switch for accurate low frequency system integration

  • Birch plywood enclosure with hard wearing semi matt black paint finish

  • Rugged powder coated perforated steel mesh grille

  • 36 mm pole mount to support satellite speaker

  • Plated steel castors with rubber tyres

  • Designed and engineered in the U.K.

MILAN M 15B

          The 2,200-Watt MILAN M 15B is a powered portable band pass 15" subwoofer that is designed for maximum bass extension for both portable and permanent install applications. M 15B’s discrete inputs are equipped with balanced, combination ¼ " jack/XLR connectors and a shared Level control, making them ideal for a wide range of music sources, from mixing consoles, low impedance microphones, guitars and keyboards.

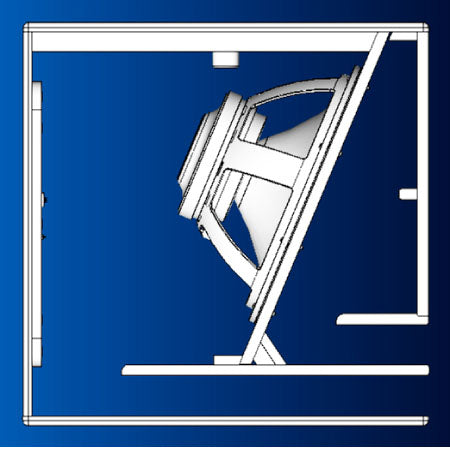

Bandpass Enclosure Design

Bandpass enclosures are extremely efficient, creating maximum bass output within a specific frequency range by increasing the acoustic load presented to the driver. The low distortion bandpass design utilised in the M 15B reinforces the bass musical instrument frequencies, and steep cut-off slopes ensure an effective acoustic transition for use with MILAN Series full-range loudspeakers. A typical application could consist of an M 15B providing the low-frequency bass extension for one, or two MILAN Series top cabinets.

Class-D - Massive Power, Perfect Sound

          Thanks to our revolutionary Class-D amplifier technology, we are able to provide 2,200 Watts of output power with incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.

Specification

Model
Components 1 x 15" LF driver
Connectors Input: 2 x female XLR wired pin 2 hot
Thru: 2 x male XLR wired pin 2 hot
IEC mains connector with integrated fuseholder
Controls
Controls Level, Polarity, Boost, Boost Frequency
System Data
Frequency Range 45 Hz–100 Hz ±3 dB
35 Hz–150 Hz -10 dB
Dispersion @-6 dB pts N/A
Max SPL (peak) 134 dB
(half space)
Equalisation N/A
Boost Frequency +6 dB @ 40 Hz–90 Hz, Q=1
Indicators
Power LED Blue
Signal LED Green
Limit LED Red
Clip LED N/A
Circuit Protection
Amplifier Protection Full short circuit, thermal, overcurrent, DC
LF/HF Driver
Max Output Power 2200 W
Audio Inputs
Input Sensitivity +4 dBu @ centre position for full rated power
Input Impedance 10 kO unblanced, 20 kO balanced
Power Supply, Voltage (Fuses)
USA / Canada 100–120 V~, T 12 A H 250 V
UK / Australia / Europe 220–240 V~, T 6.3 A H 250 V
China 220–240 V~, T 6.3 A H 250 V
Japan 100–120 V~, T 12 A H 250 V
Power consumption@ 1/8 max power 280 W
Rigging options N/A
Construction / Dimensions / Weight
Construction Birch plywood, screwed and glued
Dimensions (H x W x D) 495 x 530 x 480 mm (19.5 x 20.9 x 18.9)
Net weight 37 kg (81.4 lbs)
