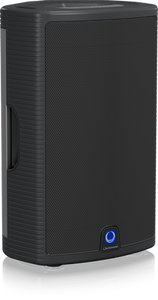

1100 Watt 2 Way 12" Full Range Powered Loudspeaker with Klark Teknik DSP Technology for Portable PA and Installation Applications
Product Features
-
2 way full range powered loudspeaker for portable PA and installation applications
-
1,100 Watt power featuring Klark Teknik Class-D technology
-
Klark Teknik Digital Signal Processing for total system control
-
High excursion 12" low frequency driver with low mass voice coil for improved transient response
-
1" high temperature dome compression driver with extended high frequency reproduction
-
Converging elliptical waveguide provides wide dispersion and excellent pattern control
-
Speech/music switch featuring optimised equalisation for voice or music applications
-
Switchable 100 Hz high pass filter for subwoofer integration
-
Lightweight composite enclosure with black finish
-
Rugged powder coated perforated steel mesh grille
-

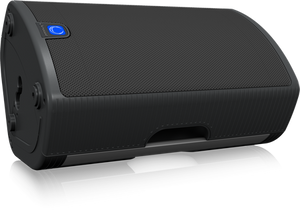

Dual angle pole mount for accurate audience coverage
-
Multiple internal rigging points for installation applications
-
Designed and engineered in the U.K.

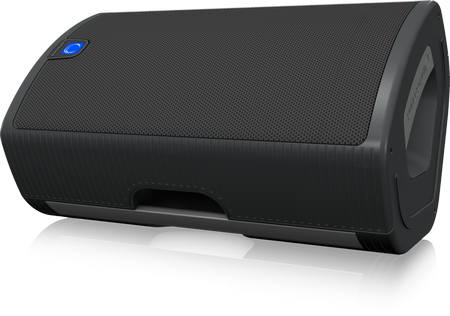

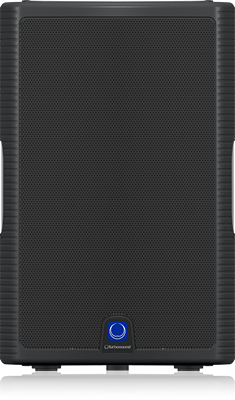

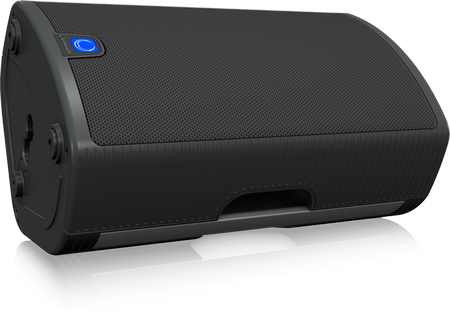

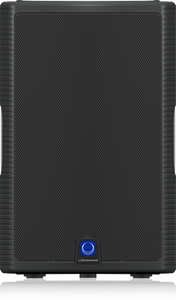

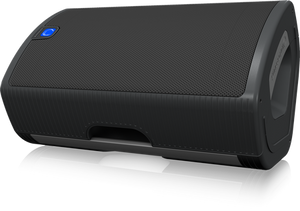

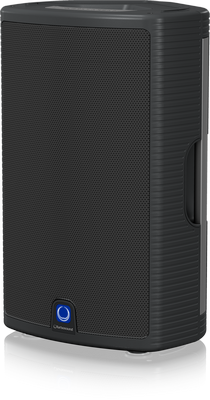

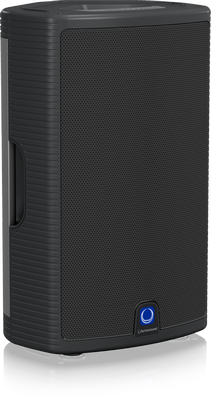

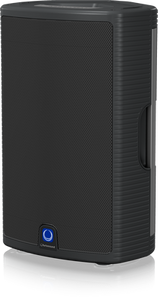

MILAN M 12
The 1,100-Watt full range MILAN M 12 is a portable 12" two-way powered loudspeaker featuring: two independent input channels with Mic and Line Inputs, selectable via a Mic/Line switch; a two-band master EQ (Bass, Treble); intelligent Limiting; and a Mix Out function for connecting additional powered loudspeakers for easy system expansion.
Designed for both portable and permanent install applications, the M 12’s discrete inputs are each equipped with balanced, combination ¼ " jack/ XLR connectors and a Level control, making them ideally suited for a wide range of music sources, from low-impedance microphones, acoustic guitars and keyboards – to mp3 players and mixing consoles.
KLARK TEKNIK DSP – the Secret to Superb Sound
KLARK TEKNIK is recognised worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN 780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK’s legendary heritage.
TURBOSOUND is proud to incorporate custom-engineered KLARK TEKNIK DSP into their products. From the instant your signal enters the MILAN M 12, the built-in DSP (Digital Signal Processor) takes over, ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the M 12’s 24-bit DSP analyses the incoming signal and intelligently applies specific filters to actually improve the sound quality. It is very much like having an audio engineer monitoring the input and output signals of each M 12, dialing in the perfect EQ and constantly making subtle adjustments to the crossover, compressor/limiter and more – which all adds up to significantly better sound.
Class-D - Massive Power, Perfect Sound
Thanks to our revolutionary Class-D amplifier technology, we are able to provide enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.
Specification
Model
Components | 1 x 12" LF driver 1 x 1" HF driver |

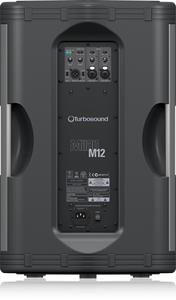

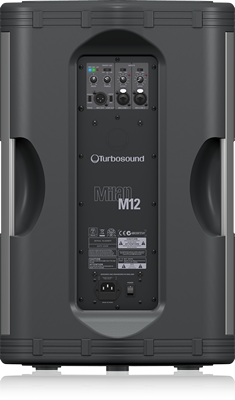

Connectors | Mic/Line input: combo jack/female XLR wired pin 2 hot Mix out: male XLR wired pin 2 hot IEC mains connector with integrated fuseholder |
Controls

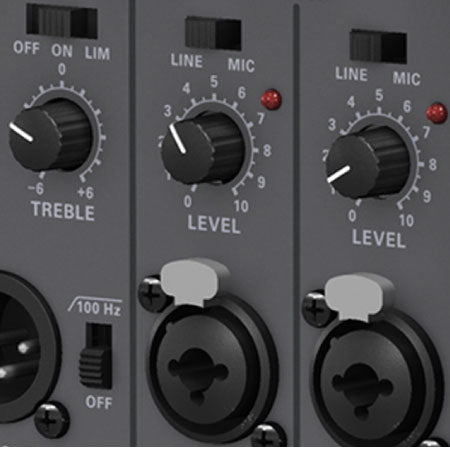

Controls | Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off |
System Data
Frequency Range | 50 Hz–18 kHz ±3 dB 45 Hz–20 kHz -10 dB |
Dispersion @-6 dB pts | 90° H x 60° V |
Max SPL (peak) | 128 dB |
Equalisation | Bass: ±6 dB @ 80 Hz Treble: ±6 dB @ 12 kHz |
Boost Frequency | N/A |
Indicators
Power LED | Blue |
Signal LED | Green |
Limit LED | Red |
Clip LED | Red |
Circuit Protection
Amplifier Protection | Full short circuit, open circuit, thermal |
LF/HF Driver
Max Output Power | LF: 1000 W HF: 100 W |
Audio Inputs
Input Sensitivity | Mic: -32 dBu; Line: -2 dBu |
Input Impedance | Mic: 560 O unbalanced, 1 kO balanced; Line: 20 kO unbalanced, 40 kO balanced |
Power Supply, Voltage (Fuses)
USA / Canada | 100–120 V~, T 8.0 A H 250 V |
UK / Australia / Europe | 220–240 V~, T 4.0 A H 250 V |
China | 220–240 V~, T 4.0 A H 250 V |
Japan | 100–120 V~, T 8.0 A H 250 V |
Power consumption@ 1/8 max power | 140 W |
Rigging options | 6 x M10 threaded internal rigging points |
Construction / Dimensions / Weight
Construction | Injection-moulded polypropylene enclosure. Recessed carrying handles. Integral dual-angle pole mount socket. Powder coated galvanised perforated steel mesh grille with foam backing |
Dimensions (H x W x D) | 620 x 394 x 330 mm (24.4 x 15.5 x 13") |
Net weight | 20.5 kg (45.1 lbs) |
