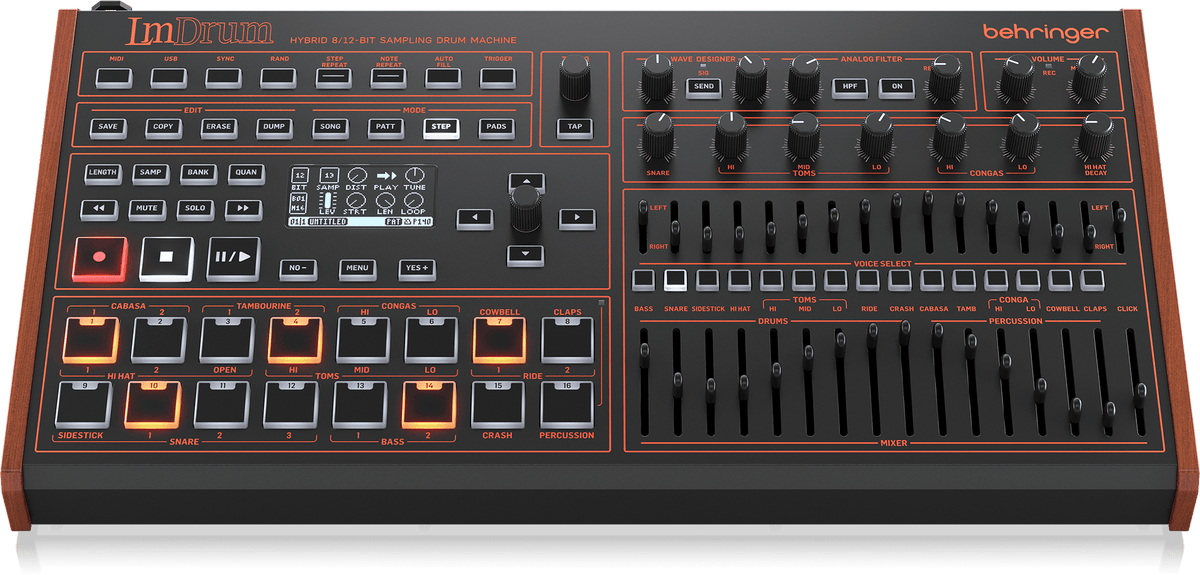

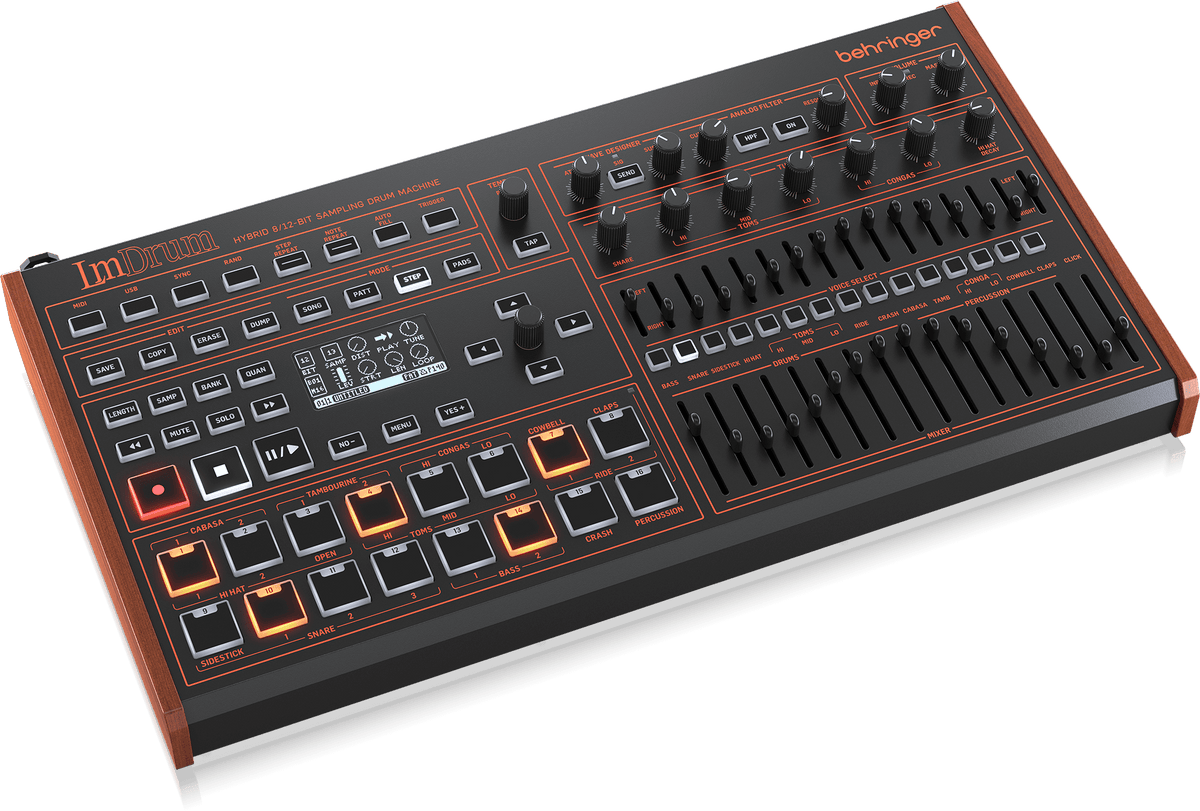

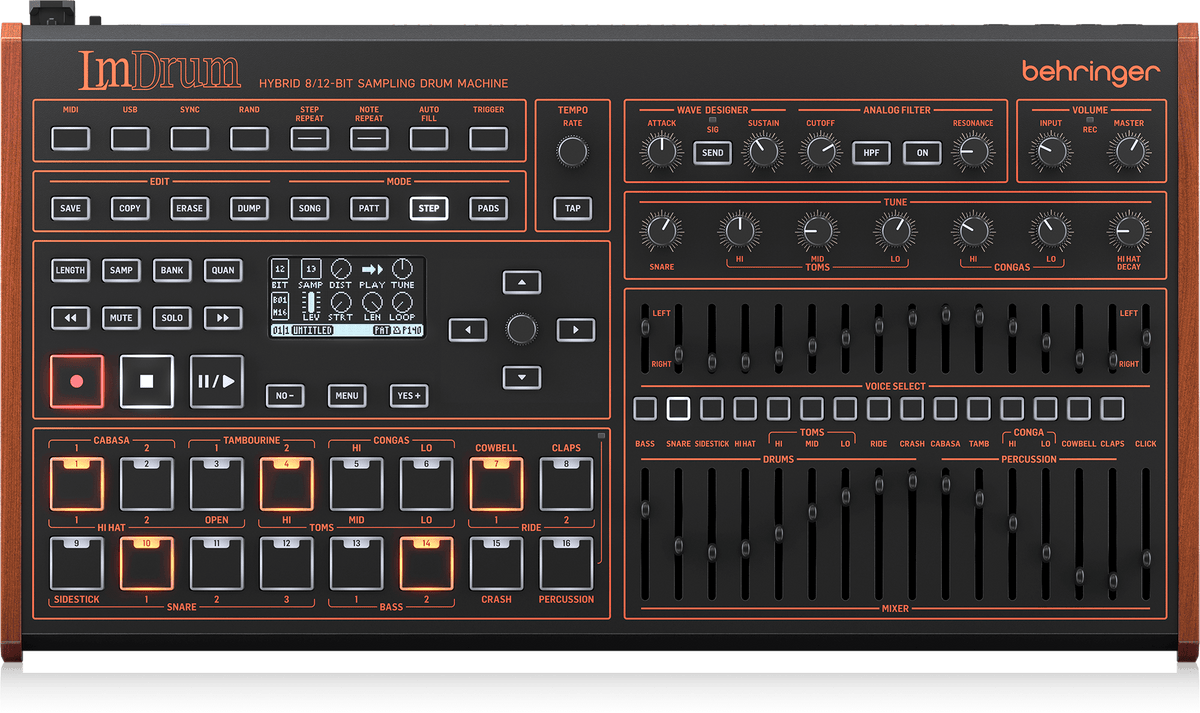

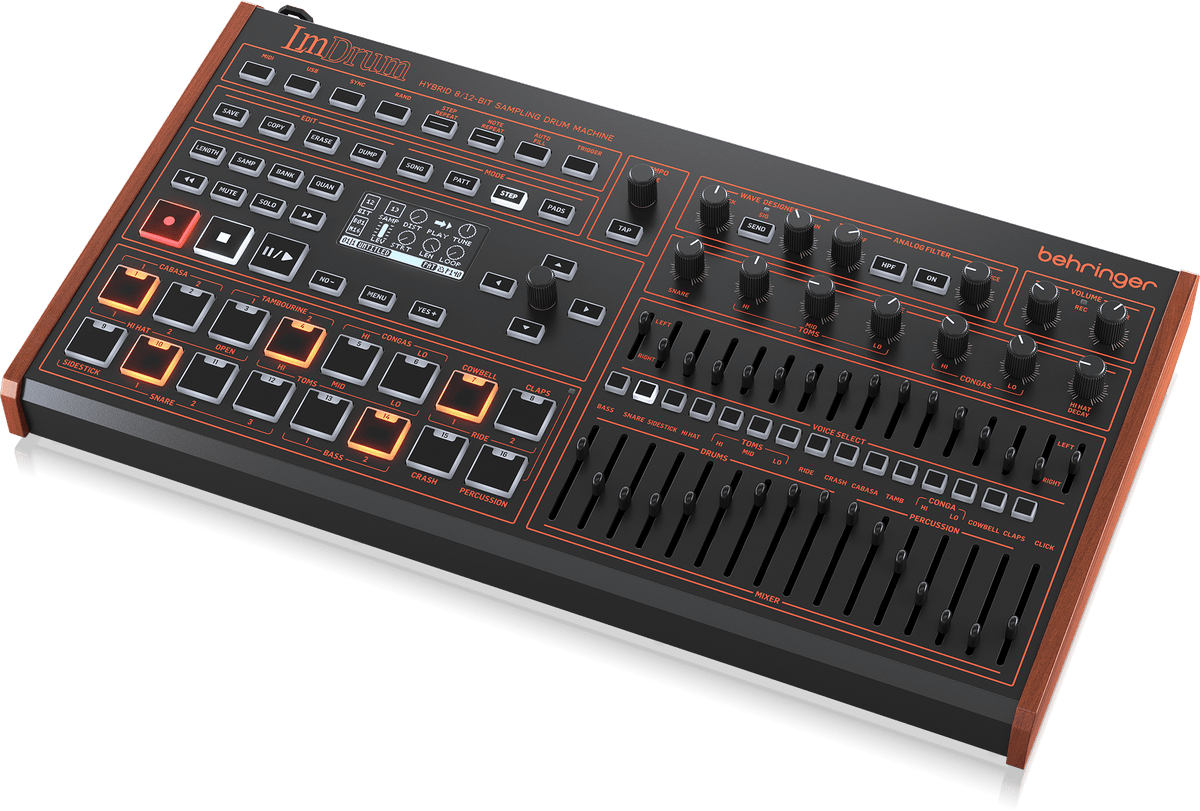

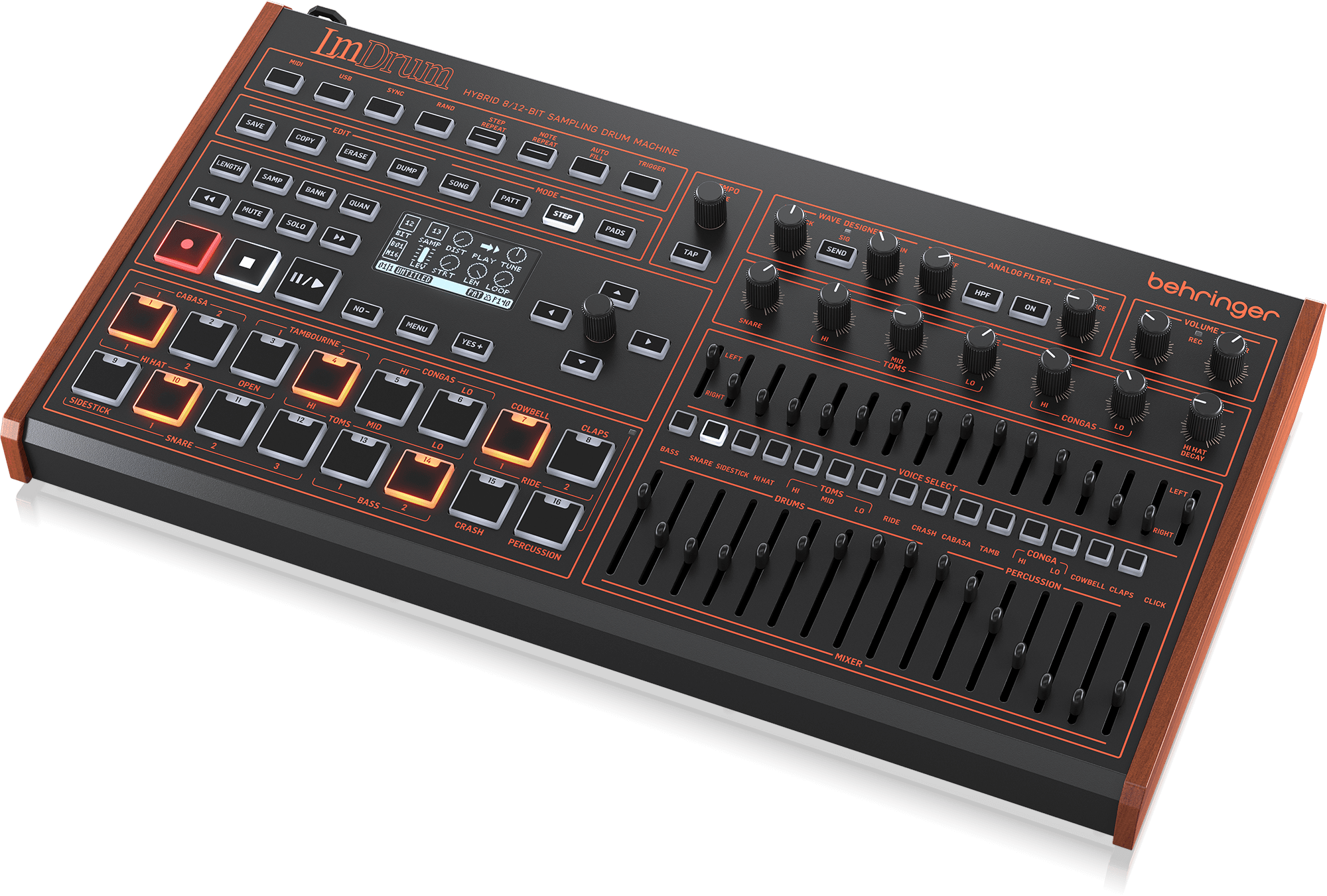

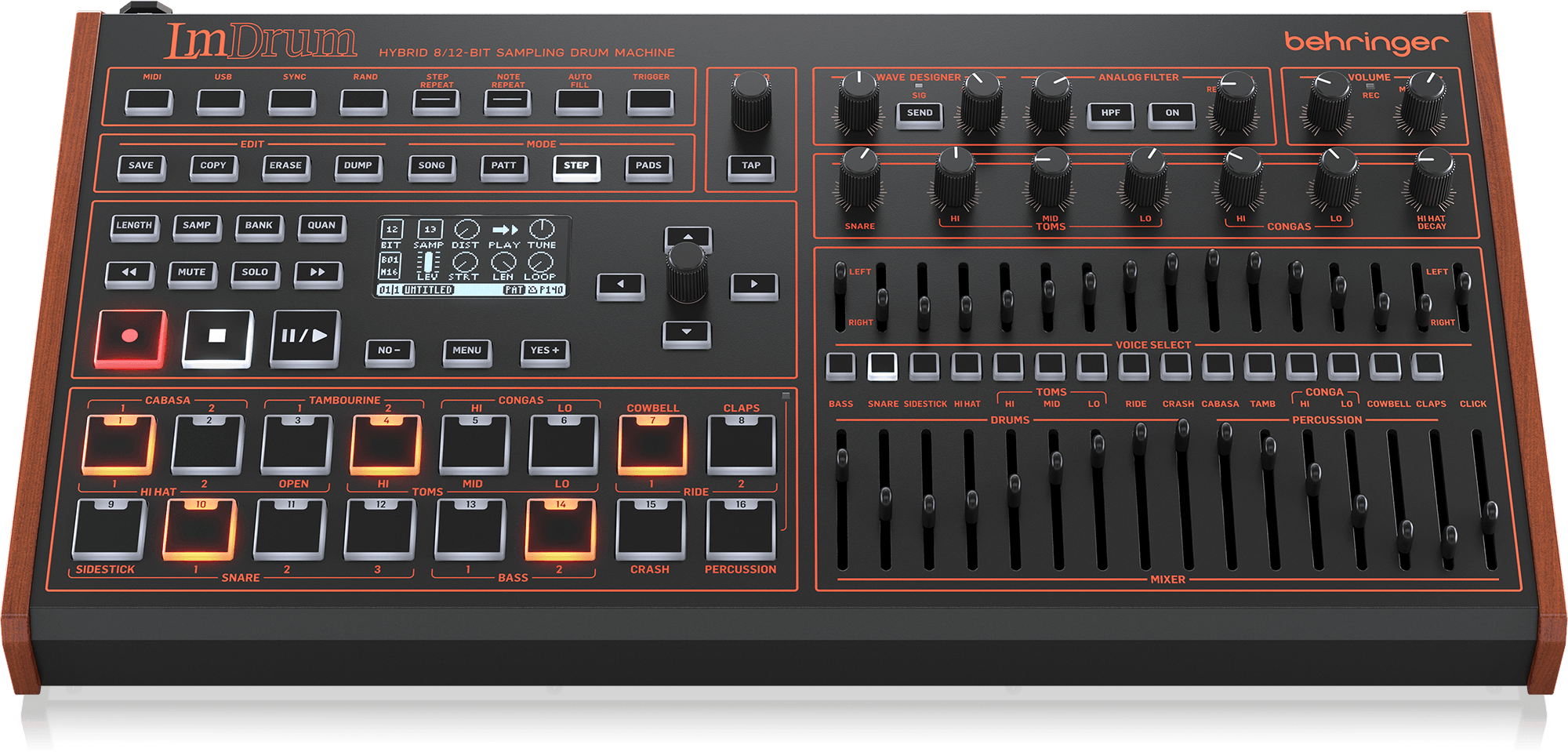

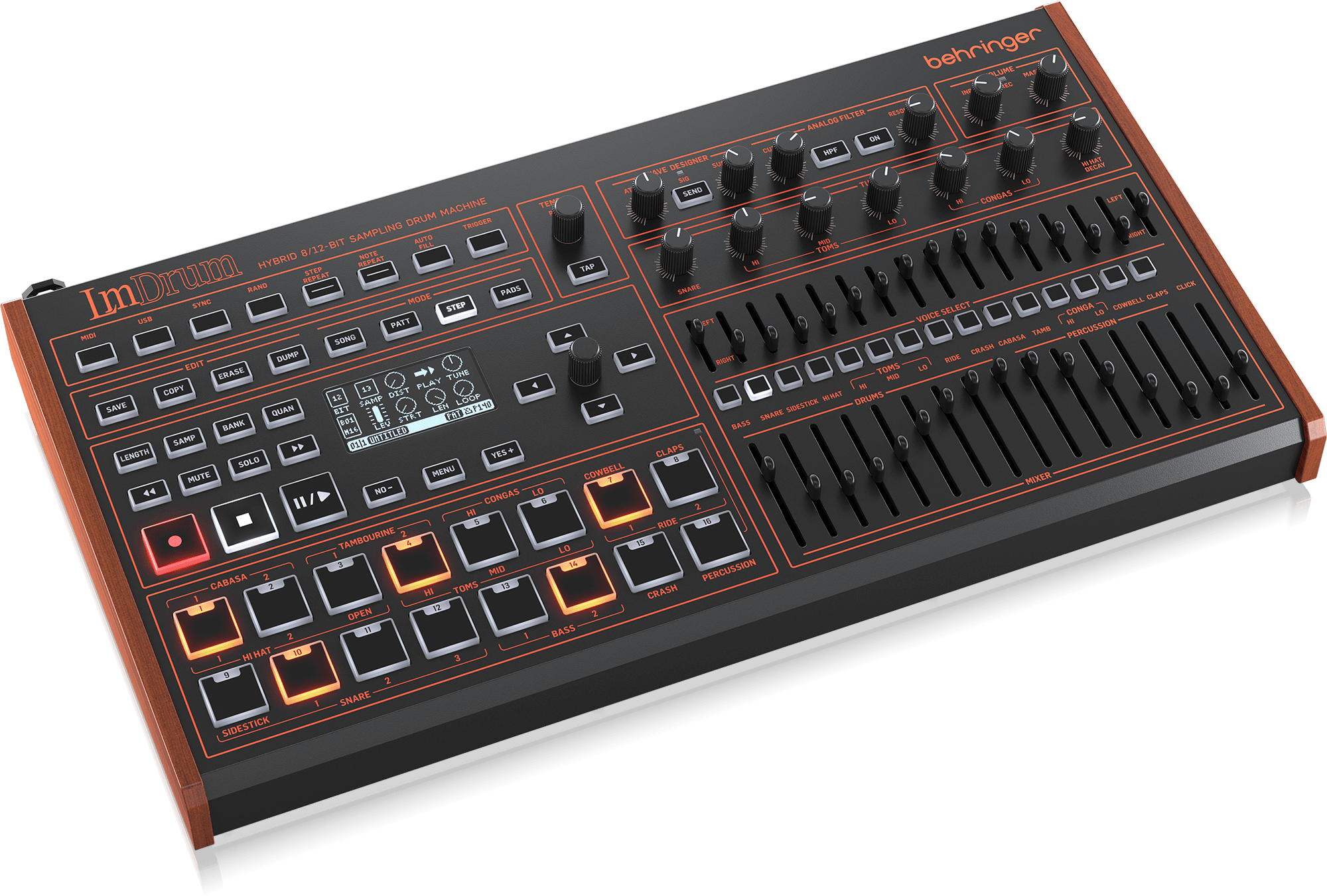

Classic Hybrid Sampling Drum Machine with 109 Drum Sounds, Sample Recording, 64-Step Sequencer, Wave Designer and Dual-Mode Filter
-
Amazing drum machine with authentic 8/12-bit sampling sound engine to create classic sound performance
-
109 authentic drum sounds including LM1*, LM2*, LM9000* and more iconic 80’s drums
-
Line input allows for live recording and storage of your own samples
-
Analog circuitry including original 3320 VCF and 2164 VCA for unsurpassed warmth
-
16 DACs with variable sample rate and authentic 8/12-bit resolution
-
16-voice architecture with independent level and pan controls for each voice
-
Powerful 64-step drum sequencer supports poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo
-
16 independent analog outputs for external processing or recording your rhythms as multi-track audio
-
Integrated FX bus features Wave Designer and dual-mode Analog Filter with per voice assignment
-
16 velocity-sensitive drum pads with after touch for real-world experience
-
Live recording, editing and playback of analog filter cutoff via automation
-
Storage of up to 8 songs and 128 patterns, all of which can be imported/exported during playback for unlimited songs and patterns
-
Pattern Mode allows arrangement of patterns into full songs and setting number of repeats per song part
-
Song Mode allows chaining songs together for live sets and expanded compositions
-
Unique Auto Scroll feature enables improvisation in all modes
-
Comprehensive MIDI In/Out/Thru plus USB implementation for synchronization and connection to external devices
-
Sync options include USB, MIDI, Clock and Internal for maximum versatility
-
Encoder for editing parameters such as Tempo, Swing, Probability, Flam and Random
-
High visibility 128x64 LCD graphic display for easy editing of program parameters
-
Powerful headphone and main outputs on 1/4" connectors

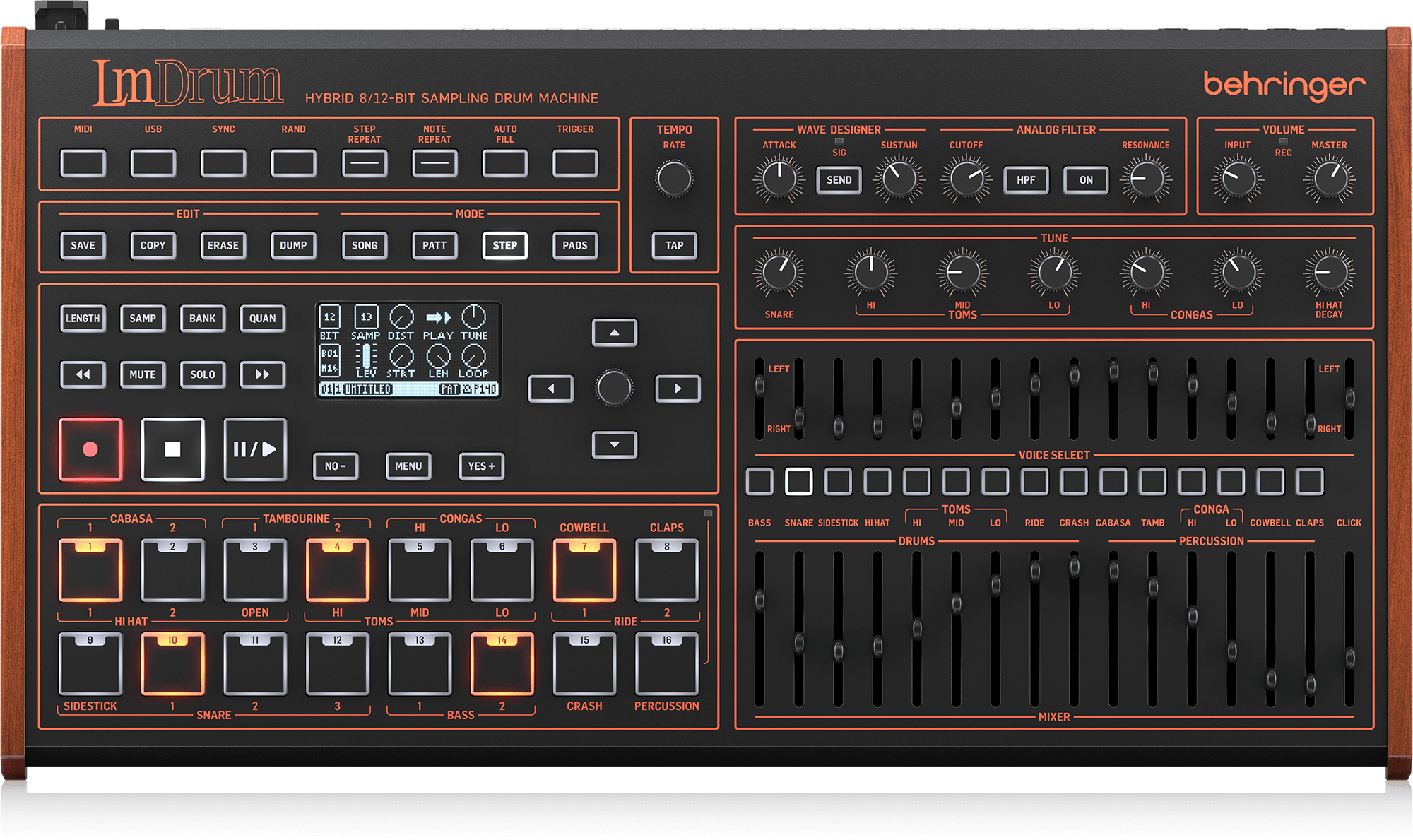

LM DRUM
If you are looking for a drum machine that can recreate the classic sound of the 80’s, look no further than the Behringer LM DRUM. This amazing drum machine features an authentic 8/12-bit sampling sound engine that captures the essence of a hundred legendary 80’s drum sounds including those designed by Roger Linn such as the LM1*, LM2*, LM9000* and more. You can even record and store your own samples using the integrated line input.
Flexible and Full of Character
LM DRUM is not just a replica of the past, but a modern instrument that offers unparalleled warmth and flexibility. It boasts analog circuitry, including original 3320 VCF and 2164 VCA, that gives your drums a rich and organic character. With 16-voice architecture and independent level and pan controls for each voice, you can create complex and dynamic drum arrangements with ease.
Complete Control
LM DRUM also features a powerful 64-step drum sequencer that supports poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo. You can create intricate patterns and grooves with the 16 velocity-sensitive drum pads with after touch or use the encoder to edit parameters such as Tempo, Swing, Probability, Flam and Random. You can also record, edit and playback the analog filter cutoff via automation, adding movement and expression to your drums.
Great in the Studio
LM DRUM is not only a great drum machine, but also a versatile studio tool. It has 16 independent analog outputs for external processing or recording your rhythms as multi-track audio. It also has an integrated FX bus that features Wave Designer and dual-mode Analog Filter with per voice assignment, giving you more sonic options and creative control.
Amazing on Stage
Up to 8 songs and 128 patterns can be stored on LM DRUM and can be imported/exported during playback. You can also use the Pattern Mode and Song Mode to arrange your patterns into full songs and chain your songs together for live sets and expanded compositions. The unique Auto Scroll feature enables improvisation in all modes, letting you tweak your drums on the fly and surprise the crowd at every show.
Specification
Architecture
| Number of voices |
16 |
| Type |
Sampling |

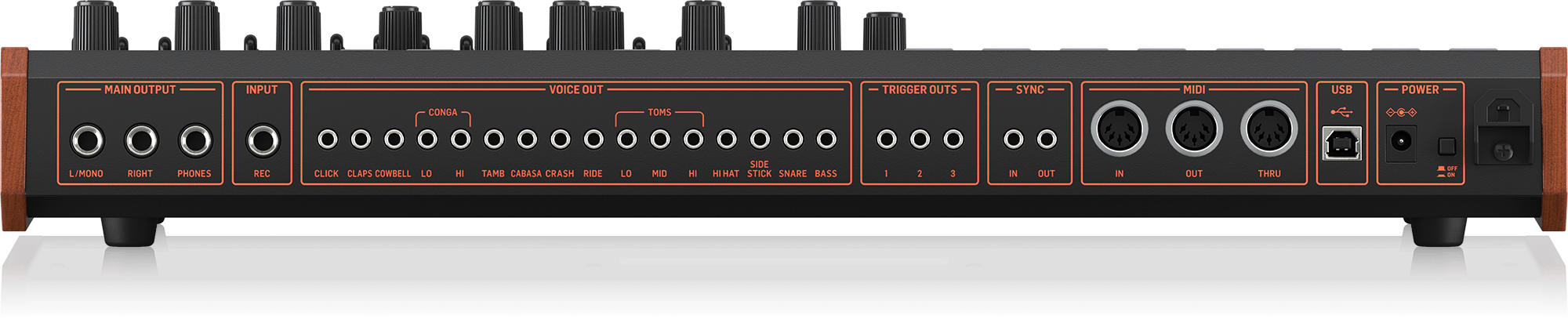

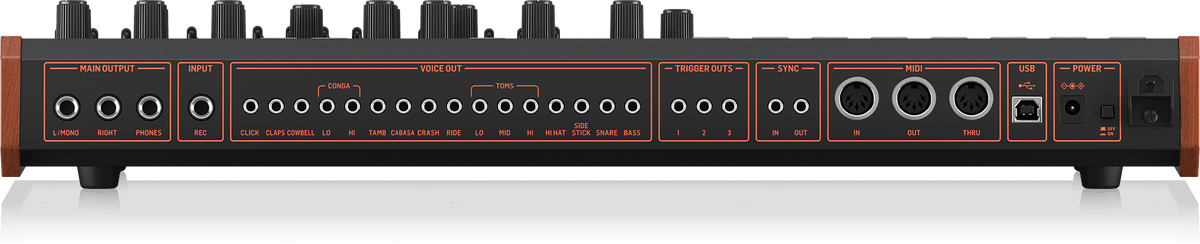

Connectivity
| Power switch |
Push button (rear panel) |
| MIDI In |
5-pin DIN |
| MIDI Thru |
5-pin DIN |
| MIDI Out |
5-pin DIN |
| USB |
USB 2.0 Type B socket |
| Sync In |
3.5 mm TS |
| Sync Out |
3.5 mm TS |
| Trigger Out x 3 |
3.5 mm TS x 3 |
| Audio outputs |
6.35 mm TS x 2 6.35 mm TRS headphone |
| Audio Input |
6.35 mm TS |
USB
| Type |
Class compliant USB 2.0 Type B |
| Supported Operating Systems |
Windows 7 or higher Mac OS 10.10 or higher |
Control Section
| Buttons |
MIDI, USB, Sync, Rand, Step Repeat, Note |
Tempo Section
| Controls |
Rate |
| Buttons |
Tap |
Edit Section
| Buttons |
Save, Copy, Erase, Dump |
Mode Section
| Buttons |
Song, Patt, Step, Pads |
Program and Playback Section
| Buttons |
Length, Samp, Bank, Quan, Back, Mute, Solo, Forward, Record, Stop, Play/Pause |
Menu Section
| Controls |
Data |
| Buttons |
No, Menu, Yes, Navigation x 4 |
| Display |
LED |
Steps/Pads
| Buttons |
Step/Pad x 16 |
Wave Designer
| Controls |
Attack, Sustain |
| Buttons |
Send |
| LED |
Signal |
Analog Filter
| Controls |
Cutoff, Resonance |
| Buttons |
HPF, On |
Volume Section
| Controls |
Tune x 7 Pan x 16 Level x 16 |
| Buttons |
Select x 16 |
Power Requirements
| Voltage |
12 V DC |
| Current |
2000 mA |
Physical
| Standard Operating Temperature |
5°C - 45°C (41°F - 113°F) |
| Dimensions (H x W x D) |
73 x 264 x 479 mm (2.9 x 10.4 x 18.9") |
| Weight |
3.12 kg (6.9 lbs) |
