2500 Watt 2 Way 12" Powered Loudspeaker with Klark Teknik DSP Technology, Speaker Modelling and ULTRANET Networking
Product Features
  • 2 way full range loudspeaker for portable PA and installation applications

  • 2,500 Watt power featuring Klark Teknik Class-D technology

  • Klark Teknik Digital Signal Processing for total system control

  • Speaker modelling includes accurate models of industry standard speakers

  • SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement

  • ULTRANET digital audio networking connects to mixers and other sources

  • 12" low frequency driver with low mass voice coil for improved transient response

  • High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction

  • Fully featured user interface with LCD display for ease of navigation

  • PC remote control software downloadable at turbosound.com

  • Lightweight fibre glass reinforced composite enclosure

  • Rugged powder coated perforated steel mesh grille

  • Dual angle pole mount for accurate audience coverage

  • Multiple internal rigging points for installation applications

  • Mains input and link output on Neutrik powerCON* connectors

  • Designed and engineered in the U.K.

iQ12

          The 2,500-Watt iQ12 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 12" low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.

          Equipped with a very efficient and lightweight two channel KLARK TEKNIK Class-D power amplifier, the iQ12 provides an impressive 2,500 Watts of output power. A high degree of control over the loudspeaker system’s performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ for remarkable full range response at low volume levels, and transparent limiting for the utmost clarity at high output levels – and long-term reliability. iQ12’s advanced DSP speaker modelling presets include detailed and accurate models of some of the audio industry’s most-respected loudspeakers.

          KLARK TEKNIK also developed a highly versatile Spatial Contour Control (SCC) DSP function, which allows the user to easily optimise the iQ12’s frequency response for the physical speaker placement. This advanced functionality provides frequency compensation for stand, floor, wall or ceiling placement, much like the adjustments commonly found on studio reference monitors.

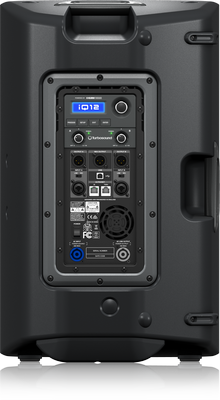

          On the rear panel amplifier module, you will find a fully featured user interface consisting of an LCD display, the Channel A and B gain controls, and a single rotary encoder for intuitive access to level, EQ, Speaker modelling, SCC, Subwoofer Integration and Feedback Control (FBI). In addition to the two combination balanced XLR/jack inputs, balanced XLR outputs for each of the two independent channels, and a Mix Out XLR connector, the iQ12 features a mic/line switch and level control with signal present LED on each channel.

          The iQ12 also features our proprietary ULTRANET technology, which allows the use of CAT5 cables for transmitting pristine multi-channel audio signals and other information between ULTRANET-enabled products, such as digital mixers and personal monitor systems. This digital distribution networking not only eliminates the potential for RFI and crosstalk so common to analogue methods, but also significantly reduces the setup or installation time required. An onboard USB port provides access for remote control of the iQ12 via PC computer, as well as DSP and speaker modelling firmware updates.

          The lightweight fibre glass reinforced composite enclosure is fitted with a rugged powder coated perforated steel mesh grille and multiple internal rigging points for permanent installations. The iQ12 is also fitted with a dual angle pole mount socket, allowing the enclosure to be pole mounted straight on, or raised and angled downwards for optimal audience coverage. Mains power input and link output is provided via Neutrik powerCON* connectors.

Specification
System
Frequency Response 52 Hz – 18 kHz ±3 dB
45 Hz – 20 kHz -10 dB
Nominal Dispersion 80° H x 60° V @ -6 dB points
Maximum SPL 130 dB peak
Crossover type Active
Transducers 1 x 12" (308.5 mm) LF driver
1 x 1" (25.4 mm) HF compression driver
Limiter Independent HF, LF, peak and rms
Amplifier
Maximum output power* 2,500 W
Type Class-D
Protection Short circuit, open circuit, thermal
Connectors
Input A / B 2 x combo jack/XLR
Sensitivity Line +4 dBu, mic -22 dBu, switchable
Input impedance 20 kO unbalanced, 40 kO balanced
Maximum input level +21 dBu
Output A / B 2 x XLR Linked to input
Mix output XLR, balanced
Output impedance 100 O unbalanced, 200 O balanced
Ultranet input/link 2 x RJ45
Mains Supply Neutrik powerCON input 20A and link 15A
Controls
DSP Rotary push-encoder Buttons for Process, Setup, Exit, Enter
Mixer section 2 x gain controls (channels A and B) 2 x Line/Mic switch
User DSP Functions
Factory EQ presets Positioning, Sound mode, Sound modeling, FBQ
Display LCD 128 x 32, blue backlit
Delay 0 - 300 ms
Equalisation High and low shelving EQ
2 x parametric EQ
Limiter Zero attack input limiter
Presets 20 total presets, 19 user-definable
Crossover High Pass L-R 24 dB/oct
Protection Lock-out function for all settings
Ultranet Digital Network
System
Cabling
Power Supply
Power consumption 150 W @ 1/8 max power
Voltage (fuses)
Enclosure
Dimensions (H x W x D) 609 x 370 x 370 mm (24.0 x 14.5 x 14.5")
Net weight 14.7 kg (32 lbs)
Construction Injection-moulded polypropylene enclosure
Finish Black painted
Grille Powder coated perforated steel
Flying hardware M10 x 3 points
Best Selling Products
Turbosound

iQ12 Active

Regular price
Sale price
31,500 ฿
Unit price
per
In Stock

DESCRIPTION

2500 Watt 2 Way 12" Powered Loudspeaker with Klark Teknik DSP Technology, Speaker Modelling and ULTRANET Networking
Product Features
  • 2 way full range loudspeaker for portable PA and installation applications

  • 2,500 Watt power featuring Klark Teknik Class-D technology

  • Klark Teknik Digital Signal Processing for total system control

  • Speaker modelling includes accurate models of industry standard speakers

  • SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement

  • ULTRANET digital audio networking connects to mixers and other sources

  • 12" low frequency driver with low mass voice coil for improved transient response

  • High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction

  • Fully featured user interface with LCD display for ease of navigation

  • PC remote control software downloadable at turbosound.com

  • Lightweight fibre glass reinforced composite enclosure

  • Rugged powder coated perforated steel mesh grille

  • Dual angle pole mount for accurate audience coverage

  • Multiple internal rigging points for installation applications

  • Mains input and link output on Neutrik powerCON* connectors

  • Designed and engineered in the U.K.

iQ12

          The 2,500-Watt iQ12 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 12" low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.

          Equipped with a very efficient and lightweight two channel KLARK TEKNIK Class-D power amplifier, the iQ12 provides an impressive 2,500 Watts of output power. A high degree of control over the loudspeaker system’s performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ for remarkable full range response at low volume levels, and transparent limiting for the utmost clarity at high output levels – and long-term reliability. iQ12’s advanced DSP speaker modelling presets include detailed and accurate models of some of the audio industry’s most-respected loudspeakers.

          KLARK TEKNIK also developed a highly versatile Spatial Contour Control (SCC) DSP function, which allows the user to easily optimise the iQ12’s frequency response for the physical speaker placement. This advanced functionality provides frequency compensation for stand, floor, wall or ceiling placement, much like the adjustments commonly found on studio reference monitors.

          On the rear panel amplifier module, you will find a fully featured user interface consisting of an LCD display, the Channel A and B gain controls, and a single rotary encoder for intuitive access to level, EQ, Speaker modelling, SCC, Subwoofer Integration and Feedback Control (FBI). In addition to the two combination balanced XLR/jack inputs, balanced XLR outputs for each of the two independent channels, and a Mix Out XLR connector, the iQ12 features a mic/line switch and level control with signal present LED on each channel.

          The iQ12 also features our proprietary ULTRANET technology, which allows the use of CAT5 cables for transmitting pristine multi-channel audio signals and other information between ULTRANET-enabled products, such as digital mixers and personal monitor systems. This digital distribution networking not only eliminates the potential for RFI and crosstalk so common to analogue methods, but also significantly reduces the setup or installation time required. An onboard USB port provides access for remote control of the iQ12 via PC computer, as well as DSP and speaker modelling firmware updates.

          The lightweight fibre glass reinforced composite enclosure is fitted with a rugged powder coated perforated steel mesh grille and multiple internal rigging points for permanent installations. The iQ12 is also fitted with a dual angle pole mount socket, allowing the enclosure to be pole mounted straight on, or raised and angled downwards for optimal audience coverage. Mains power input and link output is provided via Neutrik powerCON* connectors.

Specification
System
Frequency Response 52 Hz – 18 kHz ±3 dB
45 Hz – 20 kHz -10 dB
Nominal Dispersion 80° H x 60° V @ -6 dB points
Maximum SPL 130 dB peak
Crossover type Active
Transducers 1 x 12" (308.5 mm) LF driver
1 x 1" (25.4 mm) HF compression driver
Limiter Independent HF, LF, peak and rms
Amplifier
Maximum output power* 2,500 W
Type Class-D
Protection Short circuit, open circuit, thermal
Connectors
Input A / B 2 x combo jack/XLR
Sensitivity Line +4 dBu, mic -22 dBu, switchable
Input impedance 20 kO unbalanced, 40 kO balanced
Maximum input level +21 dBu
Output A / B 2 x XLR Linked to input
Mix output XLR, balanced
Output impedance 100 O unbalanced, 200 O balanced
Ultranet input/link 2 x RJ45
Mains Supply Neutrik powerCON input 20A and link 15A
Controls
DSP Rotary push-encoder Buttons for Process, Setup, Exit, Enter
Mixer section 2 x gain controls (channels A and B) 2 x Line/Mic switch
User DSP Functions
Factory EQ presets Positioning, Sound mode, Sound modeling, FBQ
Display LCD 128 x 32, blue backlit
Delay 0 - 300 ms
Equalisation High and low shelving EQ
2 x parametric EQ
Limiter Zero attack input limiter
Presets 20 total presets, 19 user-definable
Crossover High Pass L-R 24 dB/oct
Protection Lock-out function for all settings
Ultranet Digital Network
System
Cabling
Power Supply
Power consumption 150 W @ 1/8 max power
Voltage (fuses)
Enclosure
Dimensions (H x W x D) 609 x 370 x 370 mm (24.0 x 14.5 x 14.5")
Net weight 14.7 kg (32 lbs)
Construction Injection-moulded polypropylene enclosure
Finish Black painted
Grille Powder coated perforated steel
Flying hardware M10 x 3 points

2500 Watt 2 Way 12" Powered Loudspeaker with Klark Teknik DSP Technology, Speaker Modelling and ULTRANET Networking
Product Features
  • 2 way full range loudspeaker for portable PA and installation applications

  • 2,500 Watt power featuring Klark Teknik Class-D technology

  • Klark Teknik Digital Signal Processing for total system control

  • Speaker modelling includes accurate models of industry standard speakers

  • SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement

  • ULTRANET digital audio networking connects to mixers and other sources

  • 12" low frequency driver with low mass voice coil for improved transient response

  • High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction

  • Fully featured user interface with LCD display for ease of navigation

  • PC remote control software downloadable at turbosound.com

  • Lightweight fibre glass reinforced composite enclosure

  • Rugged powder coated perforated steel mesh grille

  • Dual angle pole mount for accurate audience coverage

  • Multiple internal rigging points for installation applications

  • Mains input and link output on Neutrik powerCON* connectors

  • Designed and engineered in the U.K.

iQ12

          The 2,500-Watt iQ12 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 12" low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.

          Equipped with a very efficient and lightweight two channel KLARK TEKNIK Class-D power amplifier, the iQ12 provides an impressive 2,500 Watts of output power. A high degree of control over the loudspeaker system’s performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ for remarkable full range response at low volume levels, and transparent limiting for the utmost clarity at high output levels – and long-term reliability. iQ12’s advanced DSP speaker modelling presets include detailed and accurate models of some of the audio industry’s most-respected loudspeakers.

          KLARK TEKNIK also developed a highly versatile Spatial Contour Control (SCC) DSP function, which allows the user to easily optimise the iQ12’s frequency response for the physical speaker placement. This advanced functionality provides frequency compensation for stand, floor, wall or ceiling placement, much like the adjustments commonly found on studio reference monitors.

          On the rear panel amplifier module, you will find a fully featured user interface consisting of an LCD display, the Channel A and B gain controls, and a single rotary encoder for intuitive access to level, EQ, Speaker modelling, SCC, Subwoofer Integration and Feedback Control (FBI). In addition to the two combination balanced XLR/jack inputs, balanced XLR outputs for each of the two independent channels, and a Mix Out XLR connector, the iQ12 features a mic/line switch and level control with signal present LED on each channel.

          The iQ12 also features our proprietary ULTRANET technology, which allows the use of CAT5 cables for transmitting pristine multi-channel audio signals and other information between ULTRANET-enabled products, such as digital mixers and personal monitor systems. This digital distribution networking not only eliminates the potential for RFI and crosstalk so common to analogue methods, but also significantly reduces the setup or installation time required. An onboard USB port provides access for remote control of the iQ12 via PC computer, as well as DSP and speaker modelling firmware updates.

          The lightweight fibre glass reinforced composite enclosure is fitted with a rugged powder coated perforated steel mesh grille and multiple internal rigging points for permanent installations. The iQ12 is also fitted with a dual angle pole mount socket, allowing the enclosure to be pole mounted straight on, or raised and angled downwards for optimal audience coverage. Mains power input and link output is provided via Neutrik powerCON* connectors.

Specification
System
Frequency Response 52 Hz – 18 kHz ±3 dB
45 Hz – 20 kHz -10 dB
Nominal Dispersion 80° H x 60° V @ -6 dB points
Maximum SPL 130 dB peak
Crossover type Active
Transducers 1 x 12" (308.5 mm) LF driver
1 x 1" (25.4 mm) HF compression driver
Limiter Independent HF, LF, peak and rms
Amplifier
Maximum output power* 2,500 W
Type Class-D
Protection Short circuit, open circuit, thermal
Connectors
Input A / B 2 x combo jack/XLR
Sensitivity Line +4 dBu, mic -22 dBu, switchable
Input impedance 20 kO unbalanced, 40 kO balanced
Maximum input level +21 dBu
Output A / B 2 x XLR Linked to input
Mix output XLR, balanced
Output impedance 100 O unbalanced, 200 O balanced
Ultranet input/link 2 x RJ45
Mains Supply Neutrik powerCON input 20A and link 15A
Controls
DSP Rotary push-encoder Buttons for Process, Setup, Exit, Enter
Mixer section 2 x gain controls (channels A and B) 2 x Line/Mic switch
User DSP Functions
Factory EQ presets Positioning, Sound mode, Sound modeling, FBQ
Display LCD 128 x 32, blue backlit
Delay 0 - 300 ms
Equalisation High and low shelving EQ
2 x parametric EQ
Limiter Zero attack input limiter
Presets 20 total presets, 19 user-definable
Crossover High Pass L-R 24 dB/oct
Protection Lock-out function for all settings
Ultranet Digital Network
System
Cabling
Power Supply
Power consumption 150 W @ 1/8 max power
Voltage (fuses)
Enclosure
Dimensions (H x W x D) 609 x 370 x 370 mm (24.0 x 14.5 x 14.5")
Net weight 14.7 kg (32 lbs)
Construction Injection-moulded polypropylene enclosure
Finish Black painted
Grille Powder coated perforated steel
Flying hardware M10 x 3 points
