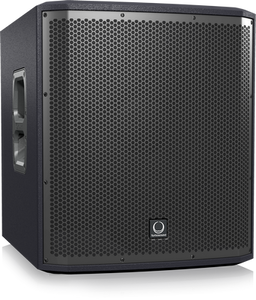

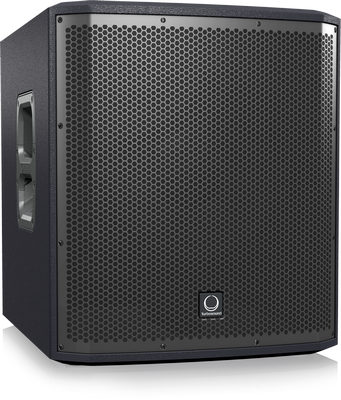

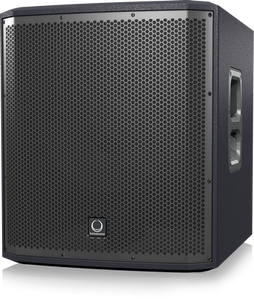

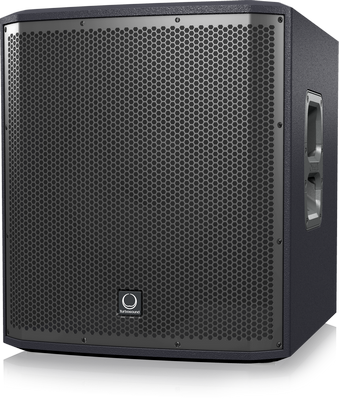

1,000 Watt Powered 12" Subwoofer with Dual Amplifiers for Satellite Speakers, Klark Teknik Spatial Sound Technology, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming
Product Features
-
Powered 12" subwoofer for portable PA applications and high quality music playback
-
Klark Teknik's revolutionary SST (Spatial Sound Technology) for creating 3D acoustic environments
-
1,000 Watt power, multi-channel Klark Teknik Class-D technology
-
600 Watt high excursion 12" subwoofer for low distortion sub-bass response
-
Dual 200 Watt amplifiers included for stereo satellite speakers
-
3 channel digital mixer with gain setting recall
-
Comprehensive remote control via Apple iPhone/iPad*
-
High quality Bluetooth* stereo audio streaming
-
DSP presets for application type and speaker positioning
-
Intuitive single rotary control user interface with LCD display for ease of navigation
-
Road worthy birch plywood enclosure with hard wearing semi matt black paint finish
-

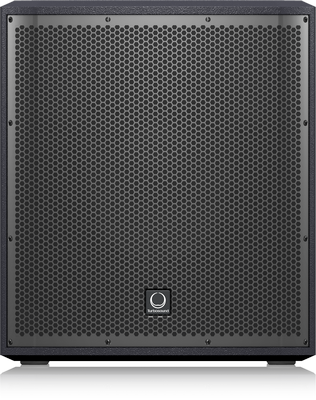

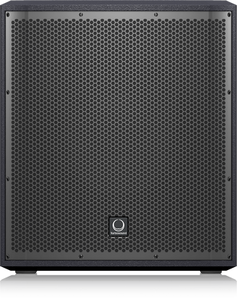

Integrated protective perforated steel mesh grille
-
Integral ergonomic carrying handles for ease of portability
-

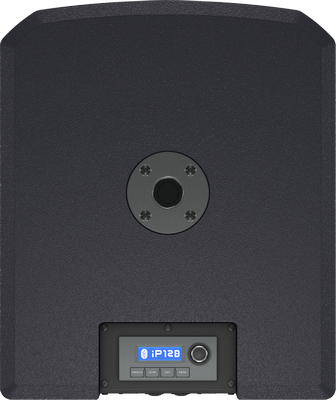

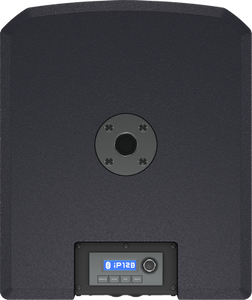

35 mm pole mount to support satellite speaker
-
Designed and engineered in the U.K.
iNSPIRE iP 12B
The 1,000-Watt INSPIRE iP 12B powered subwoofer produces high levels of low-end punch, with the definition and clarity typically reserved for much larger systems. Equipped with a dedicated 600-Watt Class-D amplifier for the 12" long-excursion Low-Frequency (LF) driver, and 2 x 200- Watt amps for your passive satellite speakers, the iP12B is ideally-suited for small to medium-sized performance venues, houses of worship, boardroom presentations, nightclubs, and much more. Lightweight (only 22.3 kg / 49.2 lbs) and easy to transport, the iP12B also features a 3-channel digital mixer with industry-leading KLARK TEKNIK Digital Sound Processing (DSP), Class-D amplifier and Spatial Sound technologies – plus convenient Bluetooth stereo audio streaming and iPhone/iPad remote control. Put simply, this cool-running system delivers amazingly-deep, chest-pounding bass that will keep the party going all night long.
Tiny Subwoofer – Tremendous Sound
Designed for maximum portability and low-end support, the iP 12B can be used as a standalone subwoofer with your powered full range speakers, or the backbone of a great-sounding speaker system. Setup is fast and easy; just connect your mic or mixer feed, your passive loudspeakers, and power. The iP12B instantly fills the room with the world-famous TURBOSOUND “sound” that has won the coveted Queen’s Award – an unprecedented three times.
KLARK TEKNIK – Inspired Technology
KLARK TEKNIK is recognised worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and even a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK’s legendary heritage.
TURBOSOUND is proud to incorporate custom-engineered KLARK TEKNIK Class-D amplifier and DSP technologies into their products.
DSP – the Secret to Superb Sound
From the instant your signal enters the iP 12B, the built-in DSP takes over ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the 24-bit processor analyses the incoming signal and intelligently applies specific filters to actually improve the sound quality. It’s like having an audio engineer monitoring the input and output signals, dialing in the perfect EQ and constantly making subtle adjustments to the crossover, compressor/limiter, three discrete amplifier channels and more – all of which adds up to significantly better sound.
Specification
System
Frequency response | 45 Hz – 150 Hz ±3 dB 38 Hz – 200 Hz -10 dB |
Nominal dispersion | Half space |
Maximum SPL | 120 dB |
Crossover type | Active |
Transducers | 1 x 12" (305 mm) LF driver |
Limiter | Peak and RMS |
Amplifier
Maximum output power* | |
Type | Class-D |
Protection | Short circuit, open circuit, thermal |

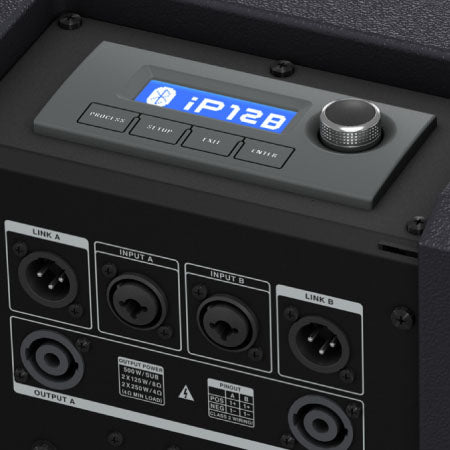

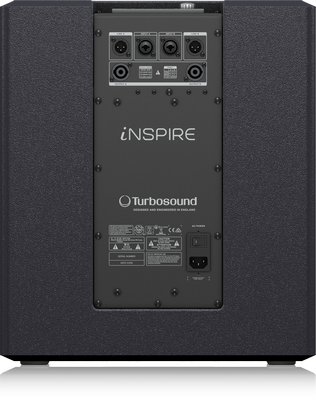

Connectors
Output L / R | 2 x Neutrik speakON* NL4, pins 1+ / 1- |
Input A / B | 2 x combo jack / XLR |
Link output | XLR |
Mains supply | IEC mains connector with integrated power switch |
Controls
Hardware | Rotary push-encoder |
Software | iOS interface via Bluetooth |
User DSP Functions
Factory EQ presets | Positioning, Sound mode, phase |
Display | LCD 128 x 32, blue, backlit |
Equalisation | Bass, middle and treble |
Crossover | High pass L-R 24 dB/oct |
Protection | Lock-out function for all settings |
Bluetooth Wireless Technology
Frequency range | 2402 MHz ~ 2480 MHz |
Channel number | 79 |
Version | Bluetooth 4.0 dual mode |
Output | 8 dBM |
Compatibility | Supports A2DP 1.2 profi le |
Maximum communication range | 30 m (without interference) |
Connectivity | Master-slave: stereo pairing link |
Power Supply
Power consumption | 110 W @ 1/8 max power |
Voltage (fuses) |
Enclosure
Dimensions (H x W x D) | 485 x 420 x 500 mm (19.1 x 16.5 x 19.7") |
Net weight | 22.3 kg (49.2 lbs) |
Construction | 15 mm (5/8") birch plywood sub |
Finish | Semi matt black paint |
Grille | Powder coated perforated steel |
