High Output Distortion Humbucker

The PBF-55 and PBF-77D Rock set are high-output models that make sure clarity and smoothness aren’t lost, even at high volume levels. The PBF-77D uses both ceramic and Alnico magnets along with 2 types of steel to project an offset magnetic field for maximum humbucking, output, and focus.
PBF Humbuckers are fully sealed and shielded making them sweat-proof, quiet if you touch them, and immune invisible noise from stage lights and studio power supplies. The shielded 4-conductor cable is ready for coil splitting and series or parallel humbucker wiring.
PBF Humbuckers come in black, nickel, gold, or chrome in balanced versions for neck (rhythm) and bridge (treble). Black mounting screws are included (#4-40 x 7/8”).

Details

PBF Vintage Technical Details

Coil Structure:
Dual Parallel Humbucking

Cable Type:
4-Conductor Cable with shield and bare drain

Magnetic Circuit:
2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture Neck coil South and Bridge coil North

Wiring Diagram PDF



PBF-55 - Neck

  • DC Resistance: ~5.7KΩ each coil
  • Resonant Frequency: ~3.8KHz
  • Sensing Width: 2.01" [51mm] Max

PBF-77D - Bridge

  • DC Resistance: ~9.3KΩ each coil
  • Resonant Frequency: ~2.7KHz
  • Sensing Width: 2.01" [51mm] Max



Shape Details

Accessories
Bartolini

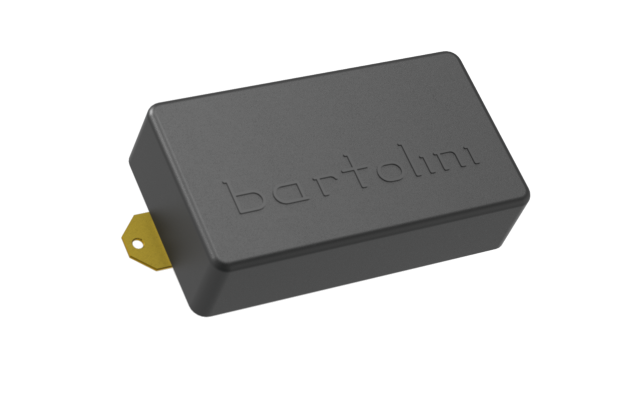

High Output Distortion Humbucker PBF-55 and PBF-77D

Regular price
3,000 ฿
Sale price
2,550 ฿
Unit price
per
Out of Stock

DESCRIPTION

High Output Distortion Humbucker

The PBF-55 and PBF-77D Rock set are high-output models that make sure clarity and smoothness aren’t lost, even at high volume levels. The PBF-77D uses both ceramic and Alnico magnets along with 2 types of steel to project an offset magnetic field for maximum humbucking, output, and focus.
PBF Humbuckers are fully sealed and shielded making them sweat-proof, quiet if you touch them, and immune invisible noise from stage lights and studio power supplies. The shielded 4-conductor cable is ready for coil splitting and series or parallel humbucker wiring.
PBF Humbuckers come in black, nickel, gold, or chrome in balanced versions for neck (rhythm) and bridge (treble). Black mounting screws are included (#4-40 x 7/8”).

Details

PBF Vintage Technical Details

Coil Structure:
Dual Parallel Humbucking

Cable Type:
4-Conductor Cable with shield and bare drain

Magnetic Circuit:
2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture Neck coil South and Bridge coil North

Wiring Diagram PDF



PBF-55 - Neck

  • DC Resistance: ~5.7KΩ each coil
  • Resonant Frequency: ~3.8KHz
  • Sensing Width: 2.01" [51mm] Max

PBF-77D - Bridge

  • DC Resistance: ~9.3KΩ each coil
  • Resonant Frequency: ~2.7KHz
  • Sensing Width: 2.01" [51mm] Max



Shape Details

High Output Distortion Humbucker

The PBF-55 and PBF-77D Rock set are high-output models that make sure clarity and smoothness aren’t lost, even at high volume levels. The PBF-77D uses both ceramic and Alnico magnets along with 2 types of steel to project an offset magnetic field for maximum humbucking, output, and focus.
PBF Humbuckers are fully sealed and shielded making them sweat-proof, quiet if you touch them, and immune invisible noise from stage lights and studio power supplies. The shielded 4-conductor cable is ready for coil splitting and series or parallel humbucker wiring.
PBF Humbuckers come in black, nickel, gold, or chrome in balanced versions for neck (rhythm) and bridge (treble). Black mounting screws are included (#4-40 x 7/8”).

Details

PBF Vintage Technical Details

Coil Structure:
Dual Parallel Humbucking

Cable Type:
4-Conductor Cable with shield and bare drain

Magnetic Circuit:
2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture Neck coil South and Bridge coil North

Wiring Diagram PDF



PBF-55 - Neck

  • DC Resistance: ~5.7KΩ each coil
  • Resonant Frequency: ~3.8KHz
  • Sensing Width: 2.01" [51mm] Max

PBF-77D - Bridge

  • DC Resistance: ~9.3KΩ each coil
  • Resonant Frequency: ~2.7KHz
  • Sensing Width: 2.01" [51mm] Max



Shape Details
