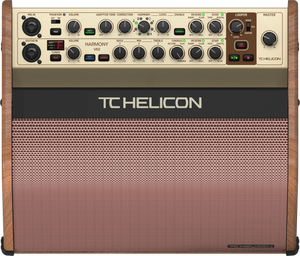

60 Watt 2-Channel Acoustic Amplifier with Vocal Processing, Looper, Tannoy Dual Concentric Speaker, Top Firing Tweeter and 4-Button Footswitch
Product Features
  • 60 Watt 2-channel acoustic amplifier with amazing vocal processing

  • 8" Tannoy Dual-Concentric speaker and an exclusive Top-Firing tweeter provide massive crystal clear audio to you AND your audience

  • 4-button customizable footswitch to control looper, harmony and effects included

  • Voice channel with Adaptive Tone, Intelligent Anti-feedback, Pitch Correction, Harmony, Reverb and Delay

  • Guitar channel with BodyRez, Intelligent Anti-feedback, Tuner, Reverb, Delay, Chorus and 3 band EQ

  • Built-in looper for practicing, developing ideas and enhancing live performances

  • Harmony function automatically creates up to 2 voices of smooth and accurate vocal harmonies

  • BodyRez restores natural tone to acoustic guitars when using piezo under-saddle pickups

  • Intelligent anti-feedback on each channel automatically stops feedback

  • Accurate integrated chromatic tuner with mute function

  • Dual XLR DI jacks with flexible routing for complete control of your sound

  • USB output for direct recording to a computer allows easy capture

  • Dedicated Aux input for playback of MP3 players, drum machines, etc

All In One Performance Companion
All In One Performance Companion

The Harmony V60 Acoustic Amplifier is crammed full of features and innovations that can help you weave intricate, evolving sounds at home or in clubs and halls. Maximize your audio potential to capture attention and hold it with an array of fascinating vocal and guitar effects and looping in an easy-to-carry processor and amplifier system.

Immersive Guitar Sound
Immersive Guitar Sound

Leave your pedals at home. A suite of sweet guitar effects that would normally require a large pedal board is included. There’s a fast, accurate Tuner, BodyRez to improve the feel and tone of your undersaddle pickup, 3 band EQ and separate Chorus, Reverb and Echo with their own styles and mix controls. All you add is a guitar and your groove.

Stunning Vocals
Stunning Vocals

Everybody knows the main link to an audience is vocals and TC Helicon’s studio-quality vocal processing lets your voice shine. With Adaptive Tone for instant “producer polish”, transparent pitch correction, two additional virtual Harmony voices and the lush expansiveness of Reverb and Echo, your voice will excite like never before.

Room Filling Guitar And Vocals
Room Filling Guitar And Vocals

60 Watts of Class D bi-amplification provided by separate amps for the lows and highs ensures powerful, precise sound. The 8” dual concentric speaker (woofer and tweeter in one) by legendary brand Tannoy projects a point source sound wave for the widest possible listening field while keeping the speaker’s enclosure compact.

Hear Yourself Better
Hear Yourself Better

When you turn on Harmony V60’s additional top-firing tweeter, an exclusive innovation from TC Helicon, you’ll finally get to hear more of what your audience hears. No more muffled sound or putting the amp on a chair, now you get an exciting sound standing beside, in front or behind your Harmony V60.

Fast-Acting Automatic Anti-Feedback
Fast-Acting Automatic Anti-Feedback

The Harmony V60 acts automatically to minimize screeching and howl for the Vocal and Guitar channels respectively. You get to continue playing and singing instead of switching and dialing EQ controls when feedback happens.

Multiply Yourself
Multiply Yourself

Within seconds you can build a sound greater than the sum of its parts with the 90 second looper and its unlimited overdubs. Looper input can be Voice, Guitar or both and your loop length automatically sets tap tempo so echoes play nicely in time. Imagine each overdub with a different, tasty effect!

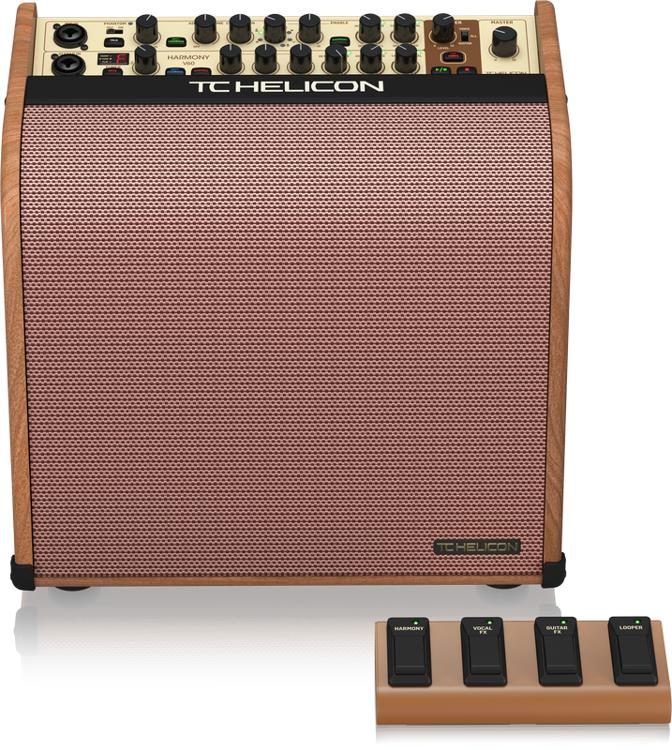

And The Footswitch Is Included!
And The Footswitch Is Included!

Looping, vocal processing and guitar effects can all be controlled by the rugged 4 button footswitch that comes with Harmony V60. A default mapping of footswitches to effects is provided but customization is easy and fast if you want quick footswitch access to the Tuner for example.

Comfortable On The Big Stage Or Your Laptop
Comfortable On The Big Stage Or Your Laptop

Dry and effected XLR or USB outputs offer mixing and tracking versatility for front of house mixer or when you want to record. These can also be used either in a single stereo pair or individual mono channels.

Guitar Highlights:

Chromatic Tuner

Auto Anti-Feedback

Body-rez acoustic resonance enhancer

Bass, Mid and Treble EQ controls

Three types of Chorus

Room, Club and Hall Reverb Styles

Tape, Digital and Slap Echo Styles with Tap Tempo

Vocal Highlights

Adaptive Tone - your personal sound engineer

Auto Anti-Feedback

Chromatic Pitch Correction

Up to two voices of guitar controlled vocal Harmony

Room, Club and Hall Reverb Styles

Tape, Digital and Slap Echo Styles with Tap Tempo

Looper

1.5 minutes loop time

Unlimited overdub

Input can be set to guitar only, vocal only or all

Loop time sets Echo tempo (except Slap Echo style)

Silent erase with Stop switch (programmable to footswitches)

Specification
Audio inputs
Guitar input

¼" TRS balanced/XLR combo

Input impedance

2 MΩ balanced/1 MΩ unbalanced

Microphone input

¼ " TRS balanced/XLR combo

Input impedance

XLR: 2.9kΩ balanced; ¼" 10kΩ TRS balanced/5k TS unbalanced

Aux input

3.5 mm TRS stereo

Input impedance
Audio outputs
Guitar/right out and Mic/left out

XLR balanced, female

Output impedance

400 Ω

Max. output level

0 dBu

Switches

DI, FX, Mix

Headphones out

3.5 mm TRS stereo

Output impedance

10 Ω

Max. output leve

8 dBu

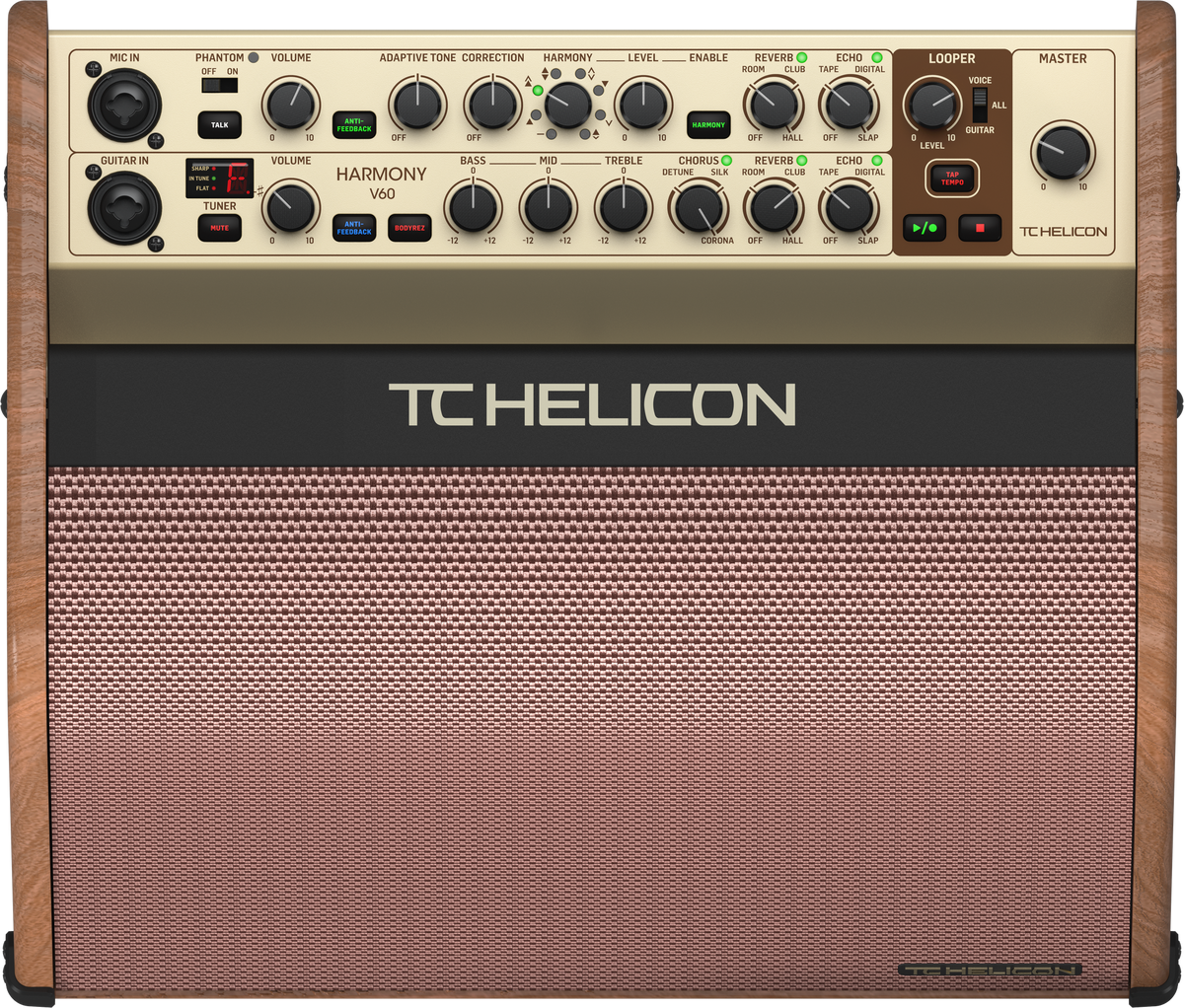

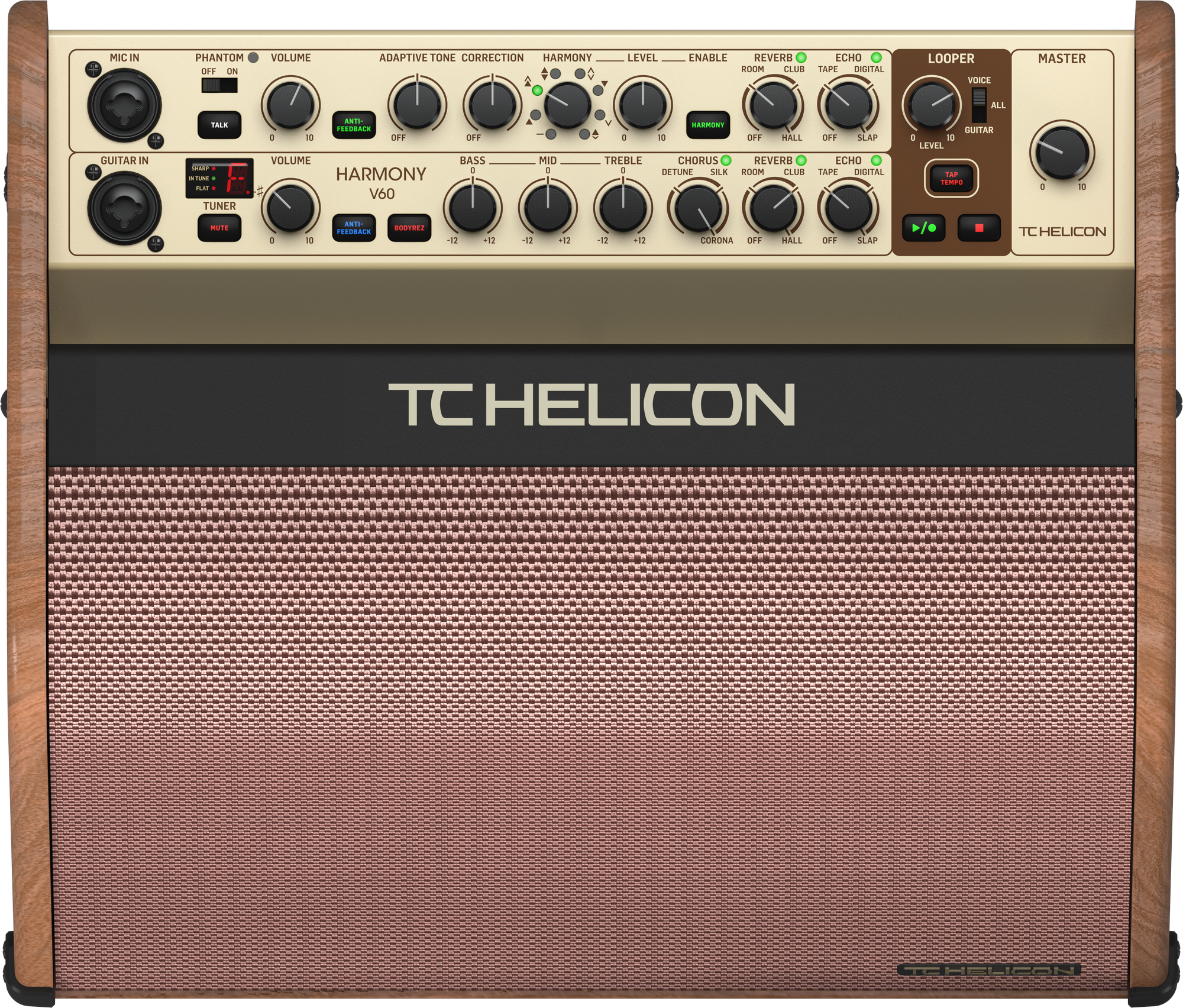

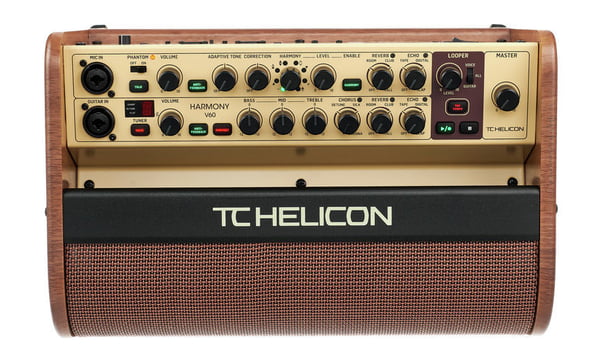

Vocal section controls
Knobs

Volume (1 to 10) Adaptive tone (off to max) Correction (off to max) Harmony selector, 8 position Harmony level (0 to 10) Reverb (off, room, club, hall) Echo (off, tape, digital, slap)

Switches

Phantom on/off Talk on/off Anti-feedback on/off Harmony enable/disable

LEDs

Phantom (red), Reverb (green), Echo (green), Harmony voice (green, 8 selections)

Backlit switches

Talk (green), anti-feedback (green, or blue when operating), harmony (green)

Guitar section controls
Knobs

Volume (0 to 10) Bass, shelving (-12 to 12 dB) Mid, peaking (-12 to 12 dB) Treble, shelving (-12 to 12 dB) Chorus (detune, silk, corona) Reverb (off, room, club, hall) Echo (off, tape, digital, slap)

Switches

Echo (off, tape, digital, slap) Switches Mute on/off Anti-feedback on/off Bodyrez off, Bodyrez-1, Bodyrez-2 Bodyrez-3 Harmony enable/disable

Display

Tuner note 8-segment, red

LEDs

Chorus (green), reverb (green), echo (green) Tuner sharp/flat/in-tune (red)

Backlit switches

Mute (red), anti-feedback (green, or blue when operating), bodyrez (red, green, blue selections)

Footswitchable controls
Microphone Section

Talk on/off Harmony on/off at the current setting Reverb on/off Echo on/of

Guitar section

Mute on/off Chorus on/off Reverb on/off Echo on/off Harmony on/off at a selected setting

Looper section

Tap Tempo Play/record Stop

LEDs

Green when footswitch engaged, red when recording

Looper controls
Knobs

Level (0 to 10)

Switches

Voice/all/guitar Tap tempo  Play/record Stop

Backlit switches

Tap tempo (flash red at tempo), play/record (green play, red record), stop (red)

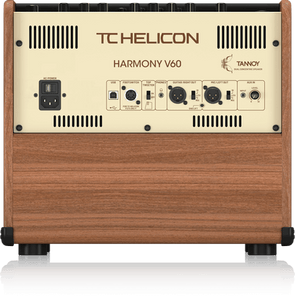

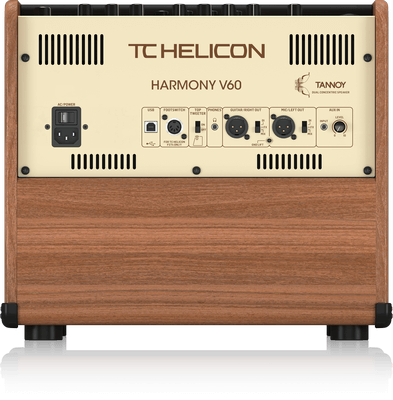

Rear panel section
Connections

AC input IEC, USB B type Foot switch, 5-pin DIN (for FST4 only) Guitar/right out, XLR male Mic/left out, XLR male Aux in, 3.5 mm

Switches

AC power on/off toggle Top tweeter on/off Guitar/right out, DI/FX/MIX selector Mic/left out, DI/FX/MIX selector Ground lift, XLR audio

Knobs

Aux input level (0-10)

USB
Type

Class compliant USB 2.0, type B

Supported Operating Systems

Windows 7 or higher Mac OS X 10.6.8 or higher

Windows driver

Required driver is supplied

Audio input and output

2 channels, 24 bit, 48kHz

Amplifier
Output power

80 W

Type

Class- D

Protection

Short circuit, thermal

Loudspeakers
Type

8" dual-concentric, Tannoy

Impedance

4 Ω

Power handling

240 W

Top tweeter (switchable on/off)

1"

Impedance

4 Ω

Overall frequency response

90 Hz - 20 kHz (+/- 3 dB) 60 Hz - 24 kHz (- 10 dB)

Maximum SPL

115 dbSPL

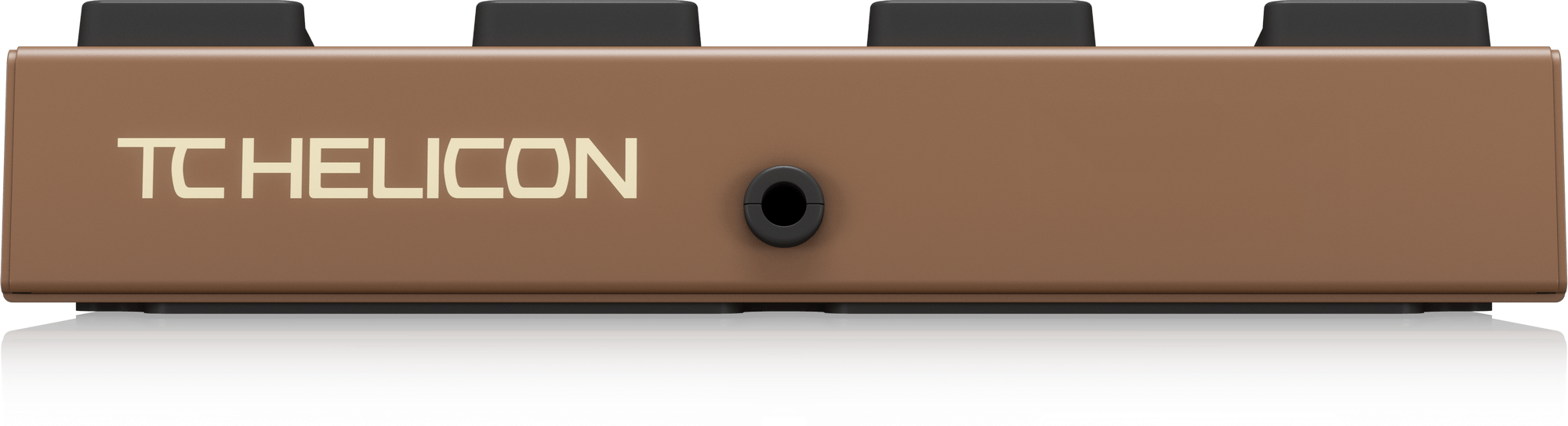

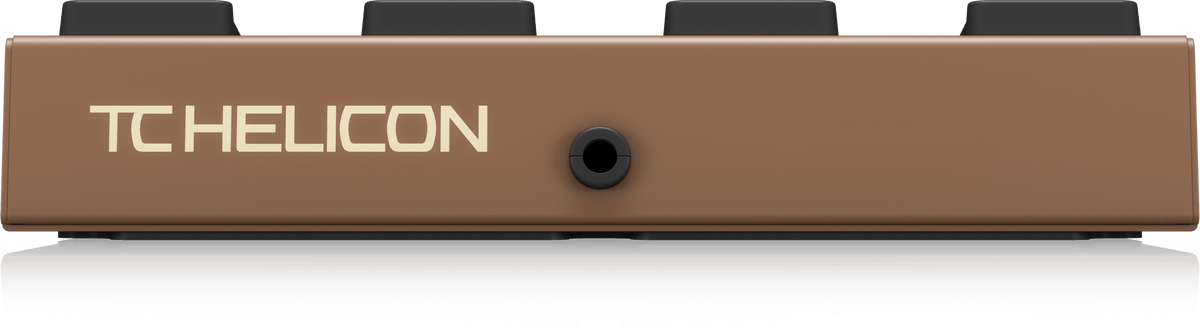

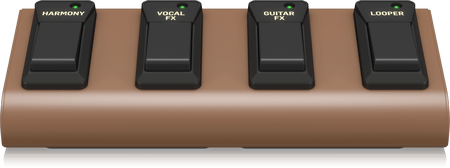

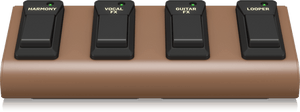

Footswitch (supplied) (any switch can operate any footswitchable control)
Type

FST4

Switches

Harmony on/off (with LED) Vocal FX on/off (with LED) Guitar FX on/off (with LED) Looper on/off (with LED)

Power Supply
Mains Voltage

100-240 V~ 50/60 Hz

Power consumption

35 W

Mains connection

Standard IEC receptacle

Power Switch

Rocker, rear pane

Dimensions/Weight
Dimensions (H x W x D)

333 x 383 x 287 mm (13.1 x 15.1 x 11.3")

Weight

11.2 kg (24.6 lbs)

Acoustic Amplifier
TC Helicon

HARMONY V60

Regular price
Sale price
16,500 ฿
Unit price
per
Out of Stock

DESCRIPTION

60 Watt 2-Channel Acoustic Amplifier with Vocal Processing, Looper, Tannoy Dual Concentric Speaker, Top Firing Tweeter and 4-Button Footswitch
Product Features
  • 60 Watt 2-channel acoustic amplifier with amazing vocal processing

  • 8" Tannoy Dual-Concentric speaker and an exclusive Top-Firing tweeter provide massive crystal clear audio to you AND your audience

  • 4-button customizable footswitch to control looper, harmony and effects included

  • Voice channel with Adaptive Tone, Intelligent Anti-feedback, Pitch Correction, Harmony, Reverb and Delay

  • Guitar channel with BodyRez, Intelligent Anti-feedback, Tuner, Reverb, Delay, Chorus and 3 band EQ

  • Built-in looper for practicing, developing ideas and enhancing live performances

  • Harmony function automatically creates up to 2 voices of smooth and accurate vocal harmonies

  • BodyRez restores natural tone to acoustic guitars when using piezo under-saddle pickups

  • Intelligent anti-feedback on each channel automatically stops feedback

  • Accurate integrated chromatic tuner with mute function

  • Dual XLR DI jacks with flexible routing for complete control of your sound

  • USB output for direct recording to a computer allows easy capture

  • Dedicated Aux input for playback of MP3 players, drum machines, etc

All In One Performance Companion
All In One Performance Companion

The Harmony V60 Acoustic Amplifier is crammed full of features and innovations that can help you weave intricate, evolving sounds at home or in clubs and halls. Maximize your audio potential to capture attention and hold it with an array of fascinating vocal and guitar effects and looping in an easy-to-carry processor and amplifier system.

Immersive Guitar Sound
Immersive Guitar Sound

Leave your pedals at home. A suite of sweet guitar effects that would normally require a large pedal board is included. There’s a fast, accurate Tuner, BodyRez to improve the feel and tone of your undersaddle pickup, 3 band EQ and separate Chorus, Reverb and Echo with their own styles and mix controls. All you add is a guitar and your groove.

Stunning Vocals
Stunning Vocals

Everybody knows the main link to an audience is vocals and TC Helicon’s studio-quality vocal processing lets your voice shine. With Adaptive Tone for instant “producer polish”, transparent pitch correction, two additional virtual Harmony voices and the lush expansiveness of Reverb and Echo, your voice will excite like never before.

Room Filling Guitar And Vocals
Room Filling Guitar And Vocals

60 Watts of Class D bi-amplification provided by separate amps for the lows and highs ensures powerful, precise sound. The 8” dual concentric speaker (woofer and tweeter in one) by legendary brand Tannoy projects a point source sound wave for the widest possible listening field while keeping the speaker’s enclosure compact.

Hear Yourself Better
Hear Yourself Better

When you turn on Harmony V60’s additional top-firing tweeter, an exclusive innovation from TC Helicon, you’ll finally get to hear more of what your audience hears. No more muffled sound or putting the amp on a chair, now you get an exciting sound standing beside, in front or behind your Harmony V60.

Fast-Acting Automatic Anti-Feedback
Fast-Acting Automatic Anti-Feedback

The Harmony V60 acts automatically to minimize screeching and howl for the Vocal and Guitar channels respectively. You get to continue playing and singing instead of switching and dialing EQ controls when feedback happens.

Multiply Yourself
Multiply Yourself

Within seconds you can build a sound greater than the sum of its parts with the 90 second looper and its unlimited overdubs. Looper input can be Voice, Guitar or both and your loop length automatically sets tap tempo so echoes play nicely in time. Imagine each overdub with a different, tasty effect!

And The Footswitch Is Included!
And The Footswitch Is Included!

Looping, vocal processing and guitar effects can all be controlled by the rugged 4 button footswitch that comes with Harmony V60. A default mapping of footswitches to effects is provided but customization is easy and fast if you want quick footswitch access to the Tuner for example.

Comfortable On The Big Stage Or Your Laptop
Comfortable On The Big Stage Or Your Laptop

Dry and effected XLR or USB outputs offer mixing and tracking versatility for front of house mixer or when you want to record. These can also be used either in a single stereo pair or individual mono channels.

Guitar Highlights:

Chromatic Tuner

Auto Anti-Feedback

Body-rez acoustic resonance enhancer

Bass, Mid and Treble EQ controls

Three types of Chorus

Room, Club and Hall Reverb Styles

Tape, Digital and Slap Echo Styles with Tap Tempo

Vocal Highlights

Adaptive Tone - your personal sound engineer

Auto Anti-Feedback

Chromatic Pitch Correction

Up to two voices of guitar controlled vocal Harmony

Room, Club and Hall Reverb Styles

Tape, Digital and Slap Echo Styles with Tap Tempo

Looper

1.5 minutes loop time

Unlimited overdub

Input can be set to guitar only, vocal only or all

Loop time sets Echo tempo (except Slap Echo style)

Silent erase with Stop switch (programmable to footswitches)

Specification
Audio inputs
Guitar input

¼" TRS balanced/XLR combo

Input impedance

2 MΩ balanced/1 MΩ unbalanced

Microphone input

¼ " TRS balanced/XLR combo

Input impedance

XLR: 2.9kΩ balanced; ¼" 10kΩ TRS balanced/5k TS unbalanced

Aux input

3.5 mm TRS stereo

Input impedance
Audio outputs
Guitar/right out and Mic/left out

XLR balanced, female

Output impedance

400 Ω

Max. output level

0 dBu

Switches

DI, FX, Mix

Headphones out

3.5 mm TRS stereo

Output impedance

10 Ω

Max. output leve

8 dBu

Vocal section controls
Knobs

Volume (1 to 10) Adaptive tone (off to max) Correction (off to max) Harmony selector, 8 position Harmony level (0 to 10) Reverb (off, room, club, hall) Echo (off, tape, digital, slap)

Switches

Phantom on/off Talk on/off Anti-feedback on/off Harmony enable/disable

LEDs

Phantom (red), Reverb (green), Echo (green), Harmony voice (green, 8 selections)

Backlit switches

Talk (green), anti-feedback (green, or blue when operating), harmony (green)

Guitar section controls
Knobs

Volume (0 to 10) Bass, shelving (-12 to 12 dB) Mid, peaking (-12 to 12 dB) Treble, shelving (-12 to 12 dB) Chorus (detune, silk, corona) Reverb (off, room, club, hall) Echo (off, tape, digital, slap)

Switches

Echo (off, tape, digital, slap) Switches Mute on/off Anti-feedback on/off Bodyrez off, Bodyrez-1, Bodyrez-2 Bodyrez-3 Harmony enable/disable

Display

Tuner note 8-segment, red

LEDs

Chorus (green), reverb (green), echo (green) Tuner sharp/flat/in-tune (red)

Backlit switches

Mute (red), anti-feedback (green, or blue when operating), bodyrez (red, green, blue selections)

Footswitchable controls
Microphone Section

Talk on/off Harmony on/off at the current setting Reverb on/off Echo on/of

Guitar section

Mute on/off Chorus on/off Reverb on/off Echo on/off Harmony on/off at a selected setting

Looper section

Tap Tempo Play/record Stop

LEDs

Green when footswitch engaged, red when recording

Looper controls
Knobs

Level (0 to 10)

Switches

Voice/all/guitar Tap tempo  Play/record Stop

Backlit switches

Tap tempo (flash red at tempo), play/record (green play, red record), stop (red)

Rear panel section
Connections

AC input IEC, USB B type Foot switch, 5-pin DIN (for FST4 only) Guitar/right out, XLR male Mic/left out, XLR male Aux in, 3.5 mm

Switches

AC power on/off toggle Top tweeter on/off Guitar/right out, DI/FX/MIX selector Mic/left out, DI/FX/MIX selector Ground lift, XLR audio

Knobs

Aux input level (0-10)

USB
Type

Class compliant USB 2.0, type B

Supported Operating Systems

Windows 7 or higher Mac OS X 10.6.8 or higher

Windows driver

Required driver is supplied

Audio input and output

2 channels, 24 bit, 48kHz

Amplifier
Output power

80 W

Type

Class- D

Protection

Short circuit, thermal

Loudspeakers
Type

8" dual-concentric, Tannoy

Impedance

4 Ω

Power handling

240 W

Top tweeter (switchable on/off)

1"

Impedance

4 Ω

Overall frequency response

90 Hz - 20 kHz (+/- 3 dB) 60 Hz - 24 kHz (- 10 dB)

Maximum SPL

115 dbSPL

Footswitch (supplied) (any switch can operate any footswitchable control)
Type

FST4

Switches

Harmony on/off (with LED) Vocal FX on/off (with LED) Guitar FX on/off (with LED) Looper on/off (with LED)

Power Supply
Mains Voltage

100-240 V~ 50/60 Hz

Power consumption

35 W

Mains connection

Standard IEC receptacle

Power Switch

Rocker, rear pane

Dimensions/Weight
Dimensions (H x W x D)

333 x 383 x 287 mm (13.1 x 15.1 x 11.3")

Weight

11.2 kg (24.6 lbs)

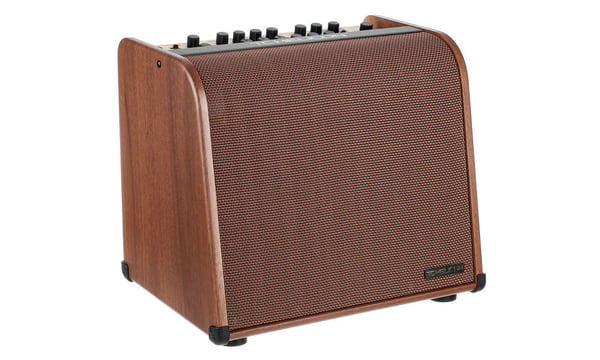

60 Watt 2-Channel Acoustic Amplifier with Vocal Processing, Looper, Tannoy Dual Concentric Speaker, Top Firing Tweeter and 4-Button Footswitch
Product Features
  • 60 Watt 2-channel acoustic amplifier with amazing vocal processing

  • 8" Tannoy Dual-Concentric speaker and an exclusive Top-Firing tweeter provide massive crystal clear audio to you AND your audience

  • 4-button customizable footswitch to control looper, harmony and effects included

  • Voice channel with Adaptive Tone, Intelligent Anti-feedback, Pitch Correction, Harmony, Reverb and Delay

  • Guitar channel with BodyRez, Intelligent Anti-feedback, Tuner, Reverb, Delay, Chorus and 3 band EQ

  • Built-in looper for practicing, developing ideas and enhancing live performances

  • Harmony function automatically creates up to 2 voices of smooth and accurate vocal harmonies

  • BodyRez restores natural tone to acoustic guitars when using piezo under-saddle pickups

  • Intelligent anti-feedback on each channel automatically stops feedback

  • Accurate integrated chromatic tuner with mute function

  • Dual XLR DI jacks with flexible routing for complete control of your sound

  • USB output for direct recording to a computer allows easy capture

  • Dedicated Aux input for playback of MP3 players, drum machines, etc

All In One Performance Companion
All In One Performance Companion

The Harmony V60 Acoustic Amplifier is crammed full of features and innovations that can help you weave intricate, evolving sounds at home or in clubs and halls. Maximize your audio potential to capture attention and hold it with an array of fascinating vocal and guitar effects and looping in an easy-to-carry processor and amplifier system.

Immersive Guitar Sound
Immersive Guitar Sound

Leave your pedals at home. A suite of sweet guitar effects that would normally require a large pedal board is included. There’s a fast, accurate Tuner, BodyRez to improve the feel and tone of your undersaddle pickup, 3 band EQ and separate Chorus, Reverb and Echo with their own styles and mix controls. All you add is a guitar and your groove.

Stunning Vocals
Stunning Vocals

Everybody knows the main link to an audience is vocals and TC Helicon’s studio-quality vocal processing lets your voice shine. With Adaptive Tone for instant “producer polish”, transparent pitch correction, two additional virtual Harmony voices and the lush expansiveness of Reverb and Echo, your voice will excite like never before.

Room Filling Guitar And Vocals
Room Filling Guitar And Vocals

60 Watts of Class D bi-amplification provided by separate amps for the lows and highs ensures powerful, precise sound. The 8” dual concentric speaker (woofer and tweeter in one) by legendary brand Tannoy projects a point source sound wave for the widest possible listening field while keeping the speaker’s enclosure compact.

Hear Yourself Better
Hear Yourself Better

When you turn on Harmony V60’s additional top-firing tweeter, an exclusive innovation from TC Helicon, you’ll finally get to hear more of what your audience hears. No more muffled sound or putting the amp on a chair, now you get an exciting sound standing beside, in front or behind your Harmony V60.

Fast-Acting Automatic Anti-Feedback
Fast-Acting Automatic Anti-Feedback

The Harmony V60 acts automatically to minimize screeching and howl for the Vocal and Guitar channels respectively. You get to continue playing and singing instead of switching and dialing EQ controls when feedback happens.

Multiply Yourself
Multiply Yourself

Within seconds you can build a sound greater than the sum of its parts with the 90 second looper and its unlimited overdubs. Looper input can be Voice, Guitar or both and your loop length automatically sets tap tempo so echoes play nicely in time. Imagine each overdub with a different, tasty effect!

And The Footswitch Is Included!
And The Footswitch Is Included!

Looping, vocal processing and guitar effects can all be controlled by the rugged 4 button footswitch that comes with Harmony V60. A default mapping of footswitches to effects is provided but customization is easy and fast if you want quick footswitch access to the Tuner for example.

Comfortable On The Big Stage Or Your Laptop
Comfortable On The Big Stage Or Your Laptop

Dry and effected XLR or USB outputs offer mixing and tracking versatility for front of house mixer or when you want to record. These can also be used either in a single stereo pair or individual mono channels.

Guitar Highlights:

Chromatic Tuner

Auto Anti-Feedback

Body-rez acoustic resonance enhancer

Bass, Mid and Treble EQ controls

Three types of Chorus

Room, Club and Hall Reverb Styles

Tape, Digital and Slap Echo Styles with Tap Tempo

Vocal Highlights

Adaptive Tone - your personal sound engineer

Auto Anti-Feedback

Chromatic Pitch Correction

Up to two voices of guitar controlled vocal Harmony

Room, Club and Hall Reverb Styles

Tape, Digital and Slap Echo Styles with Tap Tempo

Looper

1.5 minutes loop time

Unlimited overdub

Input can be set to guitar only, vocal only or all

Loop time sets Echo tempo (except Slap Echo style)

Silent erase with Stop switch (programmable to footswitches)

Specification
Audio inputs
Guitar input

¼" TRS balanced/XLR combo

Input impedance

2 MΩ balanced/1 MΩ unbalanced

Microphone input

¼ " TRS balanced/XLR combo

Input impedance

XLR: 2.9kΩ balanced; ¼" 10kΩ TRS balanced/5k TS unbalanced

Aux input

3.5 mm TRS stereo

Input impedance
Audio outputs
Guitar/right out and Mic/left out

XLR balanced, female

Output impedance

400 Ω

Max. output level

0 dBu

Switches

DI, FX, Mix

Headphones out

3.5 mm TRS stereo

Output impedance

10 Ω

Max. output leve

8 dBu

Vocal section controls
Knobs

Volume (1 to 10) Adaptive tone (off to max) Correction (off to max) Harmony selector, 8 position Harmony level (0 to 10) Reverb (off, room, club, hall) Echo (off, tape, digital, slap)

Switches

Phantom on/off Talk on/off Anti-feedback on/off Harmony enable/disable

LEDs

Phantom (red), Reverb (green), Echo (green), Harmony voice (green, 8 selections)

Backlit switches

Talk (green), anti-feedback (green, or blue when operating), harmony (green)

Guitar section controls
Knobs

Volume (0 to 10) Bass, shelving (-12 to 12 dB) Mid, peaking (-12 to 12 dB) Treble, shelving (-12 to 12 dB) Chorus (detune, silk, corona) Reverb (off, room, club, hall) Echo (off, tape, digital, slap)

Switches

Echo (off, tape, digital, slap) Switches Mute on/off Anti-feedback on/off Bodyrez off, Bodyrez-1, Bodyrez-2 Bodyrez-3 Harmony enable/disable

Display

Tuner note 8-segment, red

LEDs

Chorus (green), reverb (green), echo (green) Tuner sharp/flat/in-tune (red)

Backlit switches

Mute (red), anti-feedback (green, or blue when operating), bodyrez (red, green, blue selections)

Footswitchable controls
Microphone Section

Talk on/off Harmony on/off at the current setting Reverb on/off Echo on/of

Guitar section

Mute on/off Chorus on/off Reverb on/off Echo on/off Harmony on/off at a selected setting

Looper section

Tap Tempo Play/record Stop

LEDs

Green when footswitch engaged, red when recording

Looper controls
Knobs

Level (0 to 10)

Switches

Voice/all/guitar Tap tempo  Play/record Stop

Backlit switches

Tap tempo (flash red at tempo), play/record (green play, red record), stop (red)

Rear panel section
Connections

AC input IEC, USB B type Foot switch, 5-pin DIN (for FST4 only) Guitar/right out, XLR male Mic/left out, XLR male Aux in, 3.5 mm

Switches

AC power on/off toggle Top tweeter on/off Guitar/right out, DI/FX/MIX selector Mic/left out, DI/FX/MIX selector Ground lift, XLR audio

Knobs

Aux input level (0-10)

USB
Type

Class compliant USB 2.0, type B

Supported Operating Systems

Windows 7 or higher Mac OS X 10.6.8 or higher

Windows driver

Required driver is supplied

Audio input and output

2 channels, 24 bit, 48kHz

Amplifier
Output power

80 W

Type

Class- D

Protection

Short circuit, thermal

Loudspeakers
Type

8" dual-concentric, Tannoy

Impedance

4 Ω

Power handling

240 W

Top tweeter (switchable on/off)

1"

Impedance

4 Ω

Overall frequency response

90 Hz - 20 kHz (+/- 3 dB) 60 Hz - 24 kHz (- 10 dB)

Maximum SPL

115 dbSPL

Footswitch (supplied) (any switch can operate any footswitchable control)
Type

FST4

Switches

Harmony on/off (with LED) Vocal FX on/off (with LED) Guitar FX on/off (with LED) Looper on/off (with LED)

Power Supply
Mains Voltage

100-240 V~ 50/60 Hz

Power consumption

35 W

Mains connection

Standard IEC receptacle

Power Switch

Rocker, rear pane

Dimensions/Weight
Dimensions (H x W x D)

333 x 383 x 287 mm (13.1 x 15.1 x 11.3")

Weight

11.2 kg (24.6 lbs)

other products

SHIPPING

Domestic delivery only

PRODUCT WARRANTY

For electric and electronic product only.

MAINTENANCE

Only products purchased from importers and dealer that has a warranty on the product.

Liquid error: Could not find asset snippets/boost-pfs.liquid
