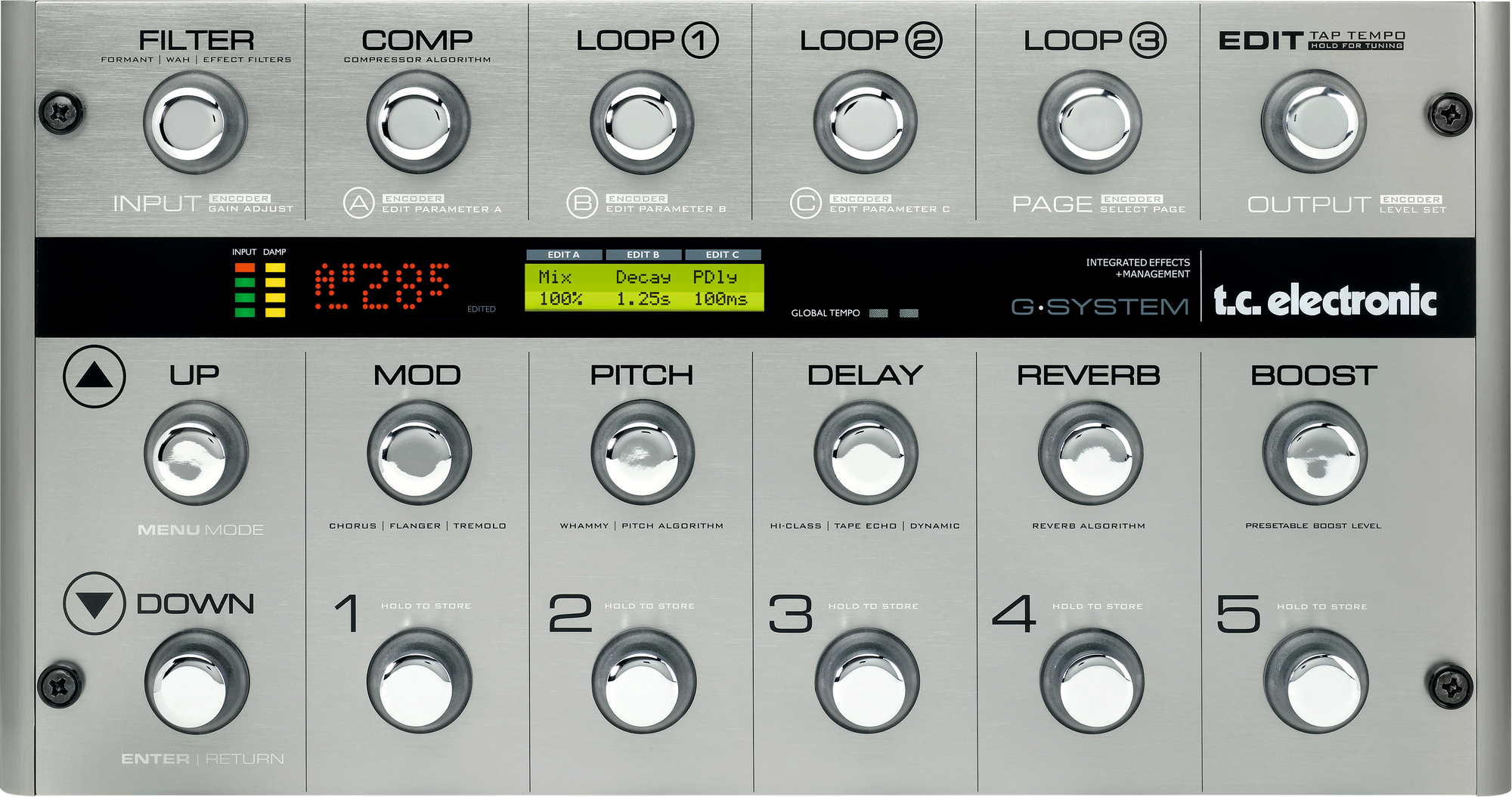

DESCRIPTION

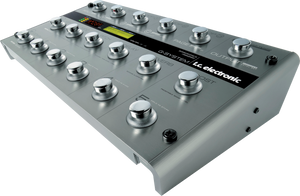

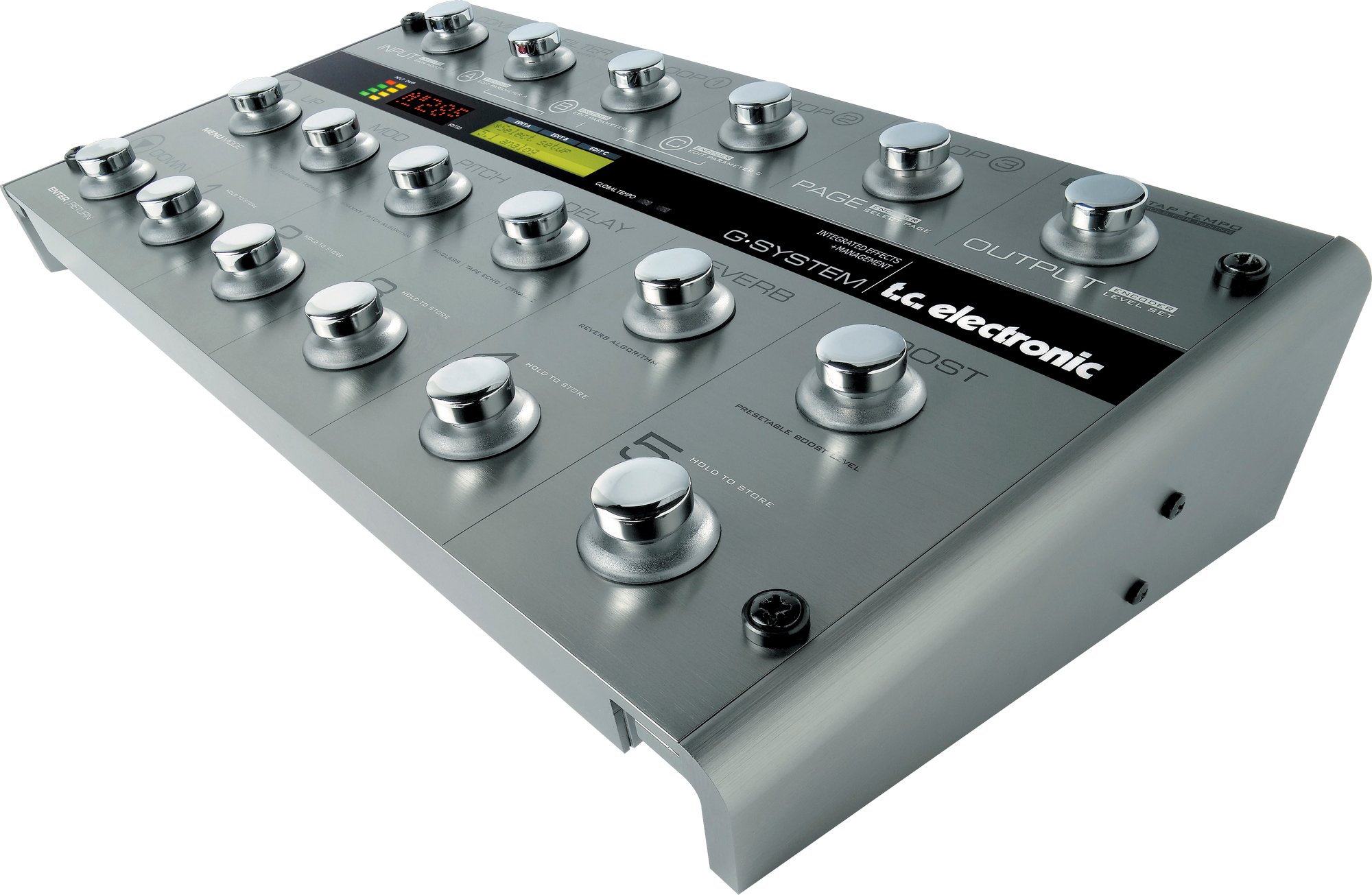

Ultimate Floor-Based Guitar Multi-Effects Processor and Management Tool with Customizable Setup and Effect Pedal Integration
Product Features

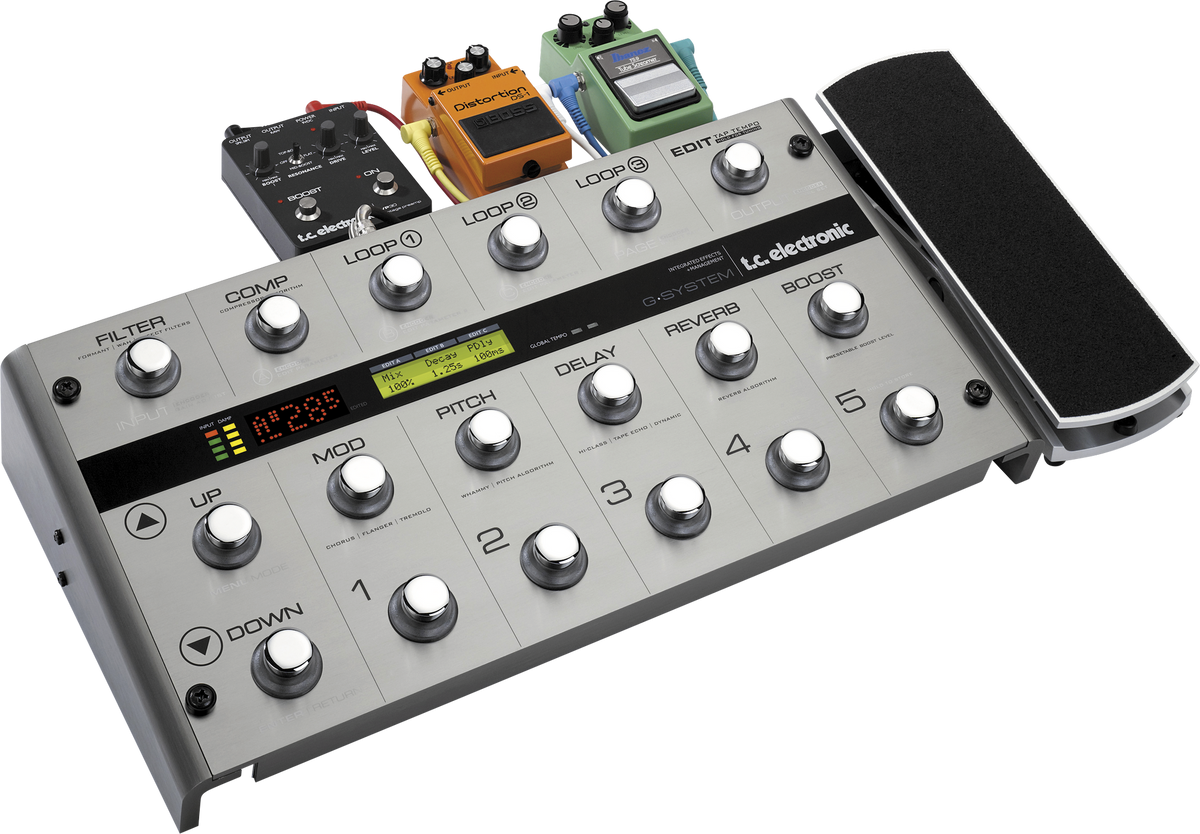

  • Ultimate floor-based guitar multi-effects processor and management tool is completely configurable and ready to work with your favorite effects pedals

  • Quickly create studio-quality tones with a suite of truly exceptional guitar effects from TC Electronic

  • Massively customizable so you can edit button assignments, trigger multiple changes at once and custom-route your effects to perfectly suit your style

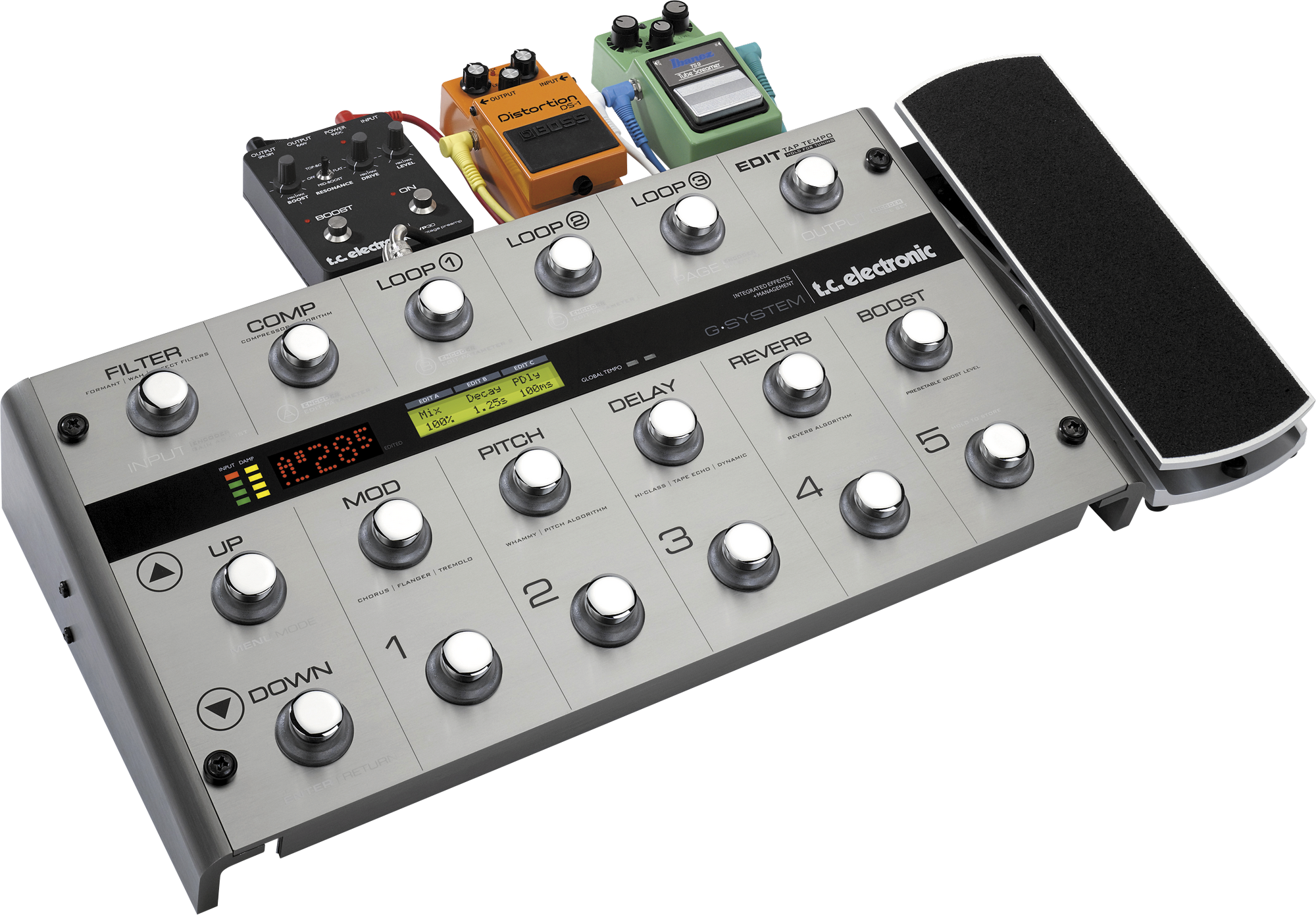

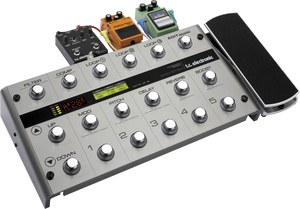

  • 4 analog loops and 4 DC 9 V outlets seamlessly integrate your favorite stompboxes, giving you total personalization and control from a single unit

  • Use up to 9 effects simultaneously to get exactly the sound you want

  • Fast and smooth preset changes featuring delay and reverb spillover

  • Additional loop / insertion point dedicated for preamps lets you have your effects at the right spot in the signal chain

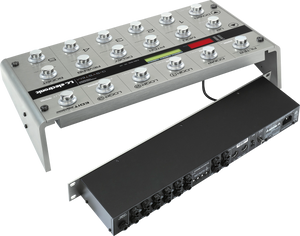

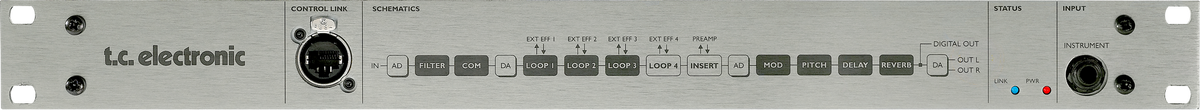

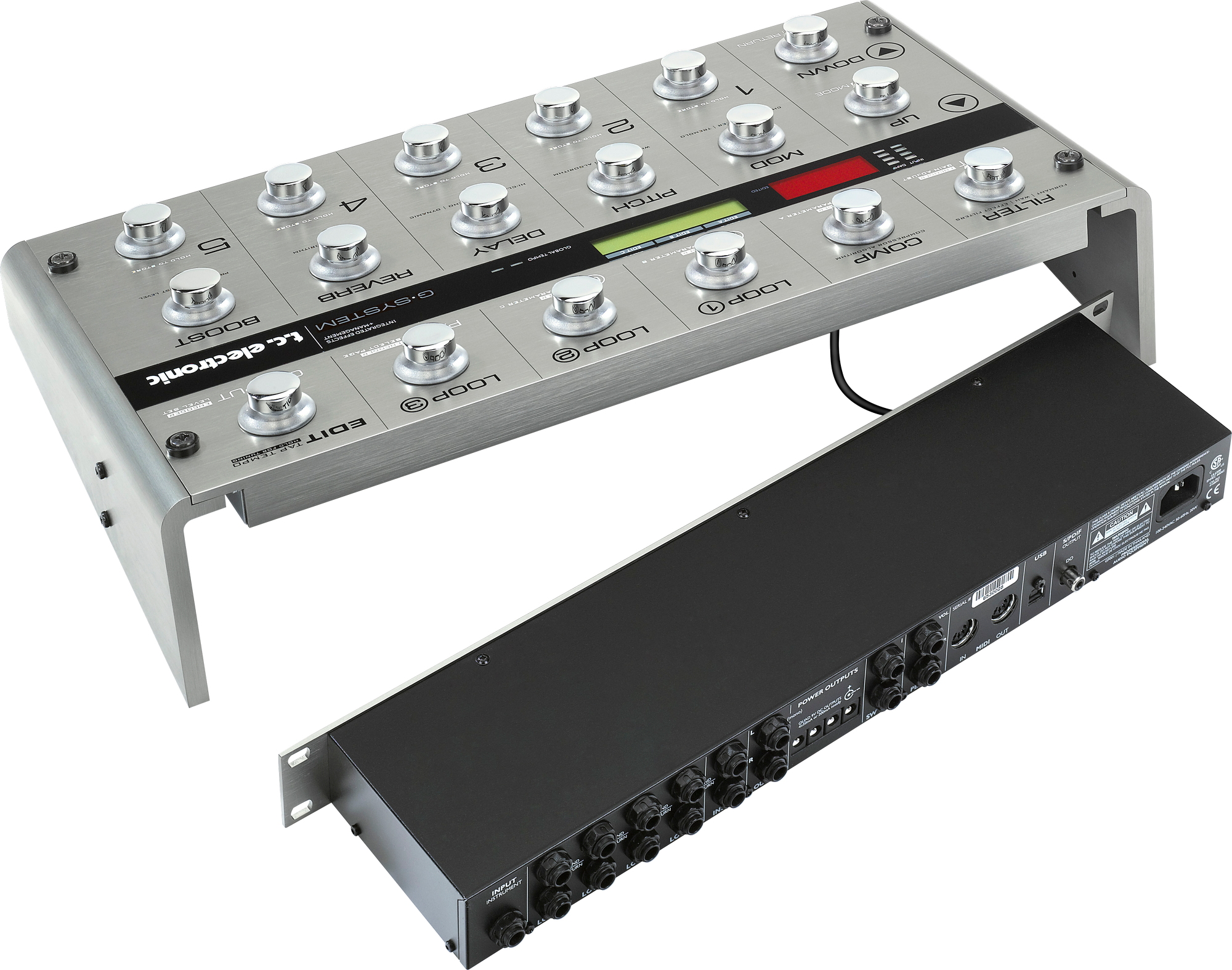

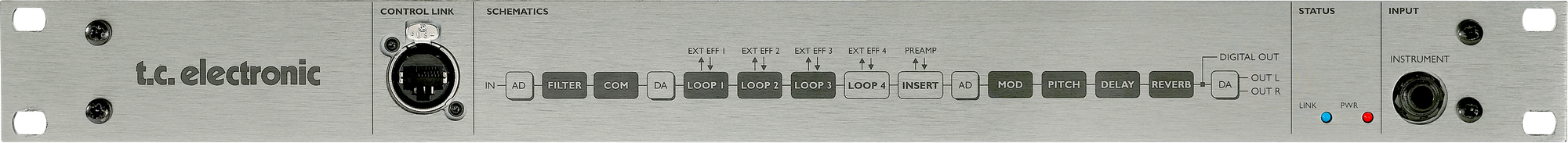

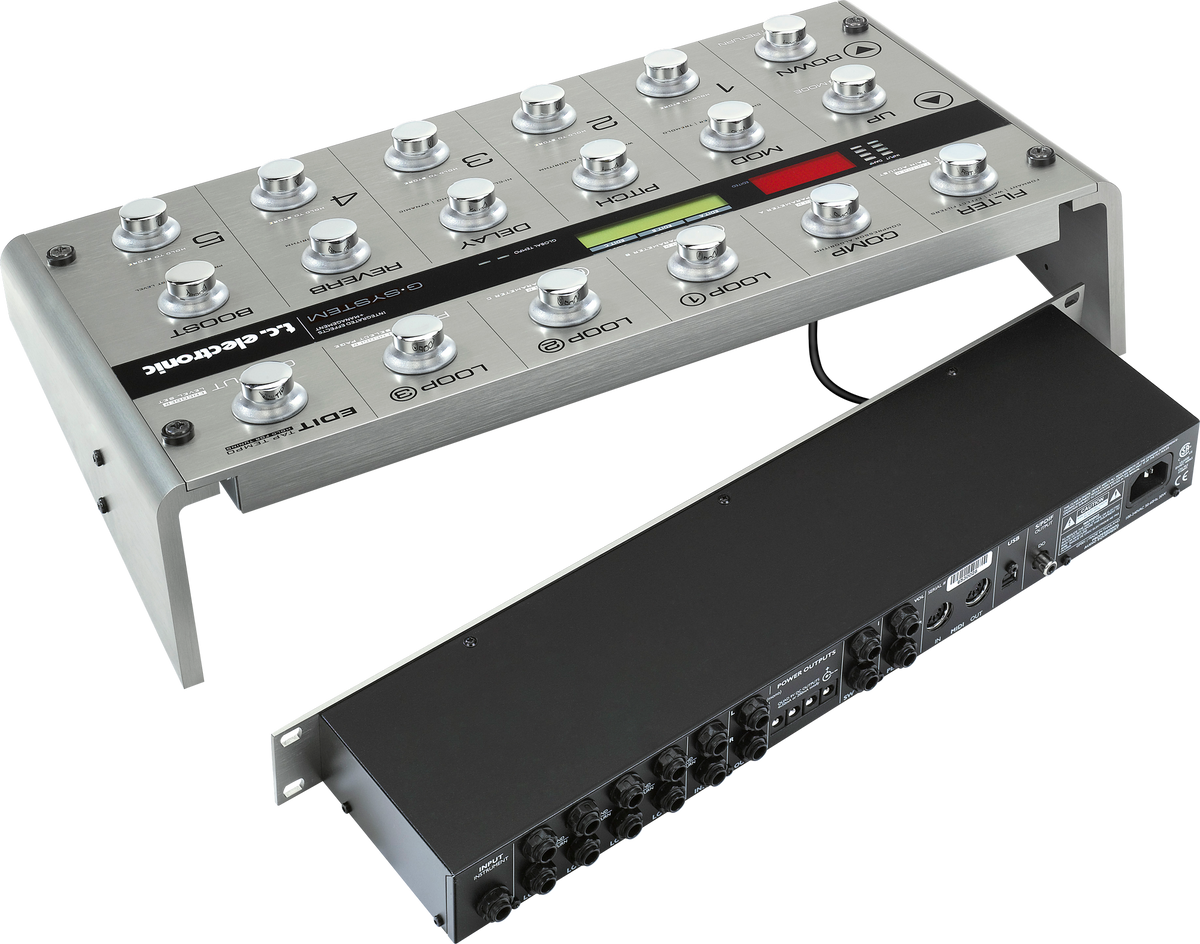

  • Rack unit effects processor mounted under the pedalboard can be separated and put into a 19" rack while the controls stay on the floor for maximum flexibility

  • MIDI-enabled so you can control additional external MIDI units

  • USB for preset and software updates

  • Connections for 2 expression pedals

  • Holds 100 factory presets and has space to store 200 user presets, giving you a wide sonic range

  • Designed and engineered in Denmark

Musicality Meets Integration
Musicality Meets Integration

          G-SYSTEM is a masterpiece. It asks: what if a guitarist could have it all? And then delivers in a package almost too good to be true.
The best of the best effects, complete integration and optimization of your gear and total control over your effects and sounds pedal board. And, the added Massimo Mantovani mod essentially optimises the input-design and upgrades a number of components, which results in a super-transparent tone with a very snappy response, added punch and optimal tonal transparency.

    •    25 effects in the best quality money can buy
    •    Total control over sounds, including amp channel switching
    •    Total integration, including 3 powered loops for your pedals

Pure Music In Effect
Pure Music In Effect

          G-SYSTEM offers a complete range of guitar effects, but what makes them so different is their sound. We poured all our knowledge but also our hearts and love for music into these sounds and it shows - dual DSP full 96 KHZ / 24 bit conversion and processing meets tone that just raises the hairs on your arm right of the bat.

Obey The Way You Play
Obey The Way You Play

          How you play is unique and your challenges are different from any other guitarist. That is why we made G-SYSTEM like a ball of clay: completely moldable to what you need it to be. Custom button lay-out and assignment, multiple actions with one button press, custom effect routing - you name it, and G-SYSTEM does what you need to sound your best.

It’s OK To See Other People
It’s OK To See Other People

          G-SYSTEM has no drive effects. Why? Cos most guitarists have their favourite distortion/overdrive boxes anyway. So Instead of competing with them, we aimed to integrate them seamlessly, and make them part of them system via 4 analog loops and even add 9VDC outputs - life can be so easy.

G-SYSTEM Presets
G-SYSTEM Presets

          In an attempt to optimize and streamline our site, downloading of presets for G-SYSTEM can now be done via the download link below. It’s easier and faster for us and for guitarists that are using these products. We feel we have the best guitar community on the planet, with dedicated users active on our forum and FaceBook page and we want downloading presets to be as smooth as possible.

Specification

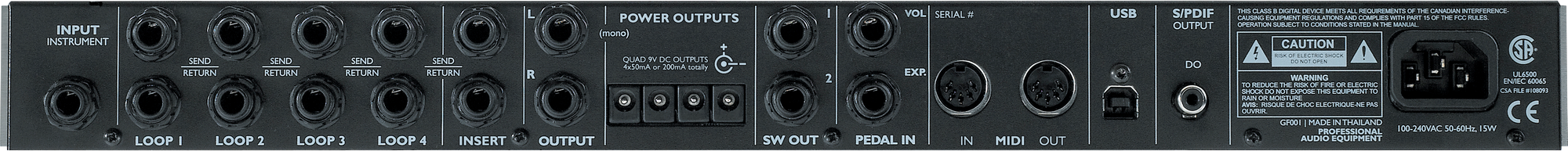

Instrument Inputs
Connectors:

Two 1/4" phone jack, pseudo-balanced
Impedance:

1 Mohm
Max. Input Level:

18 dBu
Min. Input Level for 0 dBFS:

-6 dBu
Sensitivity:

-6dBu to +18 dBu

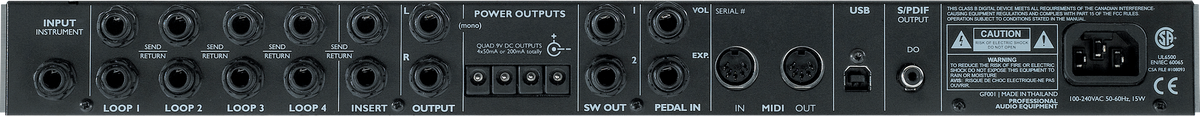

Loop 1-4
Connectors:

Two 1/4" phone jacks x 4
Impedance, input/output:

91 kOhm/100 Ohm
Max. Output Level:

12 dBu
Output Ranges:

6 to 10 dBu
Insert
Connectors:

Two 1/4" phone jacks
Impedance, input/output:

24 kOhm(Balanced 35 kOhm)/ 100Ohm(Balanced 200 Ohm)
Max. Output Level:

12 dBu
Output Ranges:

6 to 10 dBu
Analog Outputs (L/R)
Connectors:

Two 1/4" phone jacks
Impedance:

100 Ohm (Balanced 200 Ohm)
Max. Output Level:

12 dBu
Output Ranges:

0 to 10 dBu
Connectors:

RCA Phono (S/PDIF)
Formats:

S/PDIF (24 bit), EIAJ CP-340, IEC 958, 75Ohm
Sample Rate:

44.1 kHz
Frequency Response:

typ. : +0.0/-0.4 dB, 20 Hz to 20 kHz
Dynamic Range:

typ.: > 95 dB, 20Hz to 22kHz, 0dBFS
THD:

typ.: < -80 dB, 20Hz to 22kHz, -1dBFS
A to D Conversion:

24 bit, 128 x oversampling bitstream, DSR
D to A Conversion:

24 bit, 128 x oversampling bitstream, DSR
EMC
Complies with:

EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
Safety
Certified to:

IEC 60065 / EN 60065/ UL 60065 / CSA E60065
Environment
Operating Temperature:

32° F to 122° F (0° C to 50° C)
Storage Temperature:

-22° F to 167° F (-30° C to 70° C)
Humidity:

Max. 90 % non-condensing
Control Interface
MIDI:

In/Out: 5 Pin DIN
USB:

USB 1.1, type B
Pedal (Exp and Vol):

Four 1/4" stereo phone jack (2 on GFX01, 2 on Control Board)
Relay closure (separate tip and ring connection to sleeve):

4 relays on two 1/4" stereo phone jack for amp switching
Misc
DC output:

4 x 9VDC outputs, 200mA totally, Shield(+) Pin(-)
General
Finish:

Anodized aluminum front Plated and painted steel chassis
Display:

2x20 character STN-LCD display + 20x7
Footswitches:

Dot-Matrix 18 Illuminated Footswitches (6 with build-in Rotary Encoders)
Dimensions:

20.2" x 10.5" x 4.1" (512.9mm x 265.9mm x 103.4mm)
Weight:

17.2 lb. (7.83 kg)
Mains Voltage:

100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption:

<20 W
Warranty Parts and labor:

According to EU regulations
