Quad LFO with Assignable Waveforms for Eurorack
-
4 voltage-controlled LFOs with user-assignable waveforms based on open source Xaoc Batumi
-
4 faders to control ultra-wide LFO rates from 500 Hz to 28 hours
-
Free, quadrature, phase and divide modes for creative sound shaping
-
Zoom mode for precise frequency settings
-
Reset and sync input for each channel
-
Assignable reset and tap tempo inputs
-
Sine, square and assignable waveshape outputs
-
User-assignable LFO waveforms featuring saw, ramp, triangle and trapezoid
-
USB connector for easy firmware update
-
4 controls and switches give you real-time access to all important parameters
-
Eurorack specs: 12 HP, 95 mA +12 V, 69 mA -12 V

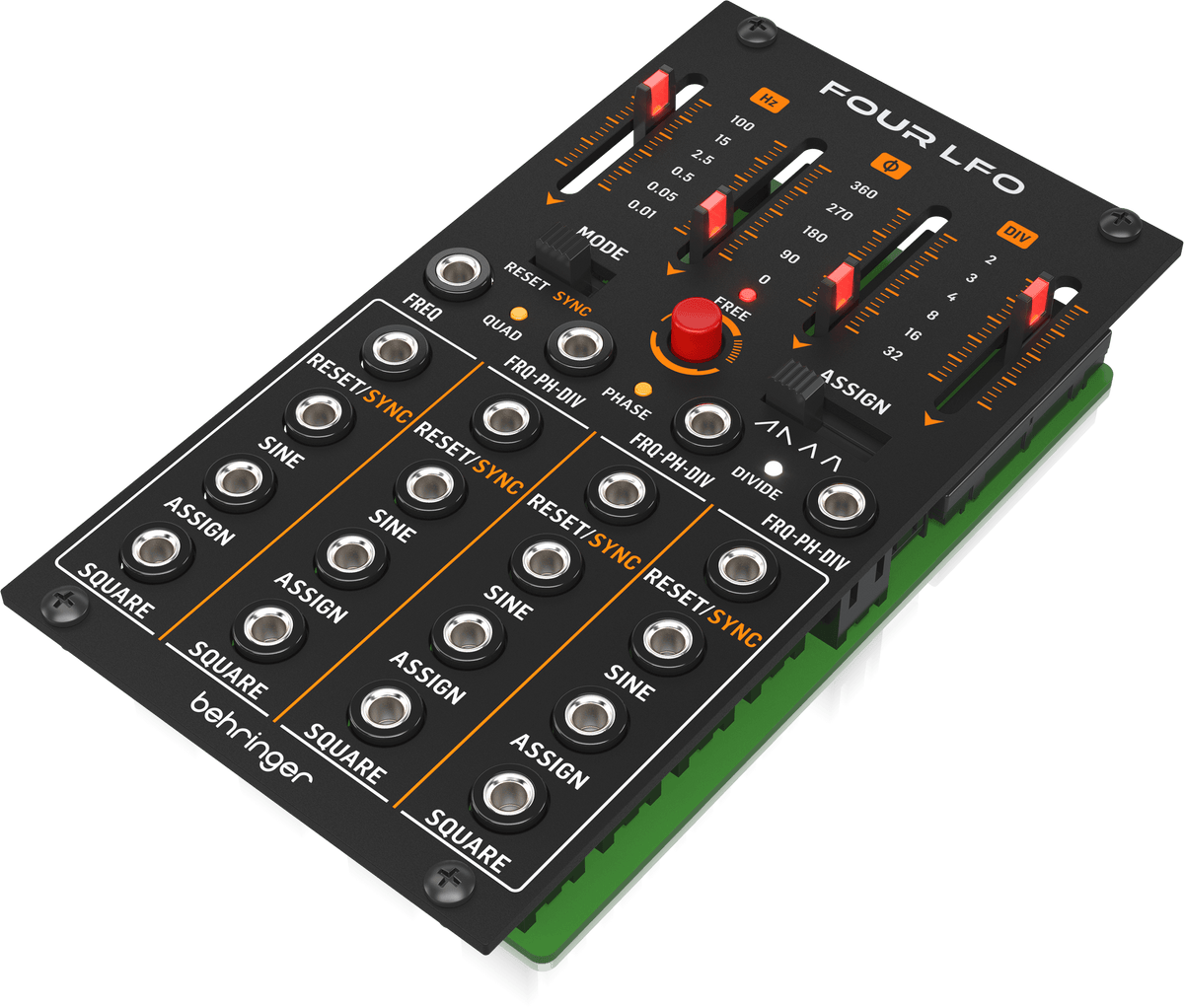

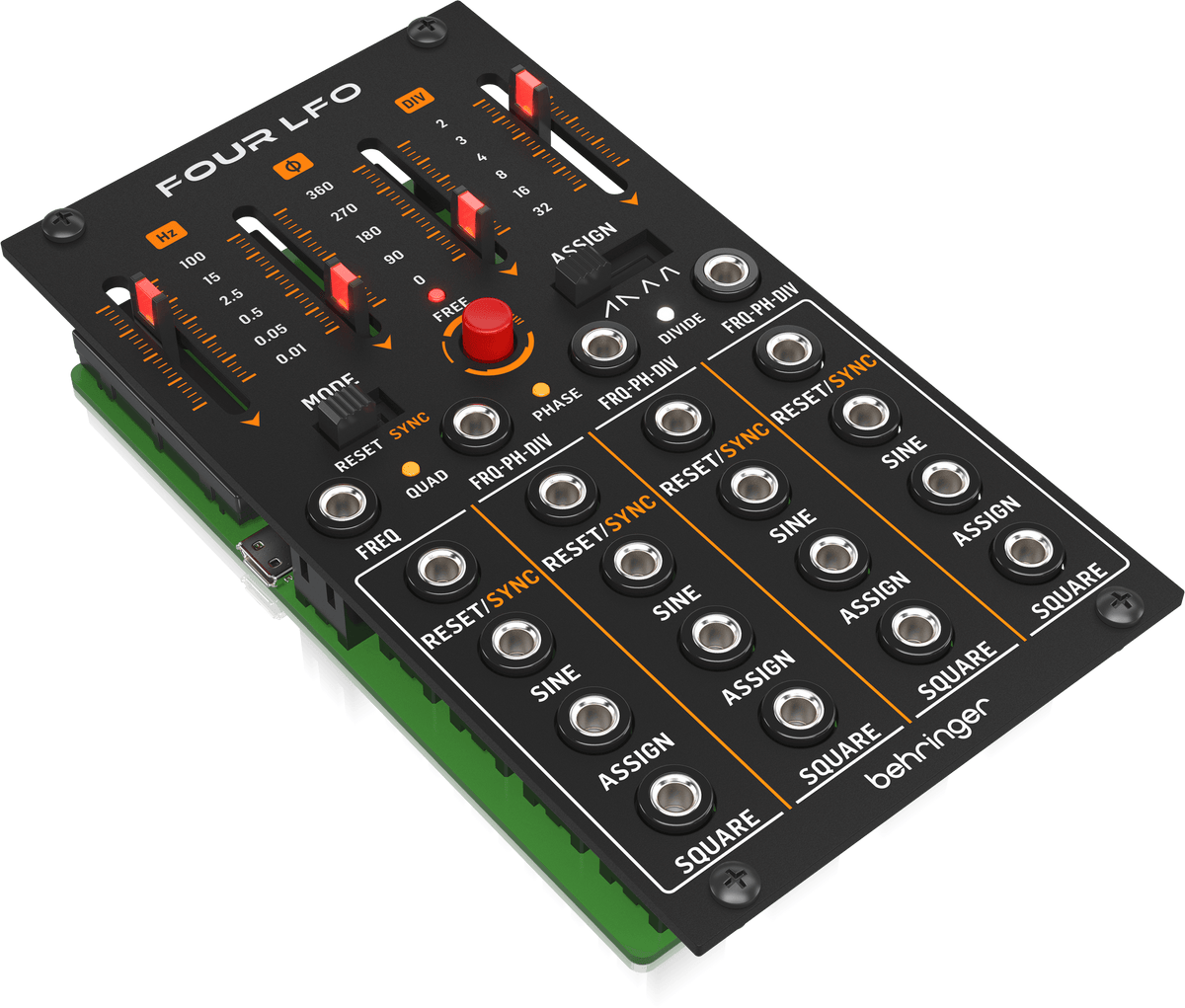

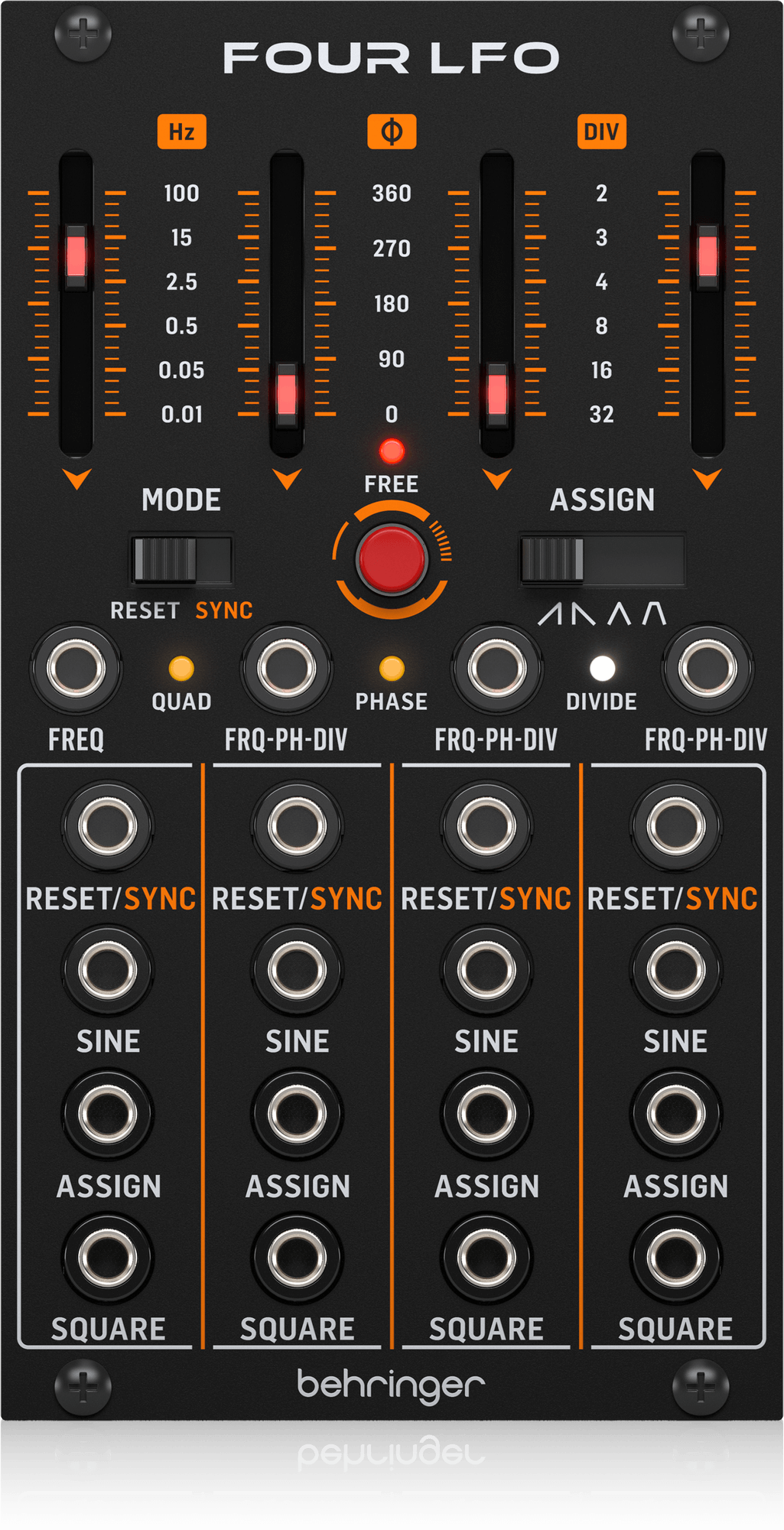

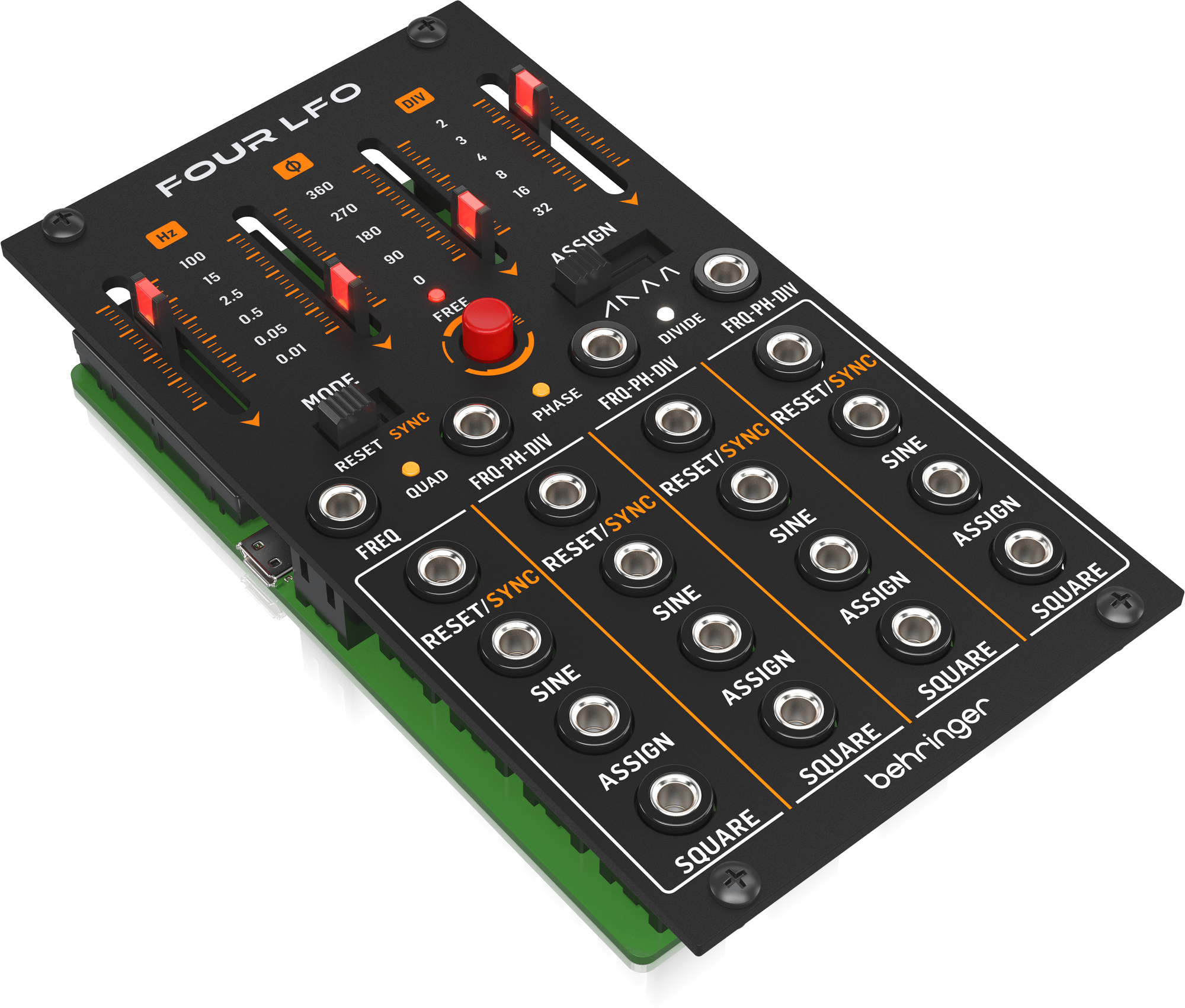

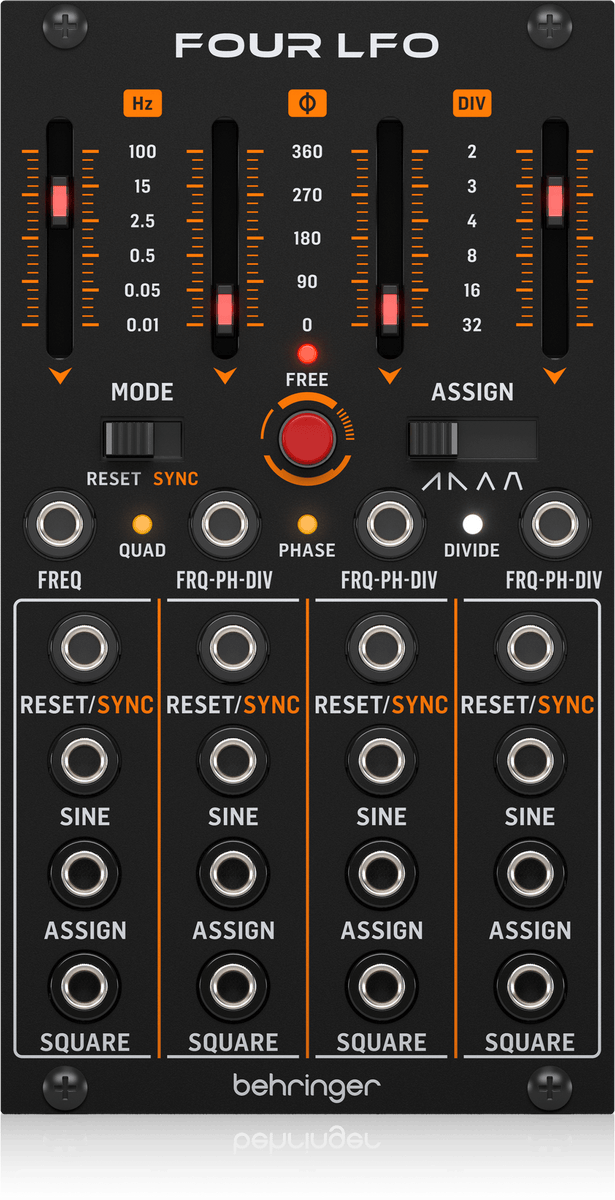

FOUR LFO
Expand your synth setup and create even more intricate effects with the Behringer FOUR LFO. This compact Eurorack module comes with 4 voltage-controlled LFOs based on the incredible open source Batumi from Xaoc Devices. Each LFO comes with separate user-assignable waveforms and offers a slew of options for you to sculpt unique sequences and waveforms.
Ready for Any Signal
The FOUR LFO provides a uniquely flexible platform that allows you to change and shape various waveforms and patch them into different effects to create wild and otherworldly soundscapes. Faders on each of the LFOs control frequency ranges from 500Hz all the way up to a whopping 28 hours! Free, quadrature, phase and divide modes allow for even more sound shaping.
Controls
Additional controls on the FOUR LFO include a zoom mode so you can more precisely dial in frequency settings; a reset and sync input for each channel; independently assignable reset and tap tempo inputs and LFO saw, ramp, triangle and trapezoid waveforms.
Eurorack Ready
The FOUR LFO is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the FOUR LFO to be mixed with other synth modules for a truly unique set up.
Specification
Inputs
| CV in |
Type: 4 x 3.5 mm TS jacks, DC coupled |
| Reset/Sync In |
Type: 4 x 3.5 mm TS jack, DC coupled |
Outputs
| Sine Out |
Type: 4 x 3.5 mm TS jack, DC coupled |
| Assign Out |
Type: 4 x 3.5 mm TS jack, DC coupled |
| Square Out |
Type: 4 x 3.5 mm TS jack, DC coupled |
Controls
| Sliders |
4 x function attenuator |
| Switches |
Mode (Reset/Sync) / Assign |
| Button |
Function (Free, Quad, Phase, Divide) |
| LED |
Function (Free, Quad, Phase, Divide) |
