Dual Expression Pedal

The Source Audio Dual Expression Pedal delivers precision response and smooth action in a durable cast aluminum housing. Dual TRS expression outputs make it possible to control two effects units simultaneously. The pedal is compatible with the very common Boss/Roland style (“tip hot”) expression input. The Range Adjust Knob sets the bottom point of the expression range. Plus, a special Sensor Output connects directly to any Hot Hand®, Soundblox®, Soundblox 2, or Soundblox Pro pedal for real-time control over filter sweeps, effect modulation, LFO speeds, wet/dry mixes, drive levels and more.

Additional Features and Specifications

  • Two Isolated TRS Expression Outputs – simultaneous control over multiple effect pedals or rack systems.

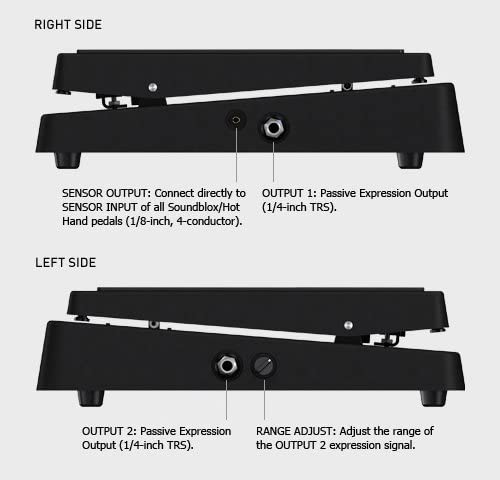

  • Sensor Output — 1/8-inch; four conductor output compatible with all Soundblox, Soundblox 2, or Soundblox Pro pedals.
  • Range Adjust Knob — Adjusts the range of expression signal sent through the outputs.
  • OUTPUT 1: sends expression signal out via either 1/4 inch TRS cable or 4 conductor Soundblox compatible 1/8 inch sensor cable.
  • OUTPUT 2: sends expression signal out via 1/4 inch TRS cable.
  • Rugged, cast aluminum housing.
  • Includes one 1/4-inch TRS connector cable and one 1/8 inch four conductor Sensor Output cable
  • Dimensions: 10 in/25.4cm (Length) x 4 in/10.2cm (width) x 3 in/7.6cm (height)

Accessories
Source Audio

Dual Expression Pedal SA-161

Regular price
Sale price
4,500 ฿
Unit price
per
Out of Stock

DESCRIPTION

Dual Expression Pedal

The Source Audio Dual Expression Pedal delivers precision response and smooth action in a durable cast aluminum housing. Dual TRS expression outputs make it possible to control two effects units simultaneously. The pedal is compatible with the very common Boss/Roland style (“tip hot”) expression input. The Range Adjust Knob sets the bottom point of the expression range. Plus, a special Sensor Output connects directly to any Hot Hand®, Soundblox®, Soundblox 2, or Soundblox Pro pedal for real-time control over filter sweeps, effect modulation, LFO speeds, wet/dry mixes, drive levels and more.

Additional Features and Specifications

  • Two Isolated TRS Expression Outputs – simultaneous control over multiple effect pedals or rack systems.
  • Sensor Output — 1/8-inch; four conductor output compatible with all Soundblox, Soundblox 2, or Soundblox Pro pedals.
  • Range Adjust Knob — Adjusts the range of expression signal sent through the outputs.
  • OUTPUT 1: sends expression signal out via either 1/4 inch TRS cable or 4 conductor Soundblox compatible 1/8 inch sensor cable.
  • OUTPUT 2: sends expression signal out via 1/4 inch TRS cable.
  • Rugged, cast aluminum housing.
  • Includes one 1/4-inch TRS connector cable and one 1/8 inch four conductor Sensor Output cable
  • Dimensions: 10 in/25.4cm (Length) x 4 in/10.2cm (width) x 3 in/7.6cm (height)

Dual Expression Pedal

The Source Audio Dual Expression Pedal delivers precision response and smooth action in a durable cast aluminum housing. Dual TRS expression outputs make it possible to control two effects units simultaneously. The pedal is compatible with the very common Boss/Roland style (“tip hot”) expression input. The Range Adjust Knob sets the bottom point of the expression range. Plus, a special Sensor Output connects directly to any Hot Hand®, Soundblox®, Soundblox 2, or Soundblox Pro pedal for real-time control over filter sweeps, effect modulation, LFO speeds, wet/dry mixes, drive levels and more.

Additional Features and Specifications

  • Two Isolated TRS Expression Outputs – simultaneous control over multiple effect pedals or rack systems.
  • Sensor Output — 1/8-inch; four conductor output compatible with all Soundblox, Soundblox 2, or Soundblox Pro pedals.
  • Range Adjust Knob — Adjusts the range of expression signal sent through the outputs.
  • OUTPUT 1: sends expression signal out via either 1/4 inch TRS cable or 4 conductor Soundblox compatible 1/8 inch sensor cable.
  • OUTPUT 2: sends expression signal out via 1/4 inch TRS cable.
  • Rugged, cast aluminum housing.
  • Includes one 1/4-inch TRS connector cable and one 1/8 inch four conductor Sensor Output cable
  • Dimensions: 10 in/25.4cm (Length) x 4 in/10.2cm (width) x 3 in/7.6cm (height)
