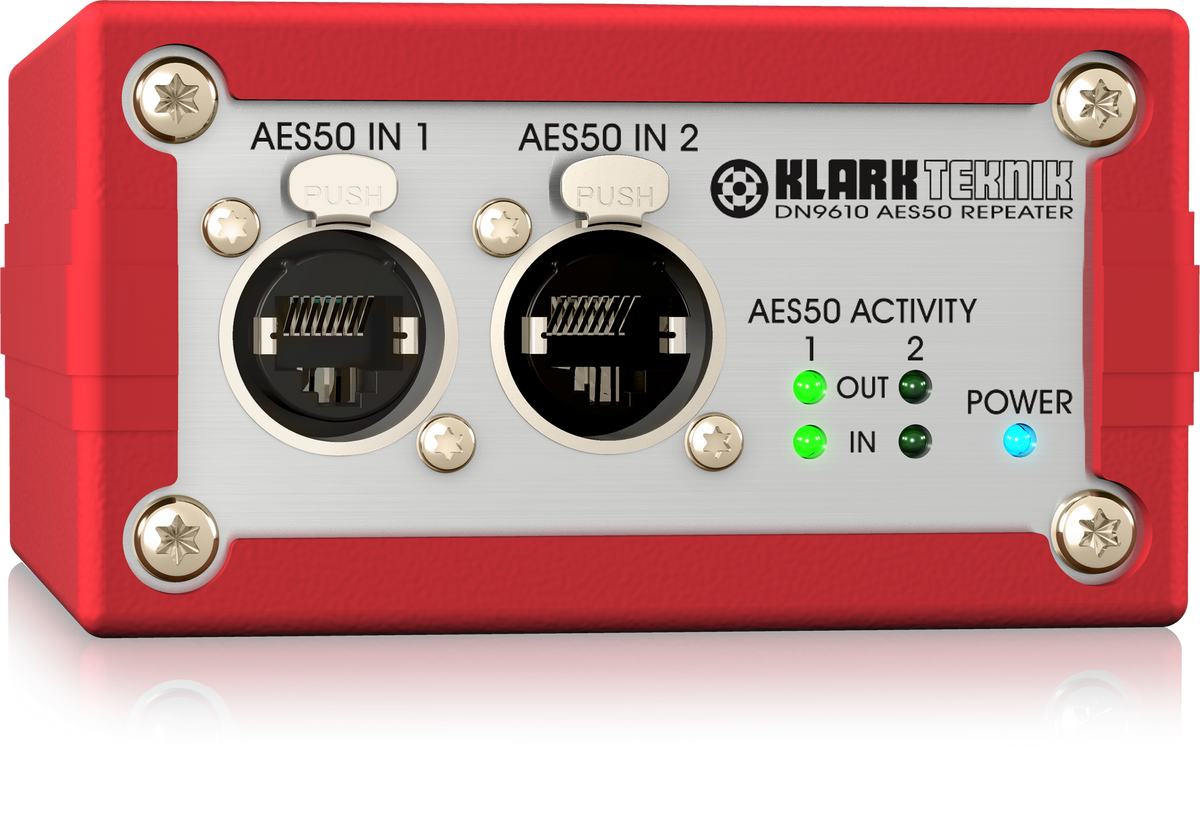

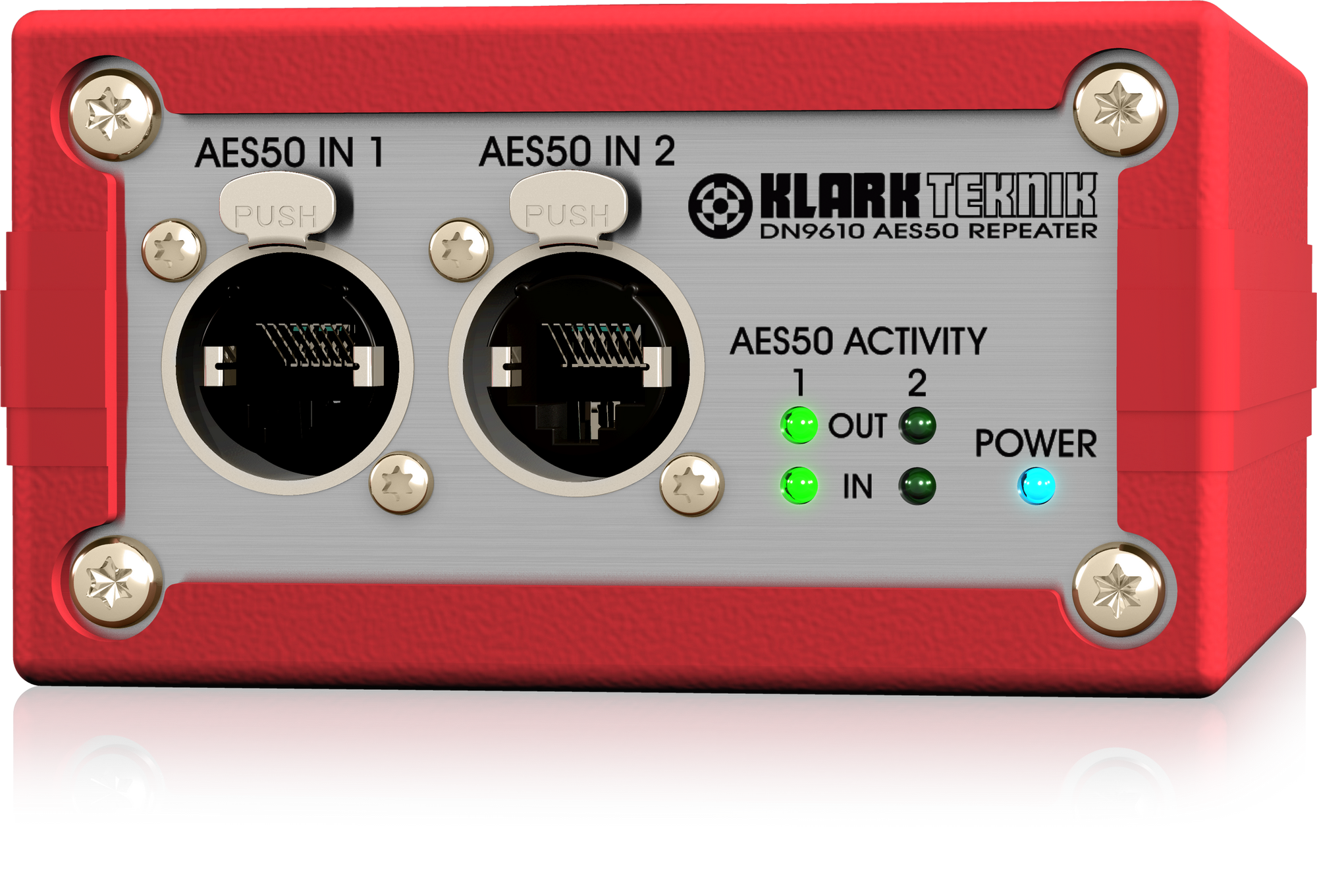

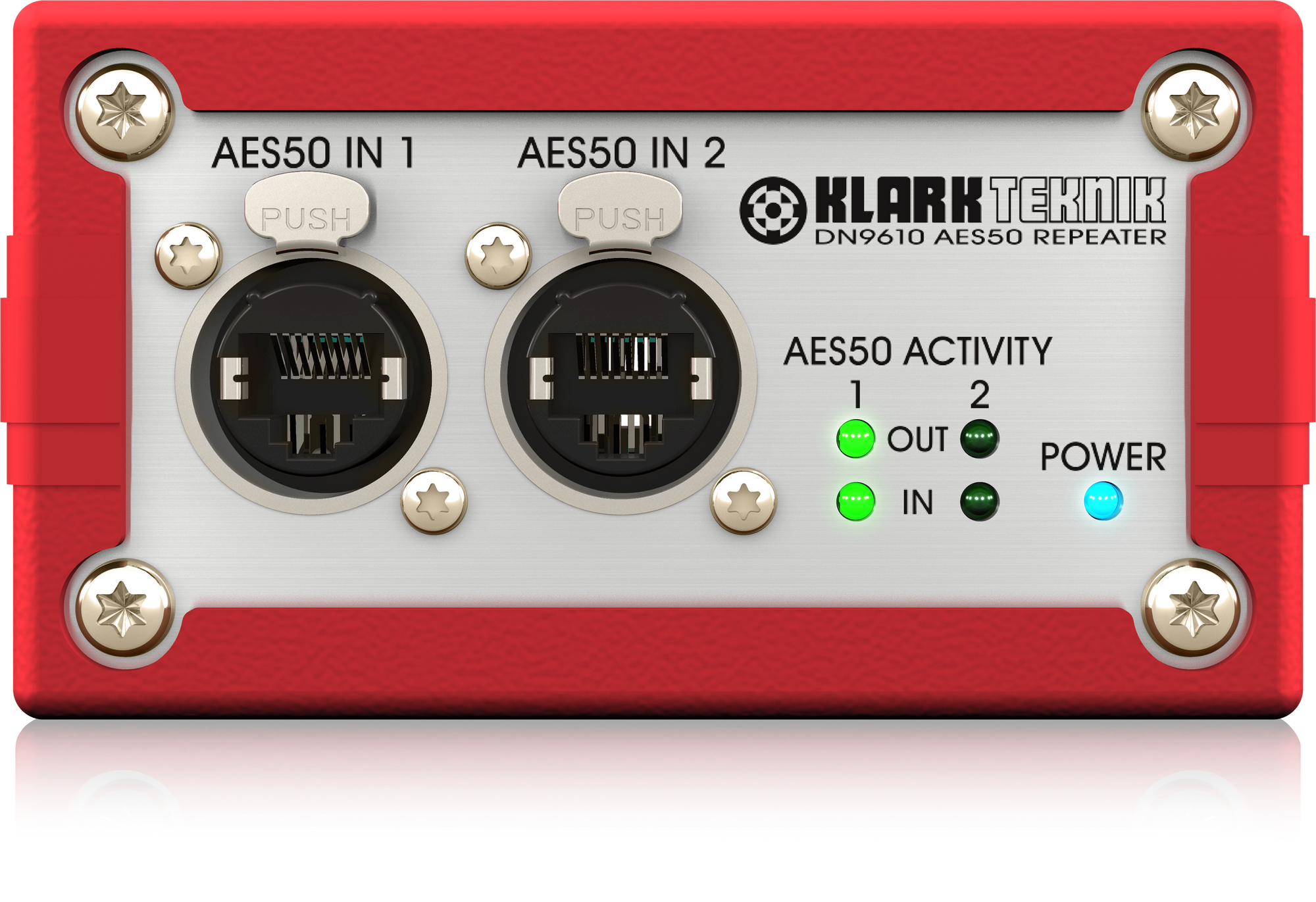

Dual Port AES 50 Repeater with up to 100 Metre Range
Product Features
  • Extends two independent AES 50 connections by up to 100 m with CAT5 cable

  • High channel capacity - 48 channels @ 96 kHz or 96 channels @ 48 kHz bidirectional operation

  • Supports dual-redundant AES 50 networks (X and Y connections)

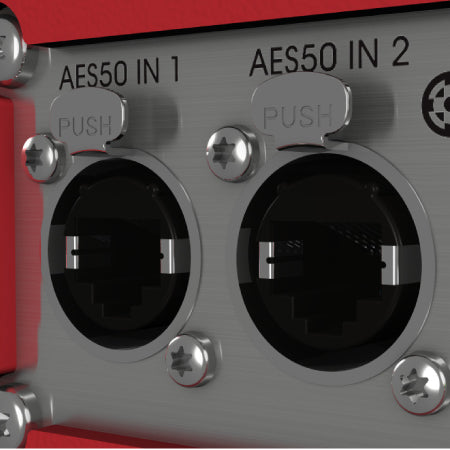

  • Rugged locking Neutrik* etherCON connectors used for AES50 connections

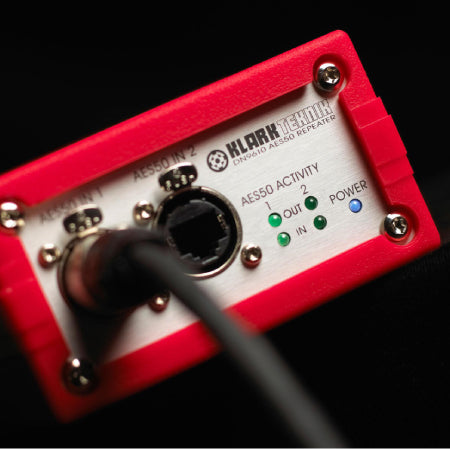

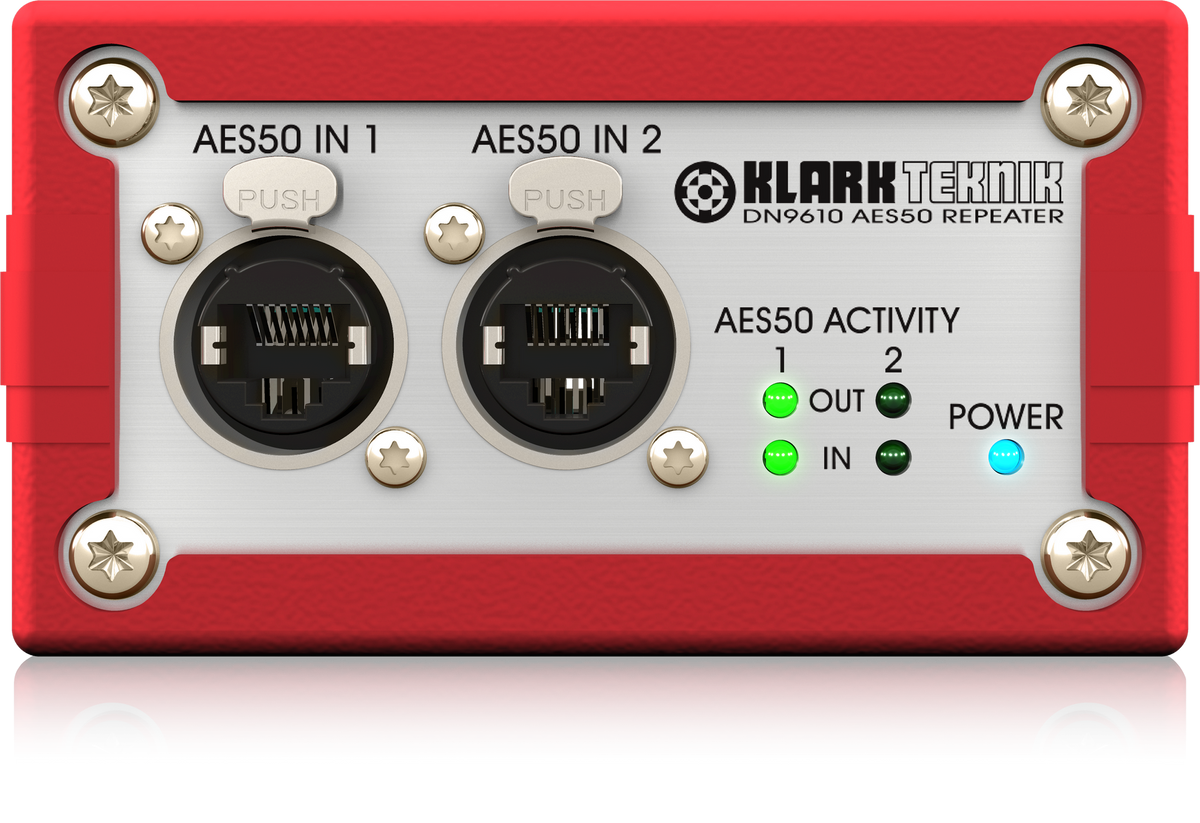

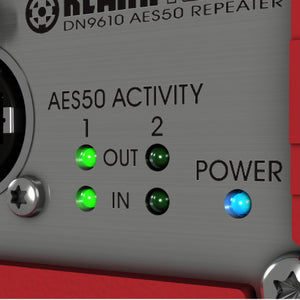

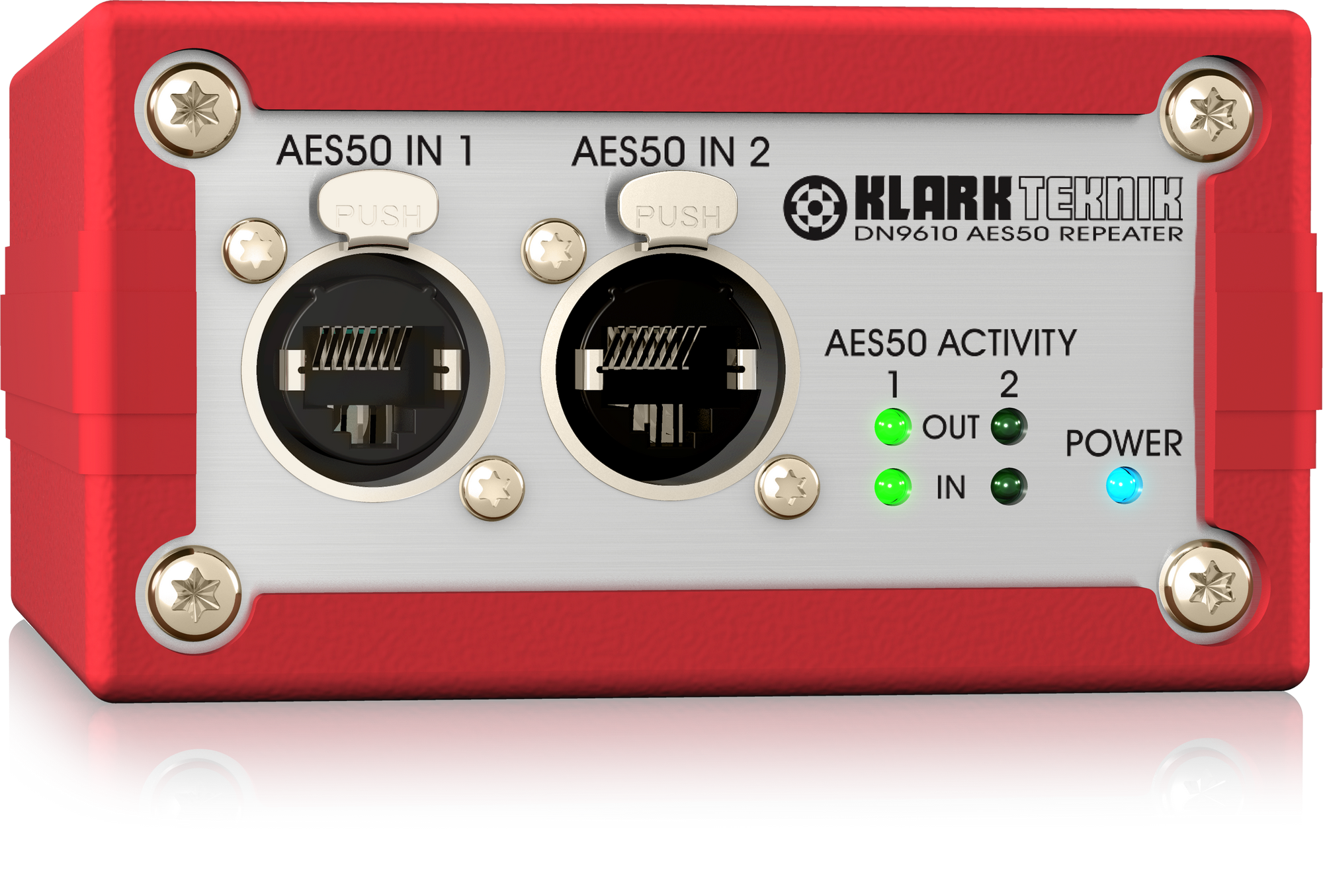

  • Status indicator LEDs on front panel for each AES 50 port

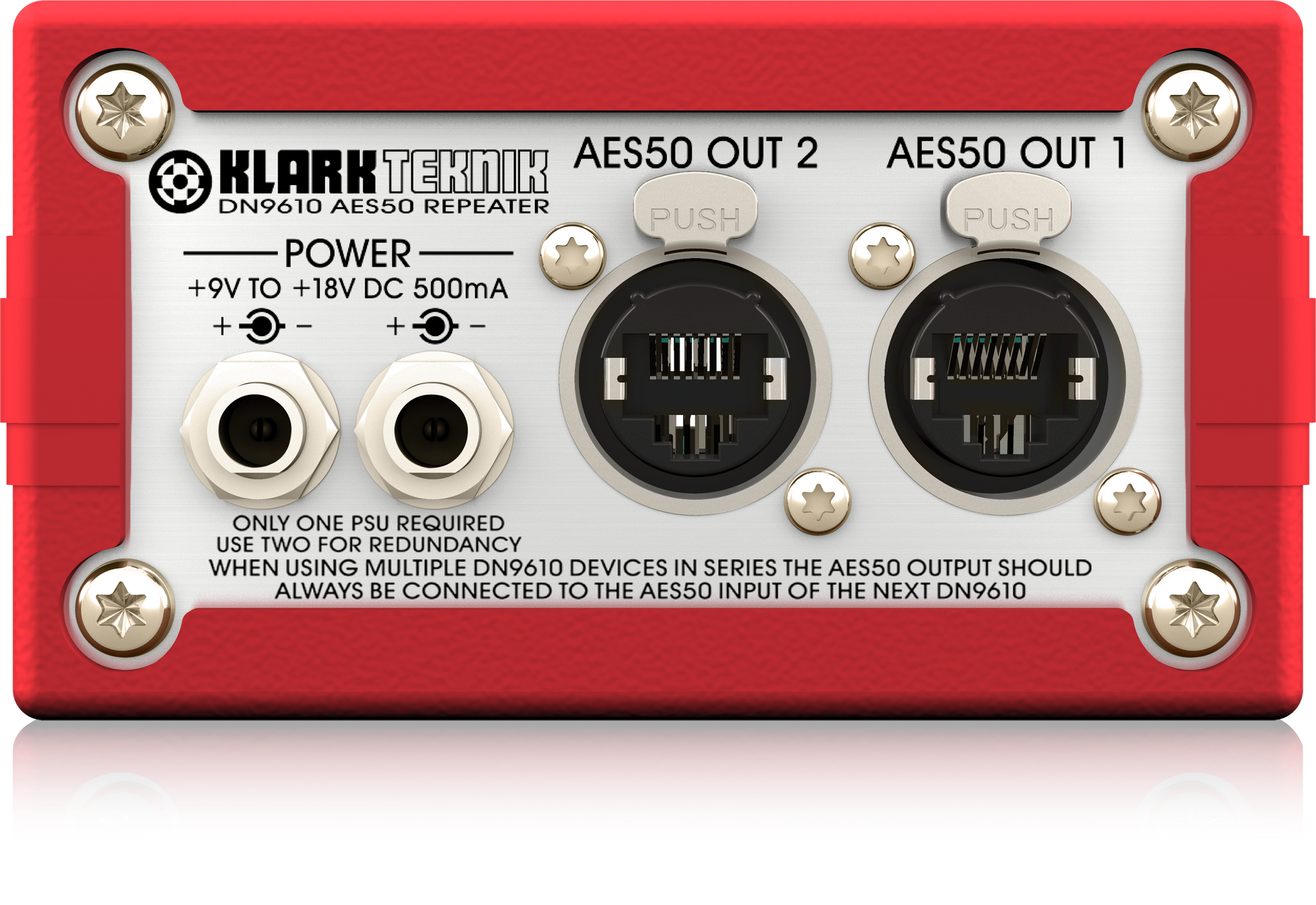

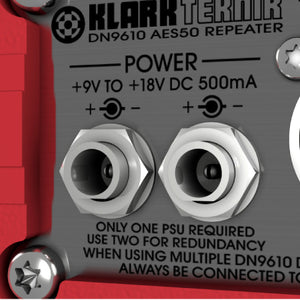

  • Dual-redundant power supply inputs with locking Switchcraft* connectors

  • External auto-ranging universal switch-mode power supply adapter

  • Aluminium extrusion casing with stackable protective silicone rubber sleeve

  • Compact and rugged design

  • Designed and engineered in the U.K.

DN 9610

          The DN 9610 provides a very cost-effective solution to the 100 metre limitation that Ethernet and CAT5 cabling imposes on the physical size of AES 50 networks. Its compact form factor allows DN 9610 to be placed where required to increase the length of a network connection, all that is needed is a source of mains power.

          DN 9610 acts as a repeater to allow two independent AES 50 connections to be extended by up to an additional 100 metres, without the need for format conversion or the use of optical fi bre cable. DN 9610 is capable of both 48 kHz and 96 kHz operation, with its two AES 50 connections able to operate at different sample rates simultaneously. Each connection can support 48 bidirectional channels at 96 kHz, or 96 bidirectional channels at 48 kHz sample rate. The two AES50 connections are also ideal for use with dual-redundant networks, such as the X and Y connections used on MIDAS digital console systems.

          Multiple DN 9610 units can be connected in series, allowing AES 50 to be transmitted over considerable distances. Whilst AES50 is bidirectional in operation, to maximise ease-of-use when cascading multiple units, the two AES 50 connections on DN 9610 each feature a nominal input and output port to simplify reference clock distribution. Through-unit propagation delay is less than 0.5 microseconds, which has a negligible effect on overall AES 50 system link latencies.

Best Selling Products
Klark Teknik

DN 9610 Dual Port AES 50 Repeater

Regular price
Sale price
0 ฿
Unit price
per
Out of Stock

DESCRIPTION
Dual Port AES 50 Repeater with up to 100 Metre Range
Product Features
  • Extends two independent AES 50 connections by up to 100 m with CAT5 cable

  • High channel capacity - 48 channels @ 96 kHz or 96 channels @ 48 kHz bidirectional operation

  • Supports dual-redundant AES 50 networks (X and Y connections)

  • Rugged locking Neutrik* etherCON connectors used for AES50 connections

  • Status indicator LEDs on front panel for each AES 50 port

  • Dual-redundant power supply inputs with locking Switchcraft* connectors

  • External auto-ranging universal switch-mode power supply adapter

  • Aluminium extrusion casing with stackable protective silicone rubber sleeve

  • Compact and rugged design

  • Designed and engineered in the U.K.

DN 9610

          The DN 9610 provides a very cost-effective solution to the 100 metre limitation that Ethernet and CAT5 cabling imposes on the physical size of AES 50 networks. Its compact form factor allows DN 9610 to be placed where required to increase the length of a network connection, all that is needed is a source of mains power.

          DN 9610 acts as a repeater to allow two independent AES 50 connections to be extended by up to an additional 100 metres, without the need for format conversion or the use of optical fi bre cable. DN 9610 is capable of both 48 kHz and 96 kHz operation, with its two AES 50 connections able to operate at different sample rates simultaneously. Each connection can support 48 bidirectional channels at 96 kHz, or 96 bidirectional channels at 48 kHz sample rate. The two AES50 connections are also ideal for use with dual-redundant networks, such as the X and Y connections used on MIDAS digital console systems.

          Multiple DN 9610 units can be connected in series, allowing AES 50 to be transmitted over considerable distances. Whilst AES50 is bidirectional in operation, to maximise ease-of-use when cascading multiple units, the two AES 50 connections on DN 9610 each feature a nominal input and output port to simplify reference clock distribution. Through-unit propagation delay is less than 0.5 microseconds, which has a negligible effect on overall AES 50 system link latencies.

Dual Port AES 50 Repeater with up to 100 Metre Range
Product Features
  • Extends two independent AES 50 connections by up to 100 m with CAT5 cable

  • High channel capacity - 48 channels @ 96 kHz or 96 channels @ 48 kHz bidirectional operation

  • Supports dual-redundant AES 50 networks (X and Y connections)

  • Rugged locking Neutrik* etherCON connectors used for AES50 connections

  • Status indicator LEDs on front panel for each AES 50 port

  • Dual-redundant power supply inputs with locking Switchcraft* connectors

  • External auto-ranging universal switch-mode power supply adapter

  • Aluminium extrusion casing with stackable protective silicone rubber sleeve

  • Compact and rugged design

  • Designed and engineered in the U.K.

DN 9610

          The DN 9610 provides a very cost-effective solution to the 100 metre limitation that Ethernet and CAT5 cabling imposes on the physical size of AES 50 networks. Its compact form factor allows DN 9610 to be placed where required to increase the length of a network connection, all that is needed is a source of mains power.

          DN 9610 acts as a repeater to allow two independent AES 50 connections to be extended by up to an additional 100 metres, without the need for format conversion or the use of optical fi bre cable. DN 9610 is capable of both 48 kHz and 96 kHz operation, with its two AES 50 connections able to operate at different sample rates simultaneously. Each connection can support 48 bidirectional channels at 96 kHz, or 96 bidirectional channels at 48 kHz sample rate. The two AES50 connections are also ideal for use with dual-redundant networks, such as the X and Y connections used on MIDAS digital console systems.

          Multiple DN 9610 units can be connected in series, allowing AES 50 to be transmitted over considerable distances. Whilst AES50 is bidirectional in operation, to maximise ease-of-use when cascading multiple units, the two AES 50 connections on DN 9610 each feature a nominal input and output port to simplify reference clock distribution. Through-unit propagation delay is less than 0.5 microseconds, which has a negligible effect on overall AES 50 system link latencies.
