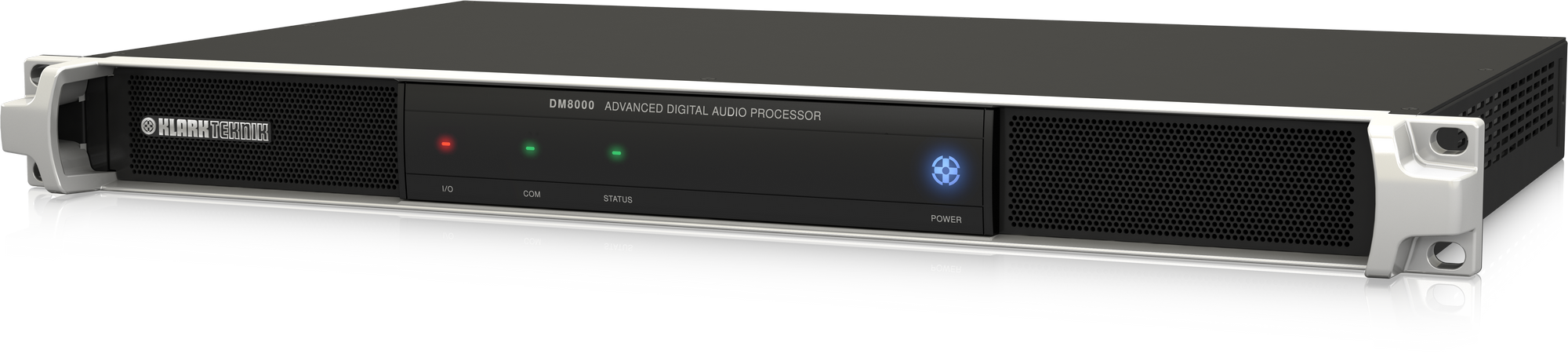

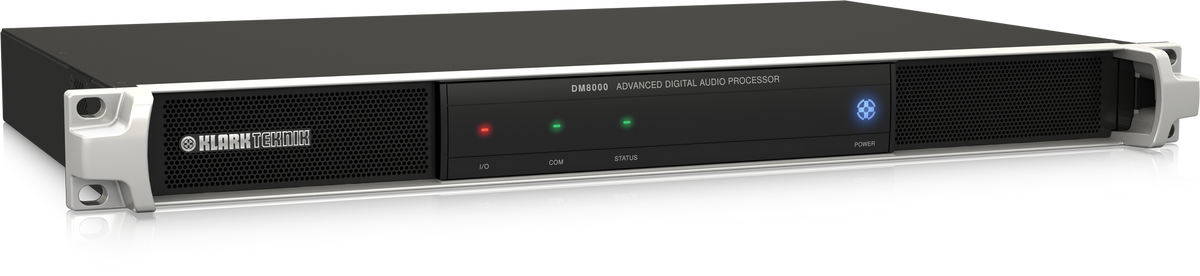

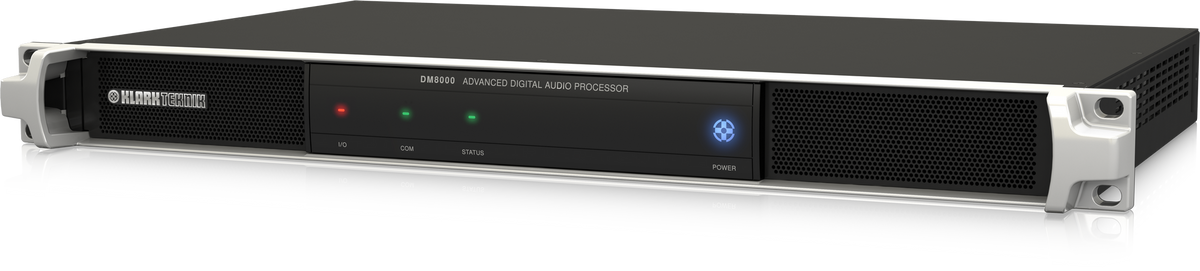

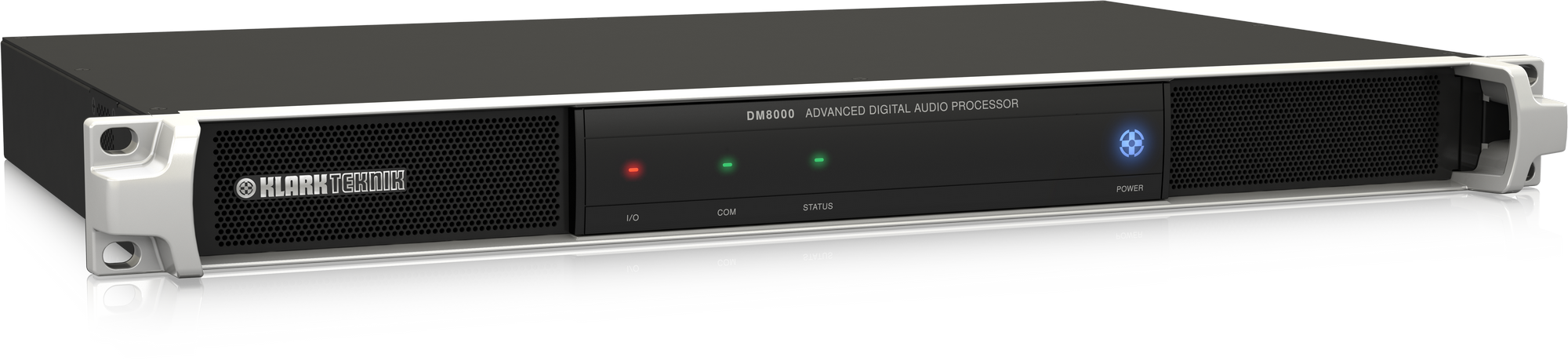

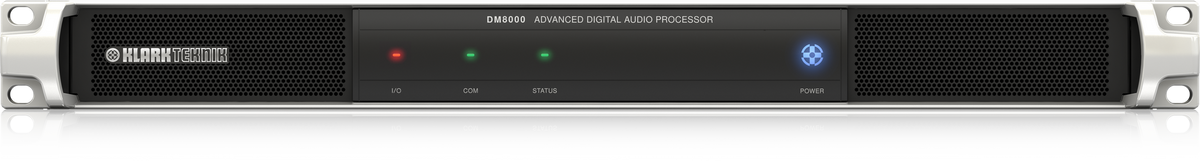

Advanced Digital Audio Processor for Installation Applications with Configurable DSP, Audio Networking and Acoustic Echo Cancellation
Product Features
-
Advanced digital audio processor with open architecture software-configurable functionality
-
Comprehensive library of DSP algorithms optimised for installation applications
-
8 Channels of wide band Acoustic Echo Cancellation (AEC) for telephone and video conferencing
-
Auto mixer functionality for multiple microphone applications
-
Optional DM80-Dante* card for IP-based audio networking
-
PC-based software with intuitive graphical user environment
-

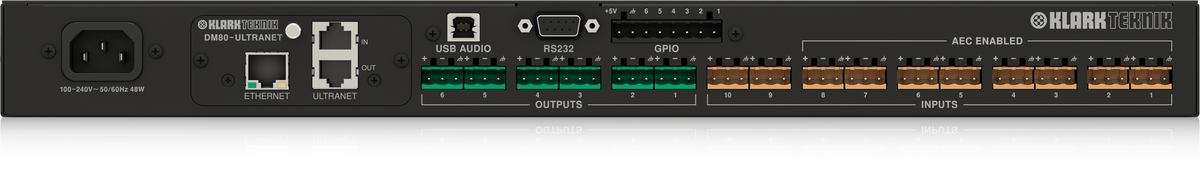

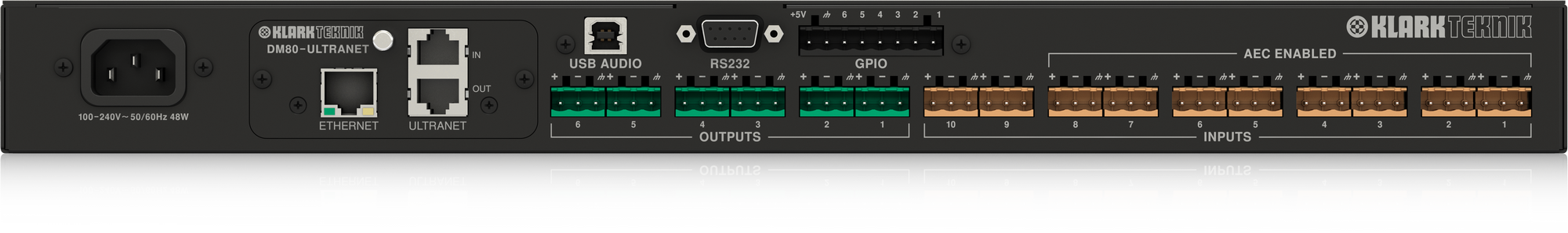

10 high-headroom analogue universal mic/line inputs
-
6 electronically balanced low impedance line level outputs
-
USB audio connection for integration with computer based audio
-
ULTRANET digital audio transport output for connection to compatible devices
-
Ethernet port for software configuration via CAT5/5e cable
-
RS232 connector for interfacing with 3rd party control systems
-
Rugged 1U rackmount chassis for ease of installation
-
Auto-ranging universal switch-mode power supply
-
Designed and engineered in the U.K.
DM 8000
Modern meetings and telephone/ video conferencing requires a flexible digital audio processor with user-friendly features, such as user-configurable DSP and routing options, multiple inputs and outputs – and auto mixing. Designed for installation in boardrooms, council chambers, courtrooms and more, the DM 8000 also provides 8 channels of wide band Acoustic Echo Cancellation (AEC), effectively removing secondary room reflections from the signal path. The highly versatile DM 8000 seamlessly integrates with computer based conferencing systems and audio networks via USB, and can be remotely controlled using the built-in Ethernet and RS232 ports.
Advanced Digital Audio Processor
At the heart of the DM 8000 is an advanced digital audio processor, with the power and versatility to handle even the most challenging application. Designed around an open architecture format, system integrators can easily configure the DM 8000 to meet the requirements of any customer – and create systems that are eminently expandable, and virtually future-proof.
Specification
Analogue Inputs
| Number of channels | 10 (8 AEC enabled) |
| Type | Analogue, electronically balanced Euroblock connectors |
| Impedance | 10 kΩ |
| Maximum input level | +24 dBu |
| Gain range | 0 to +66 dB |
| Common mode rejection | Typically, -60 dB at 1 kHz |
| Crosstalk (inter-channel @ 1 kHZ) | < 75 dB |
| Phantom power | +48 VDC |
Analogue Outputs
| Number of channels | 6 |
| Type | Analogue, electronically balanced Euroblock connectors (Pin 2 hot) |
| Output impedance | 100 Ω, balanced |
| Maximum output level | -31 dBu to +24 dBu (configurable in 6 steps) |
ULTRANET Digital Network
| Number of channels | 16 in / 16 out |
| Sampling rate | 48 kHz |
| Latency | < 0.9 ms |
| Connector | 2 x RJ45 |
| Cable | Shielded CAT-5 |
| Cable length | up to 75 m / 250 ft |
USB Audio
| Number of channels | 2 in / 2 out |
| Resolution | 24-bit |
| Sampling rate | 48 kHz |
| Type | Audio Class 1.0 compliant, asynchronous |
| Connector | USB, type B |
GPIO
| Number of channels | 6 |
| Input voltage | 0 to 5 V |
| Input impedance | 4.7 kΩ to +5 V (2-wire mode) > 1 MΩ (3-wire mode) |
| Output voltage | 0 / 5 V (unloaded) |
| Output impedance | 470 O (source) 10 O (sink) |
| Output current | 10 mA (source) 60 mA (sink) |
| +5 V supply current | 150 mA max |
RS232
| Format | 8-N-1, 38, 400 baud |
| Connector | DB9 Female |
Performance
| Frequency response | 20 Hz to 20 kHz (±1 dB, input to output @ +4 dBu) |
| THD+N (20 Hz to 20 kHz @ 0 dB gain < 0.005% +4 dBu output) | < 0.005% |
| Equivalent input noise | -125 dBu (20 kHz BW @ 66 dB gain, RS = 150 Ω) |
| Dynamic range | > 105 dB (20 kHz BW, input to output @ +24 dBu) |
| A/D - D/A conversion | multi-bit ΣΔ |
| AEC tail length | 300 ms |
| AEC convergence | up to 100 dB/sec |
Power Requirements
| Type | Switch-mode power supply |
| Voltage | 100-240 VAC, 50/60 Hz |
| Consumption | 48 W |
| Mains connection | Standard IEC connector |
Dimensions
| Height | 49 mm |
| Width | 483 mm |
| Depth | 300 mm |
Weight
| Net | 3.9 kg |
| Shipping | 4.7 kg |
Temperature Range
| Operation | +0° C to +45° C |
| Storage | -20° C to +60° C |
DM 8000 Matrix Mixers
