Passive Stereo DI Box with Midas Transformers and Extended Dynamic Range
Product Features
  • Passive Stereo DI Box for general purpose and multimedia applications

  • Custom-built Midas transformers for highest signal integrity

  • High headroom design offers superior sound quality

  • Passive design does not require any power supply

  • Stereo input on 1/4", 1/8" TRS and RCA connectors

  • Switchable input attenuation for guitar, line and speaker levels

  • High quality Neutrik* XLR connectors

  • Earth Lift switches for input and output eliminate ground loop problems

  • Fully transformer-isolated design ensures electrical separation

  • Ultra-low noise and ultra-linear system for highest signal integrity

  • Aluminium extrusion casing with protective rubber corners

  • Compact and rugged design

  • Designed and engineered in the U.K.

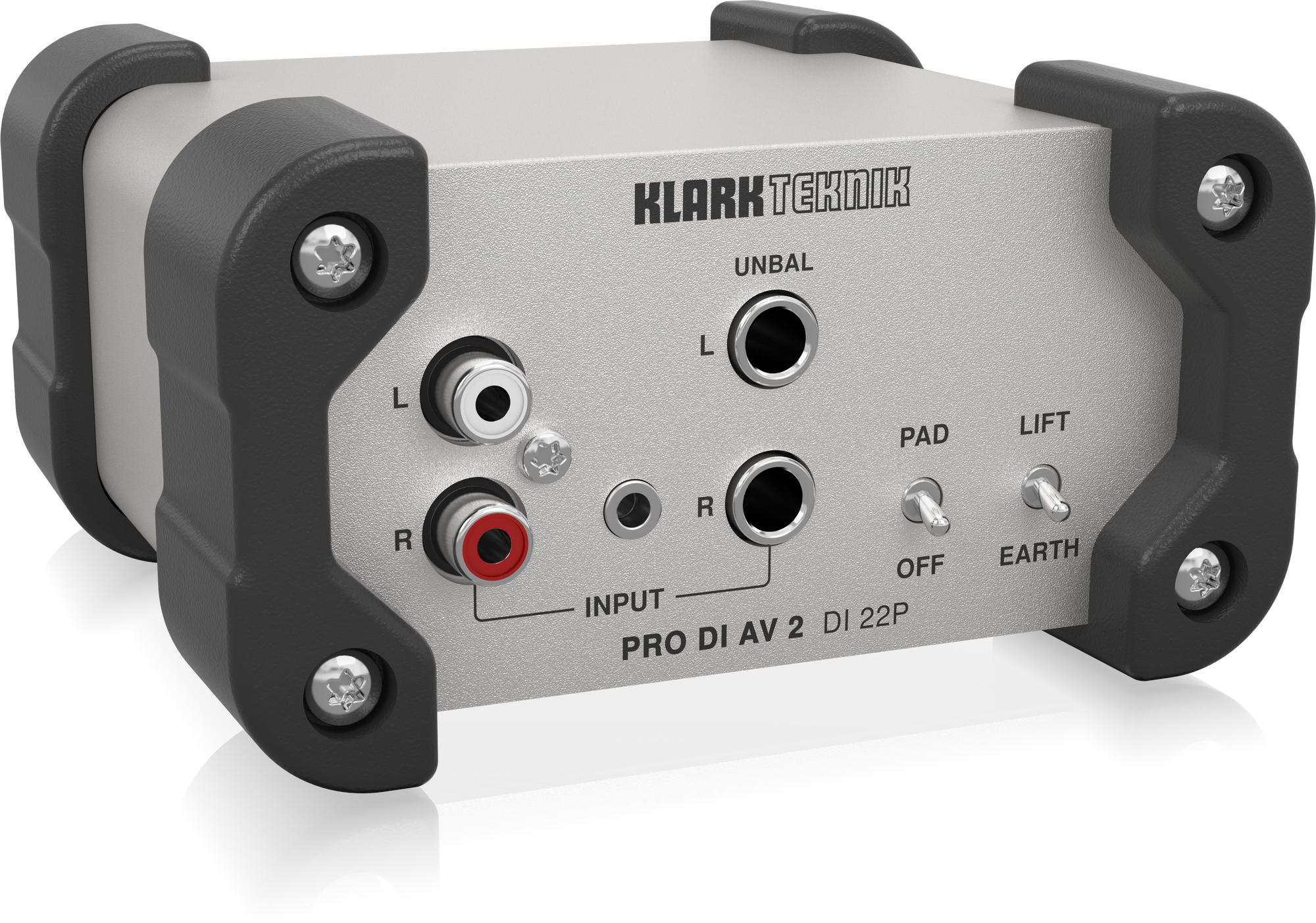

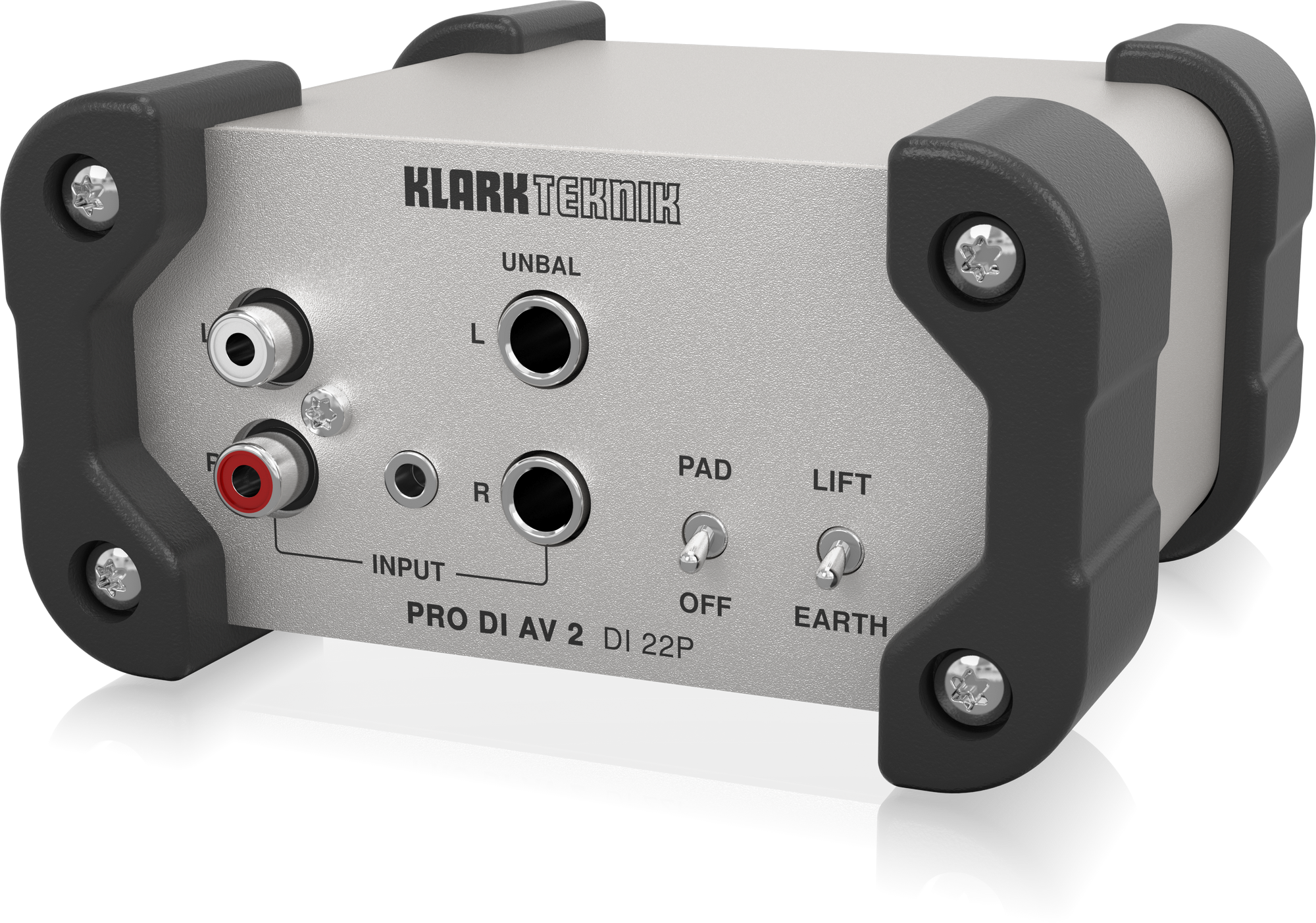

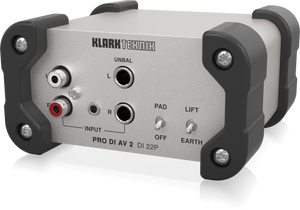

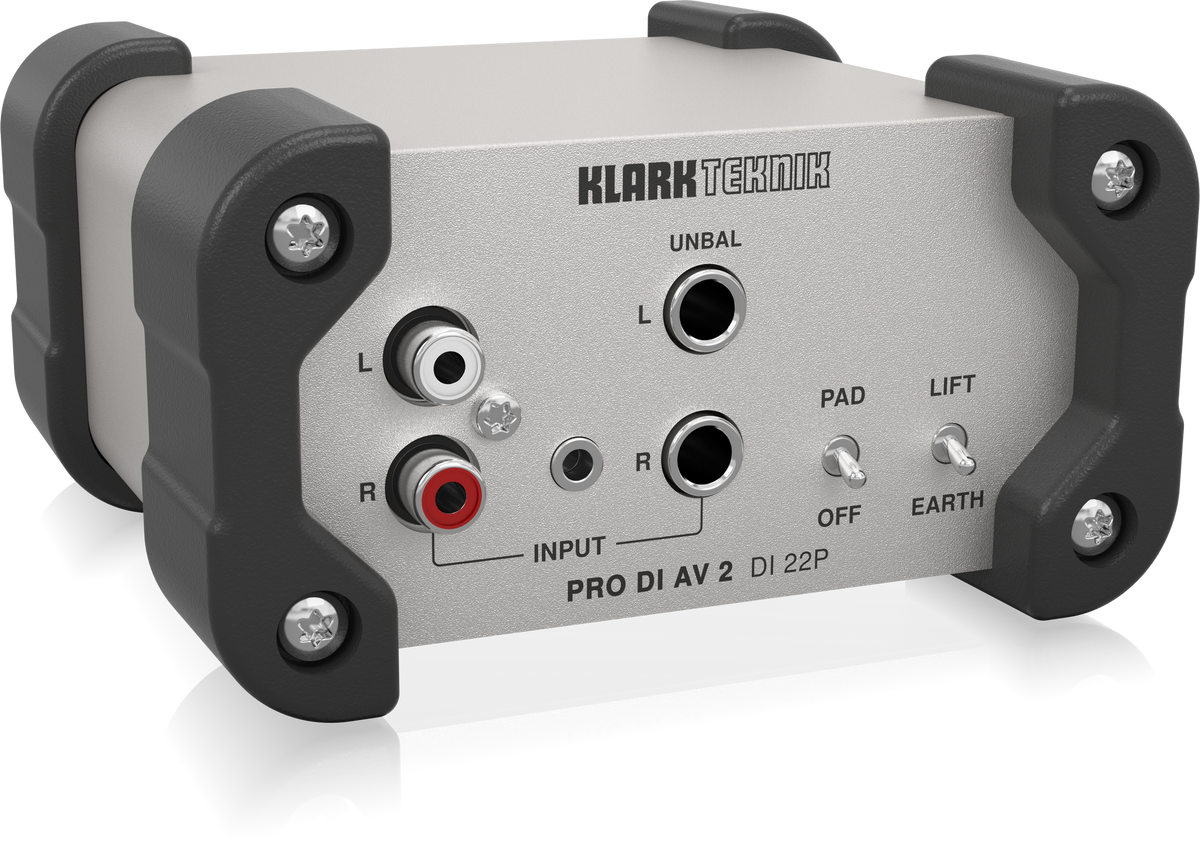

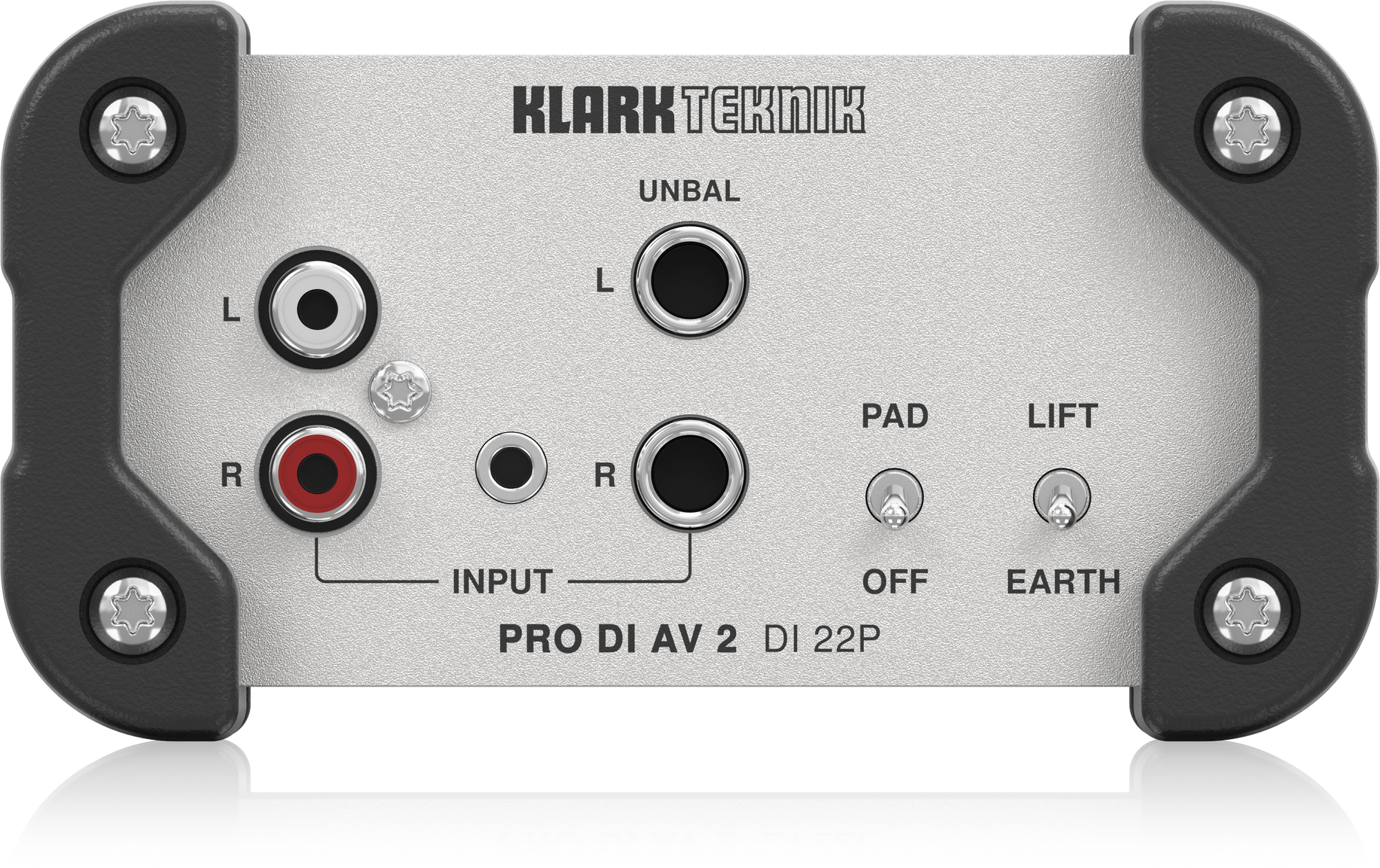

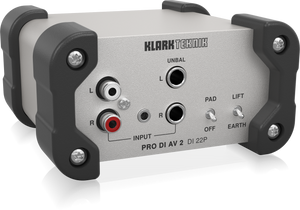

PRO DI AV 2 DI 22P

          Building on KLARK TEKNIK’s storied legacy of highest-quality direct injection devices, the DI 22P PRO DI AV 2 offers the same high headroom, dynamic response and sonic clarity you have come to expect. DI 22P combines many of the outstanding features of the DI 20P and DI 10P direct boxes into one powerful tool that should be in every audio engineers kit. The extremely versatile DI 22P accepts dual instrument, line and speaker levels, plus also accommodates MP3, CD players, keyboard or drum submixers, and a variety of other stereo sources, and faithfully reproduces the character of electric and acoustic instruments, allowing far more of the detail of musical performances to be captured. A passive device, the DI 22P does not require any form of external power to complete its mission. Equipped with custom-built MIDAS transformers and switchable input Pads, the DI 22P is the perfect choice for premium-grade professional audio and multimedia applications.

Compact & Rugged Construction

          The ultra-compact DI 22P is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosure’s roadworthiness is further enhanced through the implementation of sturdy rubber corner bumpers.

High Headroom Design

          A custom instrumentation-grade input circuit was designed for the DI 22P using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra low noise, low harmonic and phase distortion input stage with a ruler-flat frequency response that ranges from 20 Hz to 30 kHz (±1 dB).

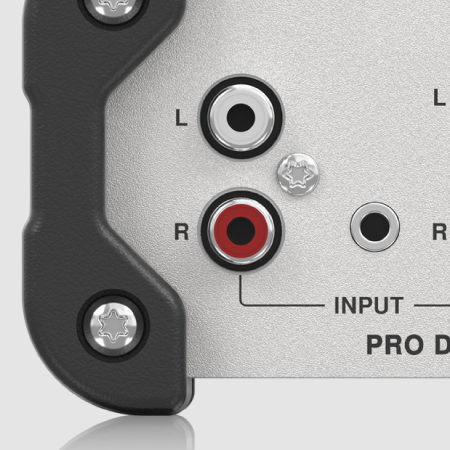

Connectivity & More

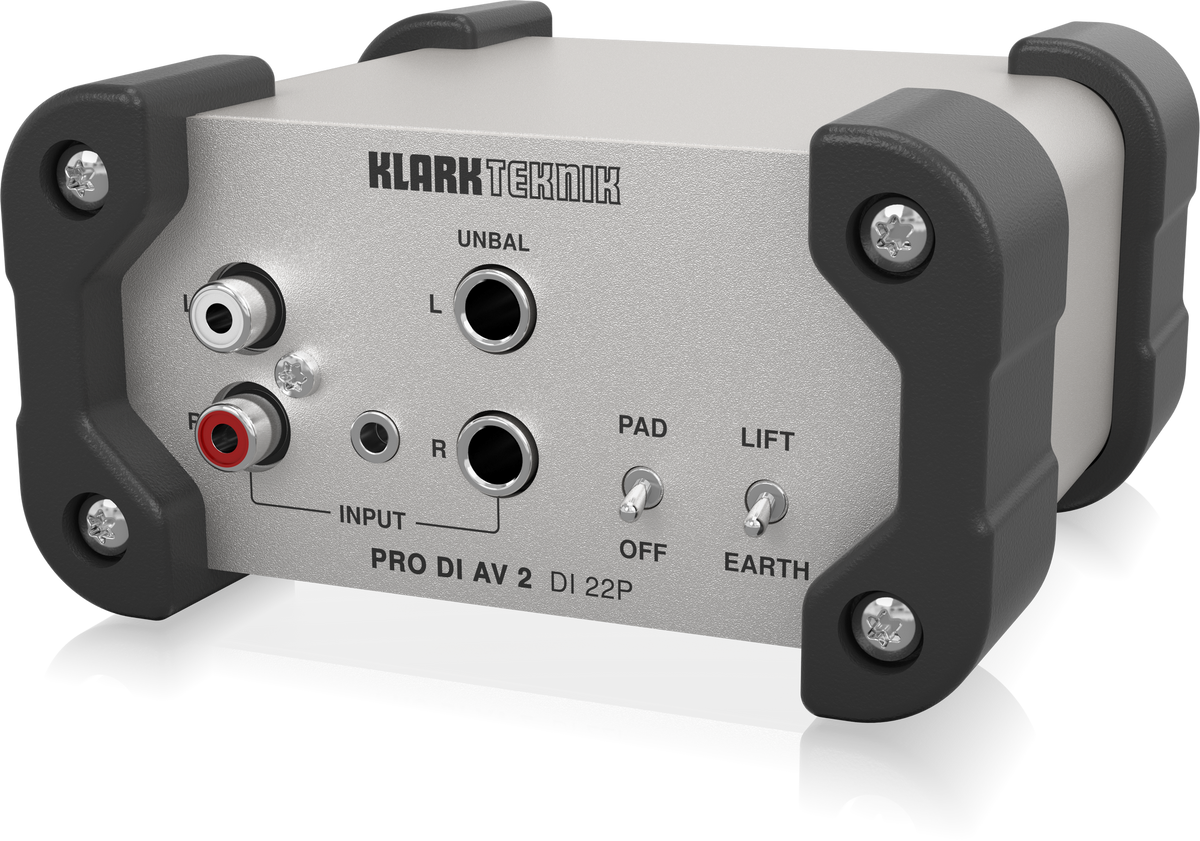

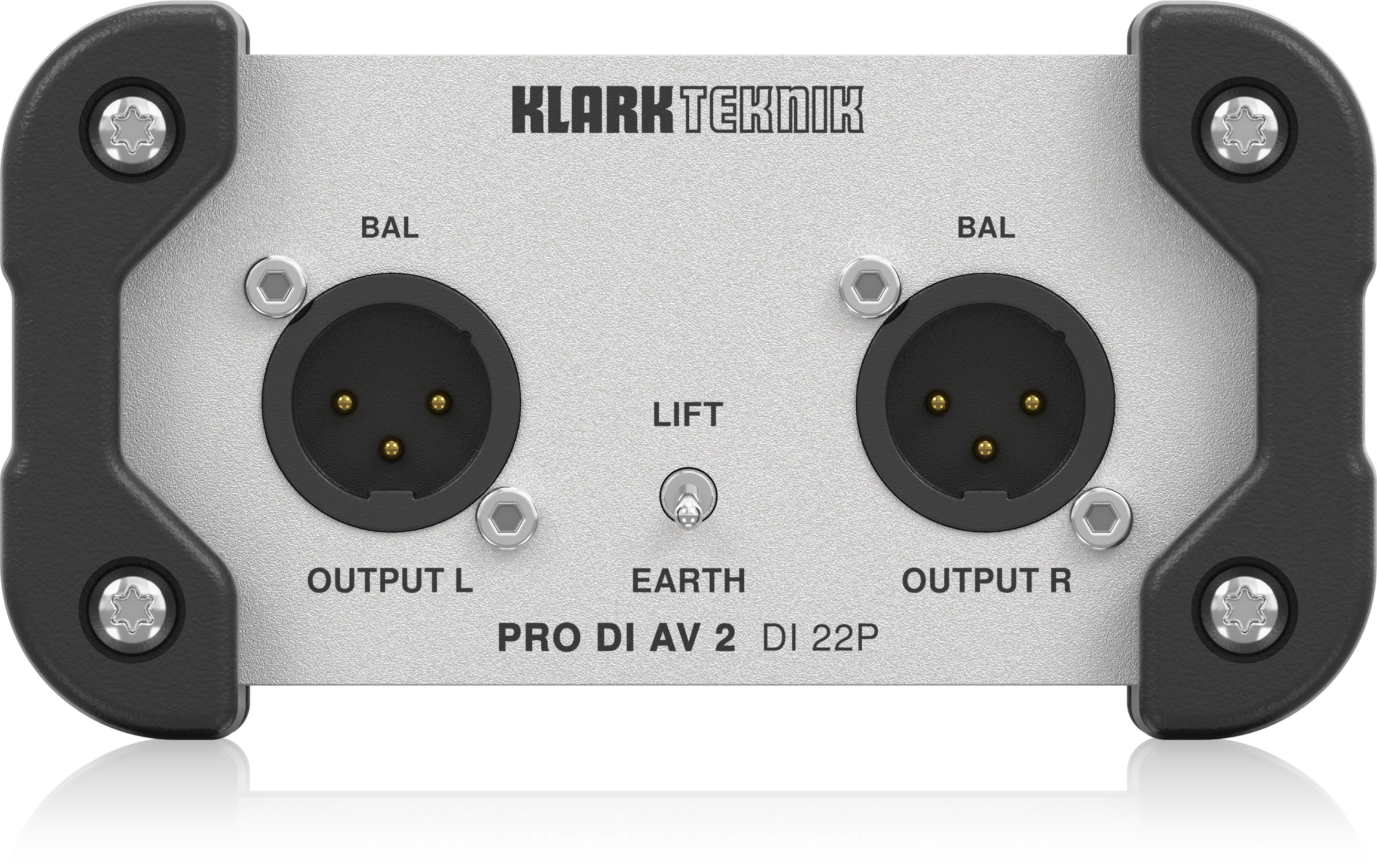

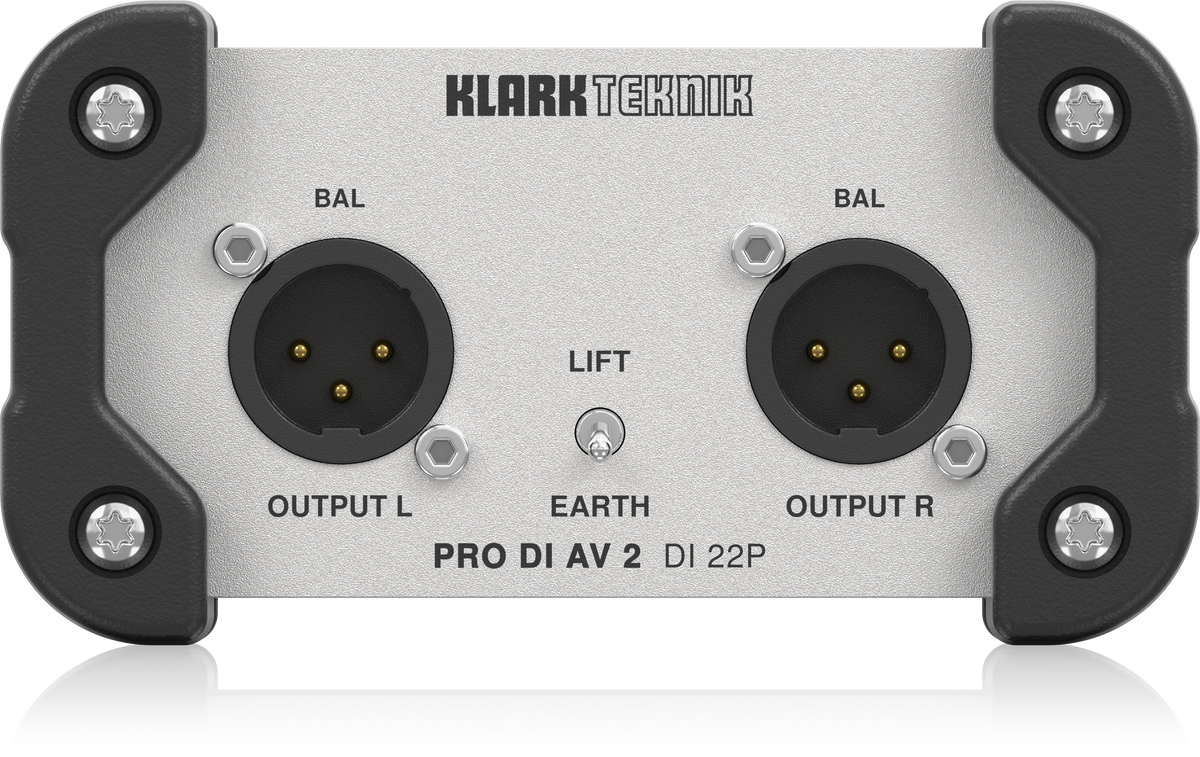

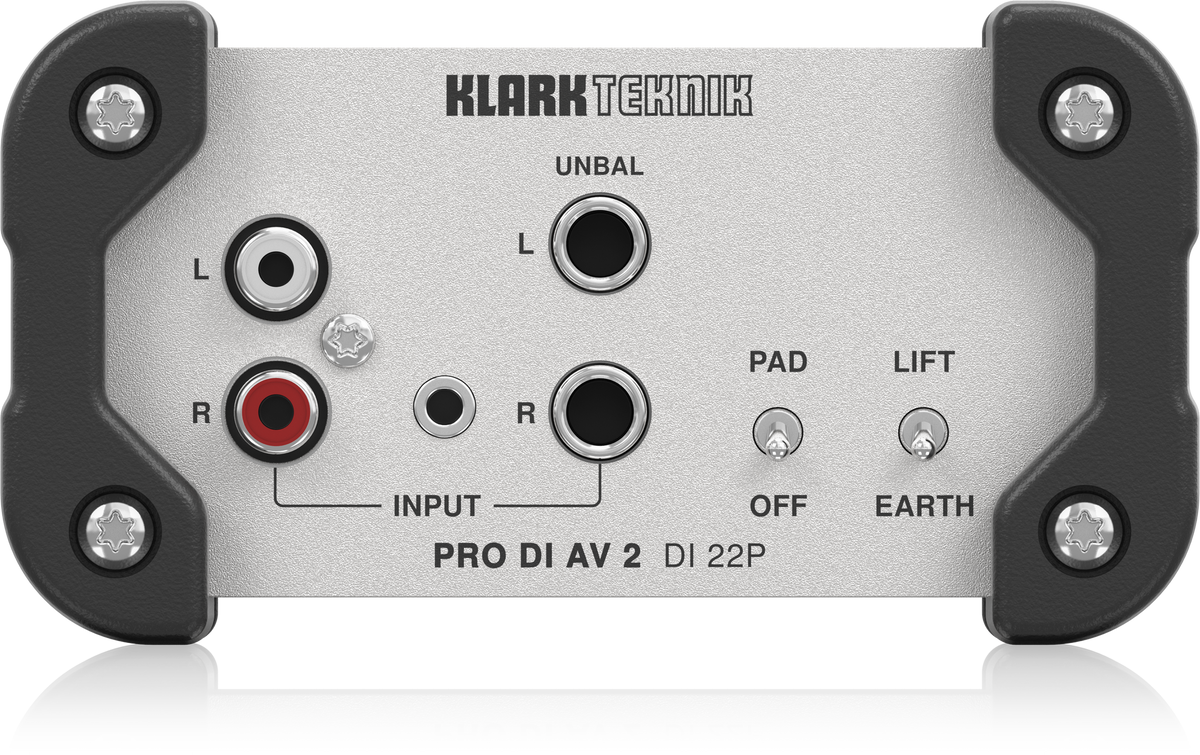

          DI 22P PRO DI AV 2 Inputs are: 2 x 1/4" TS; 2 x RCA ; and 1 x 1/8" TRS connectors, which can accommodate virtually any type of signal – for the utmost in versatility. The genuine Neutrik* Output XLR jacks send balanced versions of the input signals to your mixing board or other processing device.

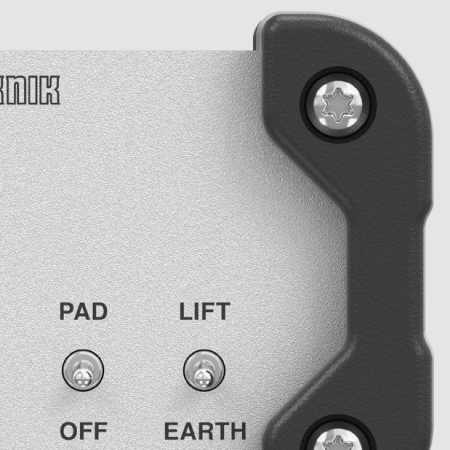

Input Pad, Earth Lift Switch & More

          A -15 dB input Pad enables the DI 22P to easily accept a wide range of input signals including guitar, line and speaker levels (up to 30 dBu). The onboard Earth Lift switches separate the input and output grounds, eliminating earth loops between equipment on different mains electricity supplies. DI 22P’s fully transformer-isolated design further ensures pristine performance – even in large-scale production environments.

Versatility

          The DI 22P PRO DI AV 2 provides maximum versatility with frequency response from 20 Hz to 30 kHz (±1 dB), MIDAS custom-design transformers for the ultimate signal integrity, and much more – all in a road-ready enclosure that stands ready for your input.

Visit your local KLARK TEKNIK supplier to try out the DI 22P PRO DI AV 2, or get yours online today. Your ears can tell the difference...

Audio Equipment Accessories
Klark Teknik

DI 22P Passive (2 CH. DI Boxes)

Regular price
Sale price
3,500 ฿
Unit price
per
In Stock

DESCRIPTION
Passive Stereo DI Box with Midas Transformers and Extended Dynamic Range
Product Features
  • Passive Stereo DI Box for general purpose and multimedia applications

  • Custom-built Midas transformers for highest signal integrity

  • High headroom design offers superior sound quality

  • Passive design does not require any power supply

  • Stereo input on 1/4", 1/8" TRS and RCA connectors

  • Switchable input attenuation for guitar, line and speaker levels

  • High quality Neutrik* XLR connectors

  • Earth Lift switches for input and output eliminate ground loop problems

  • Fully transformer-isolated design ensures electrical separation

  • Ultra-low noise and ultra-linear system for highest signal integrity

  • Aluminium extrusion casing with protective rubber corners

  • Compact and rugged design

  • Designed and engineered in the U.K.

PRO DI AV 2 DI 22P

          Building on KLARK TEKNIK’s storied legacy of highest-quality direct injection devices, the DI 22P PRO DI AV 2 offers the same high headroom, dynamic response and sonic clarity you have come to expect. DI 22P combines many of the outstanding features of the DI 20P and DI 10P direct boxes into one powerful tool that should be in every audio engineers kit. The extremely versatile DI 22P accepts dual instrument, line and speaker levels, plus also accommodates MP3, CD players, keyboard or drum submixers, and a variety of other stereo sources, and faithfully reproduces the character of electric and acoustic instruments, allowing far more of the detail of musical performances to be captured. A passive device, the DI 22P does not require any form of external power to complete its mission. Equipped with custom-built MIDAS transformers and switchable input Pads, the DI 22P is the perfect choice for premium-grade professional audio and multimedia applications.

Compact & Rugged Construction

          The ultra-compact DI 22P is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosure’s roadworthiness is further enhanced through the implementation of sturdy rubber corner bumpers.

High Headroom Design

          A custom instrumentation-grade input circuit was designed for the DI 22P using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra low noise, low harmonic and phase distortion input stage with a ruler-flat frequency response that ranges from 20 Hz to 30 kHz (±1 dB).

Connectivity & More

          DI 22P PRO DI AV 2 Inputs are: 2 x 1/4" TS; 2 x RCA ; and 1 x 1/8" TRS connectors, which can accommodate virtually any type of signal – for the utmost in versatility. The genuine Neutrik* Output XLR jacks send balanced versions of the input signals to your mixing board or other processing device.

Input Pad, Earth Lift Switch & More

          A -15 dB input Pad enables the DI 22P to easily accept a wide range of input signals including guitar, line and speaker levels (up to 30 dBu). The onboard Earth Lift switches separate the input and output grounds, eliminating earth loops between equipment on different mains electricity supplies. DI 22P’s fully transformer-isolated design further ensures pristine performance – even in large-scale production environments.

Versatility

          The DI 22P PRO DI AV 2 provides maximum versatility with frequency response from 20 Hz to 30 kHz (±1 dB), MIDAS custom-design transformers for the ultimate signal integrity, and much more – all in a road-ready enclosure that stands ready for your input.

Visit your local KLARK TEKNIK supplier to try out the DI 22P PRO DI AV 2, or get yours online today. Your ears can tell the difference...
