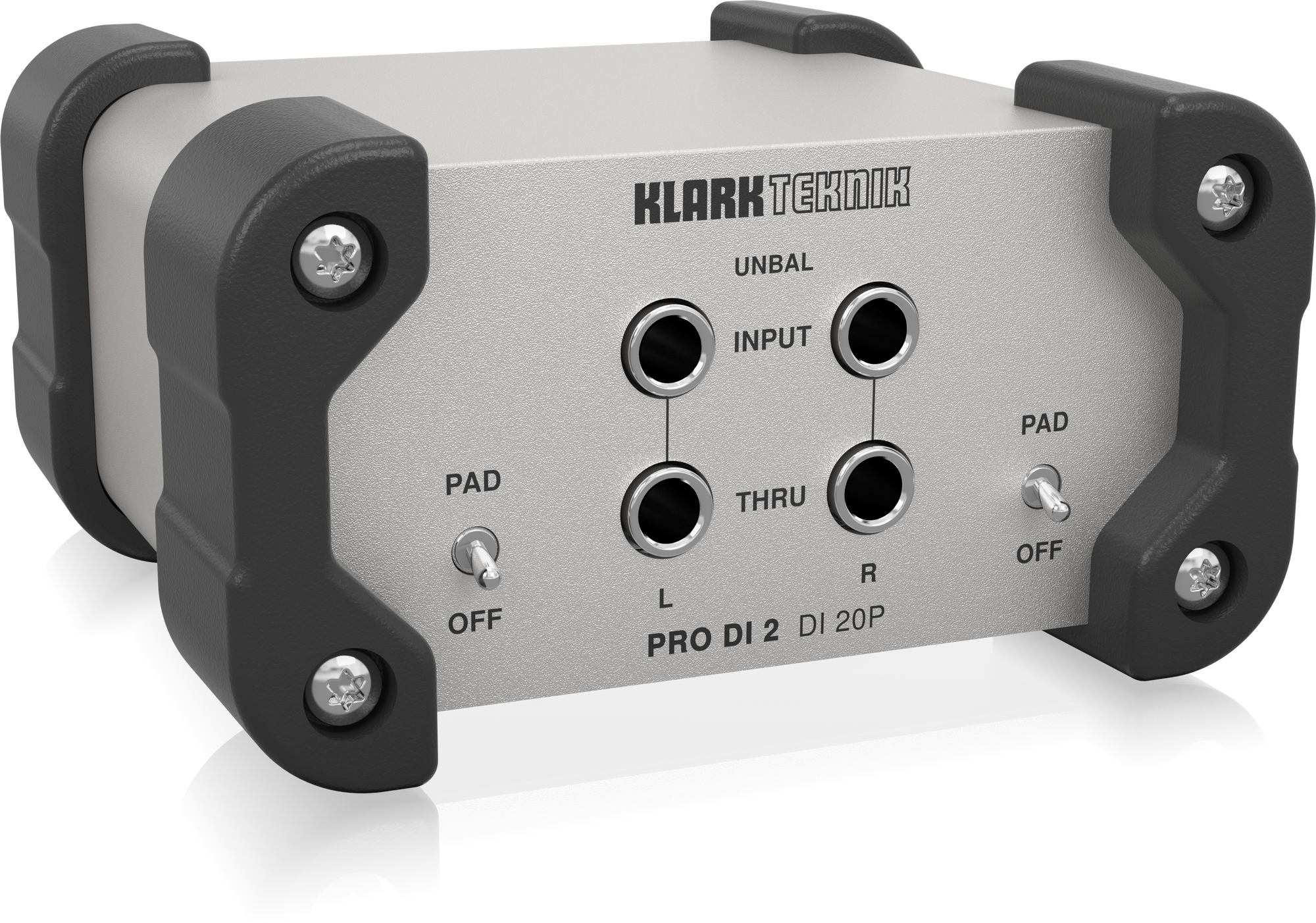

          The ultra-compact DI 20P is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosure’s roadworthiness is further enhanced through the implementation of sturdy rubber corner bumpers..

High Headroom Design

          A custom instrumentation-grade input circuit was designed for the DI 20P using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra low noise, low harmonic and phase distortion input stage with a ruler-flat frequency response that ranges from 20 Hz to 30 kHz (±1 dB).

Connectivity & More

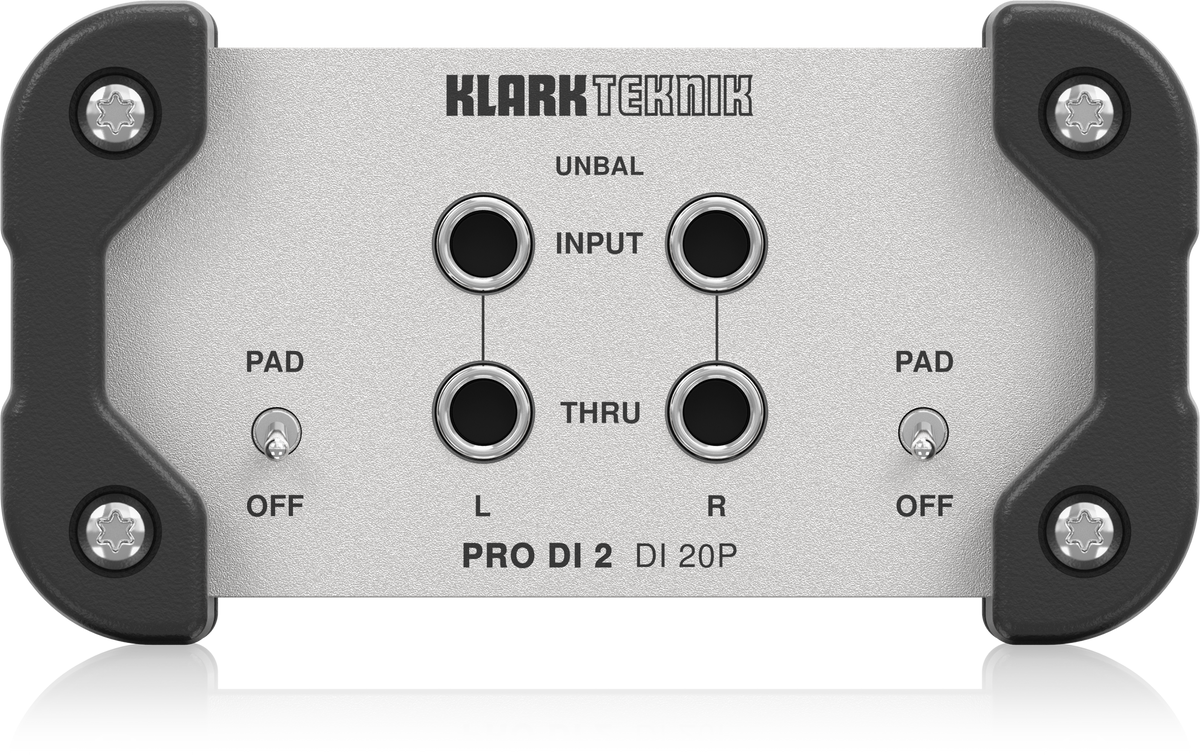

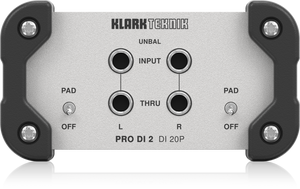

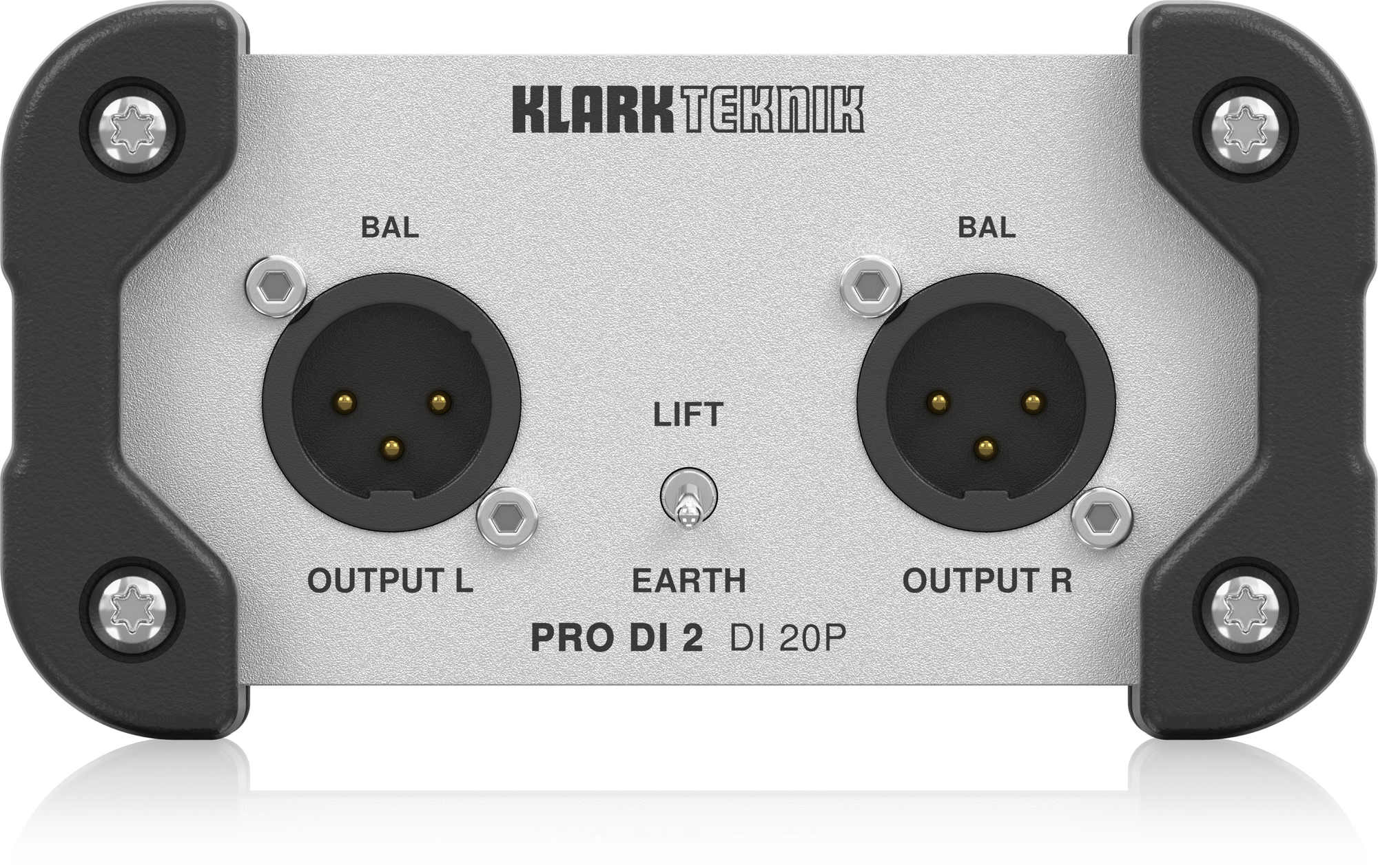

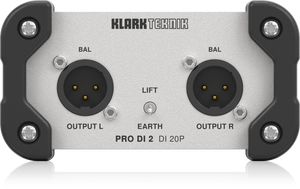

          DI 20P PRO DI 2 features genuine high quality Neutrik* XLR and high impedance 1/4" TS connectors to maintain the highest signal integrity. The Input connectors accept unbalanced signals over 1/4" TS cables, with the Thru jacks passing unbalanced 1/4" TS signals to local amps/monitors. The Output XLR jacks send balanced versions of the input signals to your mixing board or other processing device.

Input Pad, Earth Lift Switch & More

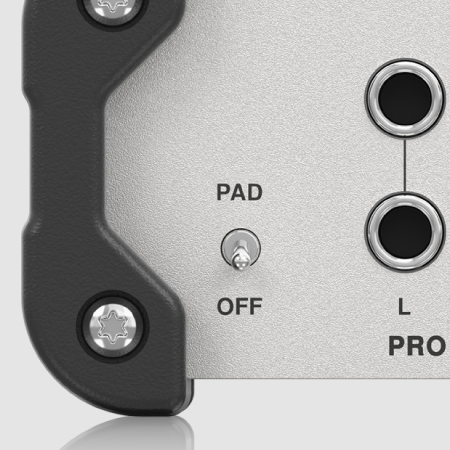

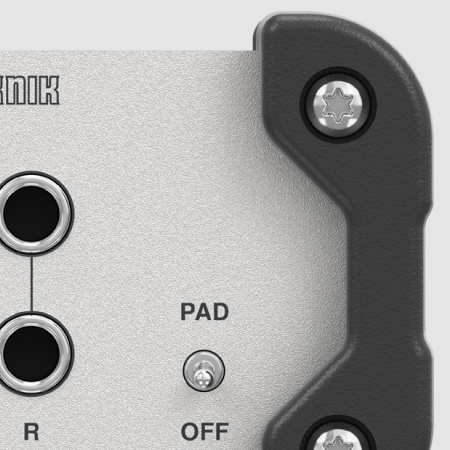

          A -15 dB input Pad enables the DI 20P to easily accommodate a wide range of input signals including guitar, line and speaker levels (up to 30 dBu). The onboard Earth Lift switch separates the input and output grounds, eliminating earth loops between equipment on different mains electricity supplies. DI 20P’s fully transformer-isolated design further ensures pristine performance – even in large-scale production environments.

Versatility

          The DI 20P PRO DI 2 provides maximum versatility, frequency response from 20 Hz to 30 kHz (±1 dB),
MIDAS custom-design transformers for the ultimate signal integrity, and much more – all in a road-ready enclosure that stands ready for your input.

          Visit your local KLARK TEKNIK supplier to try out the DI 20P PRO DI 2, or get yours online today. Your ears can tell the difference...

Audio Equipment Accessories
Klark Teknik

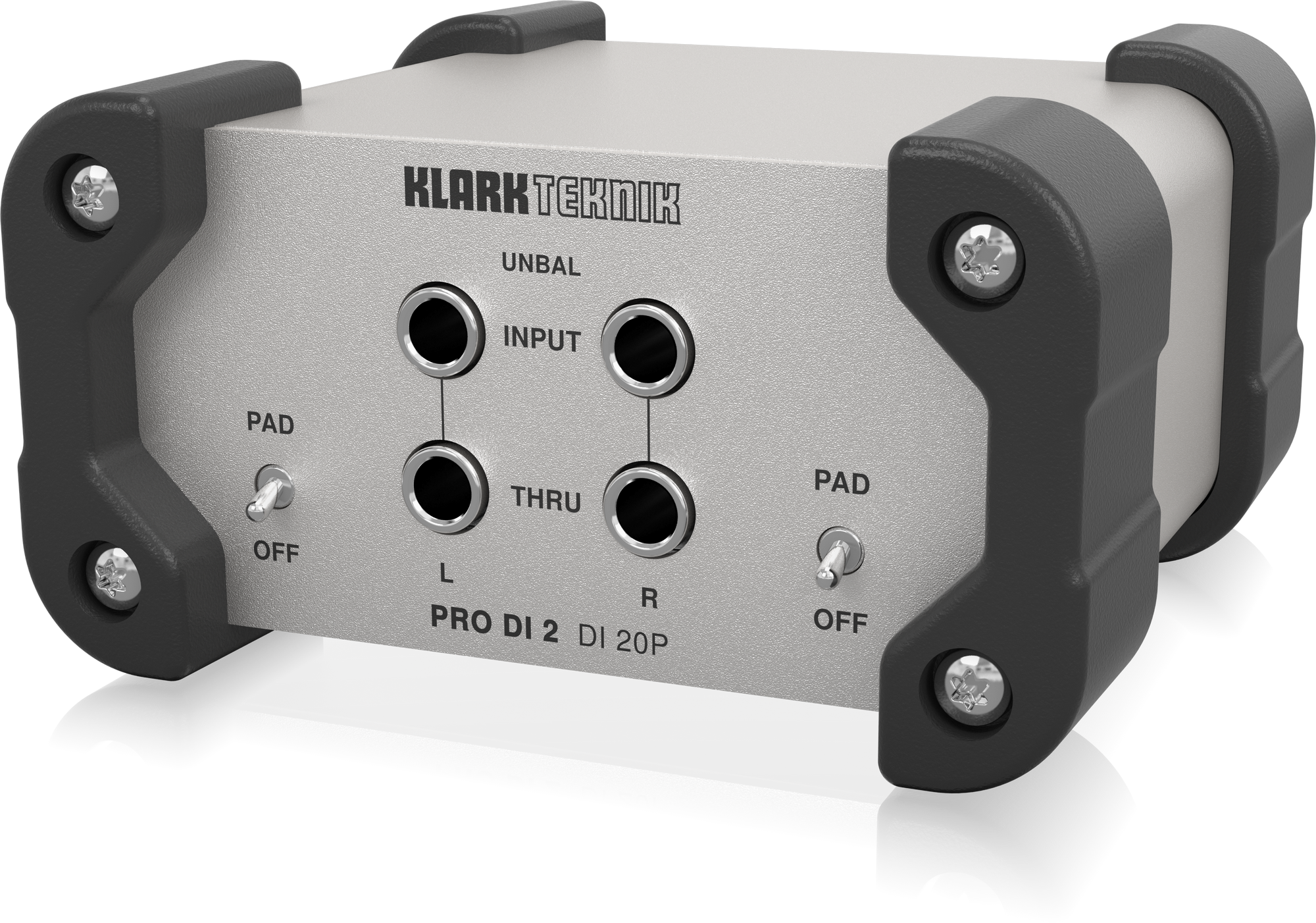

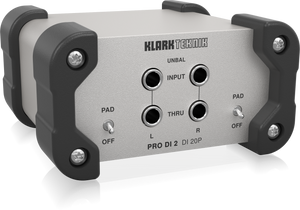

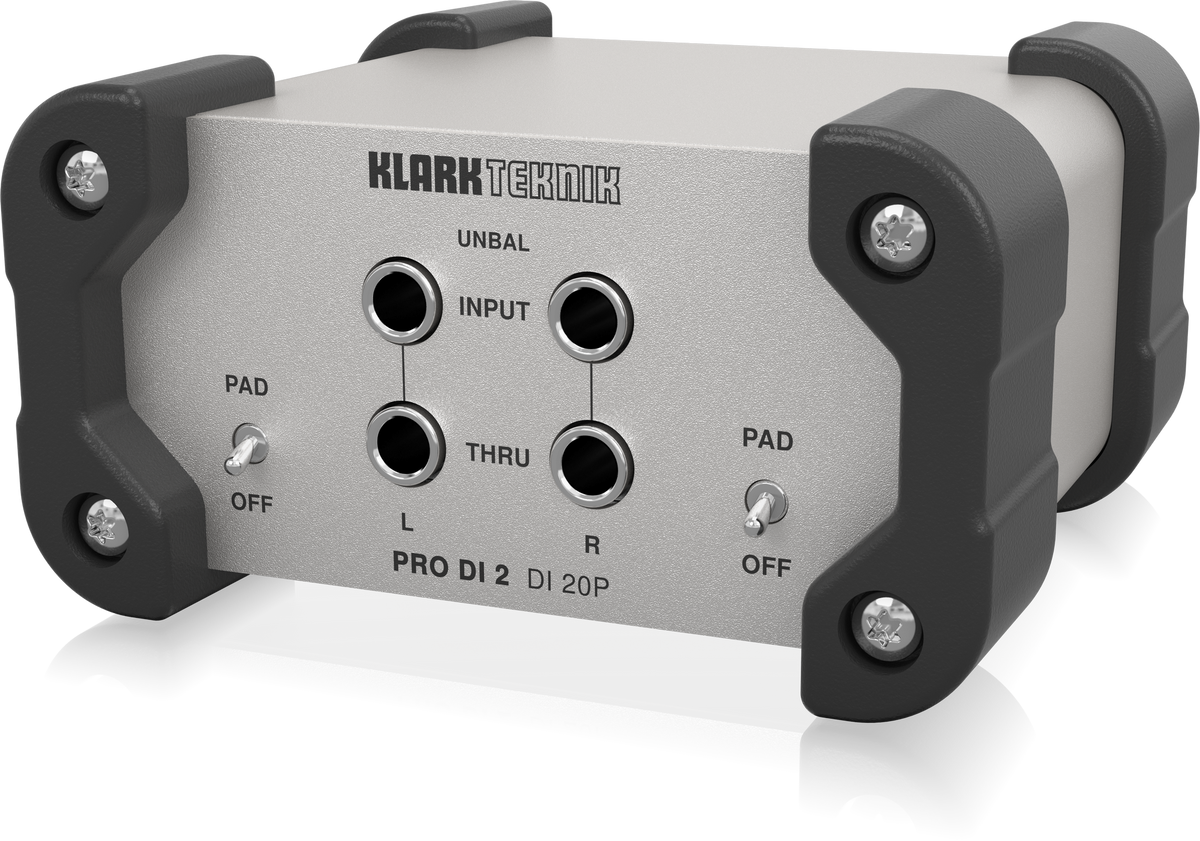

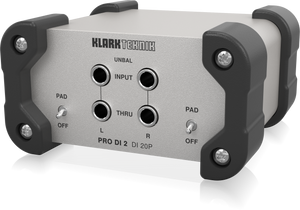

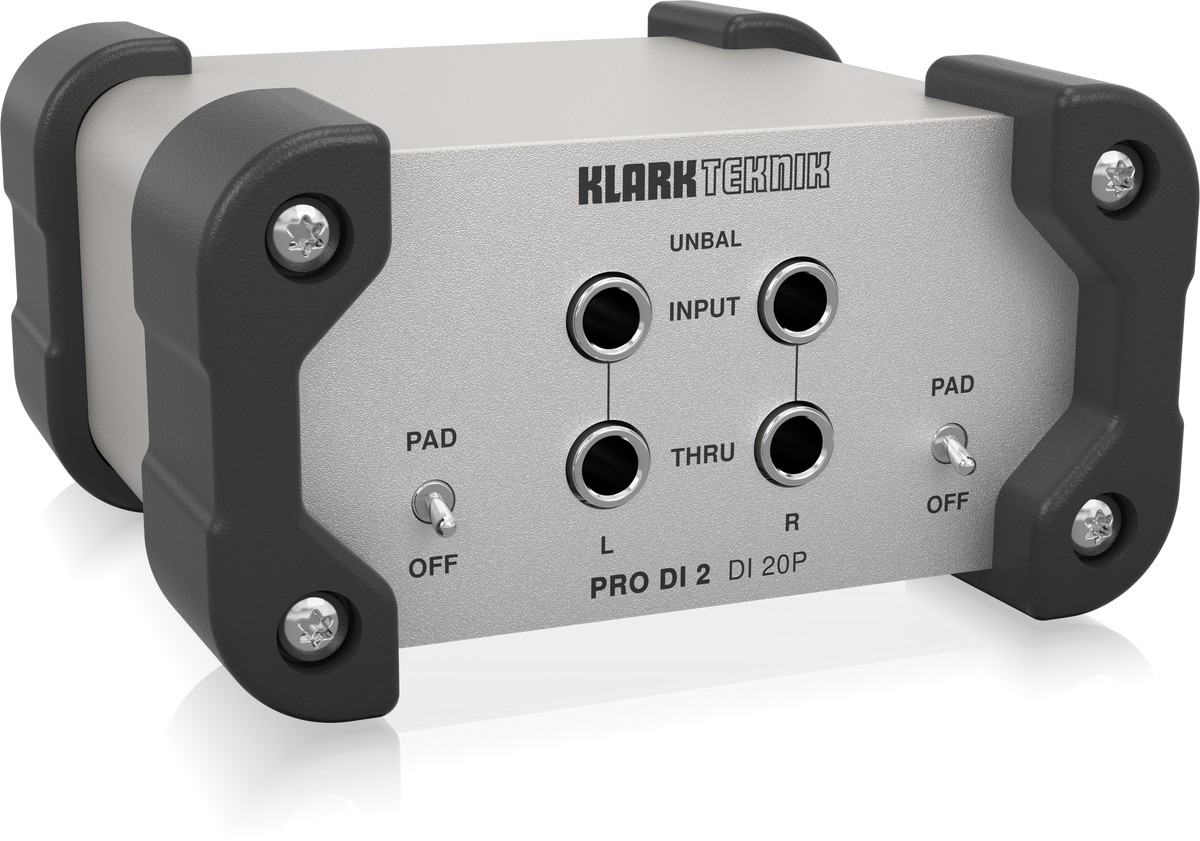

DI 20P Passive (2 CH. DI Boxes)

Regular price
Sale price
2,000 ฿
Unit price
per
Out of Stock

DESCRIPTION
Passive Stereo DI Box with Midas Transformer and Extended Dynamic Range
Product Features
  • Passive stereo DI Box for general purpose applications

  • Custom-built Midas transformer for highest signal integrity

  • High headroom design offers superior sound quality

  • Passive design does not require any power supply

  • Stereo inputs on 1/4" TS connectors

  • Through connectors on 1/4" TS connectors

  • Switchable input attenuation for guitar, line and speaker levels

  • High quality Neutrik* XLR connectors

  • Earth Lift switch eliminates ground loop problems

  • Fully transformer-isolated design ensures electrical separation

  • Ultra-low noise and ultra-linear system for highest signal integrity

  • Aluminium extrusion casing with protective rubber corners

  • Compact and rugged design

  • Designed and engineered in the U.K.

PRO DI 2 DI 20P

          Building on KLARK TEKNIK’s storied legacy of highest-quality direct injection devices, the DI 20P PRO DI 2 offers the same high headroom, dynamic response and sonic clarity you have come to expect. DI 20P is ideal for interfacing stereo keyboards, samplers and other electronic musical instruments to mixing consoles, and faithfully reproduces the character of electric and acoustic instruments, allowing far more of the detail of musical performances to be captured. A passive device, the DI 20P does not require any form of external power to complete its mission. Equipped with a custom-built MIDAS transformer and switchable input Pad, DI 20P easily accommodates instruments, line, and even loudspeaker level signals – making it the perfect choice for professional audio and multimedia applications.

Compact & Rugged Construction

          The ultra-compact DI 20P is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosure’s roadworthiness is further enhanced through the implementation of sturdy rubber corner bumpers..

High Headroom Design

          A custom instrumentation-grade input circuit was designed for the DI 20P using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra low noise, low harmonic and phase distortion input stage with a ruler-flat frequency response that ranges from 20 Hz to 30 kHz (±1 dB).

Connectivity & More

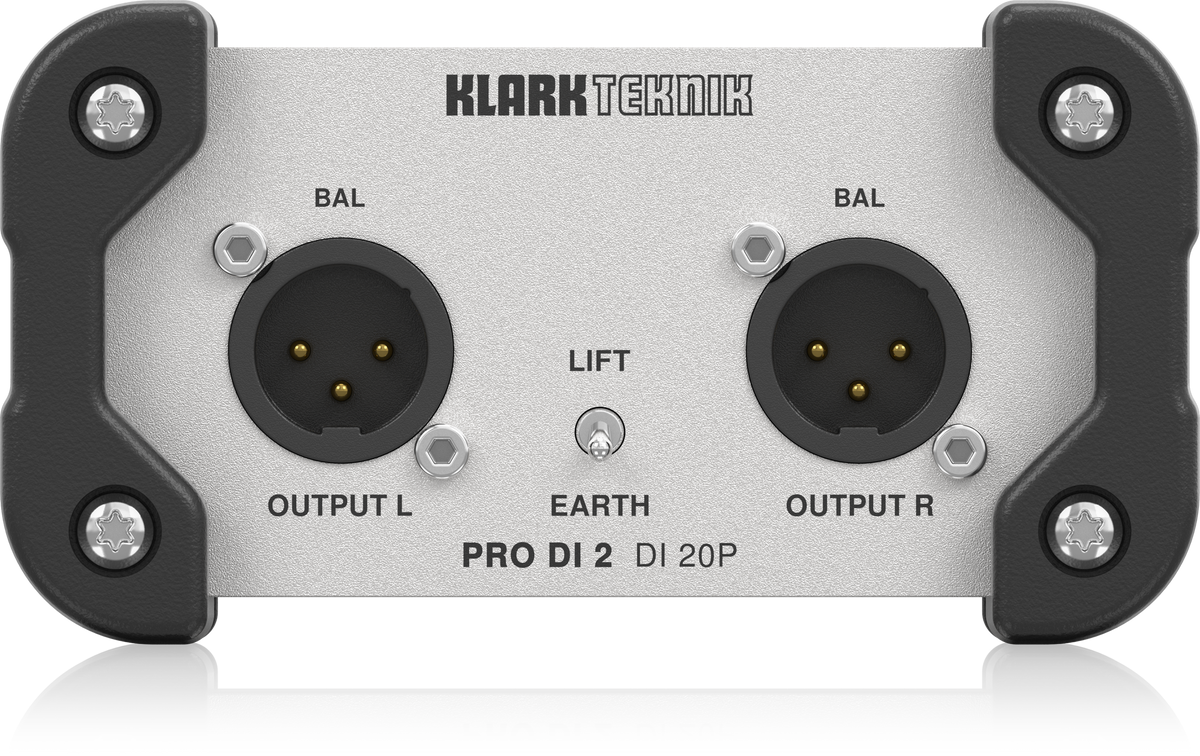

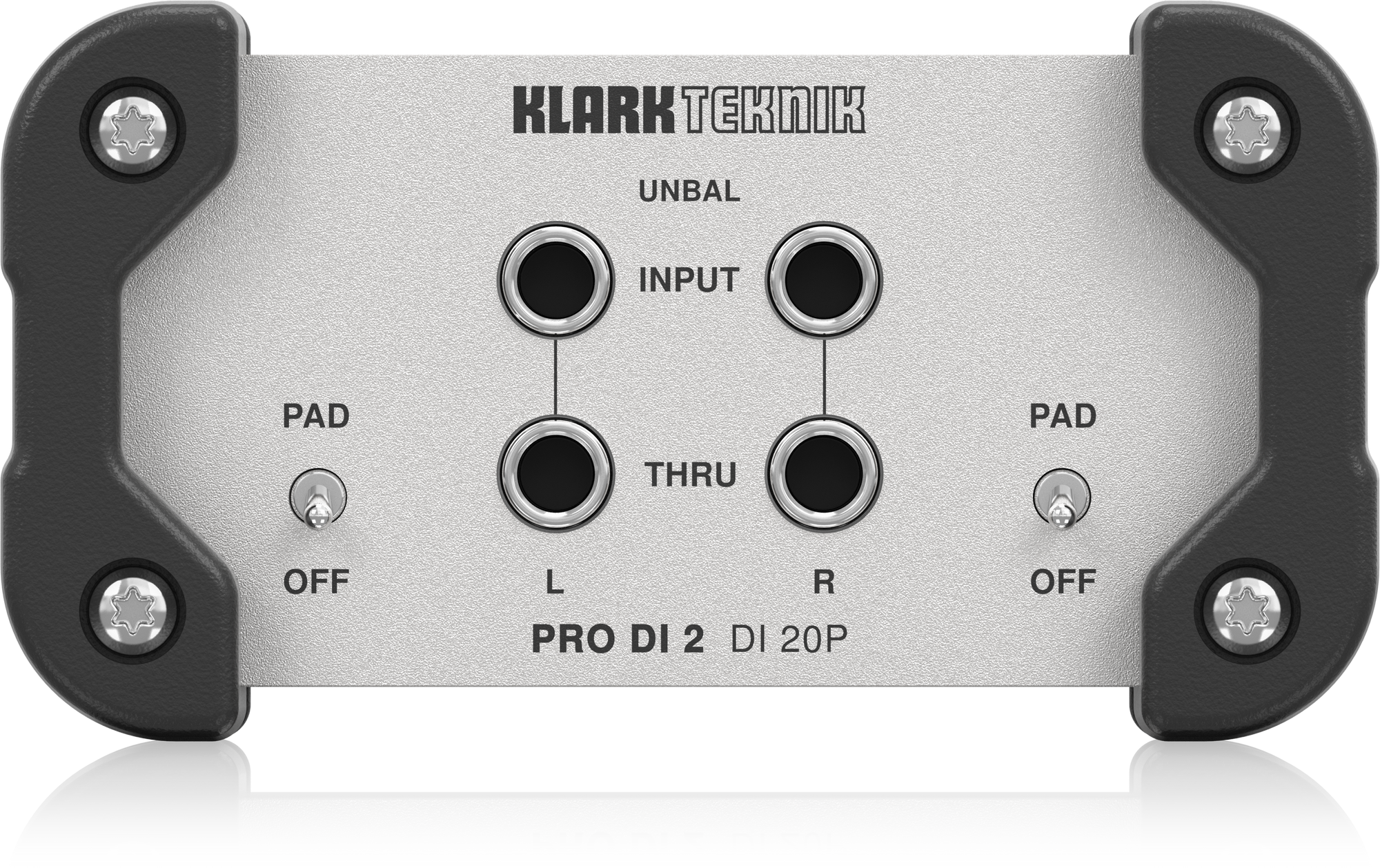

          DI 20P PRO DI 2 features genuine high quality Neutrik* XLR and high impedance 1/4" TS connectors to maintain the highest signal integrity. The Input connectors accept unbalanced signals over 1/4" TS cables, with the Thru jacks passing unbalanced 1/4" TS signals to local amps/monitors. The Output XLR jacks send balanced versions of the input signals to your mixing board or other processing device.

Input Pad, Earth Lift Switch & More

          A -15 dB input Pad enables the DI 20P to easily accommodate a wide range of input signals including guitar, line and speaker levels (up to 30 dBu). The onboard Earth Lift switch separates the input and output grounds, eliminating earth loops between equipment on different mains electricity supplies. DI 20P’s fully transformer-isolated design further ensures pristine performance – even in large-scale production environments.

Versatility

          The DI 20P PRO DI 2 provides maximum versatility, frequency response from 20 Hz to 30 kHz (±1 dB),
MIDAS custom-design transformers for the ultimate signal integrity, and much more – all in a road-ready enclosure that stands ready for your input.

          Visit your local KLARK TEKNIK supplier to try out the DI 20P PRO DI 2, or get yours online today. Your ears can tell the difference...
