Behringer DI10P Passive DI Box Overview
The Behringer DI10P Passive DI Box is designed for connecting stereo audio sources to professional mixing equipment. The RCA and 3.5mm stereo inputs allow you to connect media players, keyboards, and other stereo devices and the balanced Neutrik XLR output allows connection to the mixing console. With independent right and left controls, you can adjust each channel before they are sent to a mono output.
Internally, the custom-built MIDAS transformer keeps signal integrity, including a high-headroom input circuit with low noise and distortion. The transformer-isolated design provides electrical separation, while an Earth Lift switch stops ground-loop issues as they happen. Because the DI 10P is completely passive, you don't need an external power supply to add to the setup. A compact aluminium casing with protective rubber corners makes it ready for regular use.
Connect stereo sources with ease

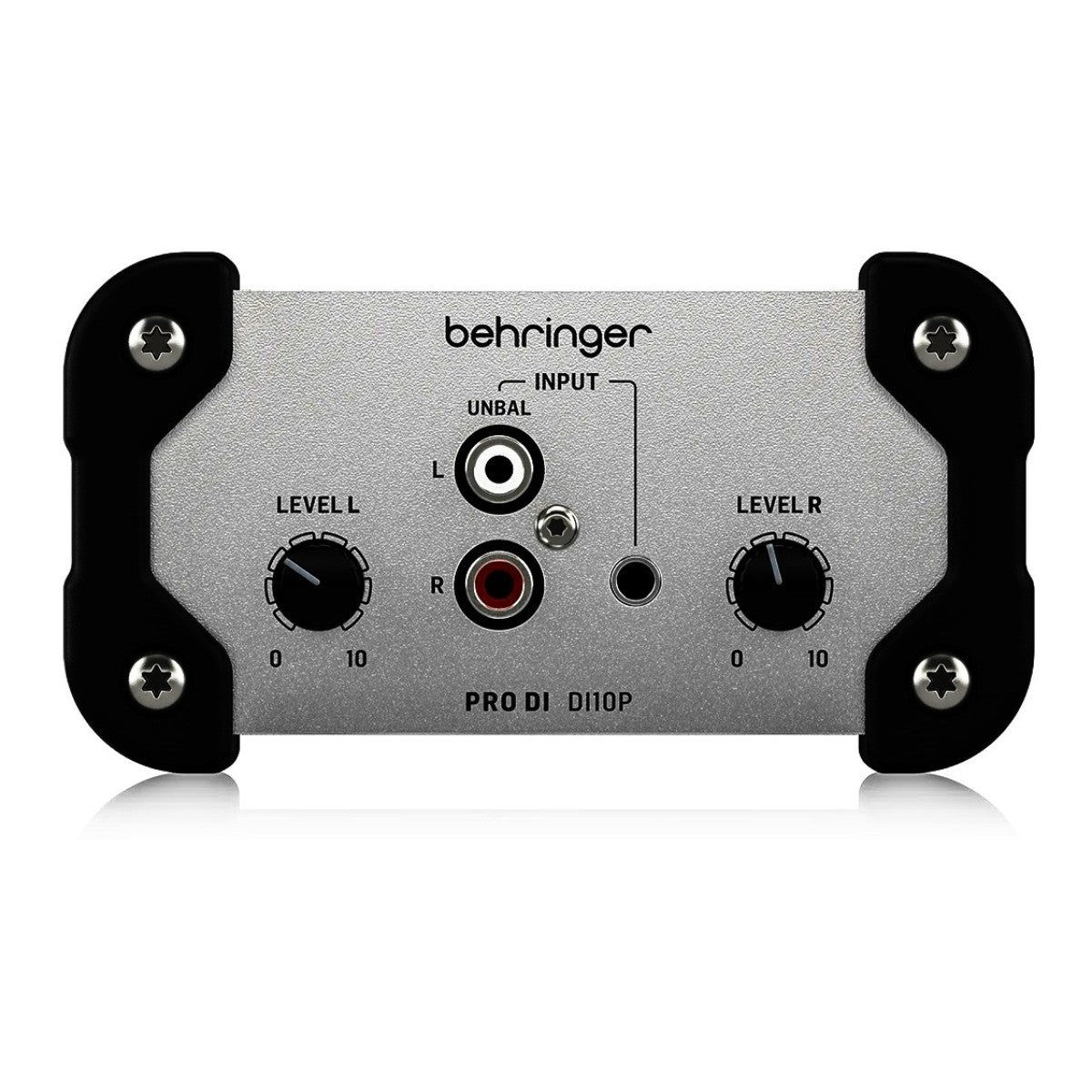

The DI 10P provides a painless way to feed stereo equipment into a balanced mixing setup. RCA and 3.5mm TRS inputs accommodate media players, keyboards, and other compatible stereo sources, while the two channels are combined into a mono output. Individual left and right level controls make it simple to balance each side of your source before sending the signal onwards. The output has a high-quality Neutrik XLR connector, supplying a balanced connection for your mixing console. This flexible combination makes the DI 10P useful for professional audio and multimedia setups where consumer and professional connections need to work together.
Keep your signal clean
A tailor-made MIDAS transformer sits at the heart of the DI 10P,maintaining signal integrity as your audio passes through the box. Its instrumentation-grade input circuit uses an analogue design created for low noise, harmonic distortion, and phase distortion. You also get a wide 10Hz to 91kHz frequency response (±1dB), alongside a high-headroom design that accommodates your signal while keeping unwanted distortion limited. As a result, you have a practical way to integrate stereo sources into your audio system without adding unnecessary processing, allowing you to keep original sources to remain together.
Reduce ground-loop problems

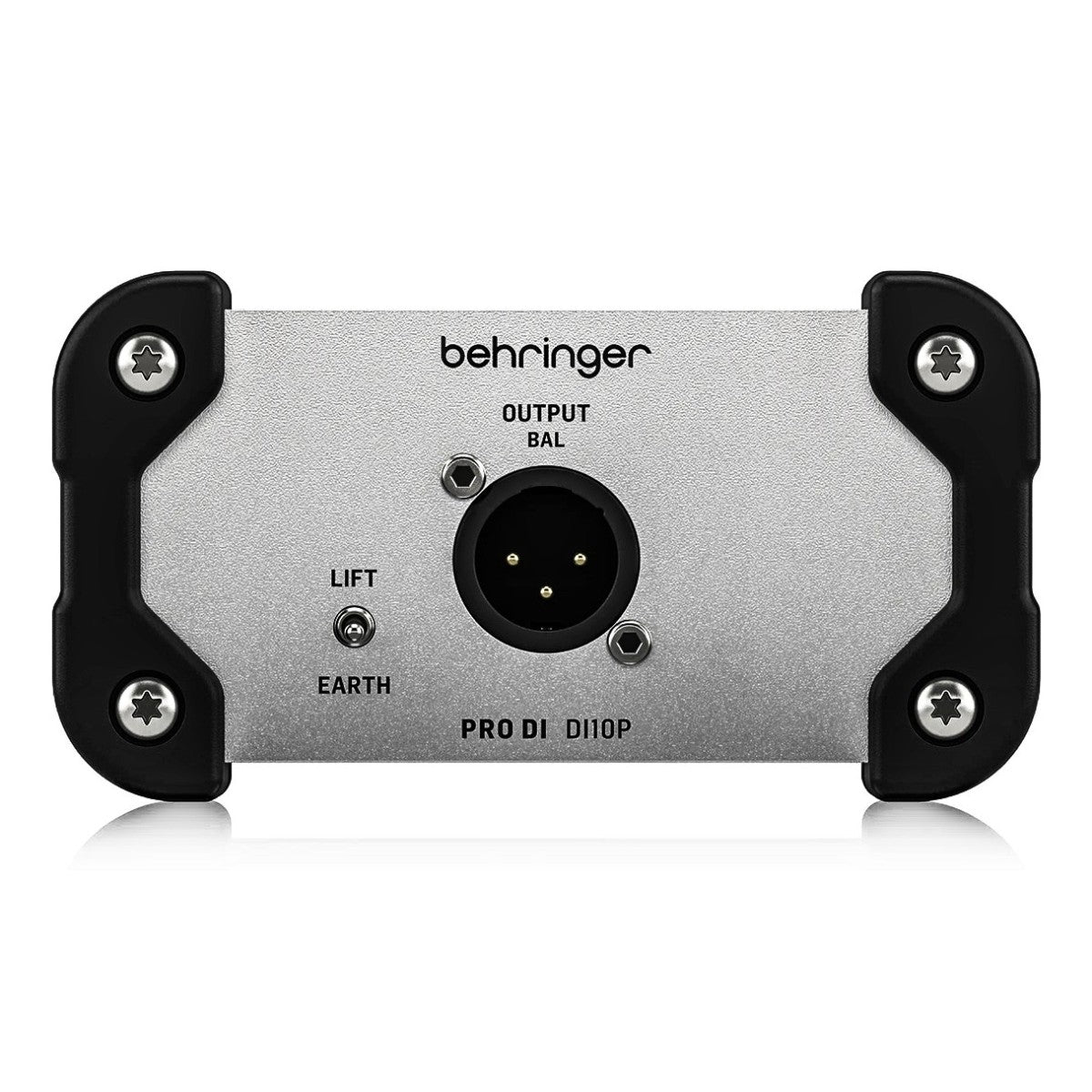

Unwanted hum can quickly become distracting in an audio setup. The DI 10P features a fully transformer-isolated design, providing electrical separation between the input and output connections. An Earth Lift switch is fitted to help eliminate problems caused by ground loops. As such, these combined features give you a straightforward way to address common connection issues when integrating media equipment with a mixing console. Its passive operation keeps things simple, too. There's no power supply to connect, so you can add the DI box to your signal path without needing another mains socket or power connection.
Built for frequent use

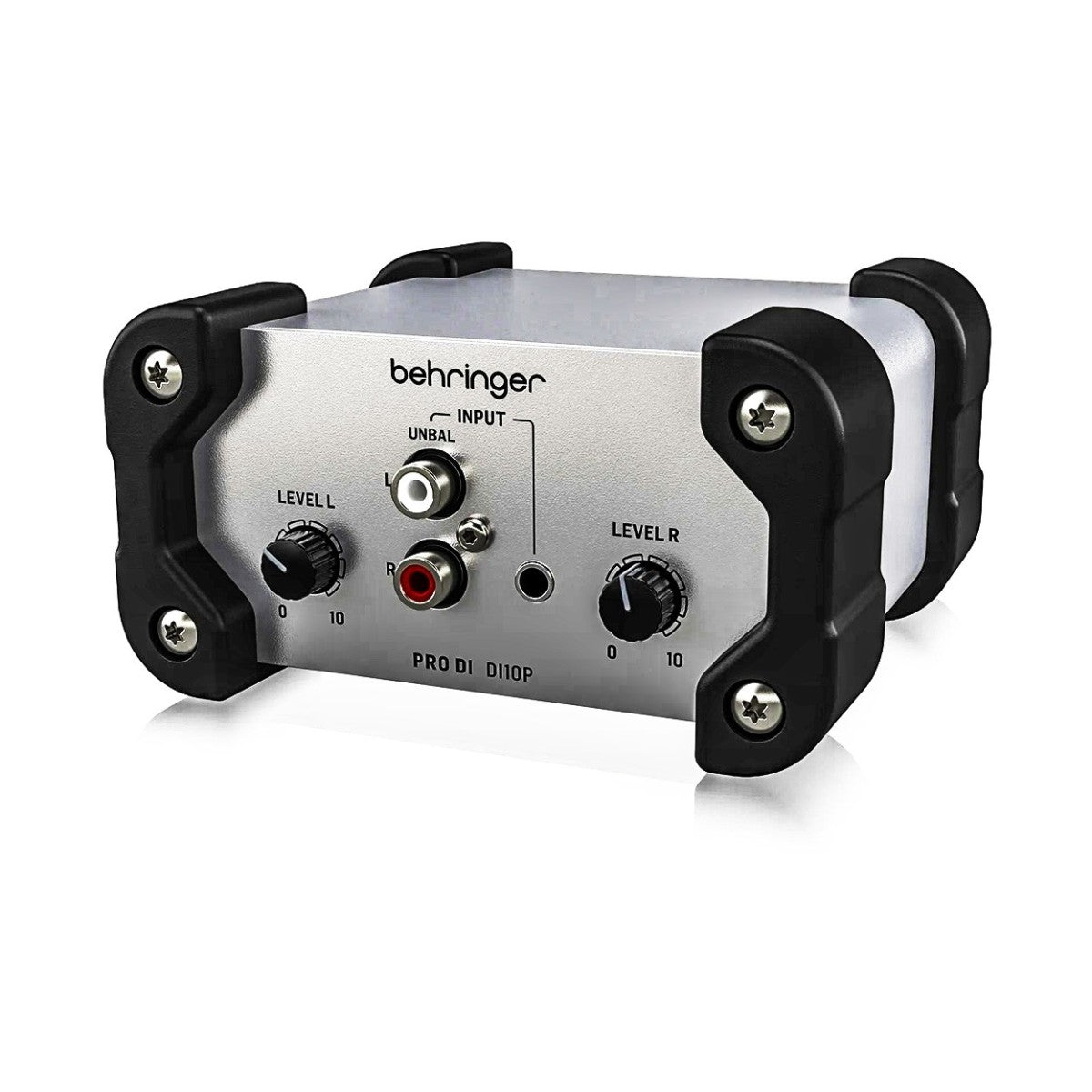

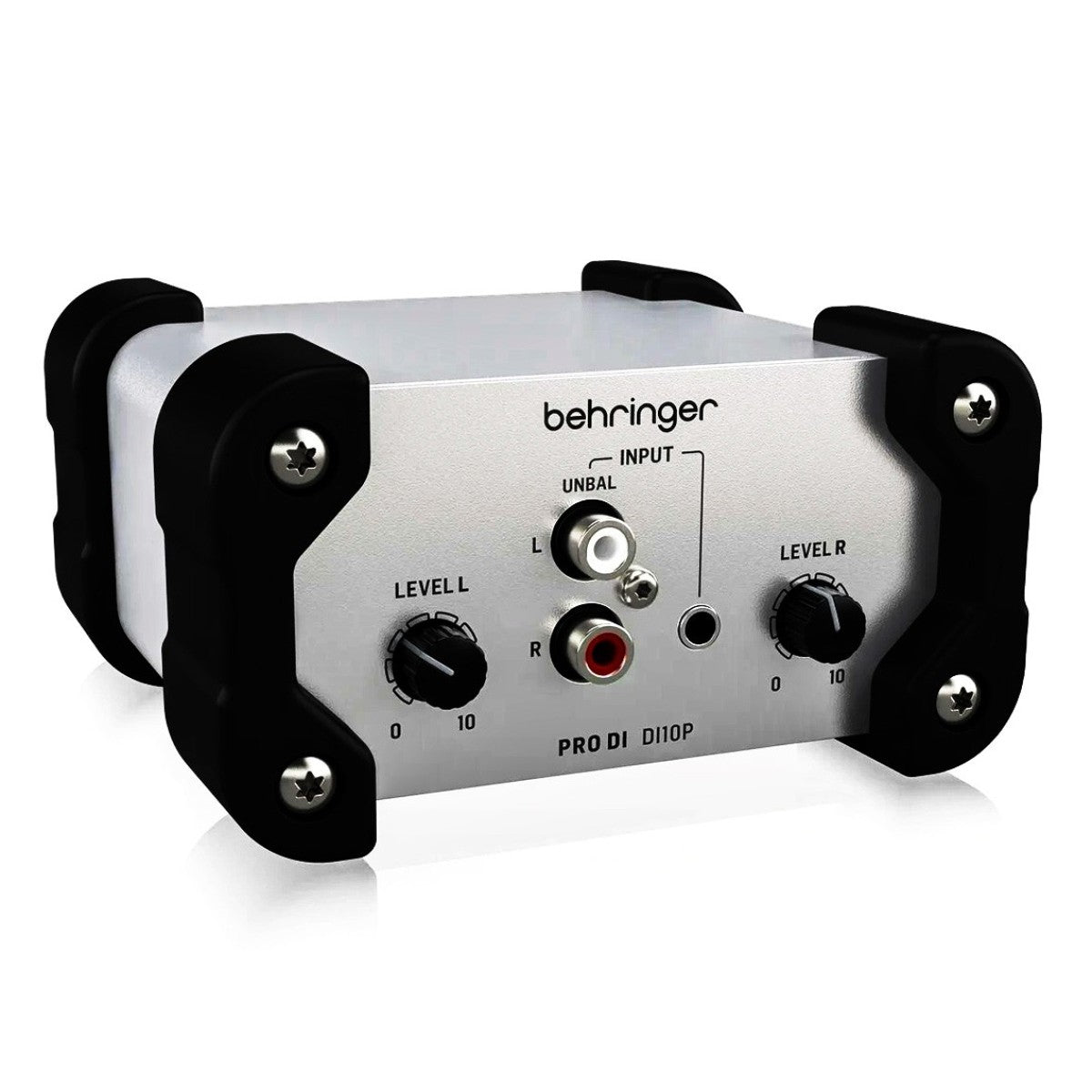

The DI 10P combines a compact footprint with a casing designed for practical audio setups. Its aluminium extrusion enclosure provides a sturdy outer shell, while protective rubber corners help guard the unit during regular handling. Measuring 64 x 118 x 112mm and weighing 0.47kg, it's compact enough to fit comfortably alongside other audio equipment or travel as part of your setup. The clearly arranged controls and connections keep operation manageable, giving you direct access to both channel levels and the connections you need. It's a simple, rugged solution for linking stereo sources to balanced professional audio equipment.
Specifications
Inputs
- Connectors: RCA Unbalanced, 1/8" TRS
- Impedance: 7kΩ
Outputs
- Connector: XLR, Balanced
- Impedance: 170Ω
System
- Frequency Response: 10 Hz To 91 kHz (±1dB)
- THD + N (Distortion): <0.03% 1kHz, +4 dBu
- Signal-To-Noise Ratio: >120% 1kHz, +4 dBu
- Power Requirement: Passive
Physical
- Dimensions: 64 x 118 x 112 mm
- Weight: 0.47kg
