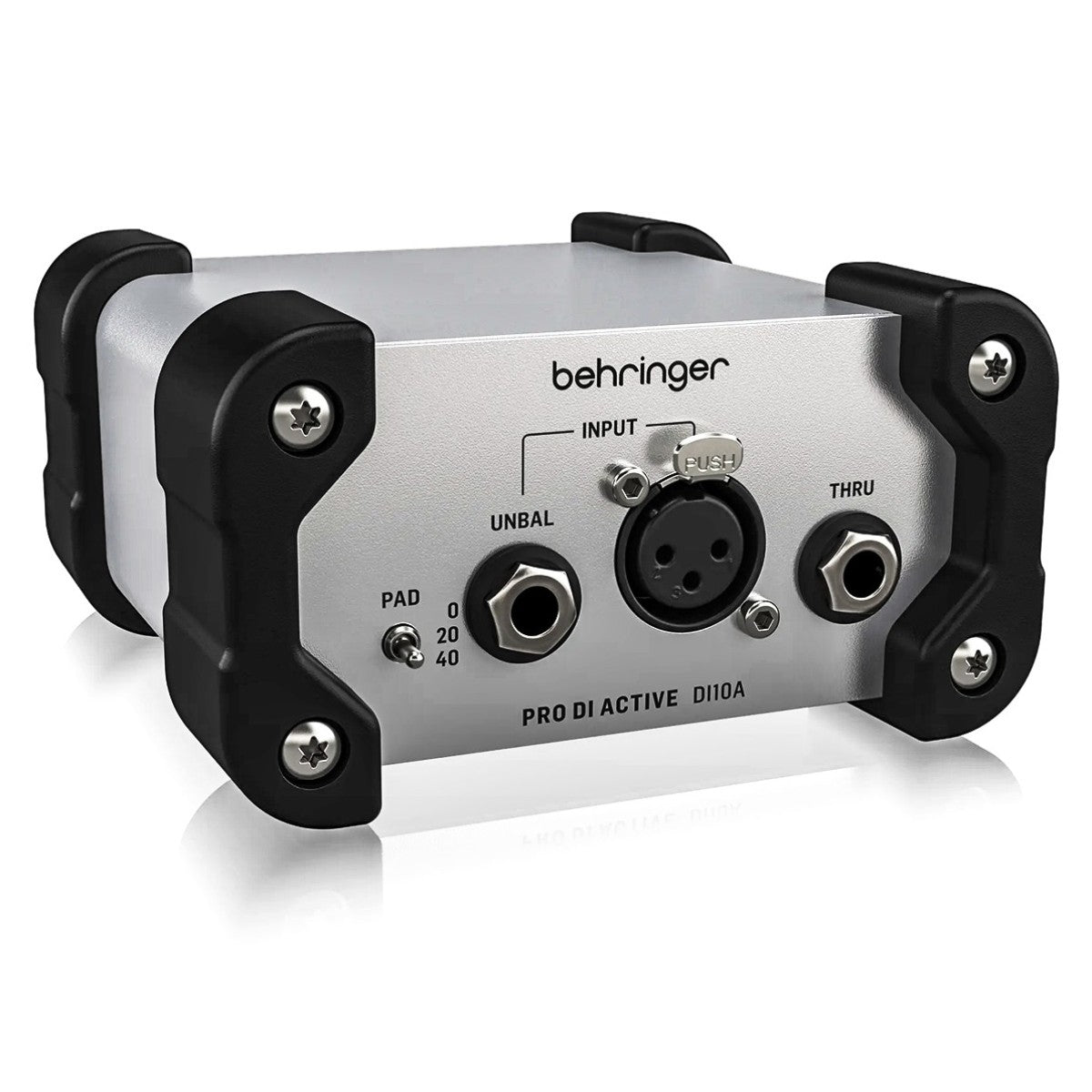

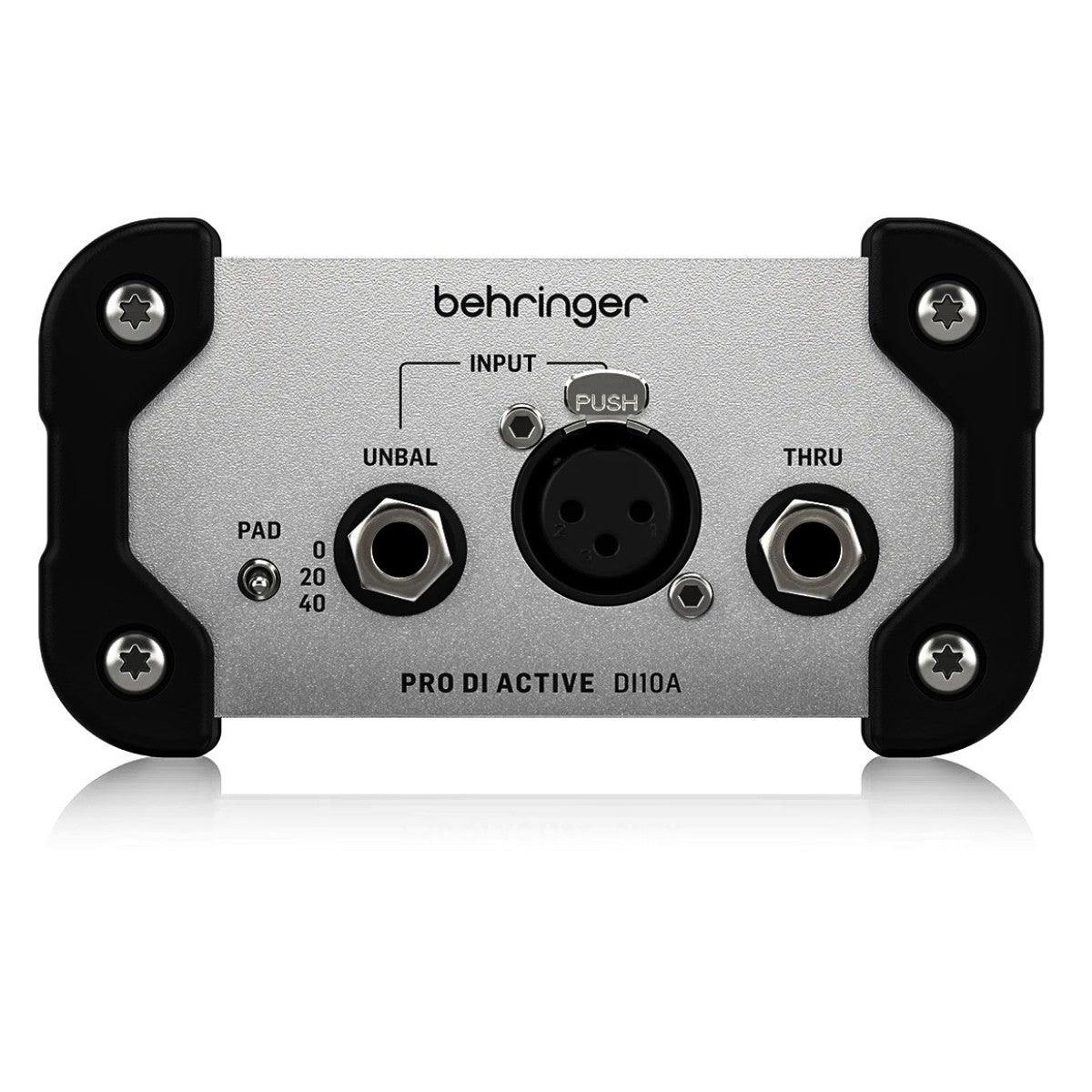

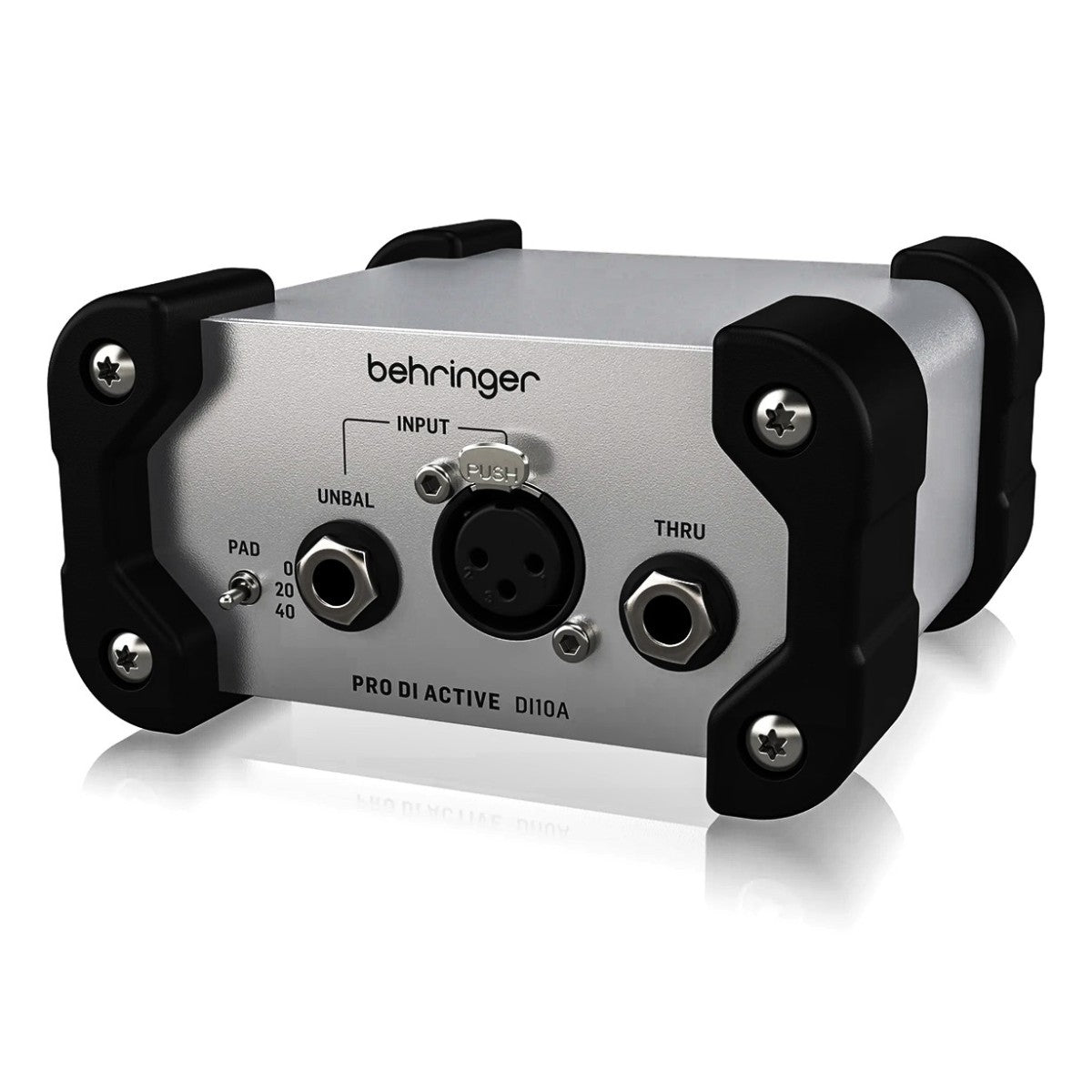

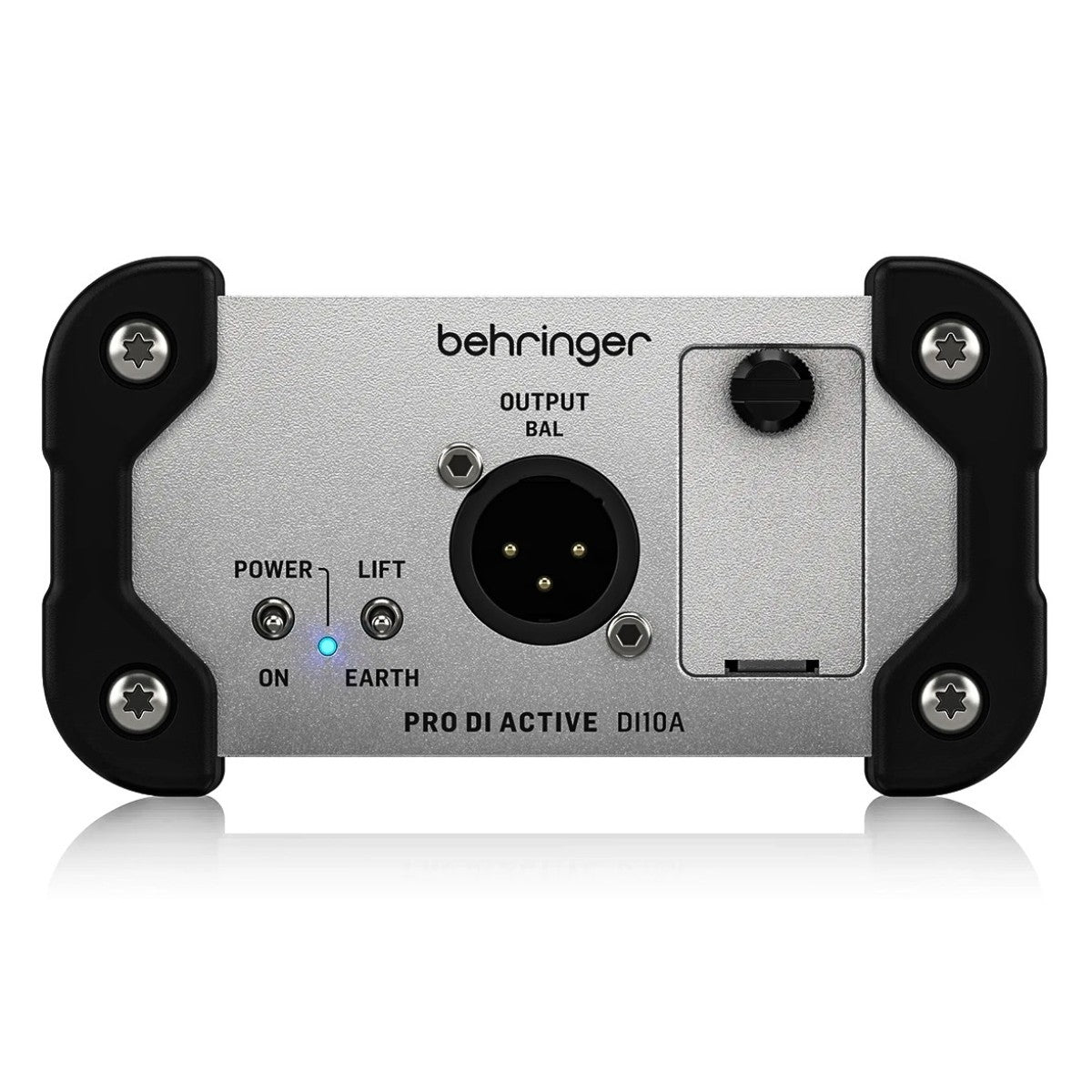

DI10A — ACTIVE DIRECT INJECTION, ROAD-PROVEN
The DI10A is an active direct injection box engineered for transparent signal transfer from high-impedance instruments to balanced mic-level inputs. Stage-ready, studio-clean and built to take a beating, it delivers the kind of quiet, full-frequency signal capture professional engineers expect every night of the tour.
Active circuitry preserves low-end detail that passive designs can lose, and the rugged chassis stands up to the realities of life on the road. The DI10A: simple, dependable, transparent.
Specification
Audio Connections
| Input |
1 x XLR, balanced 1 x 1/4" TS, unbalanced |
| Input Impedance |
> 250 kΩ |
| Thru |
1 x 1/4" TS, unbalanced |
| Output |
1 x XLR, balanced |
| Load Impedance |
> 600 Ω |
| Maximum Input level |
+10 / +30 / +50 dBu |
System
| Frequency Response |
10 Hz to 90 kHz, ±3 dB |
| THD+N |
< 0.02 % @ 1 kHz, 0 dBu |
| Noise Leve |
< -112 dBu |
| PAD Switch |
0 / -20 / -40 dB |
Power Supply
| Phantom power |
18 V DC to 48 V DC |
| Battery |
9 V Blockcell 6LR61 |
Dimension / Weight
| Dimensions (W x D x H) |
118 x 120 x 64 mm (4.6 x 4.7 x 2.5") |
| Weight |
0.56 kg (1.2 lbs) |
DI 10A
