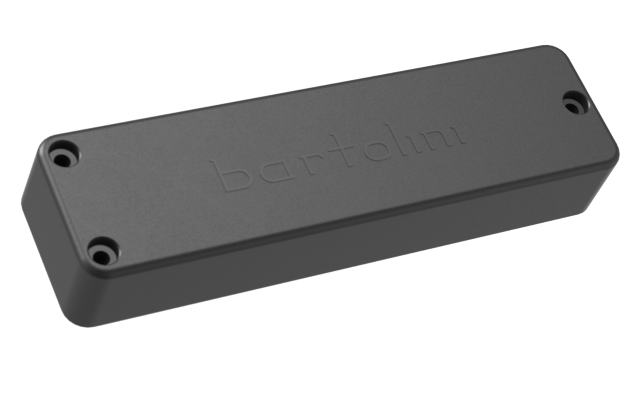

Bass Series 5-String P45CBC-T Bridge

Classic Bass soapbars make you sound better, so you play better. They have a rich, deep voice with lots of high-end clarity and warmth. When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. Without sacrificing low-end, Classic Bass pickups are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.
If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses.
There are different versions for neck (Bass, -B) and bridge (Treble, -T) so they balance well in your bass.

Details

P45CBC Technical Details

Coil Structure:
Dual Parallel Humbucking

Cable Type:
4-Conductor Cable with shield and bare drain

Magnetic Circuit:
2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture Neck coil South and Bridge coil North for both positions

Wiring Diagram PDF

P45CBC-B - Neck

  • DC Resistance: ~3.9KΩ each coil
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.99" [76mm] Max

P45CBC-T - Bridge

  • DC Resistance: ~5.6KΩ each coil
  • Resonant Frequency: ~4.5KHz
  • Sensing Width: 2.99" [76mm] Max

Shape Details

P4 Soapbar

  • 4.62" [117.3mm] Long,
  • 1.25" [31.8mm] Wide,
  • 0.69-0.79" [17.5-20.1mm] Thick + 0.15" [3.8mm] Cable
  • 2 holes on bass end and 1 on treble end for your #4 pan head screws



Accessories
Bartolini

Bass Series 5-String P45CBC-T Bridge

Regular price
4,000 ฿
Sale price
3,400 ฿
Unit price
per
Out of Stock

DESCRIPTION

Bass Series 5-String P45CBC-T Bridge

Classic Bass soapbars make you sound better, so you play better. They have a rich, deep voice with lots of high-end clarity and warmth. When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. Without sacrificing low-end, Classic Bass pickups are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.
If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses.
There are different versions for neck (Bass, -B) and bridge (Treble, -T) so they balance well in your bass.

Details

P45CBC Technical Details

Coil Structure:
Dual Parallel Humbucking

Cable Type:
4-Conductor Cable with shield and bare drain

Magnetic Circuit:
2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture Neck coil South and Bridge coil North for both positions

Wiring Diagram PDF

P45CBC-B - Neck

  • DC Resistance: ~3.9KΩ each coil
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.99" [76mm] Max

P45CBC-T - Bridge

  • DC Resistance: ~5.6KΩ each coil
  • Resonant Frequency: ~4.5KHz
  • Sensing Width: 2.99" [76mm] Max

Shape Details

P4 Soapbar

  • 4.62" [117.3mm] Long,
  • 1.25" [31.8mm] Wide,
  • 0.69-0.79" [17.5-20.1mm] Thick + 0.15" [3.8mm] Cable
  • 2 holes on bass end and 1 on treble end for your #4 pan head screws



Bass Series 5-String P45CBC-T Bridge

Classic Bass soapbars make you sound better, so you play better. They have a rich, deep voice with lots of high-end clarity and warmth. When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. Without sacrificing low-end, Classic Bass pickups are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.
If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses.
There are different versions for neck (Bass, -B) and bridge (Treble, -T) so they balance well in your bass.

Details

P45CBC Technical Details

Coil Structure:
Dual Parallel Humbucking

Cable Type:
4-Conductor Cable with shield and bare drain

Magnetic Circuit:
2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture Neck coil South and Bridge coil North for both positions

Wiring Diagram PDF

P45CBC-B - Neck

  • DC Resistance: ~3.9KΩ each coil
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.99" [76mm] Max

P45CBC-T - Bridge

  • DC Resistance: ~5.6KΩ each coil
  • Resonant Frequency: ~4.5KHz
  • Sensing Width: 2.99" [76mm] Max

Shape Details

P4 Soapbar

  • 4.62" [117.3mm] Long,
  • 1.25" [31.8mm] Wide,
  • 0.69-0.79" [17.5-20.1mm] Thick + 0.15" [3.8mm] Cable
  • 2 holes on bass end and 1 on treble end for your #4 pan head screws
