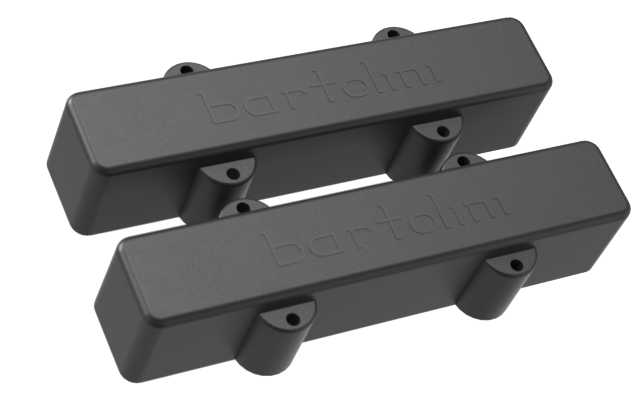

Bass Series 5-String Fender American STD Jazz Neck & Bridge Set Dual Coil Deep Tone 57CBJD L1/S1
Rich, deep, hum-free voice with high-end clarity and warmth for your American Standard or Deluxe V style J-Bass
Classic J-Bass pickups give you enhanced treble response and narrower apertures for incisive attack and focused sound without harshness. This added treble definition vastly increases the tonal range available in active or passive instruments. When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. They are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.
If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses. These dual inline-coil pickups are hum-cancelling even soloing the neck or bridge pickup, so they are well suited for studio or stage.
Available in balanced bridge and neck versions.
Details
57CBJD1 Technical Details
57CBJD-S1 - Neck
- DC Resistance: ~9.3KΩ
- Resonant Frequency: ~5.2KHz
- Sensing Width: 3.07" [78mm] Max 2.32" [59mm] Min
57CBJD-L1 - Bridge
- DC Resistance: ~10.5KΩ
- Resonant Frequency: ~4.4KHz
- Sensing Width: 3.19" [81mm] Max 2.36" [60mm] Min
Shape Details
American Standard Short J-Bass (-S and -SB)
- 4" [101.6mm] Long,
- 0.77" [19.6mm] Wide,
- 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
- 4 Standard J Pickup Mounting ears for your #3 or #4 screws
American Standard Long J-Bass (-L and -LN)
- 4.14" [105.2mm] Long,
- 0.77" [19.6mm] Wide,
- 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
- 4 Standard J Pickup Mounting ears for your #3 or #4 screws
Bass Series 5-String Fender American STD Jazz Neck & Bridge Set Dual Coil Deep Tone 57CBJD L1/S1
Bass Series 5-String Fender American STD Jazz Neck & Bridge Set Dual Coil Deep Tone 57CBJD L1/S1
Rich, deep, hum-free voice with high-end clarity and warmth for your American Standard or Deluxe V style J-Bass
Classic J-Bass pickups give you enhanced treble response and narrower apertures for incisive attack and focused sound without harshness. This added treble definition vastly increases the tonal range available in active or passive instruments. When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. They are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.
If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses. These dual inline-coil pickups are hum-cancelling even soloing the neck or bridge pickup, so they are well suited for studio or stage.
Available in balanced bridge and neck versions.
Details
57CBJD1 Technical Details
57CBJD-S1 - Neck
- DC Resistance: ~9.3KΩ
- Resonant Frequency: ~5.2KHz
- Sensing Width: 3.07" [78mm] Max 2.32" [59mm] Min
57CBJD-L1 - Bridge
- DC Resistance: ~10.5KΩ
- Resonant Frequency: ~4.4KHz
- Sensing Width: 3.19" [81mm] Max 2.36" [60mm] Min
Shape Details
American Standard Short J-Bass (-S and -SB)
- 4" [101.6mm] Long,
- 0.77" [19.6mm] Wide,
- 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
- 4 Standard J Pickup Mounting ears for your #3 or #4 screws
American Standard Long J-Bass (-L and -LN)
- 4.14" [105.2mm] Long,
- 0.77" [19.6mm] Wide,
- 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
- 4 Standard J Pickup Mounting ears for your #3 or #4 screws
Bass Series 5-String Fender American STD Jazz Neck & Bridge Set Dual Coil Deep Tone 57CBJD L1/S1
Rich, deep, hum-free voice with high-end clarity and warmth for your American Standard or Deluxe V style J-Bass
Classic J-Bass pickups give you enhanced treble response and narrower apertures for incisive attack and focused sound without harshness. This added treble definition vastly increases the tonal range available in active or passive instruments. When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. They are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.
If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses. These dual inline-coil pickups are hum-cancelling even soloing the neck or bridge pickup, so they are well suited for studio or stage.
Available in balanced bridge and neck versions.
Details
57CBJD1 Technical Details
57CBJD-S1 - Neck
- DC Resistance: ~9.3KΩ
- Resonant Frequency: ~5.2KHz
- Sensing Width: 3.07" [78mm] Max 2.32" [59mm] Min
57CBJD-L1 - Bridge
- DC Resistance: ~10.5KΩ
- Resonant Frequency: ~4.4KHz
- Sensing Width: 3.19" [81mm] Max 2.36" [60mm] Min
Shape Details
American Standard Short J-Bass (-S and -SB)
- 4" [101.6mm] Long,
- 0.77" [19.6mm] Wide,
- 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
- 4 Standard J Pickup Mounting ears for your #3 or #4 screws
American Standard Long J-Bass (-L and -LN)
- 4.14" [105.2mm] Long,
- 0.77" [19.6mm] Wide,
- 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
- 4 Standard J Pickup Mounting ears for your #3 or #4 screws
