Bass Series 4 Strings Fender Jazz Bass N & B Set Dual in Line Deep Tone 9J1-LS

Full and warm deep vintage tone - The most popular dual inline-coil hum-cancelling Jazz bass upgrade pickups

The original Bartolini design gives you the timeless tone that started it all – full and warm for that vintage voice you’ve been craving, enhancing the natural voice of your bass. These dual coil inline pickups are hum-cancelling even when only playing the neck or bridge pickup, so they are well suited for studio or stage. They have a blade core design, so you don’t have to worry about string alignment. Original Barts bring out your voice, low and clear.
In the early ‘70s, Bill Bartolini leveraged his deep knowledge of acoustics to create pickups that produce the most natural, musical voice from the instrument. He added shielding to block radio signals and noise. He developed a method of sealing, isolating, and stabilizing the coils so they could be encapsulated in epoxy to eliminate “microphonics” – the nasty noise you get when you touch typical pickups.
Available in balanced specific bridge and neck versions.

Details

9J Technical Details

Coil Structure:
Dual Inline Hum-killing

Cable Type:
Shielded Coaxial Hot Core

Magnetic Circuit:
2 types of carbon steel powered by ceramic (ferrite) magnets Opposite polarity for bass and treble coils for neck and bridge pickups

Wiring Diagram PDF

9J-S1 Neck

  • DC Resistance: ~6.1KΩ
  • Resonant Frequency: ~5.7KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

9J-L1 Bridge

  • DC Resistance: ~6.7KΩ
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

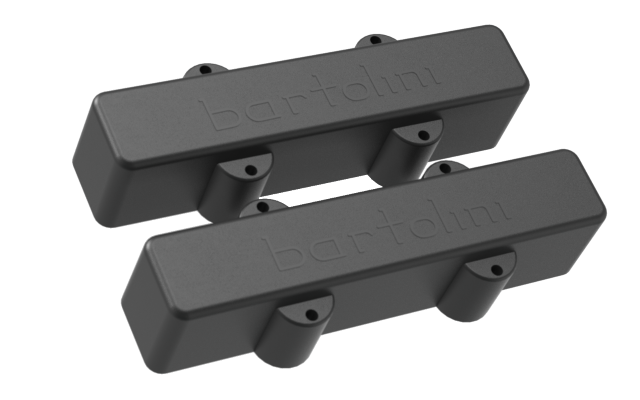

Shape Details

Standard Short J-Bass (-S and -SB)

  • 3.6" [91.4mm] Long,
  • 0.73" [18.5mm] Wide,
  • 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
  • 4 Standard J Pickup Mounting ears for your #3 or #4 screws

Standard Long J-Bass (-L and -LN)

  • 3.73" [94.7mm] Long,
  • 0.73" [18.5mm] Wide,
  • 0.82" [20.8mm] Thick + 0.11" [2.8mm] Cable
  • 4 Standard J Pickup Mounting ears for your #3 or #4 screws





Accessories
