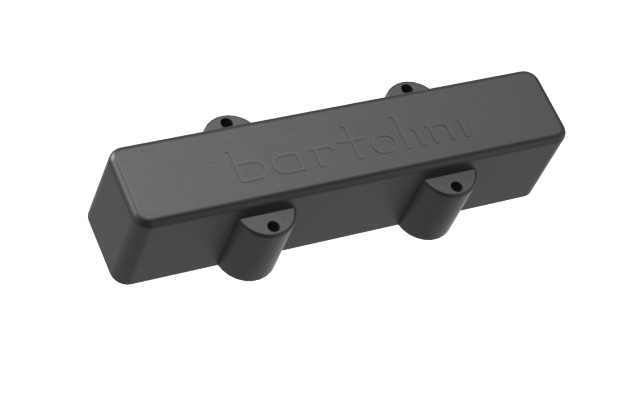

4-String Fender Jazz Bass Bridge Dual Coil Deep Tone 9CBJD-L1

Rich, deep, hum-free voice with high-end clarity and warmth for your J-Bass

Classic J-Bass pickups give you enhanced treble response and narrower apertures for incisive attack and focused sound without harshness. This added treble definition vastly increases the tonal range available in active or passive instruments. When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. They are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.
If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses. These dual inline-coil pickups are hum-cancelling even soloing the neck or bridge pickup, so they are well suited for studio or stage.
Available in balanced bridge and neck versions.

Details

9CBJD-L1 Technical Details

Coil Structure:
Split P Hum-killing

Cable Type:
Shielded Coaxial Hot Core

Magnetic Circuit:
2 types of carbon steel powered by ceramic (ferrite) magnets projected for wide but focused aperture Bass coil North and treble coil South

Wiring Diagram PDF



9CBJD-L1 Bridge

  • DC Resistance: ~9.2KΩ
  • Resonant Frequency: ~4.4KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

Shape Details

Standard Long J-Bass (-L and -LN)

  • 3.73" [94.7mm] Long,
  • 0.73" [18.5mm] Wide,
  • 0.82" [20.8mm] Thick + 0.11" [2.8mm] Cable
  • 4 Standard J Pickup Mounting ears for your #3 or #4 screws





Accessories
Bartolini

Bass Series 4-String Fender Jazz Bass Bridge Dual Coil Deep Tone 9CBJD-L1

Regular price
3,000 ฿
Sale price
2,550 ฿
Unit price
per
Out of Stock
