Vintage Auto-Wah Envelope Filter with 3 Filter Types, 2 Direction Modes and Versatile Input Range
Product Features
-
Vintage auto-wah envelope filter pedal that shaped the sound of funk throughout the ’70s
-
All analog optical circuit for natural sensitivity response and authentic recreation of legendary tone
-
3 filter types including low, band and high pass
-
Up/Down modes for getting both ‘Wah’ and ‘Wow’ sounds
-
Versatile sensitivity control makes this pedal perfect for use with guitar, bass and keyboards
-
Range switch to emphasize low vowel-like sounds or high overtones
-
Robust housing with authentic vintage styling
-
True bypass for ultimate signal integrity
-
Runs on 9 V battery or the Behringer PSU-SB DC power supply (not included)

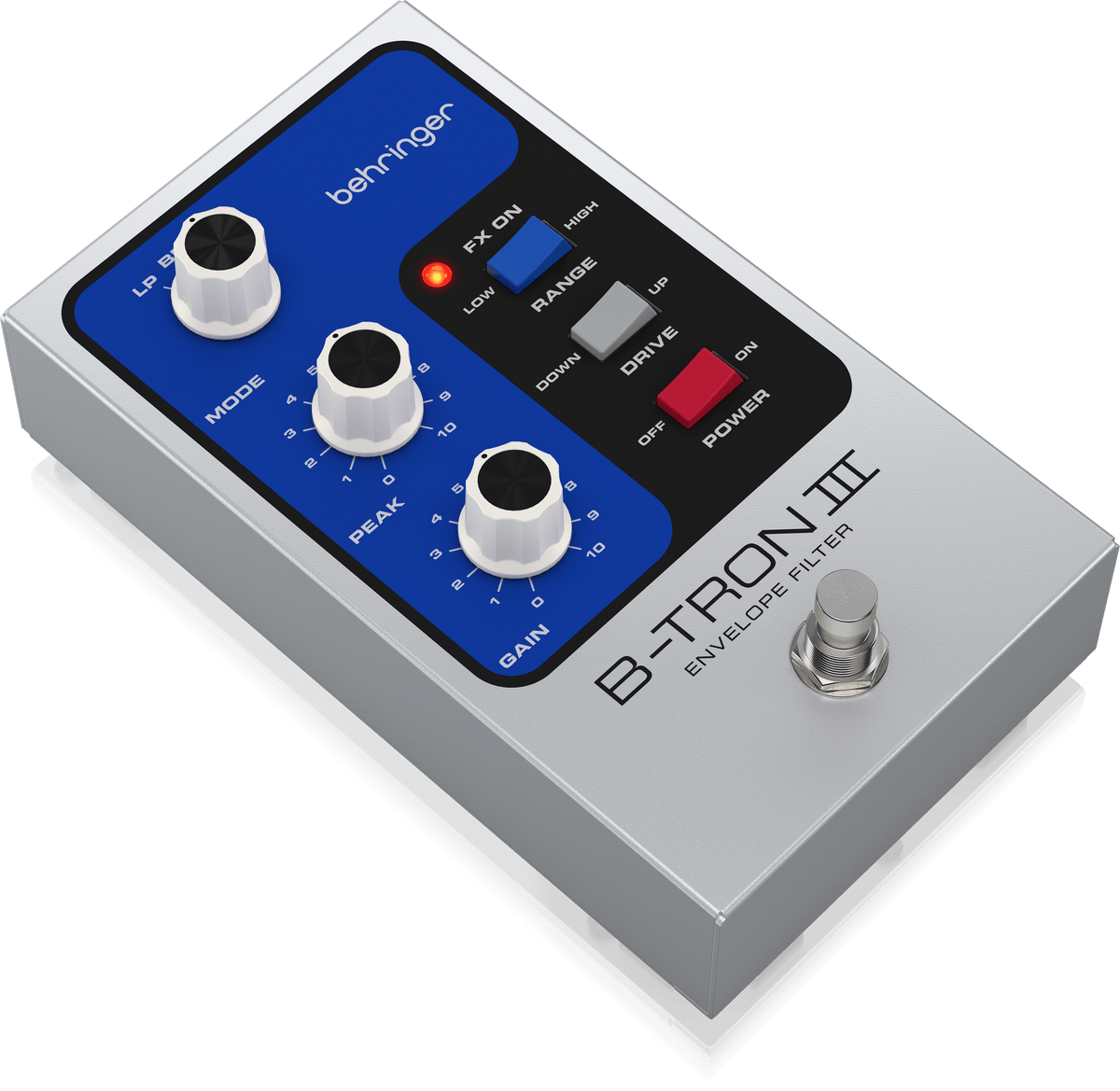

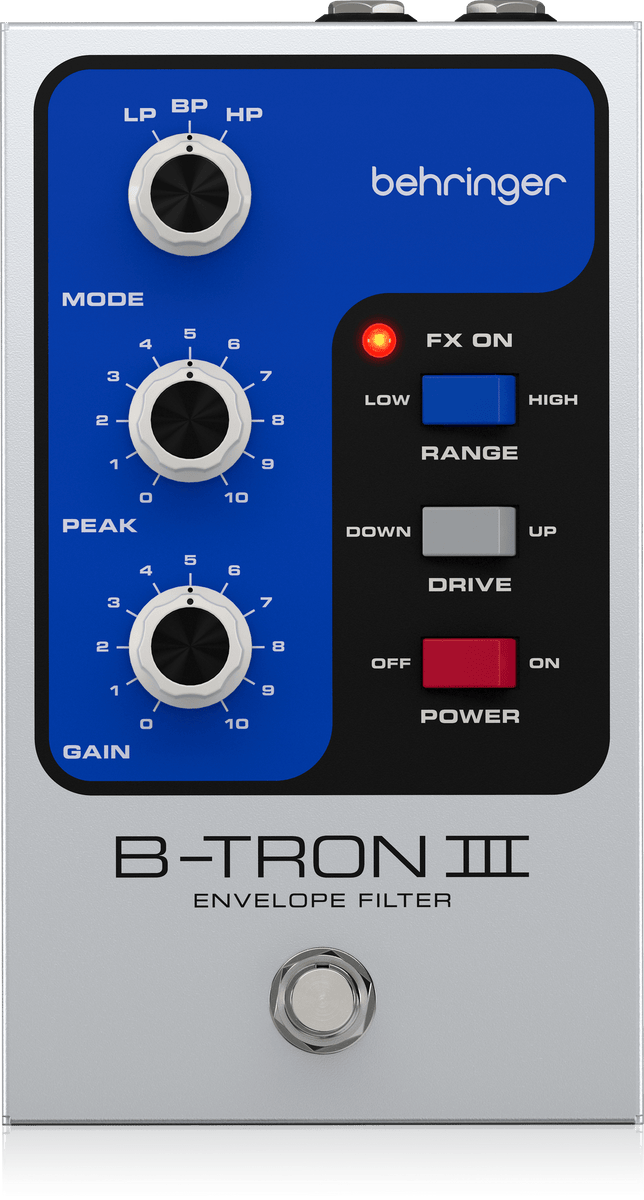

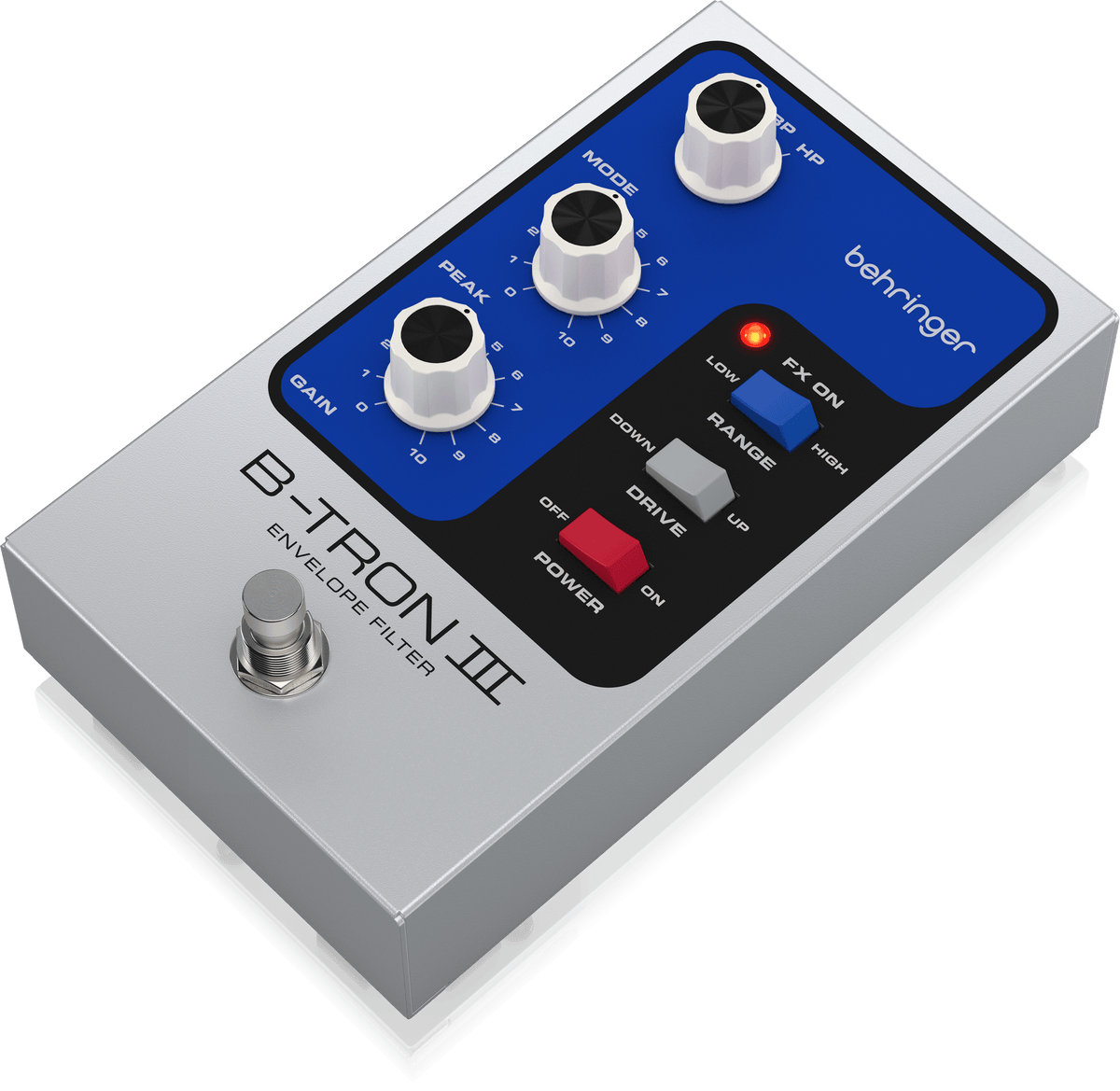

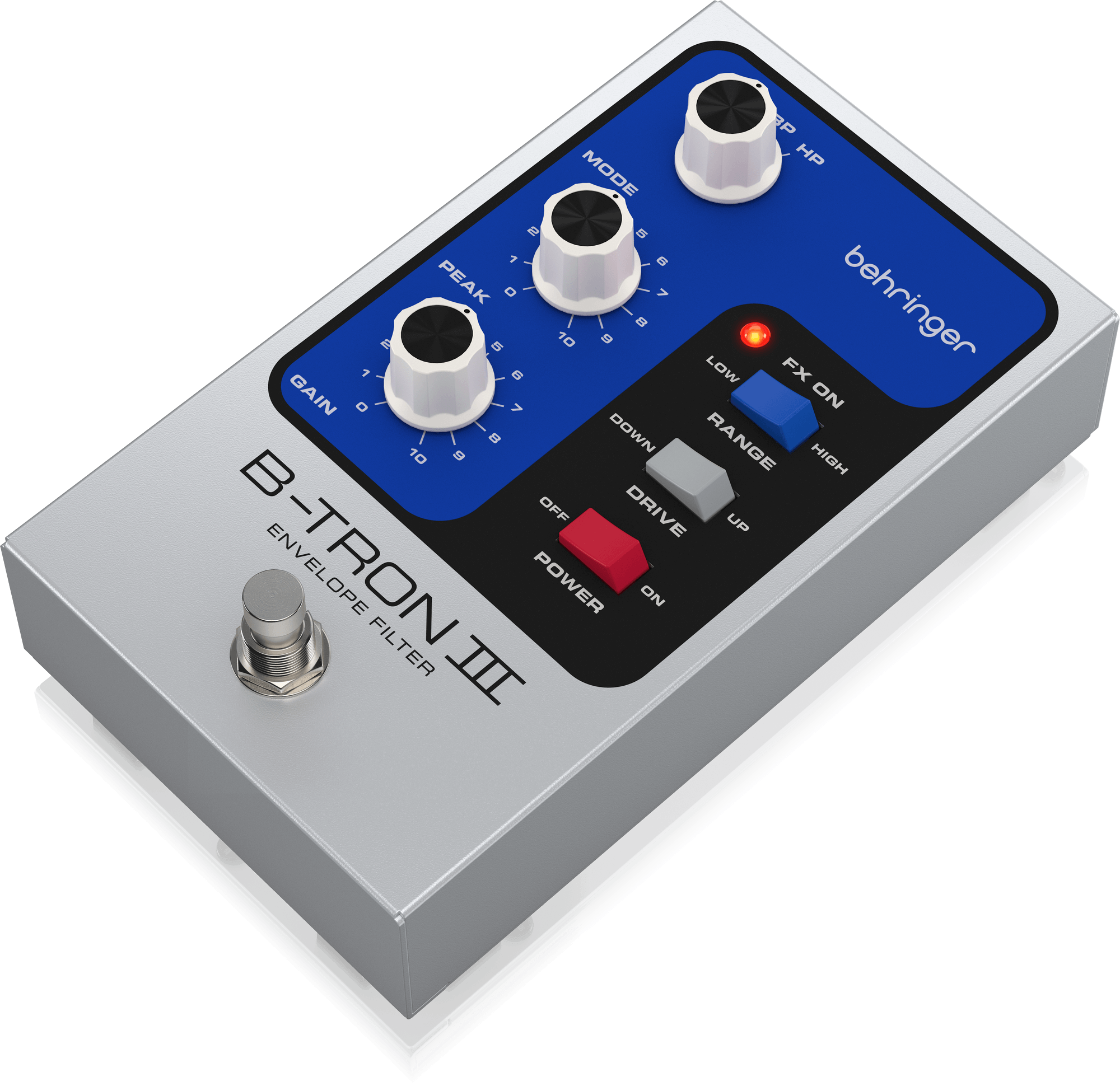

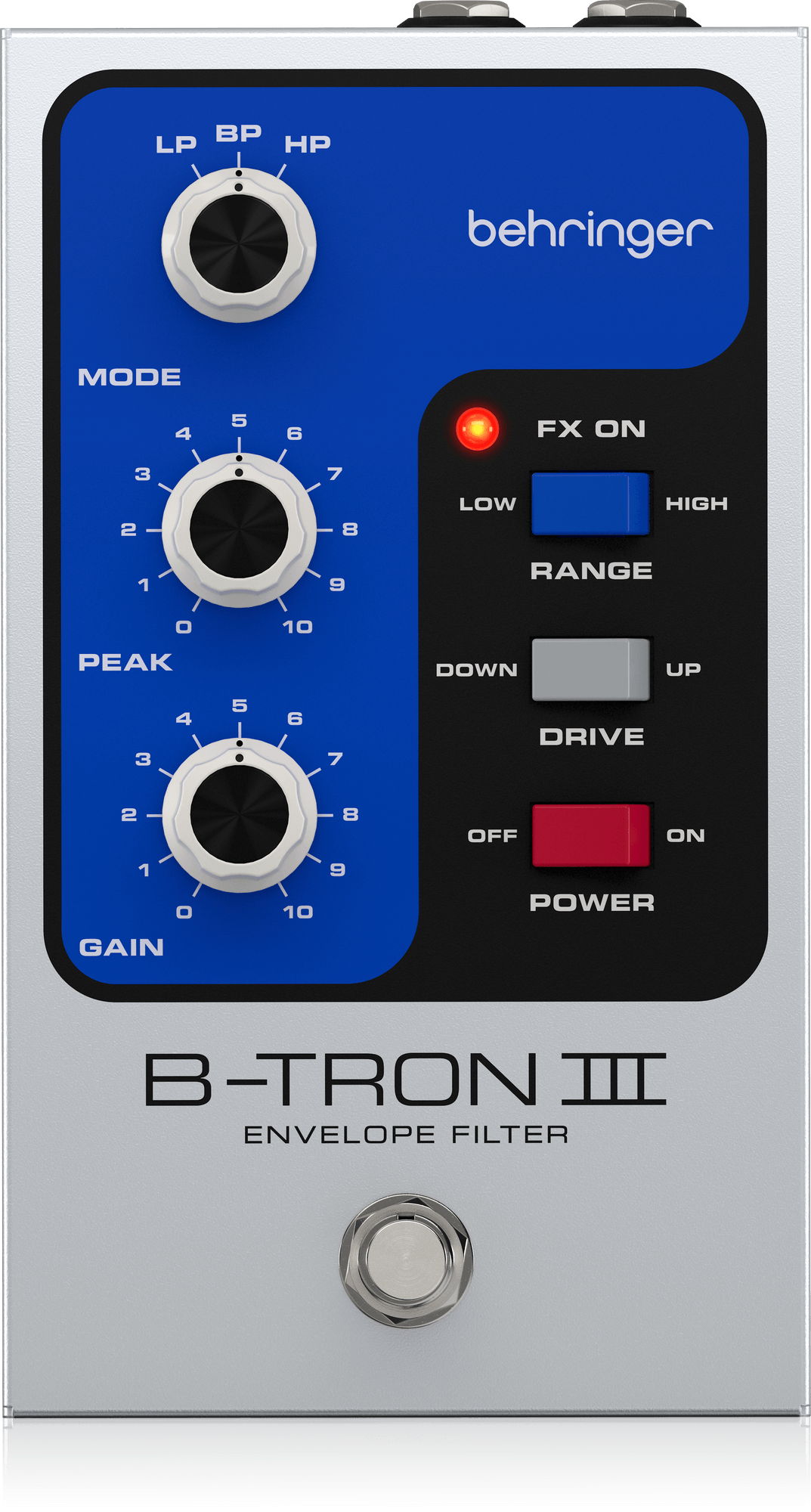

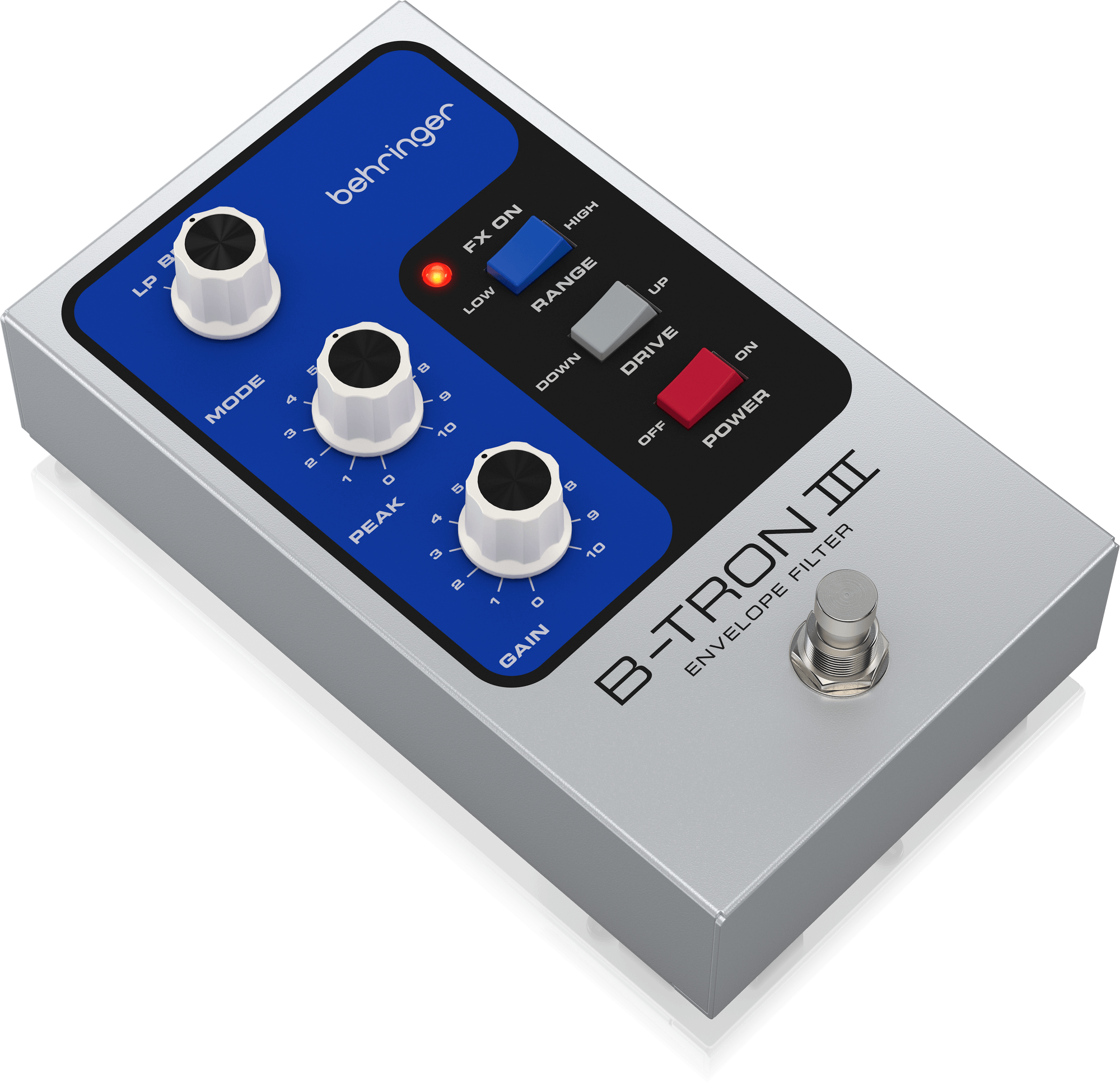

It’s time to get funky because we’re bringing back a pedal that shaped ‘70s music! This is the Behringer B-TRON III ENVELOPE FILTER.
Quack
The B-TRON III is a vintage envelope filter that creates a “Wah” or “vowel” sound every time you play a note. It includes three filter types via the Mode switch that includes low-, band-, or high-pass settings for a nice quack or a nice high-frequency sizzle. It works great for bringing the funk with either guitar, bass or keyboards.
Wah? More Like Wow!
The Range switch on the B-TRON III can be toggled between low, so you can get more vowel-like sounds, or high to emphasize more overtones. And the Up and Down modes on the Drive switch can give you that traditional “Wah” sound or a cocked “Wow” sound.
Amazing Flexibility
Having the B-TRON III is like having a piece of music history at your feet. It runs on standard 9 V DC power which makes integrating into your setup a total breeze. Its rugged and reliable metal construction also gives the B-TRON III the ability to stand up to the rigors of the road and the heaviest of stomps.
Specification

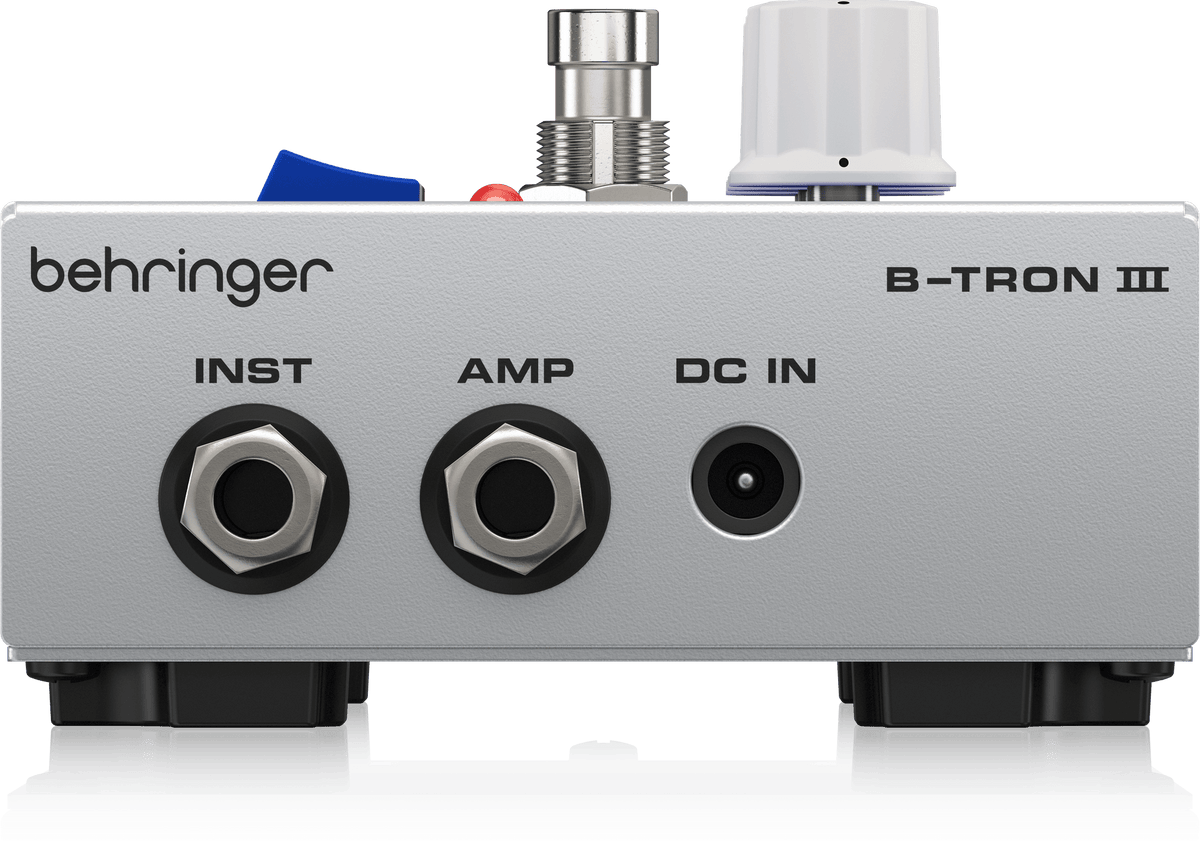

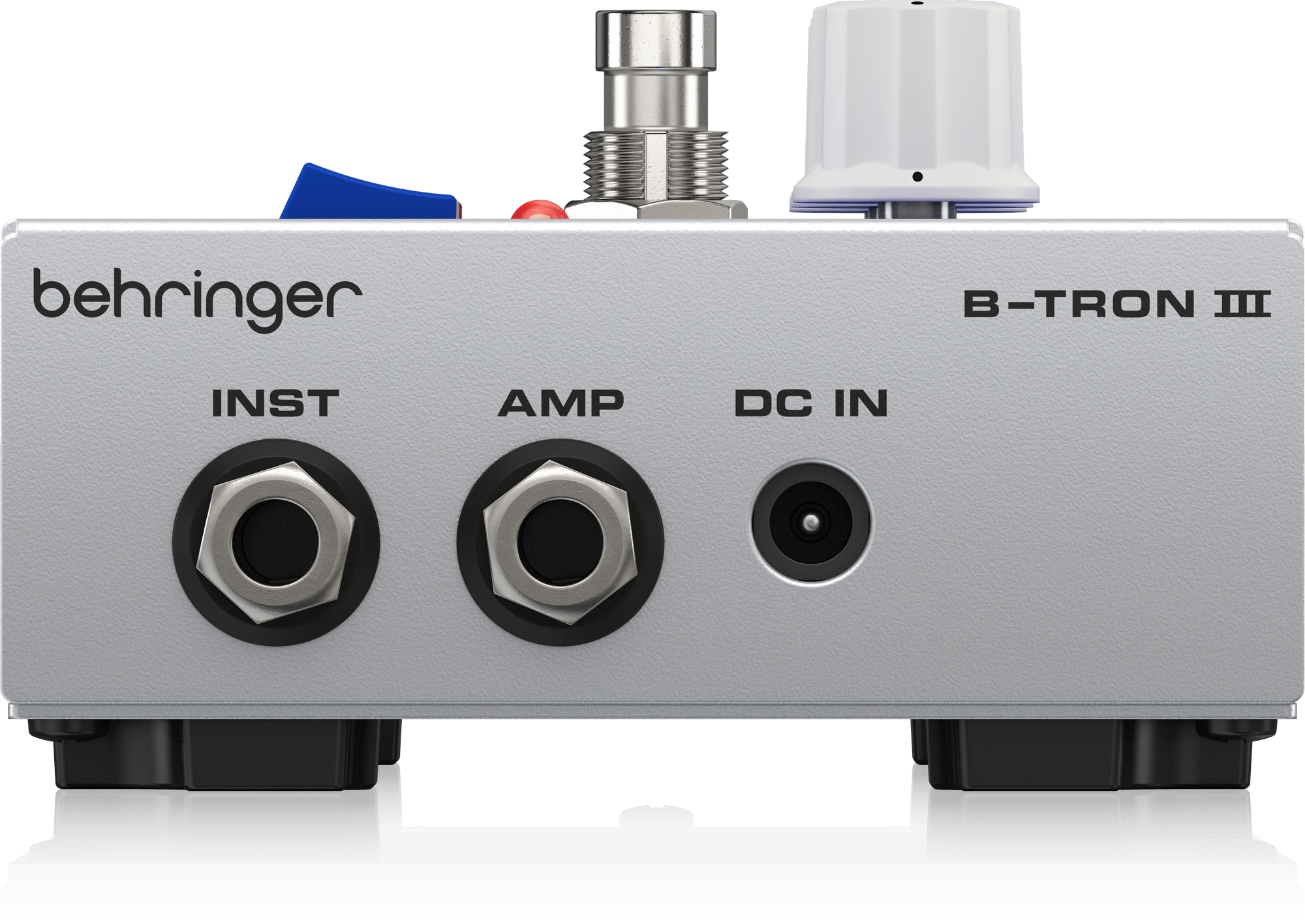

Signal Connections
| Instrument input |
1 x 1/4" TS jack, unbalanced |
| Impedance |
1 MΩ , unbalanced |
| Maximum input level |
+30 dBu |
| Amp output |
1 x 1/4" TS jack, unbalanced |
| Impedance |
<600 Ω, unbalanced |
| Maximum output level |
+13 dBu |
Controls
| Mode |
1 x rotary 3-way switch Lo-Pass/Band Pass/Hi-Pass, switchable |
| Peak |
1 x rotary knob |
| Shape (Q) |
1.5 to 14, adjustable |
| Gain |
1 x rotary knob |
| Max. gain |
+40 dB |
| Range |
1 x rocker switch Low/High, switchable |
| Drive |
1 x rocker switch Down/Up, switchable |
| Power |
1 x rocker switch Off/On, switchable |
Power Supply
| Power supply |
External adapter |
| Power input |
Standard 9 V DC, center negative, >100 mA |
| Power consumption |
0.25 W |
Dimensions / Weight
| Dimensions (H x W x D) |
61 x 100 x 171 mm (2.41 x 3.94 x 6.73") |
| Weight |
0.68 kg (1.5 lbs) |

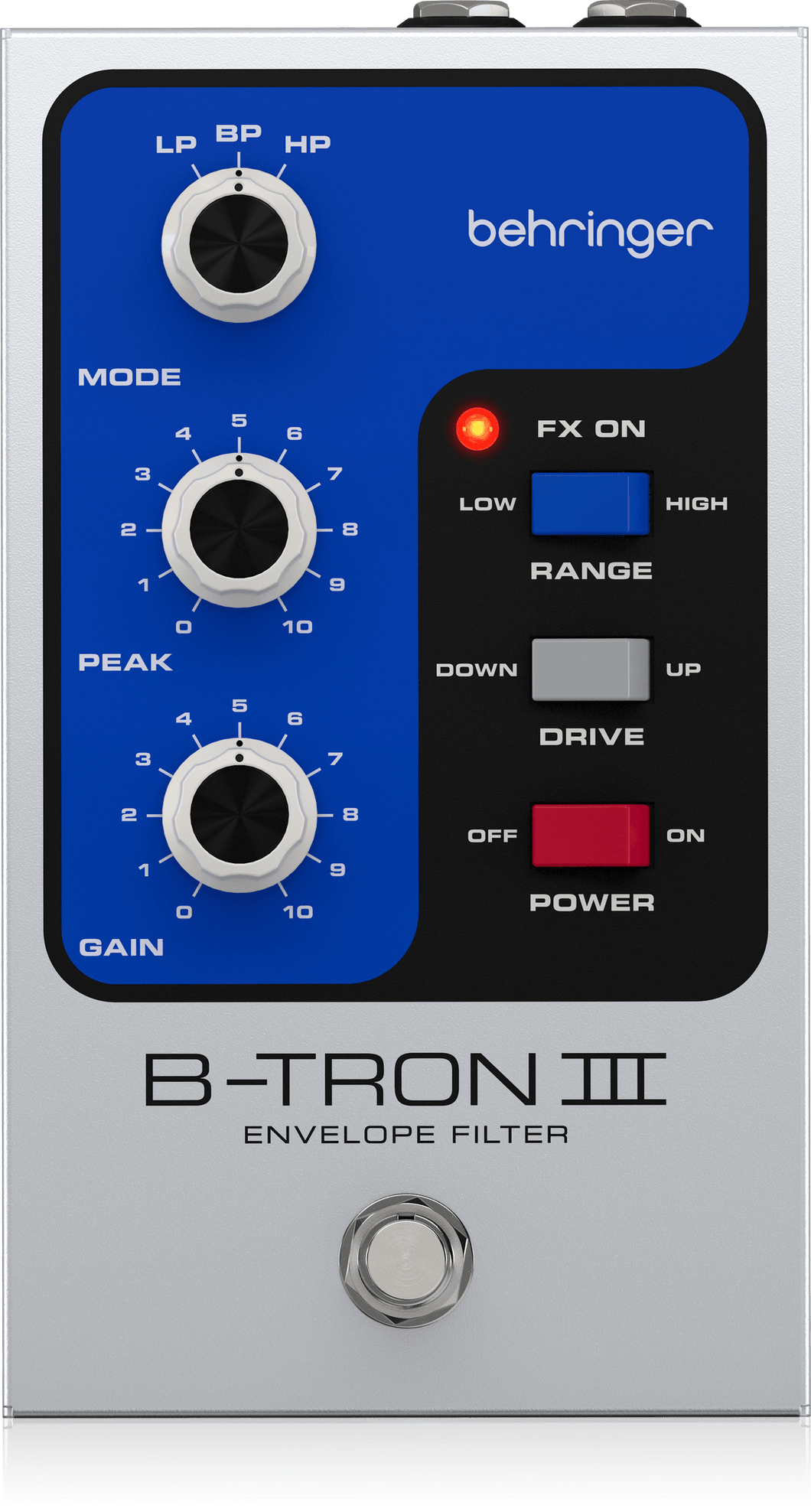

B-TRON III ENVELOPE FILTER
