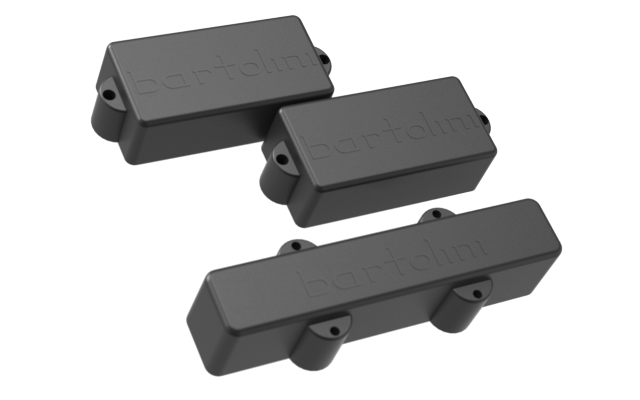

4-String Classic PJ-Bass – 8CBP + 9CBJD
Power, clarity, and articulation for your P-bass neck pickup and rich, deep, hum-free voice with high-end clarity and warmth for your J-Bass bridge pickup
Our Classic P-Bass® pickups have enhanced treble response and narrower apertures for more incisive attack and focused sound without harshness. This P-J set is designed for players who need P and J voices in one instrument. The P neck pickup has a higher output than the J bridge pickup in the same way as a P-Bass has higher output than a J-Bass.
We often hear from bass players after upgrading who say they had no idea their bass could sound so good. When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. They are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.
If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses.
Details
8CBP + 9CBJD Technical Details
Wiring Diagram PDF
8CBP Coil Specs
- DC Resistance: ~9.2KΩ
- Resonant Frequency: ~4.6KHz
- Sensing Width: 2.36" [60mm] Max 1.57" [40mm] Min
9CBJD-L1 Bridge
- DC Resistance: ~9.2KΩ
- Resonant Frequency: ~4.4KHz
- Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min
Shape Details
P-Bass
- 2.2" [55.9mm] Long,
- 1.08" [27.4mm] Wide,
- 0.69" [17.5mm] Thick + 0.11" [2.8mm] Cable
- 2 Standard P Pickup Mounting ears on each part for your #3 or #4 screws
Standard Long J-Bass (-L and -LN)
- 3.6" [91.4mm] Long,
- 0.73" [18.5mm] Wide,
- 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
- 4 Standard J Pickup Mounting ears for your #3 or #4 screws
Bass Series 4-String Precision / Jazz Classic Tone PJ-Bass – 8CBP + 9CBJD
