Legendary Transparent Boost Overdrive with Huge Dynamic Range, Gain on Tap and Soft Clipping Germanium Diodes
-
Legendary overdrive with transparent “amp-like” tone, touch and feel
-
Dual-potentiometer gain control with wide range for boost, overdrive and distortion
-
All analog circuitry with Germanium diodes for soft transitional clipping
-
Stepped up internal voltage provides huge dynamic range
-
Treble control for custom tailoring high frequencies
-
Discrete buffered true bypass avoids high-frequency loss from long cable runs
-
Robust housing with authentic vintage styling
-
Runs on 9 V battery or Behringer PSU-SB DC power supply (not included)
Specification

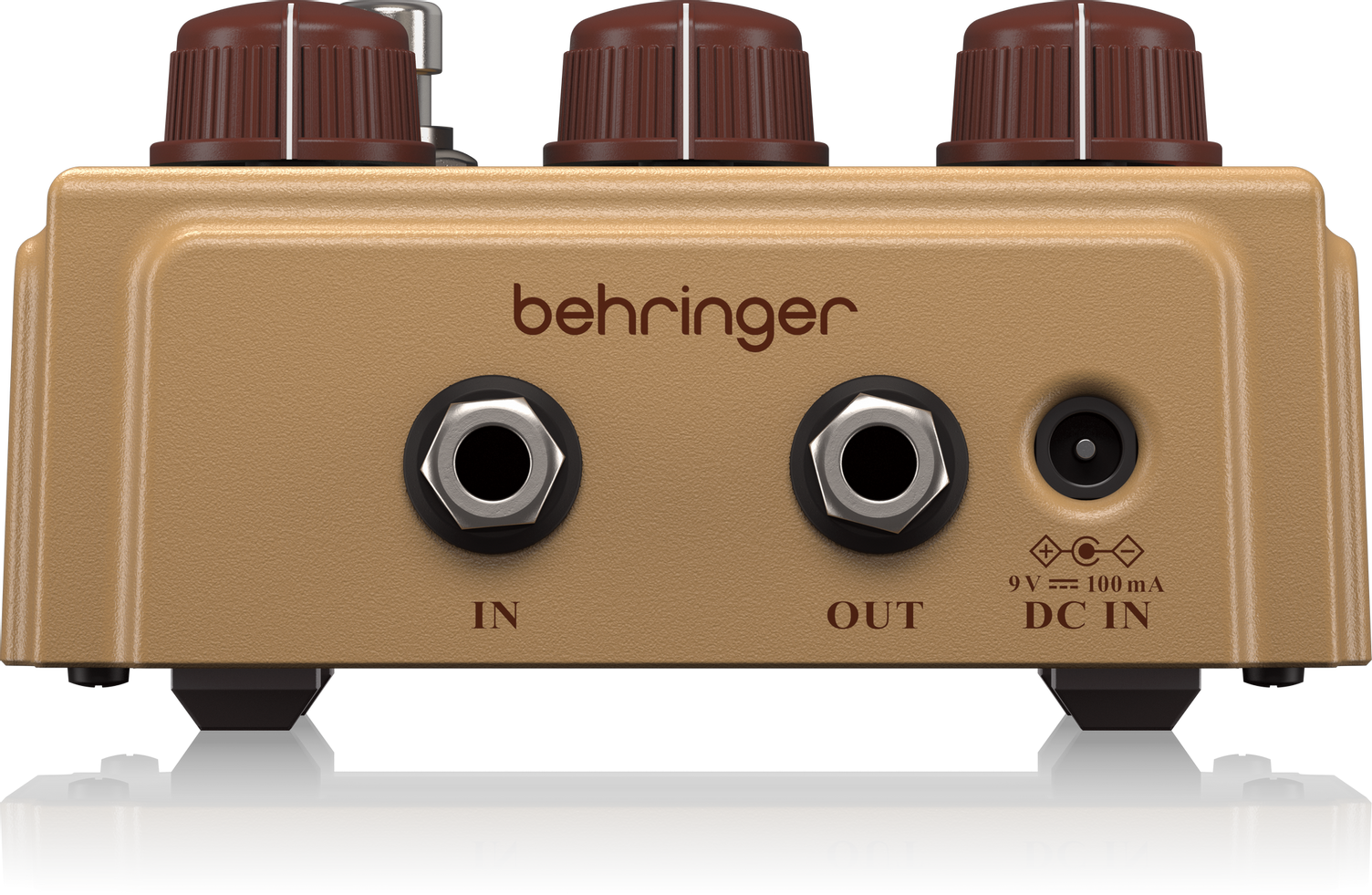

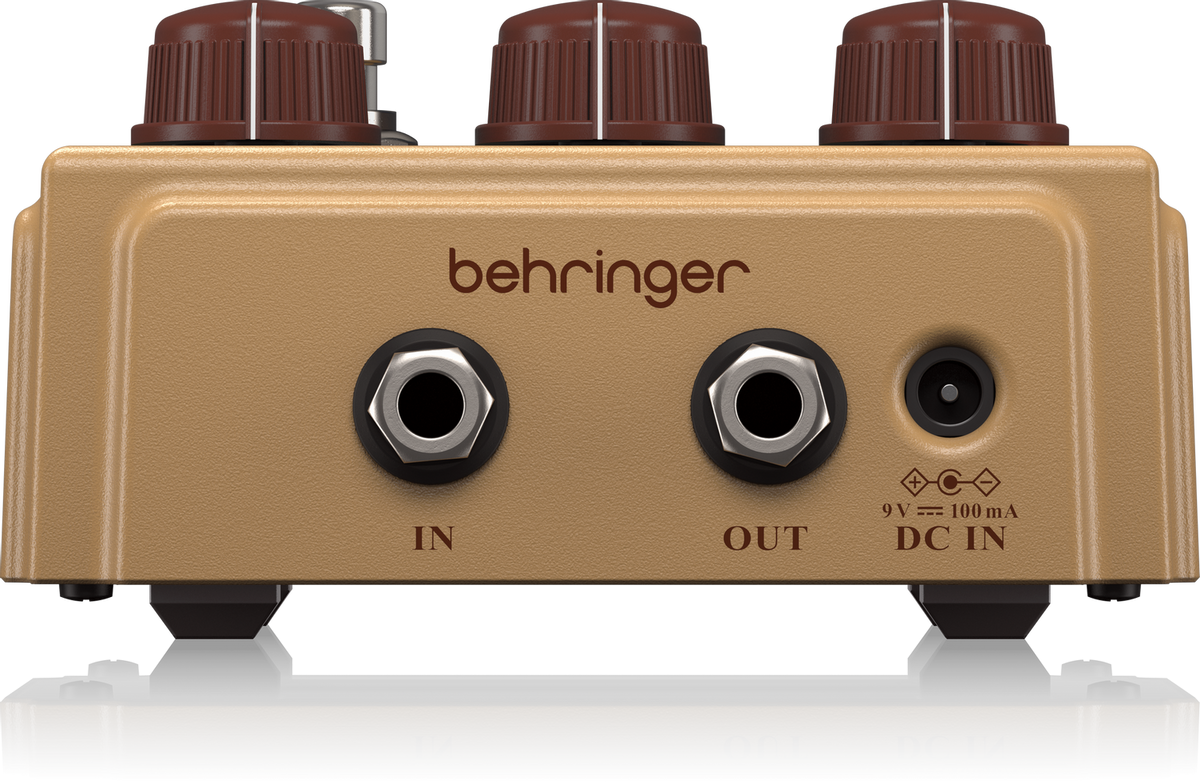

Connections
| In |
Connector: 1 x 1/4" TS, unbalanced Impedance: 1300 kΩ |
| Out |
Connector: 1 x 1/4" TS, unbalanced Output impedance: 0.56 kΩ |
Controls
| Gain |
1 x rotary knob, dual-ganged pot |
| Treble |
1 x rotary knob ±12 dB @ 3 kHz |
| Output |
1 x rotary knob |
| Maximum output gain |
41 dB |
| Effect on / of |
1 x footswitch |
System
| Bypass mode |
Buffered bypass |
| Frequency response |
20 Hz to 20 kHz (+0 / -0.3 dB) |
| Dynamic range |
> 68 dB, 20 Hz to 20 kHz |
| Signal-to-noise ratio |
> 60 dB |
ZENTARA OVERDRIVE
Legendary Transparent Boost Overdrive with Huge Dynamic Range, Gain on Tap and Soft Clipping Germanium Diodes
-
Legendary overdrive with transparent “amp-like” tone, touch and feel
-
Dual-potentiometer gain control with wide range for boost, overdrive and distortion
-
All analog circuitry with Germanium diodes for soft transitional clipping
-
Stepped up internal voltage provides huge dynamic range
-
Treble control for custom tailoring high frequencies
-
Discrete buffered true bypass avoids high-frequency loss from long cable runs
-
Robust housing with authentic vintage styling
-
Runs on 9 V battery or Behringer PSU-SB DC power supply (not included)
Specification
Connections
| In |
Connector: 1 x 1/4" TS, unbalanced Impedance: 1300 kΩ |
| Out |
Connector: 1 x 1/4" TS, unbalanced Output impedance: 0.56 kΩ |
Controls
| Gain |
1 x rotary knob, dual-ganged pot |
| Treble |
1 x rotary knob ±12 dB @ 3 kHz |
| Output |
1 x rotary knob |
| Maximum output gain |
41 dB |
| Effect on / of |
1 x footswitch |
System
| Bypass mode |
Buffered bypass |
| Frequency response |
20 Hz to 20 kHz (+0 / -0.3 dB) |
| Dynamic range |
> 68 dB, 20 Hz to 20 kHz |
| Signal-to-noise ratio |
> 60 dB |
Legendary Transparent Boost Overdrive with Huge Dynamic Range, Gain on Tap and Soft Clipping Germanium Diodes
-
Legendary overdrive with transparent “amp-like” tone, touch and feel
-
Dual-potentiometer gain control with wide range for boost, overdrive and distortion
-
All analog circuitry with Germanium diodes for soft transitional clipping
-
Stepped up internal voltage provides huge dynamic range
-
Treble control for custom tailoring high frequencies
-
Discrete buffered true bypass avoids high-frequency loss from long cable runs
-
Robust housing with authentic vintage styling
-
Runs on 9 V battery or Behringer PSU-SB DC power supply (not included)
Specification
Connections
| In |
Connector: 1 x 1/4" TS, unbalanced Impedance: 1300 kΩ |
| Out |
Connector: 1 x 1/4" TS, unbalanced Output impedance: 0.56 kΩ |
Controls
| Gain |
1 x rotary knob, dual-ganged pot |
| Treble |
1 x rotary knob ±12 dB @ 3 kHz |
| Output |
1 x rotary knob |
| Maximum output gain |
41 dB |
| Effect on / of |
1 x footswitch |
System
| Bypass mode |
Buffered bypass |
| Frequency response |
20 Hz to 20 kHz (+0 / -0.3 dB) |
| Dynamic range |
> 68 dB, 20 Hz to 20 kHz |
| Signal-to-noise ratio |
> 60 dB |
