600 Watt 2 Way 10" Full Range Powered Loudspeaker with Klark Teknik DSP Technology for Portable PA and Installation Applications
Product Features
  • 2 way full range powered loudspeaker for portable PA and installation applications

  • 600 Watt power featuring Klark Teknik Class-D technology

  • Klark Teknik Digital Signal Processing for total system control

  • High excursion 10" low frequency driver with low mass voice coil for improved transient response

  • 1" high temperature dome compression driver with extended high frequency reproduction

  • Converging elliptical waveguide provides wide dispersion and excellent pattern control

  • Speech/music switch featuring optimised equalisation for voice or music applications

  • Switchable 100 Hz high pass filter for subwoofer integration

  • Lightweight composite enclosure with black finish

  • Rugged powder coated perforated steel mesh grille

  • Dual angle pole mount for accurate audience coverage

  • Multiple internal rigging points for installation applications

  • Designed and engineered in the U.K.

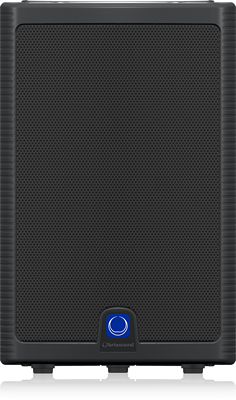

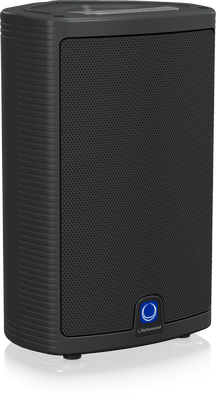

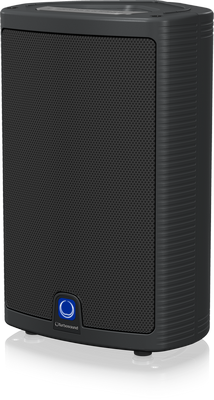

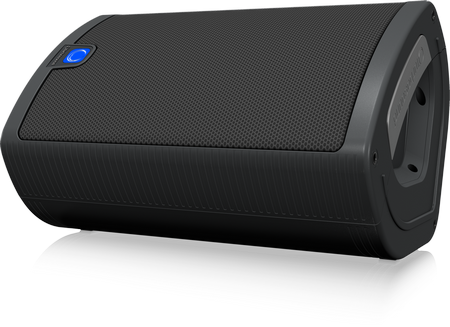

MILAN M 10

          The 600-Watt full range MILAN M 10 is a portable 10" two-way powered loudspeaker featuring: two independent input channels with Mic and Line Inputs, selectable via a Mic/Line switch; a two-band master EQ (Bass, Treble); intelligent Limiting; and a Mix Out function for connecting additional powered loudspeakers for easy system expansion.

          Designed for both portable and permanent install applications, the M 10’s discrete inputs are each equipped with balanced, combination ¼ " jack/ XLR connectors and a Level control, making them ideally suited for a wide range of music sources, from low-impedance microphones, acoustic guitars and keyboards – to mp3 players and mixing consoles.

Class-D - Massive Power, Perfect Sound

          Thanks to our revolutionary Class-D amplifier technology, we are able to provide enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.

600-Watt Output Power

          With its 600 Watts of pristine digital output delivered through separately-powered drivers, courtesy of true bi-amping (two amplifiers per speaker system), the M10 delivers high-resolution sound that brings out the best in your music. While some of our competitors apply simple passive crossovers, which inaccurately separate the frequency spectrum and degrade driver performance, TURBOSOUND has gone the extra distance – driving each woofer and tweeter with a separate amplifier for impeccable signal integrity.

KLARK TEKNIK DSP – the Secret to Superb Sound

          KLARK TEKNIK is recognised worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK′s legendary heritage.

          TURBOSOUND is proud to incorporate custom-engineered KLARK TEKNIK DSP into their products. From the instant your signal enters the MILAN M10, the built-in DSP (Digital Signal Processor) takes over, ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the M10’s 24-bit DSP analyses the incoming signal and intelligently applies specific filters to actually improve the sound quality. It is very much like having an audio engineer monitoring the input and output signals of each M10, dialing in the perfect EQ and constantly making subtle adjustments to the crossover, compressor/limiter and more – which all adds up to significantly better sound.

Specification
Model
Components 1 x 10" LF driver
1 x 1" HF driver

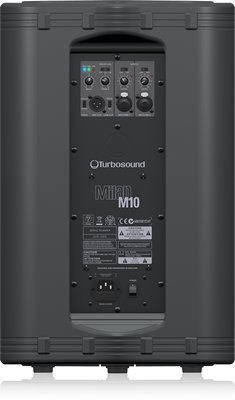

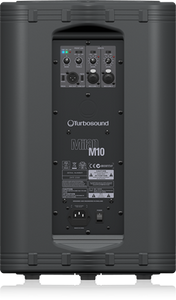

Connectors Mic/Line input: combo jack/female XLR wired pin 2 hot
Mix out: male XLR wired pin 2 hot
IEC mains connector with integrated fuseholder

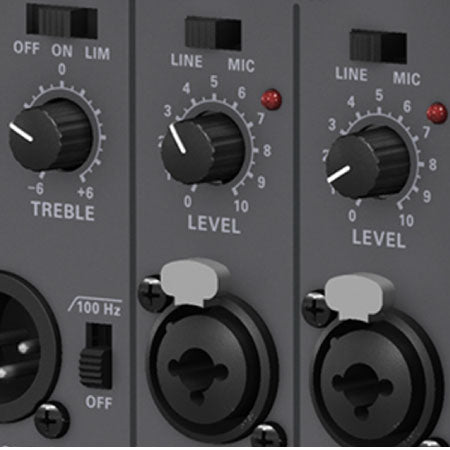

Controls
Controls Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off
System Data
Frequency Range 55 Hz–18 kHz ±3 dB
50 Hz–20 kHz -10 dB
Dispersion @-6 dB pts 90° H x 60° V
Max SPL (peak) 126 dB
Equalisation Bass: ±6 dB @ 80 Hz
Treble: ±6 dB @ 12 kHz
Boost Frequency N/A
Indicators
Power LED Blue
Signal LED Green
Limit LED Red
Clip LED Red
Circuit Protection
Amplifier Protection Full short circuit, open circuit, thermal
LF/HF Driver
Max Output Power LF: 500 W HF: 100 W
Audio Inputs
Input Sensitivity Mic: -32 dBu; Line: -2 dBu
Input Impedance Mic: 560 O unbalanced, 1 kO balanced; Line: 20 kO unbalanced, 40 kO balanced
Power Supply, Voltage (Fuses)
USA / Canada 100–120 V~, T 6.3 A H 250 V
UK / Australia / Europe 220–240 V~, T 3.15 A H 250 V
China 220–240 V~, T 3.15 A H 250 V
Japan 100–120 V~, T 6.3 A H 250 V
Power consumption@ 1/8 max power 80 W
Rigging options 6 x M10 threaded internal rigging points
Construction / Dimensions / Weight
Construction Injection-moulded polypropylene enclosure. Recessed carrying handles. Integral dual-angle pole mount socket. Powder coated galvanised perforated steel mesh grille with foam backing
Dimensions (H x W x D) 522 x 329 x 294 mm (20.6 x 13 x 11.6")
Net weight 13.3 kg (29.3 lbs)
Best Seller
Turbosound

M10 Active

Regular price
Sale price
16,000 ฿
Unit price
per
In Stock

DESCRIPTION

600 Watt 2 Way 10" Full Range Powered Loudspeaker with Klark Teknik DSP Technology for Portable PA and Installation Applications
Product Features
  • 2 way full range powered loudspeaker for portable PA and installation applications

  • 600 Watt power featuring Klark Teknik Class-D technology

  • Klark Teknik Digital Signal Processing for total system control

  • High excursion 10" low frequency driver with low mass voice coil for improved transient response

  • 1" high temperature dome compression driver with extended high frequency reproduction

  • Converging elliptical waveguide provides wide dispersion and excellent pattern control

  • Speech/music switch featuring optimised equalisation for voice or music applications

  • Switchable 100 Hz high pass filter for subwoofer integration

  • Lightweight composite enclosure with black finish

  • Rugged powder coated perforated steel mesh grille

  • Dual angle pole mount for accurate audience coverage

  • Multiple internal rigging points for installation applications

  • Designed and engineered in the U.K.

MILAN M 10

          The 600-Watt full range MILAN M 10 is a portable 10" two-way powered loudspeaker featuring: two independent input channels with Mic and Line Inputs, selectable via a Mic/Line switch; a two-band master EQ (Bass, Treble); intelligent Limiting; and a Mix Out function for connecting additional powered loudspeakers for easy system expansion.

          Designed for both portable and permanent install applications, the M 10’s discrete inputs are each equipped with balanced, combination ¼ " jack/ XLR connectors and a Level control, making them ideally suited for a wide range of music sources, from low-impedance microphones, acoustic guitars and keyboards – to mp3 players and mixing consoles.

Class-D - Massive Power, Perfect Sound

          Thanks to our revolutionary Class-D amplifier technology, we are able to provide enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.

600-Watt Output Power

          With its 600 Watts of pristine digital output delivered through separately-powered drivers, courtesy of true bi-amping (two amplifiers per speaker system), the M10 delivers high-resolution sound that brings out the best in your music. While some of our competitors apply simple passive crossovers, which inaccurately separate the frequency spectrum and degrade driver performance, TURBOSOUND has gone the extra distance – driving each woofer and tweeter with a separate amplifier for impeccable signal integrity.

KLARK TEKNIK DSP – the Secret to Superb Sound

          KLARK TEKNIK is recognised worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK′s legendary heritage.

          TURBOSOUND is proud to incorporate custom-engineered KLARK TEKNIK DSP into their products. From the instant your signal enters the MILAN M10, the built-in DSP (Digital Signal Processor) takes over, ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the M10’s 24-bit DSP analyses the incoming signal and intelligently applies specific filters to actually improve the sound quality. It is very much like having an audio engineer monitoring the input and output signals of each M10, dialing in the perfect EQ and constantly making subtle adjustments to the crossover, compressor/limiter and more – which all adds up to significantly better sound.

Specification
Model
Components 1 x 10" LF driver
1 x 1" HF driver
Connectors Mic/Line input: combo jack/female XLR wired pin 2 hot
Mix out: male XLR wired pin 2 hot
IEC mains connector with integrated fuseholder
Controls
Controls Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off
System Data
Frequency Range 55 Hz–18 kHz ±3 dB
50 Hz–20 kHz -10 dB
Dispersion @-6 dB pts 90° H x 60° V
Max SPL (peak) 126 dB
Equalisation Bass: ±6 dB @ 80 Hz
Treble: ±6 dB @ 12 kHz
Boost Frequency N/A
Indicators
Power LED Blue
Signal LED Green
Limit LED Red
Clip LED Red
Circuit Protection
Amplifier Protection Full short circuit, open circuit, thermal
LF/HF Driver
Max Output Power LF: 500 W HF: 100 W
Audio Inputs
Input Sensitivity Mic: -32 dBu; Line: -2 dBu
Input Impedance Mic: 560 O unbalanced, 1 kO balanced; Line: 20 kO unbalanced, 40 kO balanced
Power Supply, Voltage (Fuses)
USA / Canada 100–120 V~, T 6.3 A H 250 V
UK / Australia / Europe 220–240 V~, T 3.15 A H 250 V
China 220–240 V~, T 3.15 A H 250 V
Japan 100–120 V~, T 6.3 A H 250 V
Power consumption@ 1/8 max power 80 W
Rigging options 6 x M10 threaded internal rigging points
Construction / Dimensions / Weight
Construction Injection-moulded polypropylene enclosure. Recessed carrying handles. Integral dual-angle pole mount socket. Powder coated galvanised perforated steel mesh grille with foam backing
Dimensions (H x W x D) 522 x 329 x 294 mm (20.6 x 13 x 11.6")
Net weight 13.3 kg (29.3 lbs)

600 Watt 2 Way 10" Full Range Powered Loudspeaker with Klark Teknik DSP Technology for Portable PA and Installation Applications
Product Features
  • 2 way full range powered loudspeaker for portable PA and installation applications

  • 600 Watt power featuring Klark Teknik Class-D technology

  • Klark Teknik Digital Signal Processing for total system control

  • High excursion 10" low frequency driver with low mass voice coil for improved transient response

  • 1" high temperature dome compression driver with extended high frequency reproduction

  • Converging elliptical waveguide provides wide dispersion and excellent pattern control

  • Speech/music switch featuring optimised equalisation for voice or music applications

  • Switchable 100 Hz high pass filter for subwoofer integration

  • Lightweight composite enclosure with black finish

  • Rugged powder coated perforated steel mesh grille

  • Dual angle pole mount for accurate audience coverage

  • Multiple internal rigging points for installation applications

  • Designed and engineered in the U.K.

MILAN M 10

          The 600-Watt full range MILAN M 10 is a portable 10" two-way powered loudspeaker featuring: two independent input channels with Mic and Line Inputs, selectable via a Mic/Line switch; a two-band master EQ (Bass, Treble); intelligent Limiting; and a Mix Out function for connecting additional powered loudspeakers for easy system expansion.

          Designed for both portable and permanent install applications, the M 10’s discrete inputs are each equipped with balanced, combination ¼ " jack/ XLR connectors and a Level control, making them ideally suited for a wide range of music sources, from low-impedance microphones, acoustic guitars and keyboards – to mp3 players and mixing consoles.

Class-D - Massive Power, Perfect Sound

          Thanks to our revolutionary Class-D amplifier technology, we are able to provide enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.

600-Watt Output Power

          With its 600 Watts of pristine digital output delivered through separately-powered drivers, courtesy of true bi-amping (two amplifiers per speaker system), the M10 delivers high-resolution sound that brings out the best in your music. While some of our competitors apply simple passive crossovers, which inaccurately separate the frequency spectrum and degrade driver performance, TURBOSOUND has gone the extra distance – driving each woofer and tweeter with a separate amplifier for impeccable signal integrity.

KLARK TEKNIK DSP – the Secret to Superb Sound

          KLARK TEKNIK is recognised worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK′s legendary heritage.

          TURBOSOUND is proud to incorporate custom-engineered KLARK TEKNIK DSP into their products. From the instant your signal enters the MILAN M10, the built-in DSP (Digital Signal Processor) takes over, ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the M10’s 24-bit DSP analyses the incoming signal and intelligently applies specific filters to actually improve the sound quality. It is very much like having an audio engineer monitoring the input and output signals of each M10, dialing in the perfect EQ and constantly making subtle adjustments to the crossover, compressor/limiter and more – which all adds up to significantly better sound.

Specification
Model
Components 1 x 10" LF driver
1 x 1" HF driver
Connectors Mic/Line input: combo jack/female XLR wired pin 2 hot
Mix out: male XLR wired pin 2 hot
IEC mains connector with integrated fuseholder
Controls
Controls Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off
System Data
Frequency Range 55 Hz–18 kHz ±3 dB
50 Hz–20 kHz -10 dB
Dispersion @-6 dB pts 90° H x 60° V
Max SPL (peak) 126 dB
Equalisation Bass: ±6 dB @ 80 Hz
Treble: ±6 dB @ 12 kHz
Boost Frequency N/A
Indicators
Power LED Blue
Signal LED Green
Limit LED Red
Clip LED Red
Circuit Protection
Amplifier Protection Full short circuit, open circuit, thermal
LF/HF Driver
Max Output Power LF: 500 W HF: 100 W
Audio Inputs
Input Sensitivity Mic: -32 dBu; Line: -2 dBu
Input Impedance Mic: 560 O unbalanced, 1 kO balanced; Line: 20 kO unbalanced, 40 kO balanced
Power Supply, Voltage (Fuses)
USA / Canada 100–120 V~, T 6.3 A H 250 V
UK / Australia / Europe 220–240 V~, T 3.15 A H 250 V
China 220–240 V~, T 3.15 A H 250 V
Japan 100–120 V~, T 6.3 A H 250 V
Power consumption@ 1/8 max power 80 W
Rigging options 6 x M10 threaded internal rigging points
Construction / Dimensions / Weight
Construction Injection-moulded polypropylene enclosure. Recessed carrying handles. Integral dual-angle pole mount socket. Powder coated galvanised perforated steel mesh grille with foam backing
Dimensions (H x W x D) 522 x 329 x 294 mm (20.6 x 13 x 11.6")
Net weight 13.3 kg (29.3 lbs)
