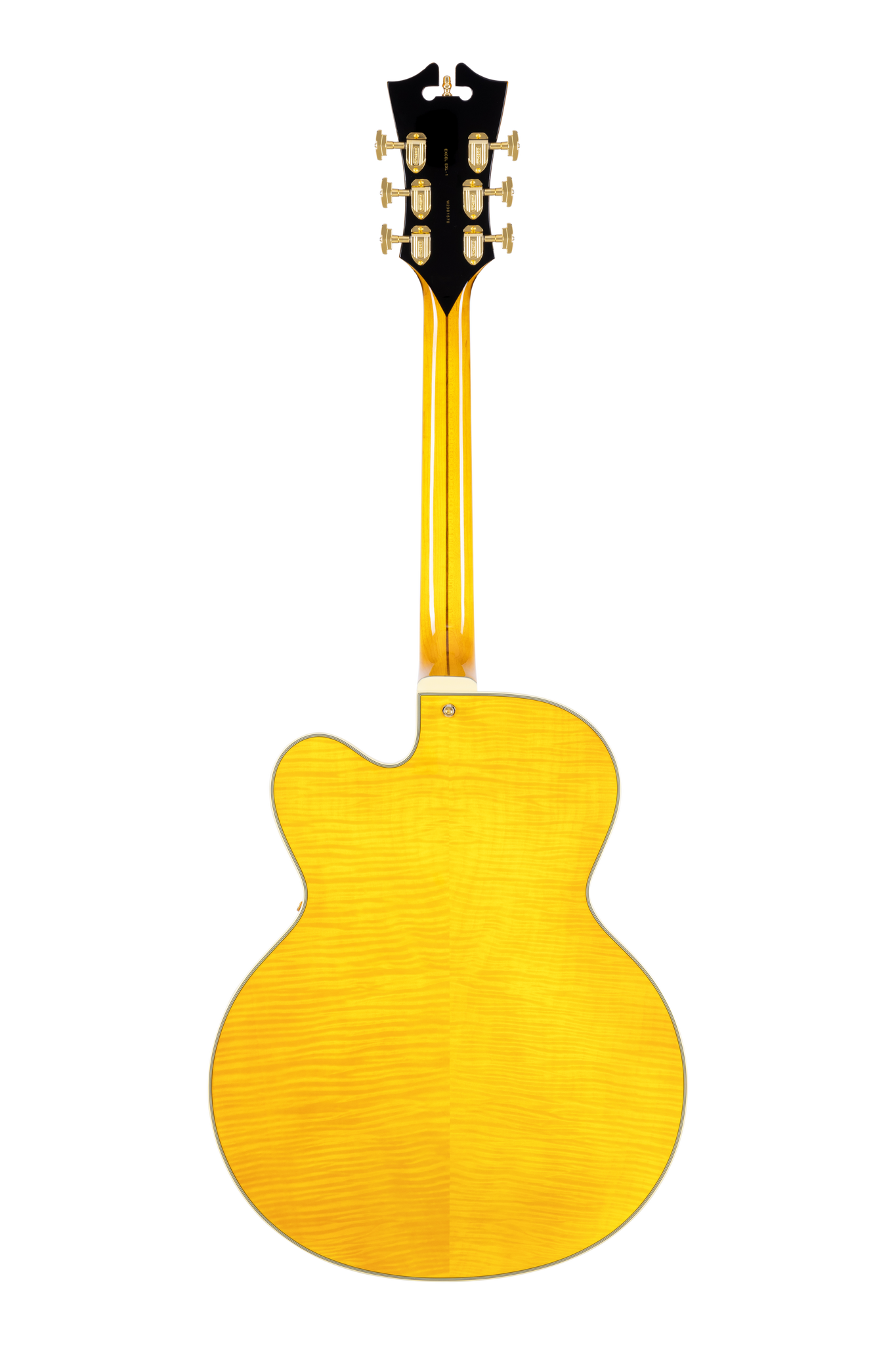

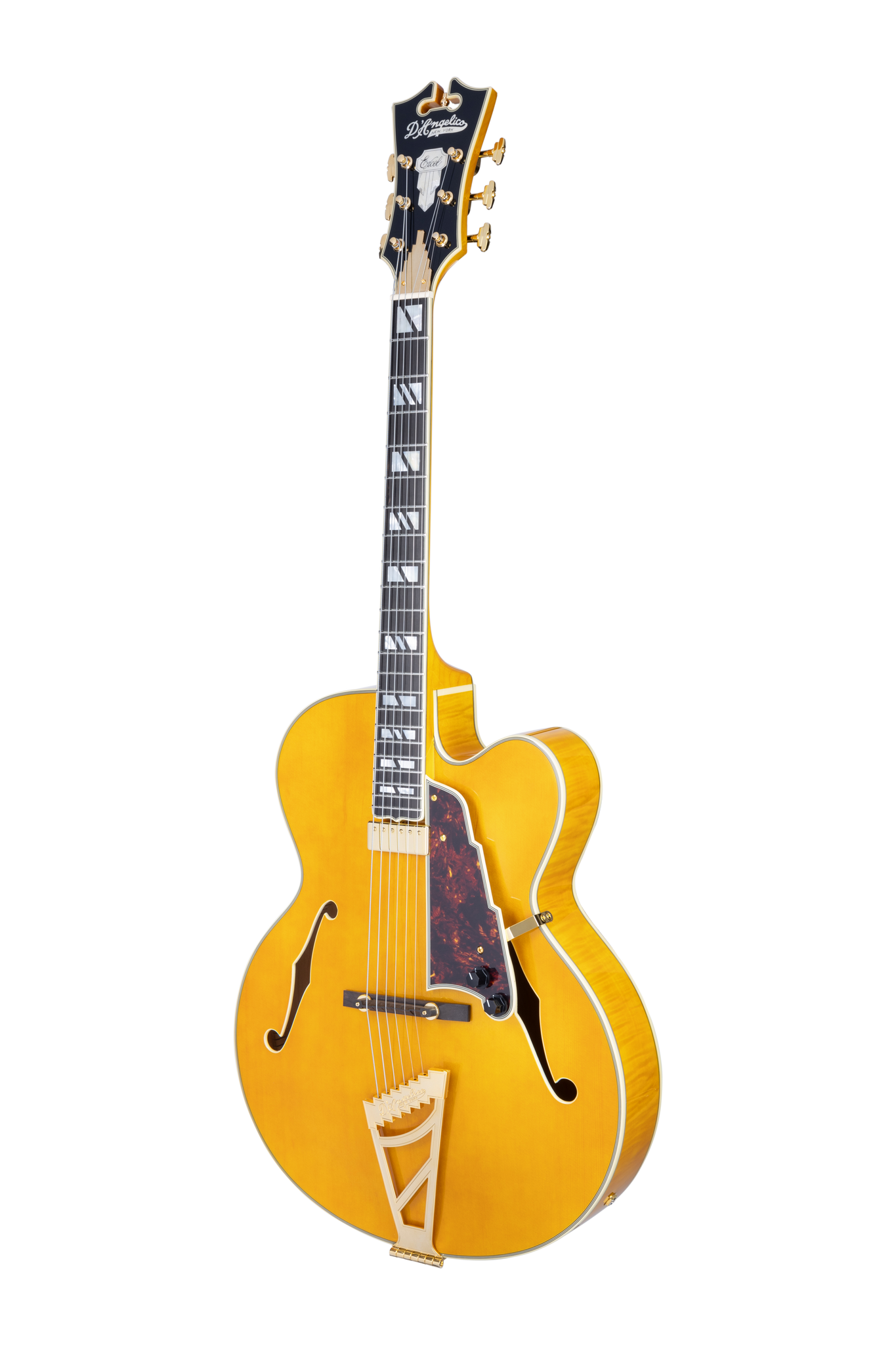

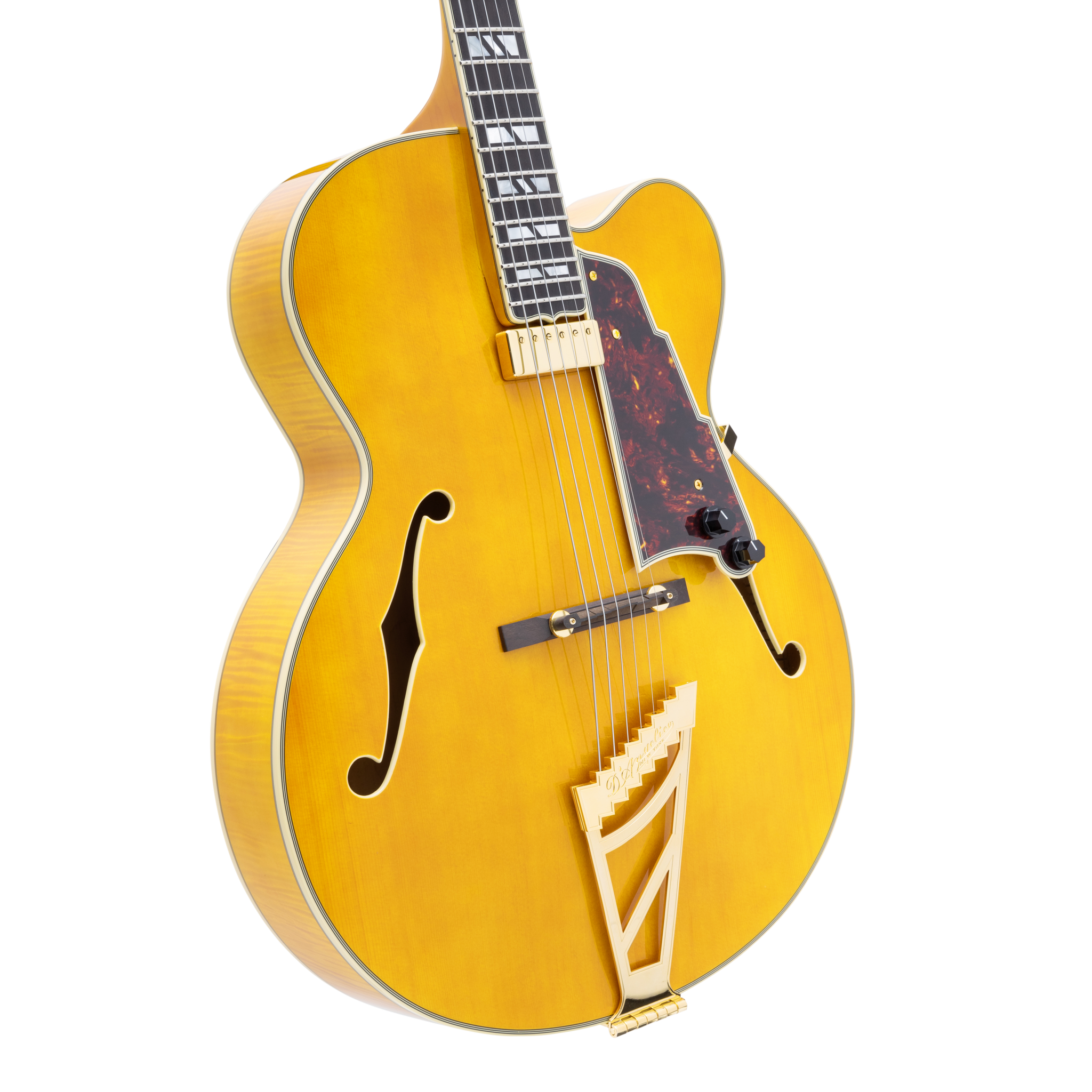

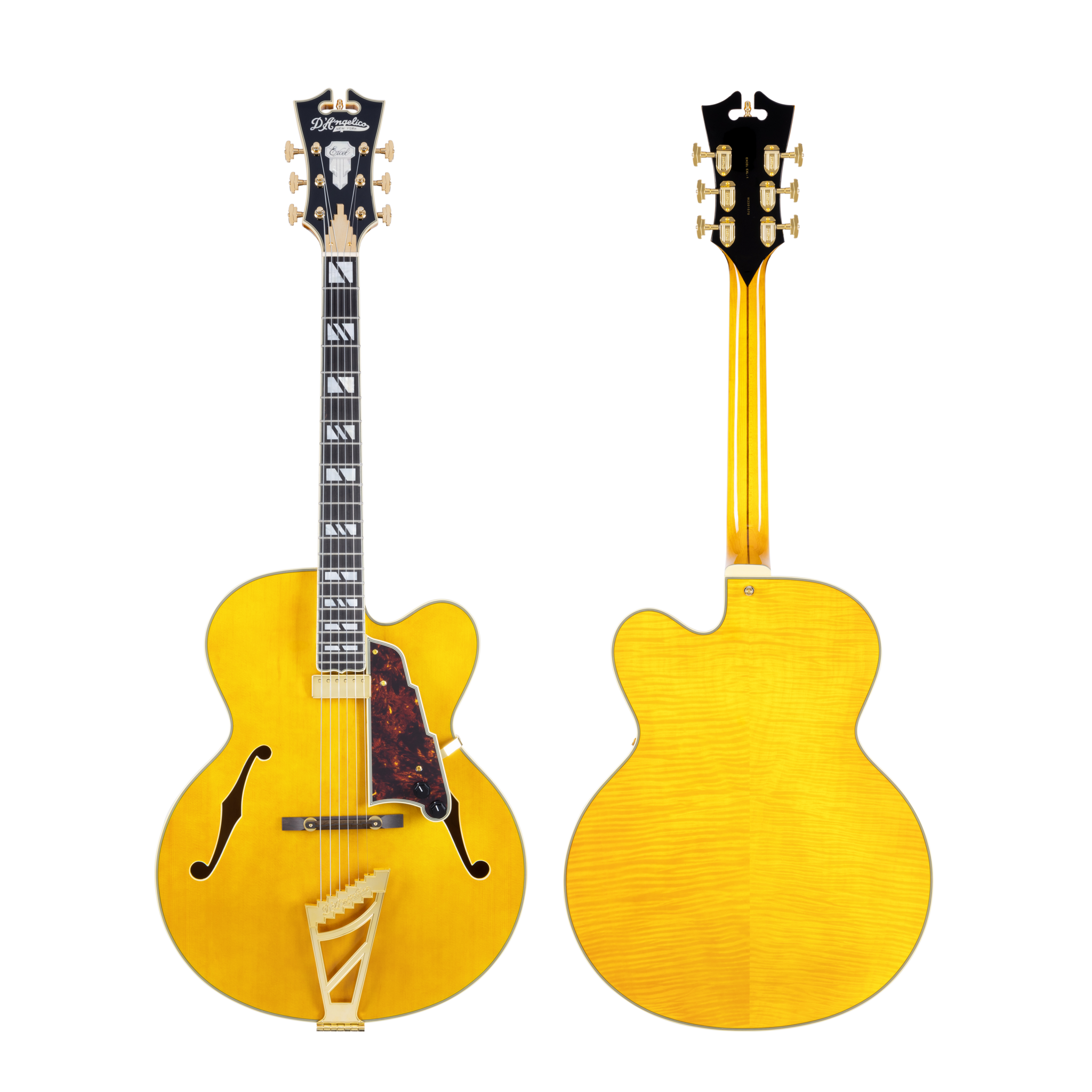

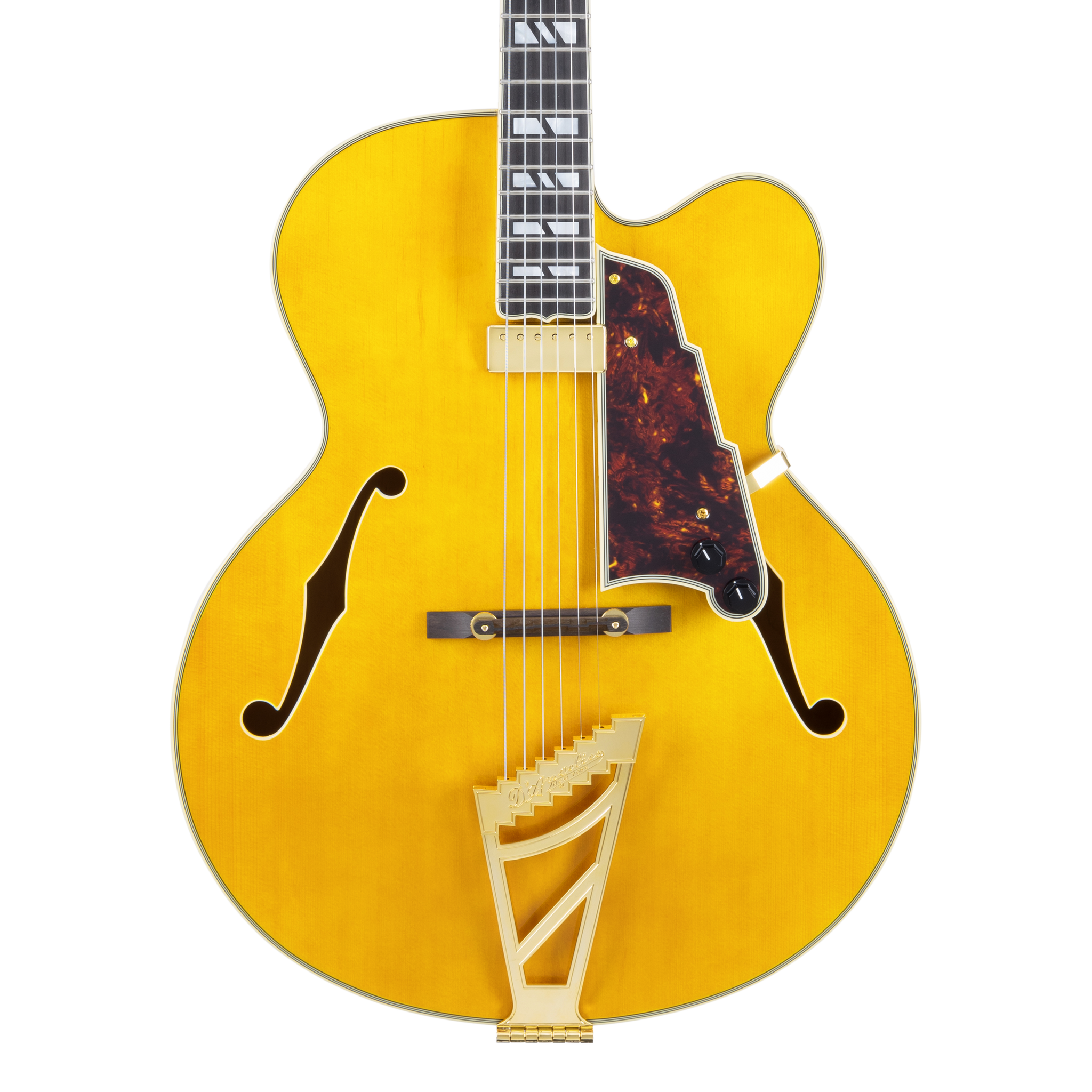

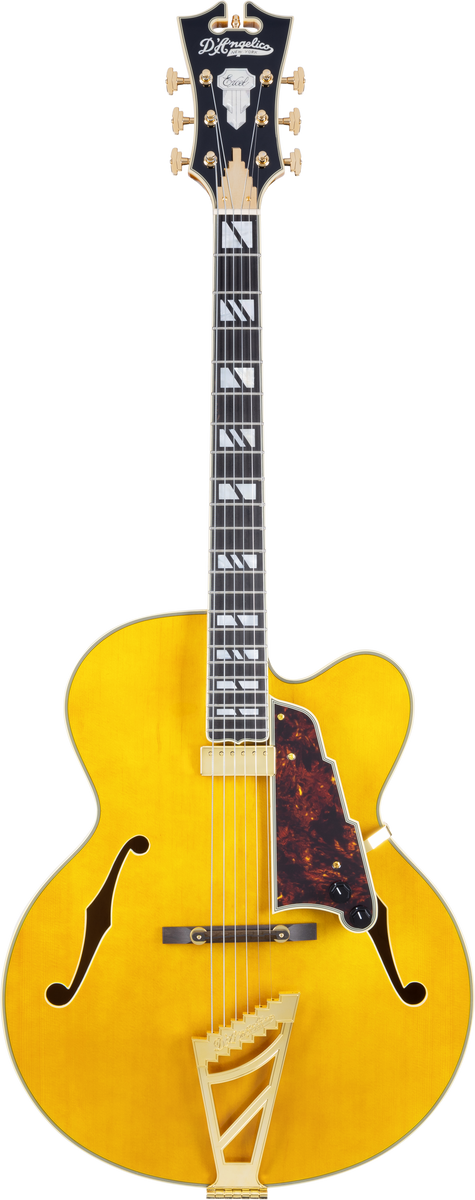

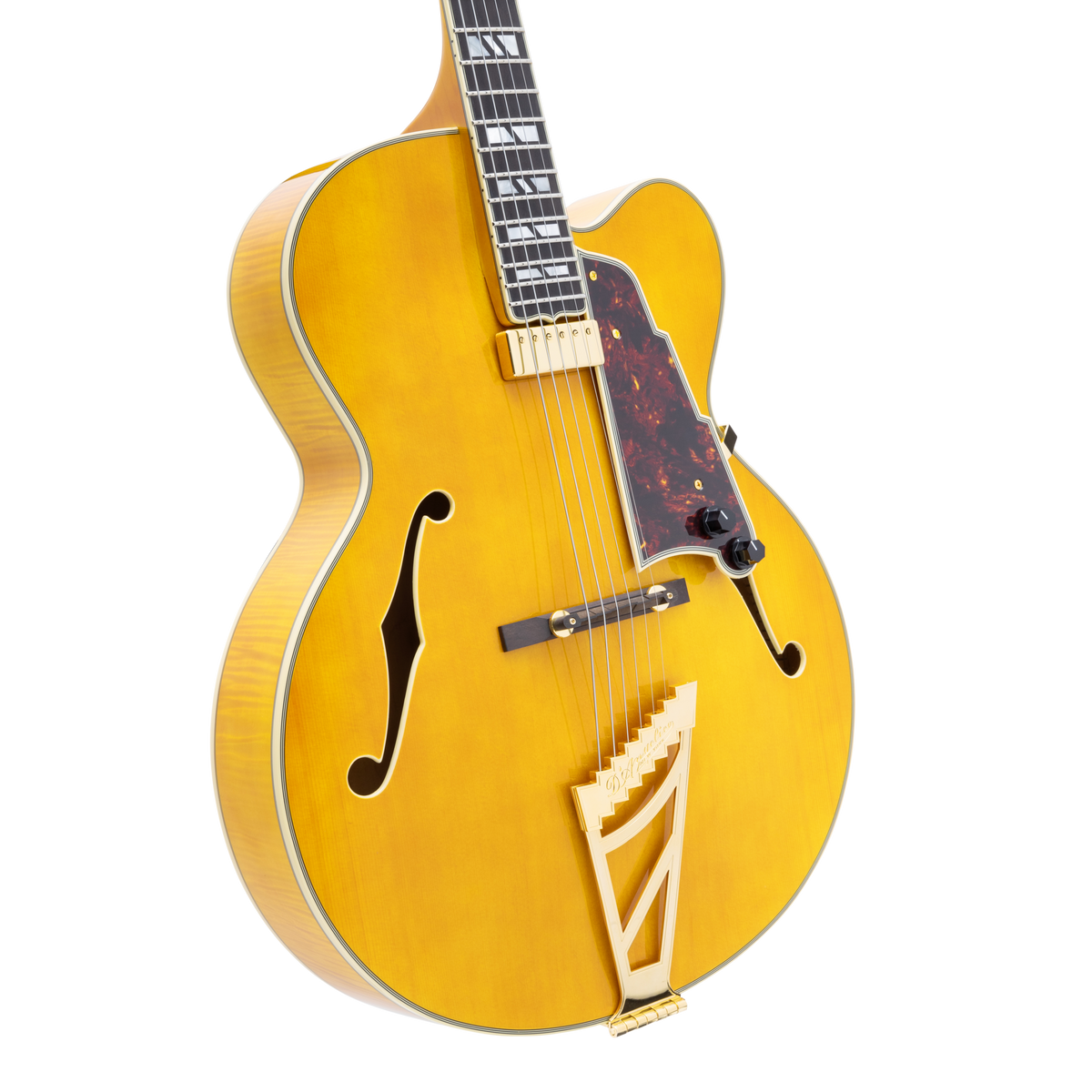

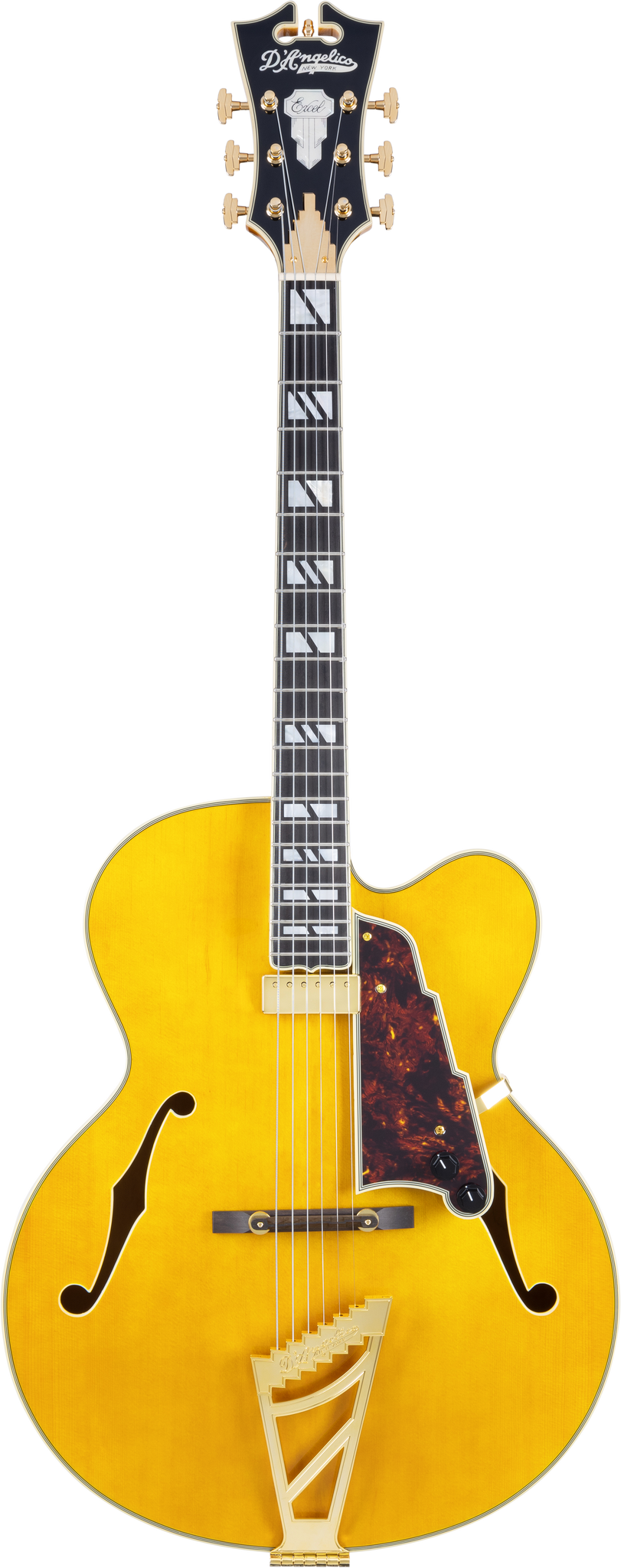

Excel EXL-1, Amber
Legendary Guitars Since 1932

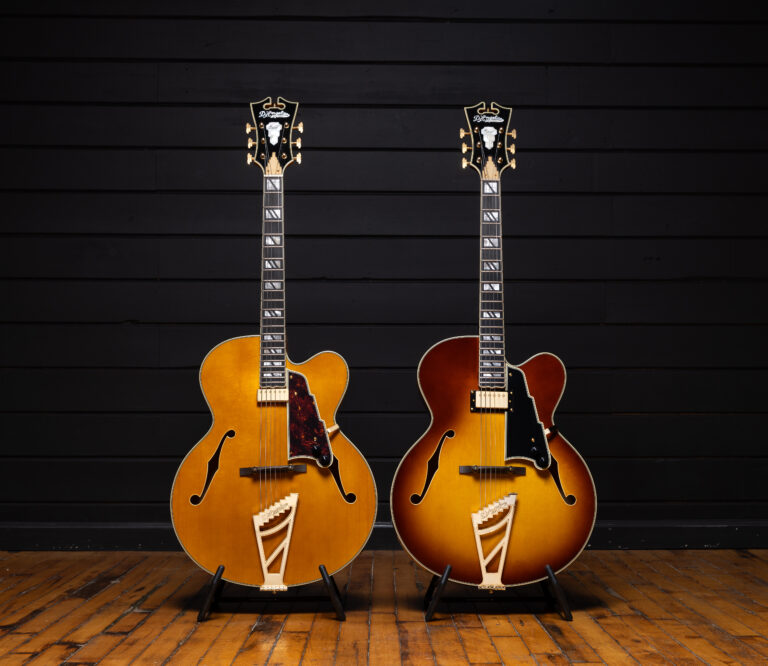

The flagship archtop in the D'Angelico line has returned—now in two colorways with two different pickup configurations. Inspired by John D'Angelico's single-cutaway "Excel" model that was first introduced in 1947, the Excel EXL-1 offers woody, articulate tone, ideal for both rhythm and lead playing. Featuring a redesigned neck shape, the EXL-1 promises the perfect balance of comfort and heft, still prioritizing remarkable mobility but also offering improved handfit. A full-sized Seymour Duncan 59 humbucker yields broad tone with singing sustain, while a Johnny Smith Floating Mini-bucker offers woody, focused tone that prioritizes body top resonance. Features include Grover hardware, an ebony fingerboard, and Jescar fretwire. Available in Dark Iced Tea Burst and Amber.
Specific Model |
Excel EXL-1, Amber | |
SKU |
DAE EXL- 1 AMB GT | |
HARDWARE |
||
Hardware Color |
Gold | |

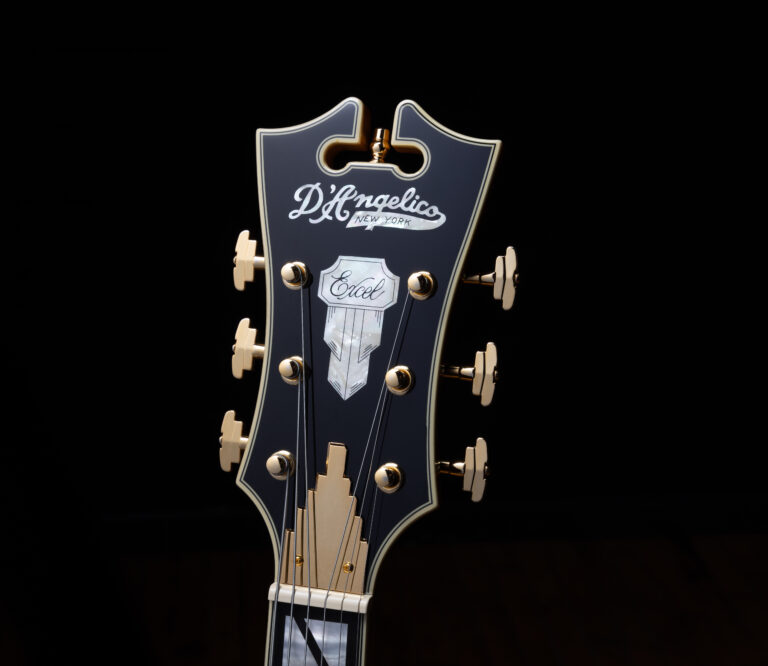

HEADSTOCK |
||
Headstock Shape |
Standard | |
Logo Inlay |
Mother of Pearl D'Angelico New York Logo | |
Series Inlay (Front) |
Mother of Pearl Excel Shield Logo | |
Serial Number (Back) |
Model Name, Serial Number | |
Binding |
3-ply | |
Finish |
Gloss | |
Headpin |
Cupola | |
Tuners |
Grover 150 Imperial | |
Strings |
D'Angelico Electrozinc Jazz 12's (12-52) | |
Truss Rod Cover |
Aluminum Skyscraper | |
Nut Width |
1 11/16” (43mm) | |
Nut Material |
Graphtech NuBone XL | |
FINGERBOARD |
||
Material |
Ebony | |
Binding |
3-ply | |
Fretwire |
Jescar 47/104 Nickel Silver | |
Scale Length |
25.5" | |
Radius |
12" | |
Top Inlay |
Mother of Pearl Split Block | |
Side Marker |
Yes | |
Fret Number |
22 | |
NECK |
||
Material |
3 piece | |
Finish |
Gloss | |
Profile |
C-Shape | |
Joint Type |
Set Neck | |
Thickness |
1F: 21mm, 12F: 23mm | |
Truss Rod |
Dual Action | |
BODY |
||
Body Shape |
Single Cutaway | |
Body Style |
Hollowbody | |
Body Depth |
3" | |
Body Width |
17" | |
Color |
Amber | |
Finish |
Gloss | |
Top Material |
Laminated Spruce | |
Back Material |
Laminated Flame Maple | |
Side Material |
Laminated Flame Maple | |
Binding |
7-ply | |
Bridge |
Floating Ebony Wood | |
Tailpiece |
D’Angelico Stairstep | |
Pickguard |
Tortoise Scalini (5-ply) | |
Back Plate |
N/A | |
Pickup Selector |
N/A | |
Knobs |
2 Mini Hexagon | |
Strap Buttons |
Gold, Locking | |
ELECTRONICS |
||
Overview |
1 Pickguard Mounted Floating Mini Humbucker | |
Controls |
1 volume / 1 tone | |
Pickup (Neck) |
USA Seymour Duncan Johnny Smith Floating Mini Humbucker | |
Pickup (Middle) |
N/A | |
Pickup (Bridge) |
N/A | |
Additional Pickup Information |
Alnico II | |
Pots |
500k | |
Output Jack |
Standard Mono | |
GENERAL |
||
Case |
Deluxe Hardshell | |
LEGENDARY DESIGN
True to John D’Angelico’s legendary design, the Excel EXL-1 is a 17-inch-wide, 3-inch-deep single-cutaway offering rich response and classic mid-century jazz tone.
CLASSIC TONE

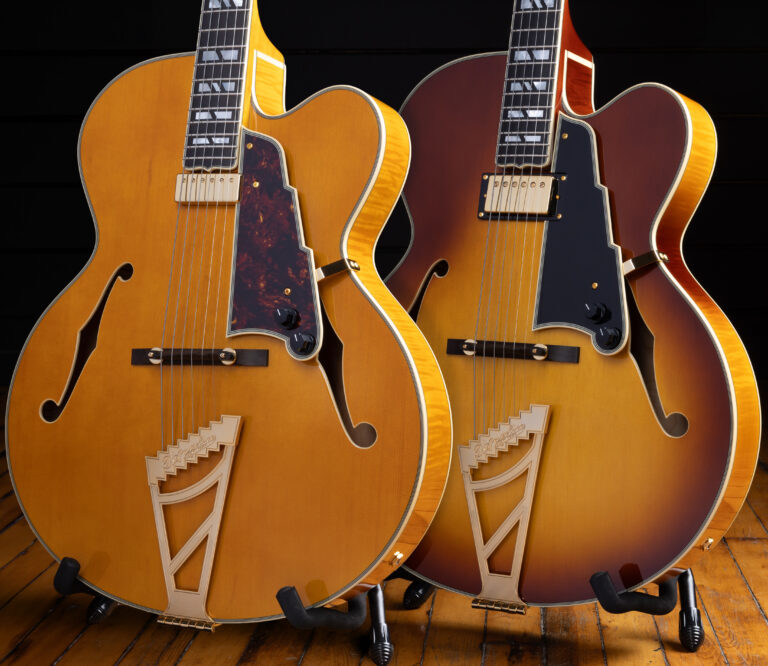

Strapped with either a floating Seymour Duncan Johnny Smith mini-humbucker or a full-sized 59, both options yield classic archtop tone, with warm, woody low end and articulate mids.
PREMIUM FEEL
A comfortable C-shape neck capped with an ebony fingerboard and Jescar fretwire makes for remarkably premium feel up and down the neck.
HISTORY REPEATS
Modeled after John D’Angelico’s preeminent single-cutaway design, the EXL-1 is our flagship archtop for good reason—it has stood the test of time.
