ARTEC SE-3PA Bass
ARTEC SE-3PA Bass
ARTEC SE-3PA Bass
DESCRIPTION

ARTEC SE-3P 3-band EQ Preamp for Active/Passive Pickups

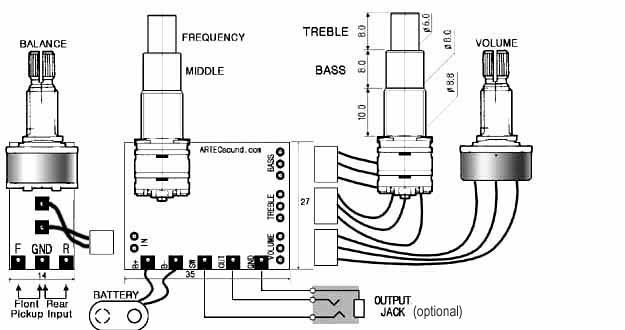

    SE3P features a pre-wired balance control, master volume, Bass and treble on separate potentiometers with the mid band control and Frequency Range Shift on one Concentric Pot.
    Each control pots are designed to connect to PCB by a connector, which make SE3P installation easier and versatile.
    High Impedance Input design can match with any Active and Passive Pickup and also Low Impedance Output will keep the same tone from your guitar to any amplifier system without losing high frequency response.
    Using advanced Surface Mount Technology could reduce unwanted sound (Noise) while increasing sound quality and it's reliability.
    ARTEC guarantees a virtually noiseless sound with long 9 V battery life.
    (more than 2000 hours in continuous use. workable voltage : drop down to 2.2 V).
    SE3P-A features SE3P with Concentric Potentiometer, which is Bass and Treble eq's  on one Concentric pot.

    Application : Electric Basses,  Electric guitars & Piezo pickup equipped instruments.

    Technical Specifications :
    Bass : +/-12 dB at 100 Hz,
    Middle : +/-12 dB at 400 Hz ~ 2 kHz,
    Treble : +/-12 dB at 4 kHz,
    Balance : MN500K Potentiometer
    Current : 0.32 mA
    Voltage range : 6 V ~ 22 V
    Battery : 9 V Alkaline

    SE3PA

    Features :
    - 2 individual pots
      Balance, Volume,
    - 2 Concentric pots
      Bass / Treble
      Middle / Frequency
    - Battery clip
