Premium Analog 10-Input Mixer with 5 Mic Preamps and Optional Battery Operation
-
Ultra-low noise analog mixer for streaming, podcasting and recording
-
2 Award winning XENYX microphone preamps with inserts for external processing
-
3 Award winning XENYX microphone preamps with stereo line inputs
-
1 dedicated stereo line input channel
-
Analog mixing and 3-band equalization for pure sound
-
Optional battery operation for mobile recording (9V batteries not included)
-
60-mm faders for accurate level control
-
Phantom power for use with condenser microphones
-
Post Fader FX send control per channel for using external effects processors
-
Pre EQ Monitor send control per channel for an independent monitoring mix
-
High-quality monitoring, headphones, and streaming outputs

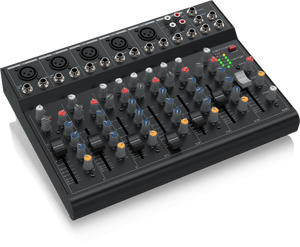

XENYX 1003B

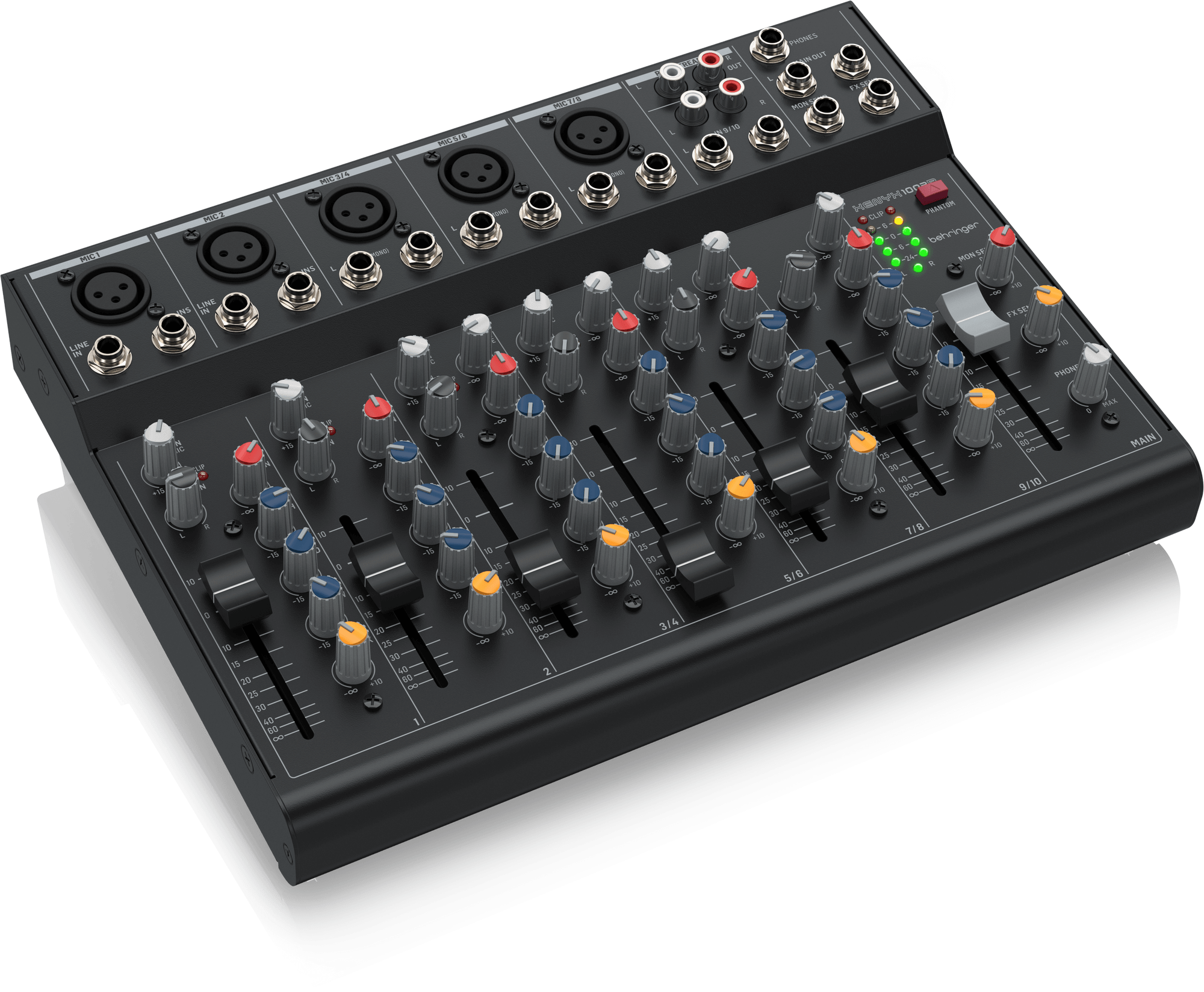

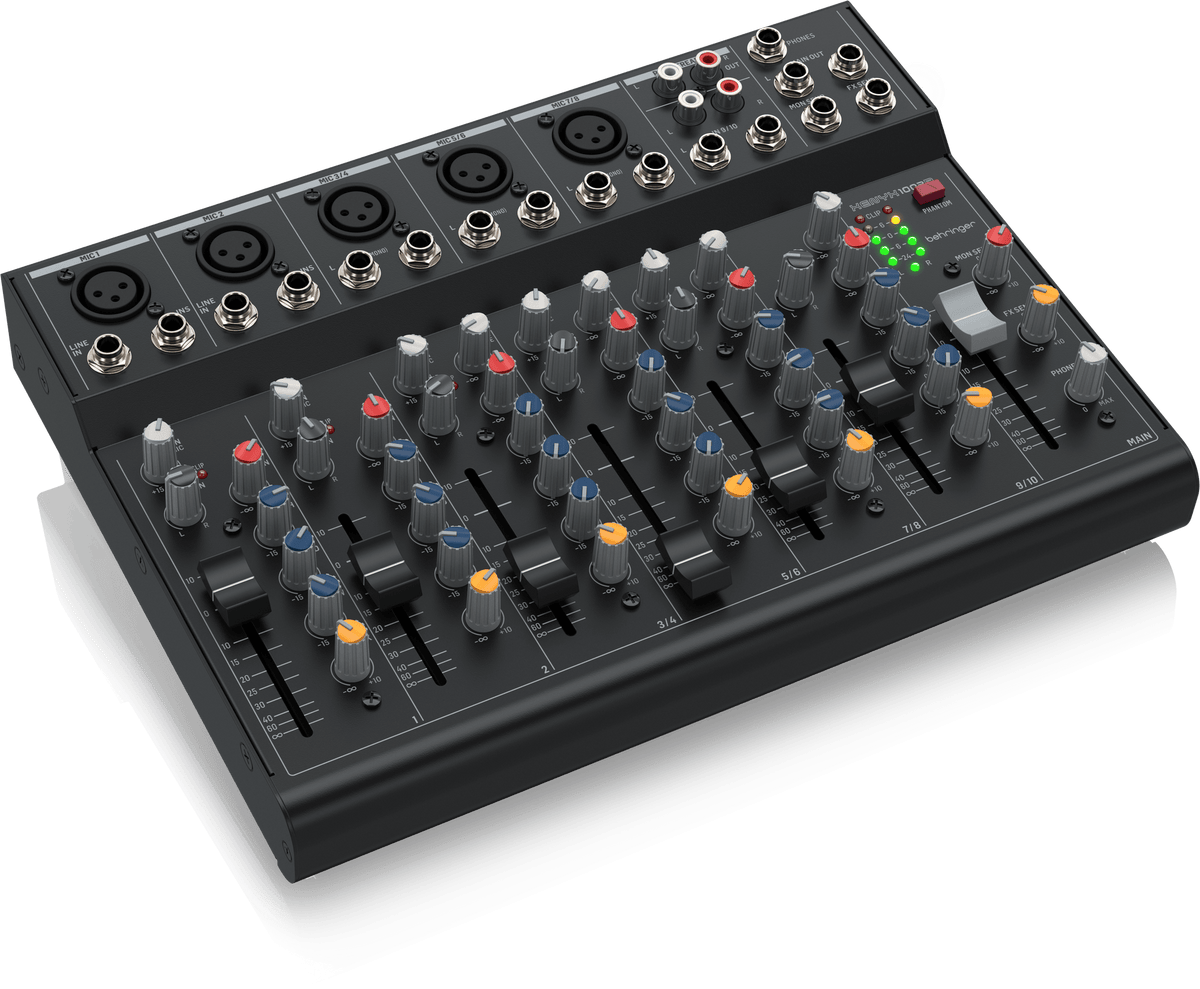

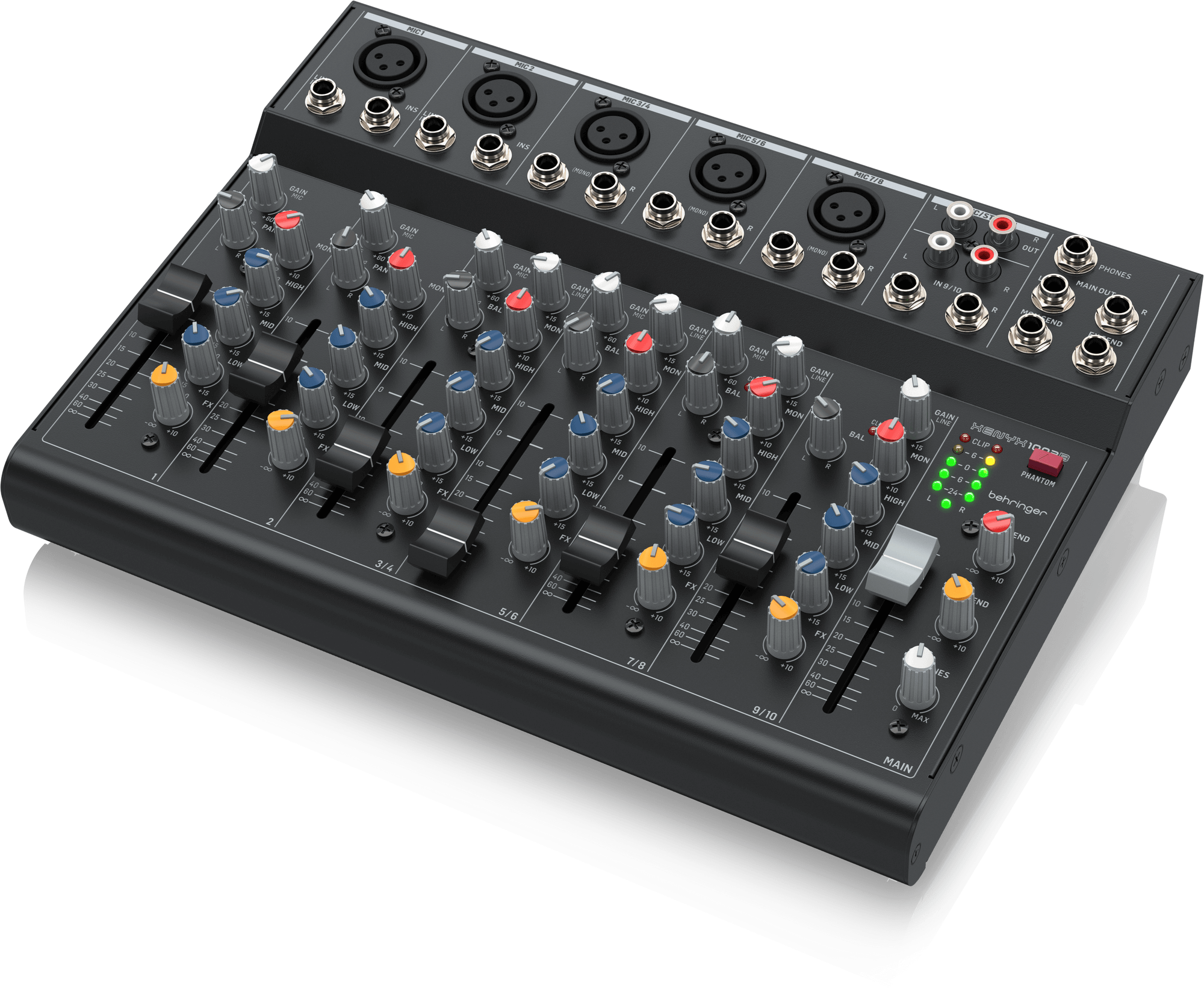

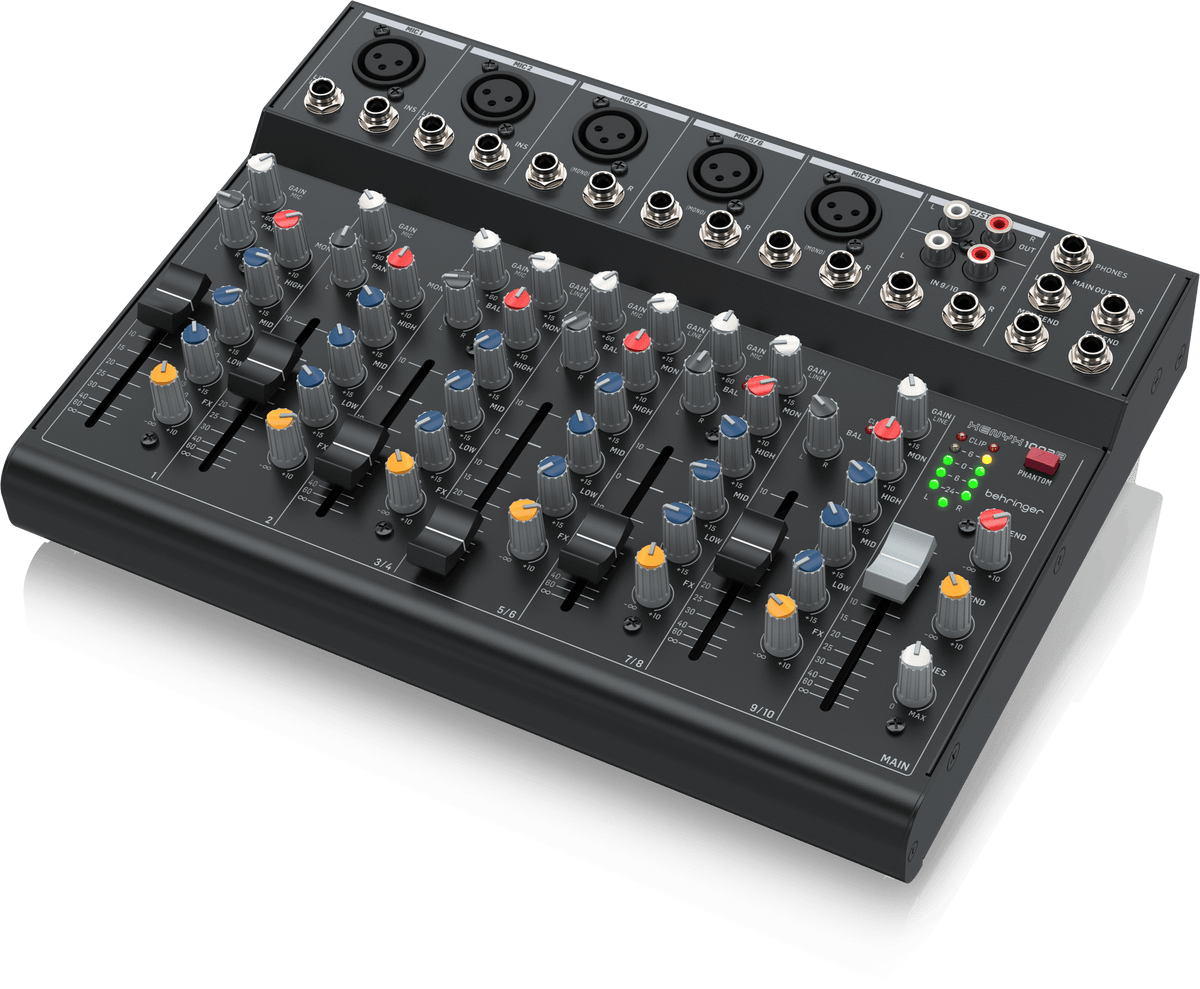

The XENYX 1003B analog mixer features 10 inputs, including five mic preamps allowing you to effortlessly achieve premium-quality sound that’s perfect for live, streaming, podcasting and recording. It provides warm and ultra-musical sound thanks to its award-winning XENYX microphone preamps featuring 48V phantom power for connecting even hi-end studio microphones. The optional battery operation allows you to achieve great sounding mixes wherever the performance may take you.
Record Anywhere

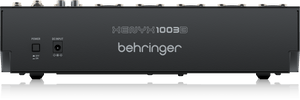

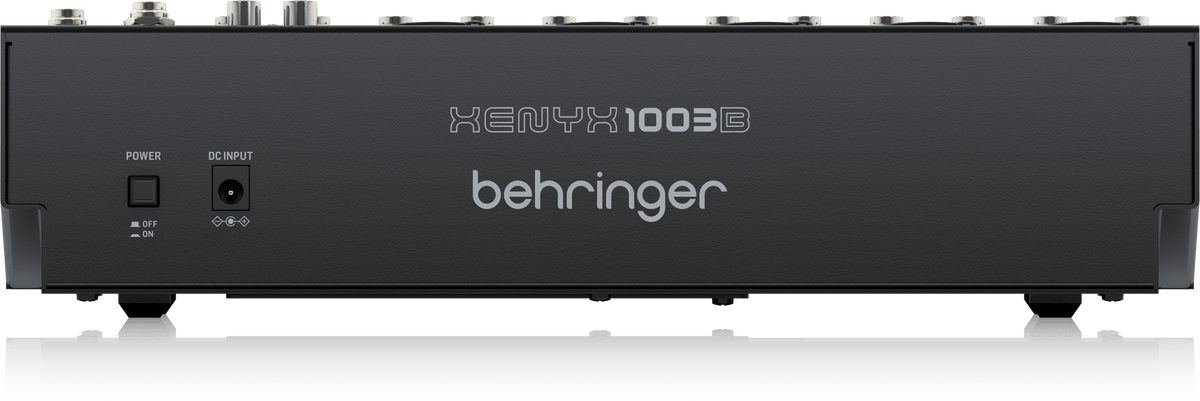

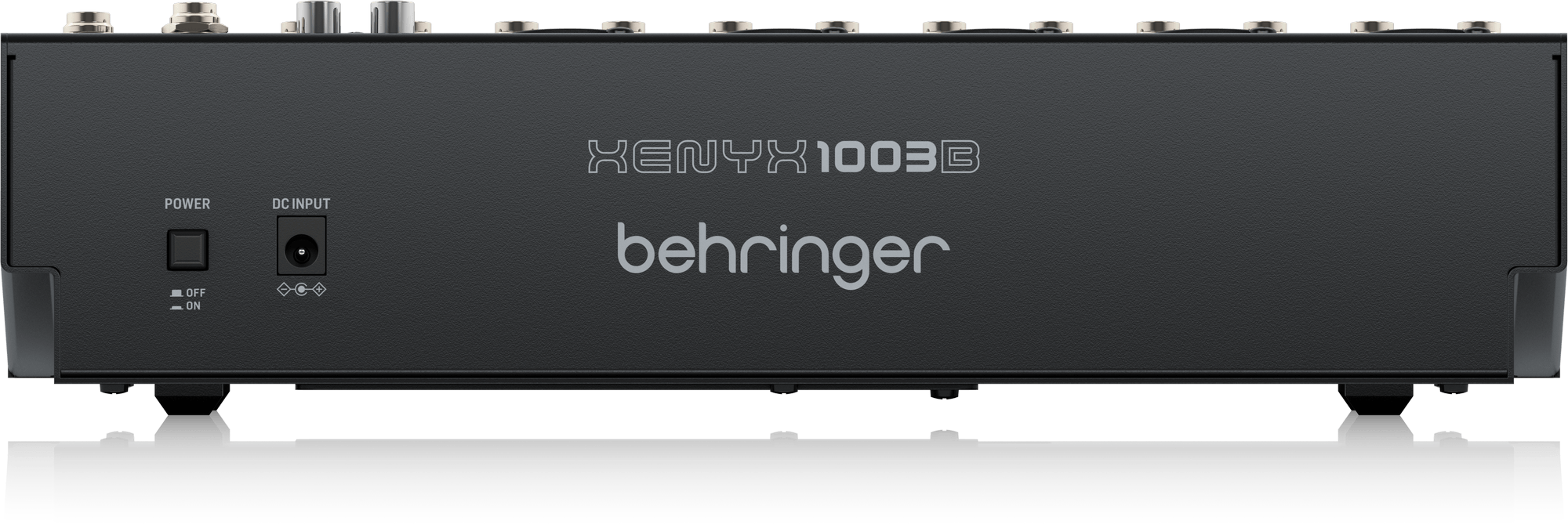

The 1003B is great for mobile mixes or recording when powering the mixer with standard 9V batteries. The ultimate on-the-go recording setup allows you to mix up to 10 sources. The outputs deliver crystal-clear audio for monitoring via headphones or on high-quality RCA and impedance-balanced ¼” TRS jack connectors.
Control Made Easy

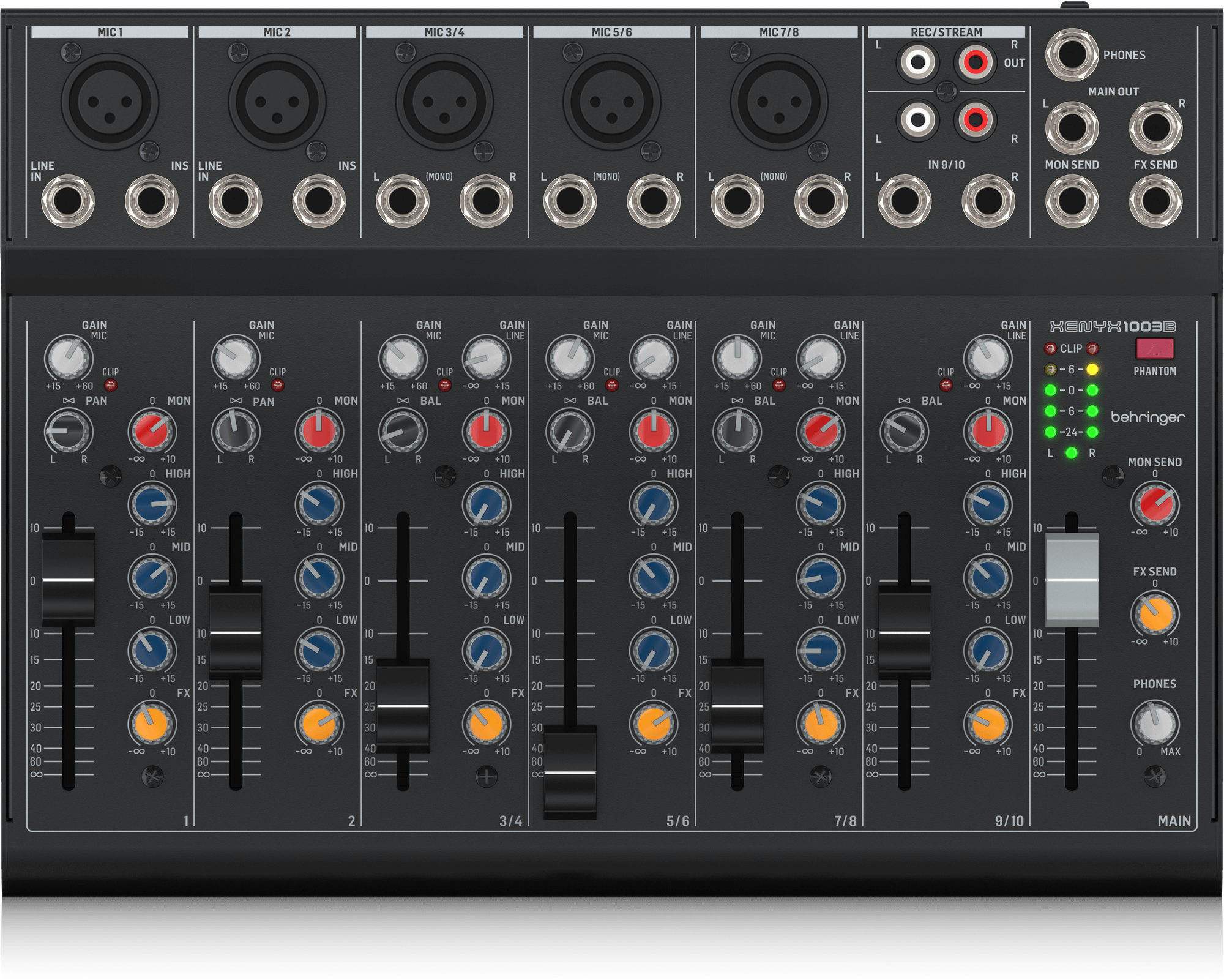

Each channel on the 1003B features a dedicated 60-mm fader for precise control over that channel’s level. The 3-band channel EQ allows for precise and musical sound shaping for any input signal. An integrated post-fader FX send control per channel lets you plug in any external FX processor of your choice for added flexibility. The monitor bus sums up the channel signals before fader and EQ, for creating an independent monitor mix.
Specification
Mono Inputs
| Microphone Input |
Balanced XLR, discrete input circuit |
| Mic EIN (22 Hz-22 kHz) 50 Ω source |
Typ. -128 dB A-weighted |
| Frequency response Gain +15 dB (-3 dB) |
10 Hz - 80 kHz |
| Frequency response Gain +60 dB (-3 dB) |
20 Hz - 60 kHz |
| Gain range |
+15 dB to +60 dB |
| Max input level |
+6 dBu @ +15 dB Gain |
| Input Impedance |
1.8 kΩ balanced |
| Distortion (THD+N) Gain 15 dB |
0.006 % @ 1 kHz -5 dBu |
| Mono Line Inputs |
1/4" TRS connector balanced |
| Impedance |
18 kΩ balanced |
Stereo Inputs
| Line Input |
1/4" TRS connector unbalanced |
| Gain range |
-∞ to +15 dB |
| Max input level |
+20 dBu @ Gain 12O'clock |
EQUALISER
| Low |
80 Hz/±15 dB |
| Mid |
2.5 kHz/±15 dB |
| High |
12 kHz/±15 dB |
